Ashok Engineering & Construction Ganesh Chandra Avenue, Kolkata, West Bengal

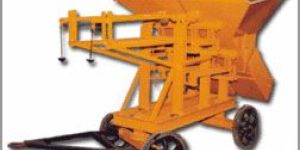

Double Bucket Scale type Concrete Batcher having capacity of 220 KGS on each Bucket, for coarse and fine aggregate with side discharge gate opening directly into feed hopper of 10/7 CFT capacity Concrete Mixer resulting in no slippage.     Mechanism Cantilever Mechanis with scale fitted counter balanced free floating arms and leverages provided with special one KGMS Scale and marker piece.1 CM. from the Scale Denotes 1KG.     Mounting The Complete Unit is mounted on Steel Chassis with 4 Box type Mild Steel Wheels and 4 adjustable Screw Jacks and Tow Bar.

Consists Of Avertical With Wedge Housing Welded At Every 1000/500mm, In Four Direction At Right Sngle. Ledger / Transoms Have End Fitting With Wedges To Fit And Lock In The Wedge Housings.   Advantages This type of scaffolding got the merit of simple and fast errection and permits changing level of ledgers / transoms without distrubimg main scaffolding.   Uses & application This sysem is deal for ideal for very high scaffolding or support multiple staging for chimney – silo construction and sidely used for ship building jobs.

Made from 2.5mm sheet and angle. Available in following sizes or any other size as per requirement:1250 x 500mm1000 x 600mmc). Soldier (Heavy & Light)

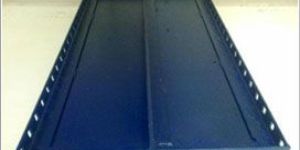

Wall form shutteringpanels are manufactured from 12 swg. M.s. sheet with slotted 45 x 45 x 4/5 mm angle framed and stiffner. Channel or heavy duty sildiers are supplied in 2.5 mtr. X 100mm width. Heavy duty soldiers are to be used in place of channel soldiers for single sided shuttring. The wall form panels and soldiers are assembled together with tubes or channel walers by single clip and bridge clip. For curved walls flexible pannels are used insteade of wall panels. The figure shows assemble ready for 2nd pour with soldiers remaining in the same position. Wall ties remain embedded in first pour. For successive pours, complete assembly of panels soldiers and walings is lifted in convenient length. This system is being used for construction of r.c.c. walls , column, beams etc. Splay panel , haunch panel, internal corner panel and external cornar angle are also available.

Supplied with variable speed arrangement with throttle control, towing handle and two detachable wheels or two wheel trolley. Available in various models : (a) 8-ton Ramming capacity. Powered by 6HP  Air-cooled Diesel Engine or 7.5 HP 440/3/50 AC TEFC Electric Motor. Depth effect : 20 inch, Compaction area : 6000 sq.ft. per hour. (b) 4-ton Ramming capacity. Powered by 4.4-HP 'Greaves' Diesel Engine or 5.5-HP 'Field Marshall Hatz' Diesel Engine or 5 HP 440/3/50 AC TEFC Electric Motor. Depth effect : 15 inch. Compaction area : 4500 sq.ft . per hour. (c) Little Giant Model: Impact force : 850kg. Depth effect : 6 inch, Compaction area : 4000 sq.ft. per hour. Powered by 3.4-HP 'Greaves' or 3.1-HP 'Shriram Honda' or 1.9 HP ' Greaves' or 3-HP 440/3/50 AC TEFC Electric Motor. Used for compaction of earth, soil, foundations, trenches, roads, canal beds, embankments, approach roads etc.

Outstanding for Easy operation, Simple & robust Construction, High compression performance, High cross – country performance because of low centre-of-gravity. ASHOK Vibrating Rammers are made of selected & well treated material. It’s efficient self propulsion guarantees rapid compaction of large areas and exceptional climbing ability. On account of their better than average high frequency of excitation the ASHOK Vibrating Rammers have a true vibration effect & thus the very best compressing result are achived. It is provided with a Centrifugal Clutch for easy starting & idling and Hand Throttle Control for variable frequency operation. Centrifugal clutch also increase the life of the engine and protect the same from the sudden thrust or jerk load produced by jamming of bearing or eccentric shaft. It is provided with impact shock free operating handle and detachable trolley with wheels and towing hook for easy transportation. The Vibrating Element consist element shaft which is mounted on heavy duty bearing running in a sealed oil bath. This provides adequate lubrication and cooling. The element housing securely mounted at the forward end of the base plate to achive maximum compaction and forward motion. The base plate is constructed from M.S. plate. C.I. Base Plate are also supplied. Their size is scaled down in such a fashion that they can efficiently be selected for every optimum working angle. The very deep lying force of gravity matched with a large base plate has made ASHOK Vibrating Rammers a landmark in the Indian market.   Application and Uses Compaction of Asphalt premix & chipping carpet, sealing coat, granular soils, sand gravel , slag chips, dry concrete & bituminious coarse base. Pot holes and patch repair, plinth fillings inside building, compaction and greding operation, compaction of small trenches, stabilizer of cycle track and side walls.Special Salient FeaturesHigh working speed at low cost, Maximum depth effect, Easy to operated & less maintenance. Throttle speed control, High compaction capacity, Centrifugal clutch pulley, Separate trolley, Light in weight, Self propelled, Robust in design & construction, High gradient capacity, Vibration proof streering handle.

A continuous discharge vacuum pump is a completely self contained unit. Two nos. matted areas can be dewatered in one single operation. The pump is powered by 7.5 H.P 3 Phase electric motor.

Ashok Twin Shaft concrete mixer powered with electric motor, botton discharge of concrete through pneumatic/manual gates, with water controller and water pump for automatic water feeding. Twin shaft mixers are used to produce hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. These mixers can also work with a fully automatic batching plant system by attaching three/four bin hopper with weighing system for aggregate and sand screw conveyor for cement and an automatic control panel.

We have launched a very efficient and innovative Builder’s / Materials Hoist using state of the art technology. Here are a few details:   Features Safety equipments of the highest standards have been installed to ensure a more trustworthy work environment   The speed of transportation of material increases to 52 m/min   Materials of all kinds can be transported. Concrete can be directly poured on a wheelbarrow and be unloaded at construction site directly   Each cage has a load capacity of 600 kg having huge space for materials   No scaffoldings are required. The mast can be directly tied to building. Thus, cost of scaffolding is saved   Two separate traction machines allow individual free working of cages at the same time   Safety systems to be included1. Upper/Lower limiting device2. Fall arrestor3. Guide wheel4. Twin machine tracking system

Each machine is an independent system. Both the machines work in a sink. Highly swift, convenient and efficient.

Capacity 7cft unmixed & 5 cft mixed. Hand-fed (without hopper) tilting drum type, mounted on fabricated chassis fitted with 4 C.I. wheels, draw-bar & swiveling arrangement. Powered by 5HP/6HP air/water-cooled Diesel Engine and/or 5-HP 440/3/50 (TEFC) Electric Motor.

Tilting Bucket Trolley on Rails System is a very economical way of transporting concrete / other materials from one place to another place. Tilting Bucket Capacity - 10 cft. Rails - Straight length - 3mtr, 2mtr, 1mtr, Bends 90°,45° & 30° in length of 3mtr, 2mtr & 1mtr.

Outter member made from 60.3mm od & inner member made from 48.3mm od m.s. pipes . Junior props are made from 50.8mm od & 44.4mm od m.s. pipes. Provided with nut with self cleaning notch.

Tamping Rammer is a unique type of vertical jumping rammer particularly suitable when work space for compaction is restricted. The tamping system is lubricated with oil and encapsulated to make it water and dust proof. Gives an impact force of about 11 Tons capacity. Depth of compaction 300mm with a traveling speed of 10mtr / min. Operates on Petrol / Kerosene air cooled Engine. Used for compaction of rockfill, clayey soil, sand and gravel. Uses: Backfilling work, Embankment, Road repairing work. Used for compaction and backfill of cable trenches, electric lines, telephone lines, water lines and road potholing, backfilling between building plinth beam etc.

Vibrations 3000 to 4000 per minute. Available in pan sizes of 15" x 24", 18" x 24", 18"x 30" & 24"x 24". Bottom edges bevelled like a pan & fitted with shock absorbing handle.Powered by 1.9-HP Petrol / Kerosene Engine or 1/2-HP/1-HP/2-HP 440/3/50/AC Electric Motor.

Designed on the principle of 'CAM and PENDULUM' mechanism (Springless). With dial guage calibrated upto 1000kgs. Also available with Spring Mechanism suitable to weigh upto 650 kg each dial.

The single axle strongly built machine works on the principle of dry conveyance. the dry mix is transported from the feeding hopper through the rotors to the material exit. Different rotors are available for a variety of applications. Water is added in the spraying nozzle at the end of the hose. Provided with 2.2 KW (3HP) AC Electric Motor 440 Volt. Supplied with 31/50 mm hoses. Max. conveying distance of 250mtr and max conveying height of 60-75 mtr. This machine is useful for gunite, shotcrete  sprayed concrete and sand blasting.

2-Ton, 3-Ton, 5-Ton & 7.5-Ton - Used for Bored Piles. Double drum winch also available. Accessories for Bored Piling Job Bailer, Rock cutting chisel, Tripod, Top guide casing, Bottom casing pipe, DMC Rod with sockets, Trimmie pipe with sockets Trimmie Funnel, Swivel for DMC Rod, Swivel for Trimmie pipe, Fore cutter (DMC chisel), Centrifugal Mud circulation pump etc. and all other accessories required for Bore Piling work. RMC method also available.

our company is one of the renowned names in the industry for manufacturing high quality engineering construction machines and equipments like electrical shutter / form vibrator which are widely applicable in use for various construction applications. Manufactured using premium quality material and designed by our precise panel of engineers who are having years of experience in this domain. We ensure that machines we manufactured are manufactured strictly under international quality parameters.   specifications can make vibrations upto 3000per min. used for vibrating forms, shuttering of cast-in situ concrete, prestressed and precast units including electric poles, beams, channels and bulk material handling.   features can handle bulk material. available in different grades and dimensions. easy to operate.

Guniting / Shotcreting is the process of conveying desired mixer of dry cement, sand and/or aggregate under air pressure at a high velocity with just sufficient quantity of water for hydration. Equipment consists of a twin chamber gun and a twin water tank and is powered by an Air Motor. The material is deposited on the desired surface through a placing nozzle under a compressed air. These machines can also be used for sandblasting work by fitting on a sand blasting nozzle. Uses : Construction of thin walls, New construction of thin sections  such as shells, Canal and Tunnel Lining, Swimming Pool Lining, Repairing deteriorated Concrete and Concrete damaged by fire, chemicals or earthquake, Strengthening weak concrete structure such as buildings, bridges, jetties, Stabilizing rock and earth slopes, Refractory linings, Encasing steel for fire proofing, Protective coating over prestressed wires and steel pipes, Repairs of Hydraulic Structures such as water tanks, dam walls, To give rough surface texture where such is desired.

Screw conveyors are used for the transfer of cement from the feeding hopper to the discharge hopper. The screw conveyor uses electric motor for circulation of the screw, which results in carrying the cement to the discharge hopper.

Screed Paver is a dual purpose concrete finishing machine. Consisting of a vibrator and screed finisher in one unit. It is light weight, portable and gives higher production and greater accuracy. Powered by 4.4-HP 'Greaves' Diesel Engine or 5.5-HP 'Field Marshall Hatz' Diesel Engine 5-HP 440/3/50/AC (TEFC) Electric Motor. Used for Concrete Bridge Decks, Concrete Roads, Canal Lining & Concrete Floors.
