CNC Machine Dealers in Kolkata

• Country of Origin: Delhi
• Brand Name: CNC Machine
• Condition: New, Good

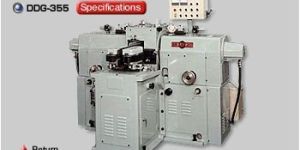

• Type: Double Disc Grinding Machine
• Item Name: Cnc Double Disc Grinding Machine

We offer double disc grinding machine.

• Brand Name: Boyd Inc
• Material: Mild Steel
• Voltage: 240 Volt
• Features: Strong construction, Minimal maintenance, Excellent performance .
• Use: For finishing, shaping, cutting, etc.
• Lathe Machine Type: Horizontal Lathe
• Max Swing Over Bed: 0-250 mm
• Max Spindle Speed: 2000-3000 rpm
• Max Turning Diameter: 0-500 mm
• Automatic Grade: Automatic
• Power Source: Electric
• Phase: Single Phase

• Operating Mode: CNC, Automatic, Semi-Automatic, Heavy Duty , Medium Duty , Old Gear Type
• Condition: New
• Center Height: 6 and 1/2 Inch and above
• Lubrication System: Automatic (Motorized)
• Max. Depth Of Cut: 1 mm Possible
• Table Size: 200 X 600 mm
• Minimum Increment: 0.001 mm
• Table Load Capacity: 100 Kg
• Lathe Machine Type: Horizontal Lathe

• Driven Type: Electric
• Condition: New
• Voltage: 220V
• Country of Origin: Made in India
• Job Material: Wood

• Working size:  W 1200 X  L 2500 X H 300
• Max feeding height: 300mm, or (Customized)
• Max travelling speed: 3000-10000mm/min // 35mtr. / m
• Tool diameter: 3,4 ,6,12.7mm
• Transmission mode: XY is with high precision helical gear rack transmission, Z is  with imported Ball screw transmission
• Software working environment: Windows98/XP/7
• Spindle power: 5.5kw* Water Cooling Spindle / air cooled 4 k w
• Driver motor: Stepper/Servo optional
• Working voltage: 220v\\380v(Optional)
• Engraving command: (G code)(nc),mmg,plt,eng,dxf
• Spindle rotating speed: 3000-24000rpm/min // 6000-18000
• Control system: NC studio/DSP

• Make: Stanko(Russia)
• Chuck Dia: 1150 mm
• Swing Dia:: 1400 mm
• Working Height: 1200 mm
• Features: Sturdy construction , Reliable performance , Flawless finish .

• Brand Name: JANA PRECISION MACHINES

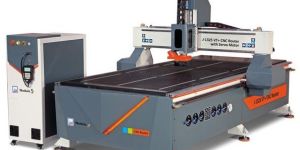

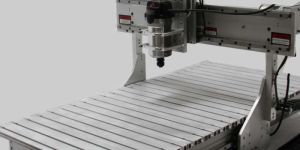

We offer cnc router for wood, stone, plastic and fibre boards. Routers are usually associated with carpentry, which is why cnc routers are usually associated with woodworking only. However, there are many other materials that can be cut. so, if your answer to question one was any of the following: wood particle board plastic foam composites glass aluminum* stone then it is safe to assume that a router could still be the machine for you products desktop cnc routers - 2 ft x 2 ft - 2 ft x 3 ft - 2ft x 4ft large platform single spindle cnc routers - 4 ft x 4 ft - 4 ft x 8 ft - 5 ft x 10 ft automatic tool change cnc routers desktop toolchange machines - large platform toolchange machines

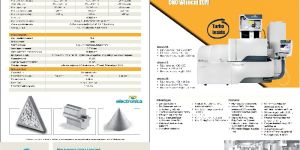

we electronica india limited are engaged in manufacturing of cnc wirecut edm & cnc edm machines. Recently we have started manufacturing of cnc vmc machines. We are in the field of edm & wedm product since last 40 years exporting globally.

• Rated Power: Single Phase
• Spindle Speed: 24000 RPM
• Material: Cast Iron
• Model Name/Number: 4040 Metal CNC Router
• Machine Type: CNC Router
• Job Material: Metal
• Spindle Power: 2.2KW Water Cool Spindle (Hybrid Servo Motor)
• Automation Grade: Semi-Automatic

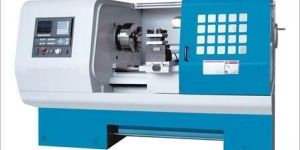

•  Swing over bed:  150 mm
•  Swing over Cross Slide:  60 mm
•  Maximum Machine dia:  30 mm
•  Travel of Cross Slide ( Z axis ):  100 mm
•  Longitudinal Travel ( X axis ):  120 mm

PC based indigenous system at an affordable cost Part Programming using ISO standard G codes Robust mechanical system and powerful drives Automatic Spindle & Coolant pump On/Off using M Codes Part Programming displayed during stop features

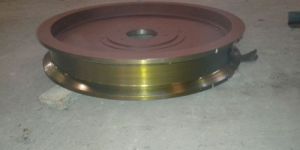

Manufactured as per Customers drawing and specification Made using in-house CNC turning & Grinding and conventional boring machines Manufactured in specifided casting grade Outer diameter is coated with Tungsten Carbide Coating is ground to mirror finish for lowest wear and abrasion

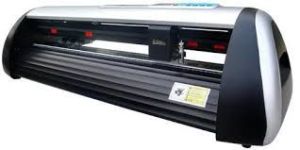

• Type: Cnc Plotter Machine
• Certification: CE Certified, ISO 9001:2008
• Driven Type: Electric
• Voltage: 110V, 220V, 380V, 440V
• Color: Black, Brown, Grey, White
• Warranty: 1year, 2years
• Condition: New, Used
• Automatic Grade: Manual, Semi Automatic
• Weight: 100-1000kg

We are the main supplier of this product.

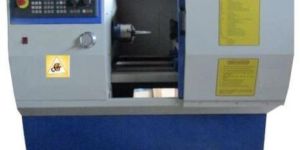

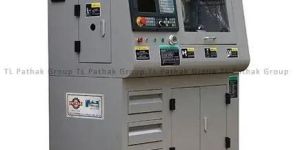

CNC Trainer Lathe We are acknowledged all over the world as the valiant CNC Machines manufacturers & suppliers from India, providing you an exclusive gamut of CNC lathe machines and CNC trainer lathe. 2-Axes CNC lathe machines with 8 station programmable turret: (Flat bed CNC trainer lathe) With concomitant accessories With 2 HP Spindle Variable speed drive motor Following Concomitant Accessories are included. Concomitant Accessories 3 Jaw Chuck (100 mm dia)- 01 No. Center � 01 No. Revolving center � 01 no. Variable speed drives 2 HP DC Motor & DC Drive for Lathe Spindle- 01 No. Window based software to operate M/C (One seat included) � 01 No. Optional Additional copy of Window based CNC Lathe software. � 01 No. 04 Nos. CONCOMITANT ACCESSORIES REQUIRED TO OPERATE THE M/C Suitable PC-PIV- 1 No with. 40 GB HDD (minimum) 14� VGA Color Monitor 3 ½ �Floppy disc drive, CD Drive 128 MB RAM CD Drive 101 English Key, key board This is essential to operate CNC Machine. Essential Accessories: Solid State Voltage Stabilizer 2 KVA Optional Accessories for CNC Lathe (Additional � Not essential for operation but useful for long life) Automatic Lubrication System with Hand pump�1 No. Coolant pumps with nozzle�1 no. Tool Holders with Sandvik tools (Brazed tools) Tool holder for external screw cutting with 1.5 mm pitch�1 No. Tool holder for plunge cutting� 1 No. Tool holder for Boring � 1 No. Eight Station Automatic Index able Turrent BTP-40T (To be used like aluminum or brass)�1 No. Drill chuck (Capacity up to 8mm) � 1 No. With Arbor MT-1 CNC Mill Trainer is also available with us accessible in different specifications. CNC Milling Machine With ATC 3-AXES BENCH CNC MILLING MACHINE WITH (ATC) CNC MILL TRAINER � Three Axes With Technical Tie-Up With Tudor-U.K.(Cut Viewer) CAD S/W interface possible With Essential Item Like- Basic machine with ball screw, stepper motor drives & controller, motor 1 hp variable speed drive. For CNC mill head. (As per description and technical specification in Literature enclosed) Manual Tool Change Controller for machine Concomitant Accessories (I.e. Tool & fixture these are essential to operate the Machine) Set of Tools Fixture machine vice � 01 Set. Milling cutter � 01 No. Holder Collet Holder � 01 No. Collet 4 to 16mm � 04 Nos. End mill holder � 01 No. Cutters Facing Cutter � 01 No. End mill of 10 mm dia � 01 No. Slot drill of 6 mm dia � 01 No. Twist drill of 4, 6,8,10 dias. � 01 Set. Slot drill of 10 mm dia � 01 No. PC- Pentium III / Pentium IV No. 40 GB HDD (minimum) � 01 No. - 15� Colour monitor - 3 ½ � Floppy Disc Drive - 128 MB Ram - 101 English Key, Key Board 1 No. of I/O card & 1 no. ADC Card with Isolation � 01 Set. Automatic tool change & control Software (Hydraulic Powerpack) - 01 No. Other Item Voltage Stabilizer (2KVA) with 2% regulation Window Based Offline Software (With FANUC control) One Seat Two Seat Five Seat Window Based Offline Software(Cut-Viewer, Tuder UK make with FANUC, Heidenhein, Siemens Control) One Seat Two Seat Five Seat Ten Seat

Precision CNC Machining, Aluminium Cast Plates, Aluminium Sheets

• Features: Quality-tested

VX-200 New VX-200 Super Capacity Swing Over Bed Ø 400mm Ø 400mm Std. Turning Dia. Ø 200mm Ø 200mm Max. Turning Dia. Ø 300mm Ø 300mm Dist. Between Centers 600mm 600mm Max. Turning Length 450mm 550mm Sliders Cross (X axis) Travel 170mm 170mm Longitudinal (Z axis) Travel 450mm 550 Rapid Feed (x & z axis) 24m min. 24m min Ball Screw Z axis Ø 32 x 10P Ø 32 x 10P Motor Torque (Z axis) 7 NM 7NM X axis Ø 32 x 10P Ø 32 x 10P Motor Torque (X axis) 7 NM 7NM Main Spindle Spindle Motor (Cont.30 min) 5.57.5 Kw 7.511 Kw Spindle Nose A25 A26 Spindle Bore Ø 38mm Ø 63mm Max. Bar Capacity Ø 25mm Ø 51mm Chuck Size Ø 200mm Ø 200mm Front Bearing Bore Ø 80mm Ø 100mm Speed Range 50-3500rpm 50-3500rpm Full Power Speed Range 1500-3000rpm 1000-3000rpm Turret Size BTP-80 BTP-80 No. of Stations 8 8 Tool Size 25x25mm 25x25mm Max. Boring Bar Capacity Ø 40mm Ø 40mm Tail Stock Quill Diameter Ø 80mm Ø 80mm Quill Stroke 100mm 100mm Taper in Quill MT-4 MT-4 Accuracy Positioning Accuracy ±0.007mm 0.007mm Repeatability 0.003mm ±0.003mm Other Data Weight (approx) 3450 Kg. 3800Kg. Machine Dim. (LxBxH) 3040 x 1630 x 1800mm 3040 x 1630 x 1800mm Control System Fanuc Oi Mate TD Siemens 828D Basic-T Fanuc Oi Mate TD Siemens 828D Basic-T PRODUCTS RANGE WORKSHOP MC'S WOOD WORKING MC'S SHEET METAL MACHINERY -->

Cnc turning is a machining process in which a cutting tool moves linearly while the job piece rotates. When turning is done on internal surface its called boring. Turning and boring is a common job work for cnc machining. On a general sense turnmill machines are based on lathe machine principle. There are many terms related to turning such as boring, facing, parting etc. On a more detail basis, turning can be categorised as straight turning, tapered turning, and external or internal grooving. When Cnc turning is done on internal surface it is called boring, while parting is cutting a part of the job piece through out to seperate it from the rest of the rod. Moreover turning often is needed along with other machining job works such as cnc milling, cnc boring etc, so in industrial as well as commercial applications cnc turning and other machining center has got a huge application. We in our machining centre in Kolkata, have high accuracy cnc turning machines, capable of producing jobs upto 5 micron accuracy. Below are the pictures of few of our turning job works.

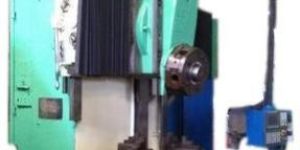

CNC Vertical Lathe, Heavy Duty Lathe Machines, Horizontal Lathe

We are offrering dedicated cnc machining.
