Control Desk Dealers in Kolkata

• Rated Insulation Voltage: 690 Volt AC
• Rated Operator Voltage: 110V (±10%), 220V (±10%), 415V (±10%) AC
• Withstand voltage: 8 KV for 1 Sec
• System: 3-Phase: 3 or 4 wire, 50Hz
• Rated Current: 100-500Amp
• Fault level: 50KA for 1 Sec

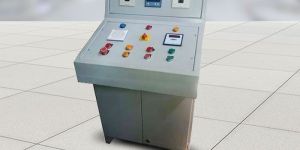

We design & build quality and cost effective Control Desk Panels with the latest technology as per our industrial requirements. Control Desks are used to control industrial processes in any type of industrial plant/manufacturing unit. They brought with the necessary protection devices, switches, push buttons & indicating lights to control the desired process. SPECIFICATION Ambient Temperature: 50°C Busbar Support: AL/CU as per client requirement Degree of protection: IP-54, 55, 66 Dimension (mm): As per requirement Current Monitoring: As per requirement Phase Monitoring: Possible as per requirement Type test to be performed: Short Circuit with Stand temperature rise with stand & Degree of Protection Panel Cote: 7 tank Powder Coated Paint or as per Client’s requirement. Paint: RAL9002 or as per client requirement Panel Mounting: Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame

• Application: Industrial
• Type: Semi Automatic, Manual, Fully Automatic
• Features: Optimum performance, Easy installation, Reliable, Compact designs.

We design and manufacture Control Desk with fiber glass or acrylic mimic diagrams. These are completely equipped with annunciation equipment and are designed and manufactured for all types of Process Control Industries. These control desk can be offered on custom basis also.

We offers PC & Aux. Control desk that are used to control various motors/gadgets on/off, remotely settled in any comfortable place and for monitoring. Panel is located inside the area and multi-core cable is used to interlink panel & desk. We also offer this panel for use of Rice meal or flour meal etc.

Wide Range of Master Controllers, CAM /DRUM CONTROLLERS, REVOLVING CONTROL DESK working in Steel & Iron Industries, Ports & Docks in India. Cam / Drum Controllers up to 7-0-7 notches upto 150 Amps for direct motor controls with or without Rotor Resistance. Simplex & Duplex Master Controllers up to 5-0-5 notches with or without gate up to 16 cams. Revolving armchair Control desk fitted with various switches and meters completely wired upto terminals. Chair adjustable up & down, front & back.

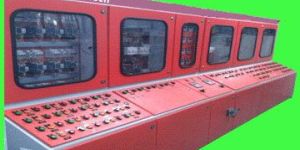

We provide highly functional range of Control Desk & Mimic Panels that is used for accurate demonstration of process plant where control panels and desks are used. With the help of this panel, one can view the whole plant sitting at one place so that we can easily recognize the status of operation or fault.

• Application: Control Panel
• Voltage: 220V, 380V
• Material: ABS, Mild Steel, PVC
• Power: 1-3kw
• Power Source: Electric
• Phase: Double Phase, Single Phase, Three Phase
• Autoamatic Grade: Automatic

Used In : Process Units | Railways | Airports | Chemical Plants | Utility Plants | Sewage Plants | Manufacturing Units | Pharmaceutical Plants

Control Desk, busducts, Electric Control Panel, Dry Transformer

Meter PanelControl Desk, Main Distribution Panel, AC / DC Drive Panels

Control Desk, Drive Panels, Electrical Items, float cum boost battery charger

electrical mcc control desks, Drive Panels, Plc Panels

Control Desk, Electric Control Panel, Feeder Pillar, Bus Duct

Control Desk, Current Transformers Metering Unit

Control Desk, Charge Controller, pump inverter, Ups
