Diaphragm Gauges Dealers in Kolkata

• Connection: 1/4” NPT-F (Optional Male)
• Accuracy: + / - 2% FSD (Ascending)
• Ranges: Various DP ranges from 15 mmwc upto 7 bar.
• We can also offer Compound ranges in series DGC 300 and series MAGNETIC:
• Dial sizes: Various options like 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia.
• Working Pressure: Various options up to 100 bar
• Porting: Options like In - Line. Back or, Bottom
• Calibration: Non-Linear, spread over 65 degrees to 75 degrees Arc.
• Sensing Element: Small Convoluted Diaphragm
• Wetted parts: Aluminium, Brass, SS 316, Industrial Plastic, Buna N, Viton
• Max. working Temp: Max. 80 degree C if Buna N is used and can be max. 200 degree C if Viton is used.
• Enclosure: IP 65

• Country of Origin: India
• Accuracy: ±1% of Range Span
• Brand Name: Alamdar International
• Dial Size in mm: 65,100 &150mm
• Dial Material Color: Aluminium, stove enamelled white
• Dial Marketings Window: Black on White Ground
• Bourdon Tube Material: Clear Glass Standard; Shatter Proof Glass - Optional
• Movement Material: Phosphor Bronze; AISI 316 SS
• Shank Material: Brass; AISI 304 will SS impregnated 'Delrin’ sector & Pinion Bushing
• Mounting: NEMA- 3, IP-54/55 & ISA-RP. 8.1-2B
• Connection Location: Local (Surface/Wall/Projection); Flush Panel

• BLACK: TEFLONE COATED

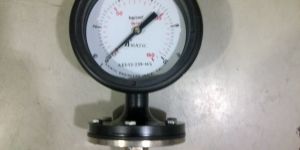

we offer diaphragm pressure gauge schaffer type dial gauges available in 100 mm & 150 mm dial size in various range.

We are offering Schaffer Diaphragm Pressure Gauge.

• Range –: 0 to 70kg/cm, 0-760 cm/hg and 0 to 6000mm we (low pressure)
• Dial Size(in mm) –: Sealed with Glycerine, Schaffer Low pressure

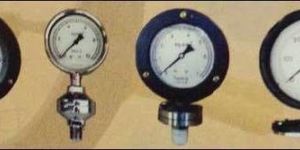

Our product Keeping in mind the precise demands of clients, we supply a wide range of Diaphragm Gauge as per the specific requirements of clients.   Sensing Element – Spring Steel/Stainless Steel Diaphragm Accuracy – Cast Aluminium, Cast Iron/Cast Iron, SS 304/316 AISI Application – Fertilizers, Petro Chemicals, Refinery, Cement/Sugar/Pulp Industries, Steel Plant, High Vaccum etc.

Diaphragm sealed gauge commonly known as “chemical seal” gauge are designed and recommended to isolate the measuring system of a pressure gauge from corrosive, pasty or dangerous fluid depending on the viceosity, pressure, temperature, solidification of a particular process medium. The diaphragm seal has been filled under vacuum with the transmitting liquid, the pressure gauge/diaphragm seal assembly must never be dismantled. A carefully designed corrogated diaphragm is used to achieve maximum flexibility and linearity with sufficient stroke to provide the displacement needed to produce full deflection of the sensing element. The diaphragm is argon arc welded to the top chamber to ensure a perfect selling “No LEAK”. In some cases the diaphragm is coated OR lined with a second membrane (teflon). The welded construction facilitates removal of the gauge for repair/service without process shut down. The displacement of the diaphragm is transmitted to the bourdon sensing element, through solidly filled liquid having low cubical expansion with greater temperature stability. The gauge indicator is either directly fitted with the sealed chamber OR by means of capillary tube, thus permitting easier mounting OR the remote reading of the pressure. These Gauges are recommended where fluid is highly corrosive, contaminated, viscous or liable to crystallize inside measuring system. The gauge above the diaphragm seal is filled with silicon oil that transmits the pressure acting on the diaphragm to bourdon tube Diaphragm is welded to the upper part of sealed unit and therefore it is possible to seperate the upper and lower parts to clean the diaphragm without removing the gauge. Diaphragm can be ANSI 316. Tantalum, Hastelloy C and Monel. Pressure gauge can be of type 1, 3 and 5 and process connection with Standard threads or flanged connection confirming to ANSI, BS or DIN Specifications. Available in dial size 100 mm and 150 mm, Accuracy ±1percentage in all standard ranges. APPLICATIONS Chemical process industry Petrochemical industry For aggressive, highly viscous, crystallising or hot media SPECIAL FEATURES Flange with a flush welded diaphragm Available for all common standards and nominal diameters When special materials are selected, all wetted parts (diaphragm and sealing face) are made of the selected material  DESCRIPTION Diaphragm seals are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media. A diaphragm made of the appropriate material provides for the separation from the medium to be measured. Thus even the most difficult measuring requirements can be met by combining measuring instruments with diaphragm seals. A fluid inside the system, which can be chosen to suit the particular application, hydraulically transmits the pressure to the measuring instrument. Almost limitless application possibilities exist due to the large number of available variants, such as diaphragm seal designs or materials. The type of process connection (flange, threaded and sterile connection) and the basic method of manufacture are important design differentiation criteria. Assembly of the diaphragm seal and measuring instrument is made via a direct assembly as standard or optionally via a cooling element or a flexible capillary

The SH model process gauges is the design principle and material selection of our pressure gauges allow them to meet the stringent demands occurring in service in process industries.

Diaphragm Gauge, Air Pressure Regulator, Pressure Gauge, water gauge

These gauges are suitable for low pressure measurement of non-corrosive gases, commercial heating, gas distribution and filtration. Measuring System of Brass or SS 304 Capsule. Case Material cast aluminium. Available in pressure range 0-50 mm WC upto 10000 mm WC in pressure, vacuum and compound ranges. Available in all standard process connections NPT, BSP etc. ; in dial sizes upto 150 mm Accuracy upto ± 2percentage.

These gauges are suitable for low pressure measurement of non-corrosive gases, commercial heating, gas distribution and filtration. Measuring System of Brass or SS 304 Capsule. Case Material cast aluminium. Available in pressure range 0-50 mm WC upto 10000 mm WC in pressure, vacuum and compound ranges. Available in all standard process connections NPT, BSP etc. ; in dial sizes upto 150 mm Accuracy upto ± 2percentage.

Diaphragm Type Capsule Gauge, DANFOSS PRESSURE SWITCH

Diaphragm Sealed Gauge, Water Meter, Fabric Expansion Bellows

Diaphragm Pressure Gauge, Manufacturing Products-Temperature Calibration Bath
