Drilling Equipment Dealers in Salkia, Kolkata

•  Specification:  Pillar Drill Machine HPD – 20
•  Tilting working table:  Upto 360°
•  Drilling capacity:  20 mm
•  Pillar Diameter:  74.30 mm
•  Spindle nose to table distance:  650 mm
•  Distance from spindle nose to base distance:  900 mm
•  Distance from spindle center to pillar surface:  200 mm ( MAX )
•  Table Travel:  200 mm
•  Taper in spindle:  MT -2
•  Number of speed:  8 Speed
•  Range of Speed (RPM):  80 to 3500
•  Table Size (in mm):  260 x 260
•  Base size (Machined Area mm):  470 x 320
•  Overall Base Size (in mm):  490 x 310
•  Spindle Travel:  130 mm
•  Pillar Length:  1170 mm
•  Overall height with pulley guard:  1420 mm
•  V-Belt section:  A – 44″
•  Weight (Approx.):  110 kg.
•  Motor1440 RPM 3 Phase440 volts:  0.5 HP
•  Shipping Wooden Case Inner Size LxWxH (in mm):  660x380x1140 mm

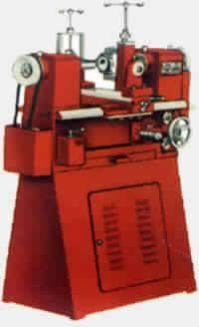

• Max. length of black: 1551 mm
• Distance from built in parallels to Boring bar: 815 mm (maximum), 515 mm (minimum) ,
• Boring capacity with: 34-150 mm (Standard boring bars), 26-225 mm infinitely variable from 50-750 rpm in two steps (Extra boring bars of 22 & 60 mm dia)
• Feed : both direction (automatic & manual): 0.15 mm Roughing , 0.04 mm Finishing
• Max. travel of boring bar: 325 mm
• Additional travel with extension bar (extra equipment):  260-325 mm
•  Drive motor (440 V, 3-ph, 50Hz):  1.5 hp
•  Width of bed:  570 mm
• Work space required: 5050 x 1760 mm
•  Net weight (approx.): 1700
•  Gross weight: 2200

• Type: Cylinder Boring Machine
• Application: Boring
• Certification: CE Certified
• Condition: New

• Features: Immaculate finish, Nominal price

We provide Counton Power Holing with powerful motor, which is widely demanded amidst the customers. The Counton Power Holing is supplied to merchants who work with papers & vouchers and by Banks, Wooden Industry and others. The Counton Power Holing of our company is highly acclaimed by the customers for the unbeatable qualities it possess. Qualities : Electro-mechanical designing Light weighted Holing capacity of 4� Size of hole : 5 mm. Applications : Banks Merchandisers
