ECG Machine Dealers in Kolkata

• Country of Origin: India
• Warranty: 1 Year, 2 Year, 5 Year
• Color: Blue, Green, Grey, Pink, White, Yellow, Shiny-silver, Silver
• Certification: CE Certified, ISO 9001:2008
• Specialities: Accuracy, Durable, Light Weight, Lorawan Compatible, Low Power Comsumption, Multi Jet, Stable Performance
• Usage: Medical Use, Clinical, Hospital

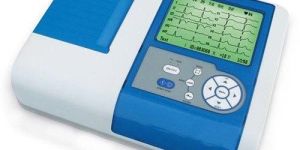

We are offering six channel ecg machine six channel digital ecg machine with interpretation simultaneous acquisition of 12-lead ecg signal manual/auto/arrhythmia analysis modes real time ecg, 20 patients cases 112mm 3/6-ch format recording 320x240 graphic, 5.7 inch lcd built-in usb or rs232, optional pc-ecg software ac/dc power, built-in rechargeable ni-mh battery.

• Country of Origin: Made in India
• Machine Type: Digital
• Digital Filtering: Yes
• Operating Mode: Automatic
• Accessories: Power Cord

• Power Supply: 100-120V or 220-240V, 50/60Hz or internal rechargeable battery with lifetime of 60 minutes
• Safety  : Class I,  type CF
• LCD display: Backlit high resolution 1024 x 600 10 inch touchscreen display 12 channel ECG waveform simultaneously
• Leads : 12 STANDARD or CABRERA leads
• Defibrillation protection: Internal, according to current regulations
• Recording modes: Manual, automatic sequential, automatic simultaneous, Rhythm lead selectable
• Print Channels: 12 channels , Rhythm lead selectable
• Writing system  :  High-resolution thermal printer (8 dots/mm); Horizontal 40 dots/mm
• Thermal paper: 216mm wide 20M thermal paper in Z-fold packers or in rolls
• Paper speed : 5 - 6.25 - 10 - 12.5 - 25 - 50mm/s ± 3%
• Recording sensitivity : Auto or Manual: 1.25 - 2.5 - 5 - 10 - 20 - 40mm/mV ±3%
• Input dynamics : ±500 mV @ 0 Hz ± 10 mV in the pass band
• Input impedance : 50 MΩ DC
• Power requirements: AC220V/50Hz
• Common-mode rejection:  > 90 dB
• Frequency response : 0.05 to 150 Hz
• Time constant : >3.3 s
• Data acquisition : 12 bits; 1000 samples/sec/channel when printing, filtering and computing
• Fuse Specification: 2Φ5x20mm
• Case storage: 150 cases at least, can be stored on external SD card
• Patient Cable: standard 10 leads
• Resolution  :  3.125 uV/bit
• Net weight: 3.7 kg (8.14 lb)
• Gross weight: 5.2 kg  (11.44lb)

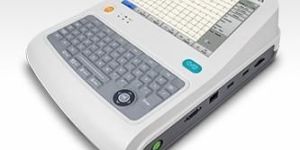

• Features: 1024*600 10inch color touchscreen display. Twelve channel ECG machine with interpretation. 12-lead ECG simultaneous acquisition. Multiple operation modes: Manual/Auto/Arrhythmia Analysis Modes.

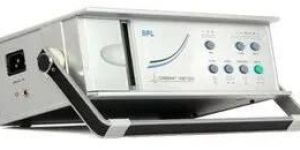

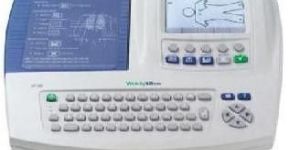

We are offering ecg machine- 12. Features: compact in size, easy and direct operation, portable accurate pace pulse identification and automatic analysis function four working modes: manual auto physical examination storage 12 leads simultaneous waveforms display 800 x480 graphic 7 inch color screen with alphabet keyboard for input 15mm, 12 channle a4 format recording built-in usb, rs232 interface, computer software optional adapt to 110-230v, 5060hz ac power supply, advanced [freeze] function built-in rechargeable li-ion battery,

• Country of Origin: Made in India
• Number Of Channels: 1 Channel
• Brand: BPL
• Model Name/Number: 6108T
• Digital Filtering: Yes
• Operating Mode: Automatic
• Filters Type: Baseline Filter

• Power supply: AC: 100V
• Channel: 3/6
• Medical Device Regulatory Type: Type 2

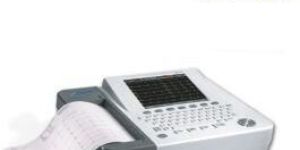

We are offering 12 digital chennel ecg machine. Detailed product description portable digital 12 channel 12 lead ecg signal 5.7 inch lcd machine electrocardiography features: 12 channel digital ecg machine with interpretation simultaneous acquisition of 12-lead ecg signal manual/auto/arrhythmia analysis modes real time ecg, 20 patients cases alphabetic keyboard for patient info multiple printing modes 320x240 graphic, 5.7 inch lcd high resolution thermal printing system high resolution digital filter built-in usb or rs232, optional pc-ecg software ac/dc power, built-in rechargeable ni-mh battery light weight, portable, convenient for use

• Application: Resting & Diagnostic
• Portable: Yes
• Types: 12-Lead

• Country of Origin: Made in India
• Number Of Channels: 3 Channels
• Brand: BPL
• Machine Type: Portable
• Digital Display: Yes
• Operating Mode: Automatic
• Sensitivity: 5
• Defibrillation Protection: Yes

• Number of Channels: 1 Channel
• Machine Type: Digital
• Weight: 1.5-2.5 kg
• Application: Hospital, Clinical
• Lead Selection: Automatic
• Frequency Response: 0.05 Hz to 150 Hz (-3dB)
• Power Supply Range: AC 100V-115V/220V-240V

• Display:: LCD 3.5″, 320 x 240
• Paper:: 50mm x 20mm roll paper
• Battery:: 12V (1500 mAH) Ni-MH battery
• Dimensions:: 300mm x 230mm x 72mm

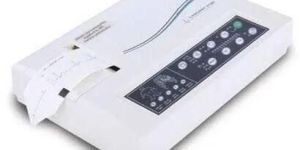

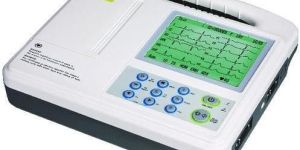

Single Channel ECG machine with measurement Manual / Auto / Arrhythmia Analysis Modes. Built in rechargeable NI-MH battery. Adapt to 110 – 230V, 50 / 60 Hz, AC power supply. Built in RS232 interface (ECG NET Software optional

ECG machines are one of the basic diagnostic tools for cardiologists and physicians. They can be used to perform routine diagnostic checks.

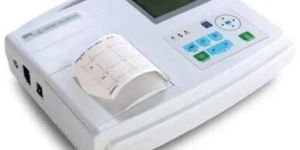

• Number Of Channels: 3 Channels
• Brand: BPL
• Model Name/Number: 6208 VIEW
• Machine Type: Digital
• Digital Display: Yes
• Operating Mode: Automatic
• Rechargable Battery: Yes
• Accessories: User Manual And Warranty Card, Power Cord, Patient Cable
• Battery Type: Lithium Battery
• After Sales Services: Yes
• ECG Acquisition: 12 bits; 1000 samples/ sec/ channel
• DF Protection: Internal

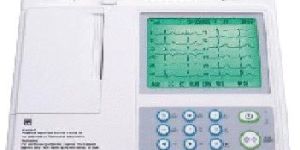

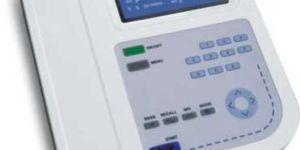

We are the leading exporter, importer and supplier of Digital Six Channel ECG Machine which is procured from a reliable vendor of the industries. Known for its durability, high performance, accuracy, and low maintenance, it is widely accepted by clients from across the world. Moreover, it is duly inspected by our quality experts before supplying it to the clients. FeaturesPrinted by 1+1 rhythm lead.With function of rhythm lead for observing abnormal ECG waveform & heart rate, Automatic Measurement and Interpretation of ECG waveform to relieve doctors from strain.Roll recording paper for digital ECG is 63mm in width, can simultaneously show 12 lead waveforms and print out three real time lead waveforms.Big LCD screencan display 12 lead ECG waveforms and operating status.Simultaneously 12 leads acquisitionDigital signal processor for effective inhibition of baseline drift, AC interference filter, EMG interference filter and the heart rate, to guarantee the authenticity and dependability.Supported by AC/Rechargeable battery for continuous examination whenever necessary. For battery operation, ECG is equipped with a battery charger and a system for battery capacity management and protection.Digital isolation technology is for minimizing component drift v/s time& temperature to guarantee high-adaptability of the equipment to the environment.Automatic measurement and analysis of common ECG parameters.Built-in RS232 interface, USB interface is optional.Concept of floating input circuit meets IEC safety standard. Extensively Used inICUCCUCadres wardsNurses stationsFirst-aid center
