Flexible Coupling Dealers in Kolkata

• Application: Industrial
• Industry Application: Engine Drives, Compressors etc.
• Maintenance: Nil
• Installation: Easy
• Suitable for: DG Set
• Performance: Optimum

Introduction The TAC/TVN coupling is an axial pluggable highly flexible coupling developed for a variety of different applications. This disc element is vulcanized at its inner radius, the outer radius is connected to the flanged casing by a plug-in toothing. This toothing provides the axial plug-in feature and compensation of shaft displacements. Salient Features High damping character. Max. Axial redial angular misalignment. No lubrication. Advantage : Maximum flexibility is provided by different coupling designs installation in bell-type housings or free-standing installations, designed with single or dual arrangement of natural rubber or silicone. There is an extremely compact design for high power density. This spline enables axial engagement with ease of assembly. Integrated supporting rings protect the spline against slipping through or developing cracks in the gearing teeth.   Ecd Rubber Bonded Flexible Coupling : ECD type coupling is a combination ofmetal & rubber bonded flexible suitable for high torque transmissions.

• Material: SS
• Usage/Application: Rolling Mill, Electroplating, Extrusion, Reduction Of Aluminium, Copper, Iron
• Brand: Kubler
• Voltage: 240 V
• Frequency: 50 Hz

• Country of Origin: India
• Material: Carbon Steel
• Head Shape: Round
• Certification: ISO 9001:2008
• Color: Blue
• Packaging Type: Packet
• Grade: C45
• Corrosion Proof: Yes
• Corrosion Resistance: Yes
• Speciality: High Strength

• Material: Metal
• Shape: Round
• Certification: ISI Certified
• Color: Grey
• Condition: New
• Fetatures: Corrosion Proof, Fine Finished, High Strength
• Technics: Forged

Grid couplings are multi-piece mechanical shaft couplings used to transmit torque and rotation between shafts in mechanical power transmission assemblies. Their design allows them to accommodate the slight variations in alignment that occurs between connected shafts, while also absorbing shock loads.

• Size: Multisizes
• Material: Metal
• Color: Metallic
• Shape: Round
• Thickness: 20-30mm
• Features: Finely Finished , Expansive Applications

• Application: Industrial

• Type: AAR type e
• Brand Name: ADE
• Warranty: 12 months

We are the world renowned manufacturer of railway couplers.we have been manufacturing couplers for over 40 years in the field and recognised and reputed manufacturer and have been supplied all over the world.

• Material: Cast Iron
• Surface Treatment: Polished
• Weight: Approx 8 Kg
• Temperature: -40 to 100 Degree C
• Torque: 4-980 N.m

Rathi Disc Coupling couplings are fully metallic couplings, consisting of two adapters, one centre spacer member, two sets of stainless steel flexible membranes bolted together with high tensile bolts. Replacement of flexible membranes is easy, simple and is possible without disturbing drive or driven equipment. Features High power – to – weight ratio.No wearing parts, no lubrication required.Easy installation with ‘Drop Out’ spacer.Accommodates angular, parallel and axial misalignments.Non stainless steel parts coated with a durable anticorrossive coating.High temperature application.Replaceable flexible membranes.Visual inspection possible without disassembling equipment.Inherently balanced.High torsional rigidity with low axial stiffness.Special options including spacer lengths, modified adapters, special materials are available.Floating shaft / cooling tower coupling available.Backlash free.High speed capacity.Dynamic balancing to customer specifications.Machined to high precision standards.Lightweight coupling. Rathi Disc-O-Flex couplings are available in three types LM, EM and AM series. TYPE – LM Normal duty coupling.Suitable for general industrial applications. TYPE – EM High performance coupling.Specially suitable for petrochemical & fertilizer industries.Can be supplied in compliance with API-610.Coupling with antifly spacer. TYPE – AM Same in construction as that of type EM.Compliance with API-671 specification.Coupling with antifly spacer.

• Material: Metal, Pastic
• Certification: ISI Certified
• Color: Grey
• Size: 1 to 11 number
• Application: Connecting Shafts And Pipes
• Shape: Round
• Thickness: 10-20mm

We are offering Industrial Gear Coupling. we are manufacturer of Industrial Gear Coupling. 1) gear coupling size- full type- 100 to 119 half type- 100 to 110 2) pin bush coupling size-1 to 11 3) vertical/horizontal type size- 105 to 492.

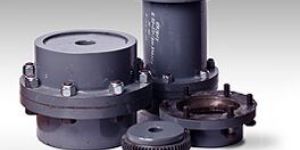

We are also dealing in half gear coupling, Roto Gear Couplings have its components manufactured out of properly treated steels of quality which are best suited for all industrial mechanical power - transmission systems. Teeth profile are of specially designed configuration to provide ample mechanical flexibility and compensation of parallel, angular and axial misalignment of the connected shafts.

  This  special design  extensively used where, Brake Drum Application is requiredbut the space is constrained

Flexocon Geared Couplings is used to join two rotating shafts for efficient transmission of Mechanical Power. Flexocon full gear Flexible Gear Coupling consists of two identical toothed hubs, two identical flanged sleeves with internal teeth, a gasket, a set of bolts, nuts and spring washers, lube plugs and two oil/grease retaining O-ring over the hubs. Flexocon Geared Couplingsare manufactured employing tested raw materials through precision manufacturing processes using special purpose machines, jigs, fixtures, tooling and gauges and are subject to continuous inspection. Flexocon Geared Couplings are designed and manufactured to accommodate Angular, Parallel and Axial Misalignments. Upto Plus/Minus 1.5 Degree angular misalignment capacity is provided in standard Couplings. Features   High Power to weight ratio.  Compact assembly.  Accommodates angular, parallel and axial misalignment.  Larger bore capacities.  Crown Gear teeth for longer life.  Less backlash error.  Heat treated as per application.  Generally used upto 120째C.  Close tolerance connecting bolts.  Interchangeability. Range of Resilient Couplings   Full Geared Coupling.  Half Geared Half Rigid Coupling.  Mill Motor Type Coupling.  BrakeDrum Type Geared Coupling.  Spacer type Geared Coupling.  Brake-disc Type Geared Coupling.  Shear pin type Geared Coupling.  Slide type Geared Coupling.  Vertical type Geared Coupling.  Single sleeve type Geared Coupling.  Floating Shaft type Geared Coupling.  Limiting end-float geared Coupling.  Torsion Shaft Geared Coupling.

HIGHSPEED brand Pin Bush (with reinforced elements) flexible coupling consists of a pair of coupling hub and a number of steel bolts (pins) fitted with synthetic reinforced rubber bushes. It is designed to absorb shock load, torsional vibration and slight misalignments.

Our company offers varied range of Industrial Gear Couplings, which are widely applied in various kinds of industries and made from excellent raw materials for giving accurate shape and dimension for meeting clients needs. These Flexible Geared Couplings offer the best performance and available at very cost-effective prices. Our company manufactures these Shaft Geared Couplings as per needs and requirements of customers. Apart from manufacturing, supplying and distributing, we are also engaged in wholesaling, trading and dealing these products. Some of the Assortments provided under this category Concave Jaw Coupling We offer Concave Coupling, which is simple and compact in construction and also capable of transmitting high torque at maximum speed. The torque is transmitted through cushion spider. Highly advanced cushion spider are used to absorb shock loads and torsion vibration. Concave Jaw Coupling Split Type Our company offers Split Jaw Coupling, which has additional features of quick disconnection of the coupling from driving/driven shaft for the purpose of servicing worn out cushion or drive/driven unit, just by removing a set of high tensile socket head screw with an Allen key. It has minimum downtime and thus increases productivity. Furthermore, it does not have any projecting part. Mecogear Coupling These Couplings offer high torque transmission and are also capable of both high loads and speed. The design Coupling is such of kind that it accommodates ample mechanical flexibility and compensation of parallel, angular and axial misalignment within allowable rating and permit axial end float.

The advantages of using Geared Coupling on all directly connected machinery is now recognized and appreciated by engineers and operating men. Gear couplings are intended to compensate for the usual and unavoidable errors in alignment and should allow free lateral flowto the connected shafts. Even when favourable conditions permit perfect alignment to the two Shafts, there is no assurance they will remain so, the vibrations, the sinking of foundation, wear of bearings and inaccuracies in machining are all common enemies to the safe and efficient operation of connected machinery.
