Flexible Hose Industries Jawaharlal Nehru Road, Kolkata, West Bengal

Material : Metal

Thickness : 10-20 mm

Feature : Durable, High Ductility, High Tensile Strength

Application : Elevators and Cranes for Lifting Purposes

Color : Any

Material : Sturdy Steel

Color : Yellow

Length : Approx 10 meter

Feature : High tensile & Tear strength, Easy installation, Simple maintenance, Durability

Material : PVC

Features : Durability, Easy installation, Heavy duty construction, Long service life

Material : PVC

Length : 10 m

Diameter : 100mm-1500mm

Thickness : 0.4mm

Feature : Rugged Configuration, Long Serving Life, Rust and Impact Resistance

Application : Various Industrial Purposes

Material : PVC

Thickness : 0.5mm

Length : 10Mtr

Color : Multicolors

Size : From 150mm

Length : 4 to 10 Mtrs.

Material : PVC

Application : aerospace, marine, automotive, and construction industries

Feature : Withstand high temperature, Easy to install, High strength, Longer life

Color : Yellow

This duct is manufactured using first quality nylon / polyster fabric coated with PVC on both sides. Designed with the help of cutting-edge technology as per the set industry norms, offered PVC Semi Rigid Duct is used in various industries like Tunnel, Mines and Ship buildings. Apart from this, It is suitable for both, exhaust and blowing application.The PVC Semirigid Ducting shall be manufactured from Non porous, Water proof, reinforced material made from Heavy Quality Polyester fabric having PVC coated on both the sides. This ducting will be provided with 6” or 4" pitch heavy spiral spring steel wire reinforcement held in position with the help of welded PVC extruded  section on the outer periphery of the ducting. The above ducting will be used for both EXHAUST & BLOWER Application. The ducting will be supplied as per your requirement upto 10m length +/- 10% complete with hooks for hanging and suitable leak proof PVC Coupling Band.  We shall supply one Coupling band with every 10m long Ducting. The withstand temperature  of this duct shall be -20 Deg. C to +70 Deg. C. Colour : Yellow/White.The special features of "RHINO" pvc semi rigid & blower ducting are as follows: They are well distinguished by comparatively light in weight and high potency. Our product is fabricated by covering Virgin PVC on Polyester Fabric. This process further results in very flexible and elastic and trouble free to handle duct. By covering the fabric with virgin PVC Compound that is made up of 100% new PVC without any reused scrap or fill material, we can accomplish lighter covering and less weight. One of the exclusive features of our quality assured ducting is that it has rings on both the ends, which makes sure 100% Leak Proof Joints. Its another advantage is that the duct does not drag apart in case the pairing band is spoiled or becomes loose due to any outside force. Apart from providing PVC Coupling Bands which consists of Wire Rope & Tightening Bolt as a typical Coupling arrangement, we can also offer Metal Coupling Band. There are Plated Spring Steel Suspension Hooks for trouble free installation from Overhead Wire Rope. The complete Overhead Wire Rope Assembly with Clamps, Turn Buckle, Bracket, and more are further suggested for instant installation & free lateral movement of ducting.

Material : Nylon / Polyster Fabric Coated with Pvc On Both Sides

Length : 2 to 10 meters. +/- 10%

Application : Coal/Goad/Under ground Mines and Tunnels

Feature : Light Weight, Leak Proof, Easy installation, High strength

Material : PVC

Color : White, Black

Feature : Easy to install, Heat resistance, Sturdiness, Durability

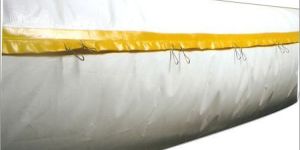

This duct is manufactured by our ingenious experts using the best quality PVC materials and high-end techniques at our well established production unit. In addition, the offered PVC Duct With Continuous Suspension Strip is examined by our team of quality controllers on various parameters before dispatching from our end. The withstand temperature of this duct shall be -20 Deg.C to +70 Deg.C. Colour: White/Yellow.The ducting will be manufactured from  non-porous, waterproof, reinforced materials made from heavy quality polyester fabric having pvc on both sides. This ducting can be used only for blower application & will be supplied in length of 25/50/100 mtrs.+/-10% complete with continuous suspension strip  special heavy duty, extra strong 100mm wide leak proof pvc couplings, velcro / zipper joints with continuous suspension strip and hooks for hanging of  the  ducting . The width of the imported material is 3.2 mtr. Multiple Joint increases the following : Resistance  towards Flow of Air. Leakage if the Joints comes apart. Distorts the Circular Shape of Ducting. Increase in cost of operation – As resistance decreases the flow of air, more electricity has to be used to get the same amount of air. Please note we are using 100% SPECIAL VIRGIN PVC in our material, without any fillers, hence it is light weight without sacrificing the quality or strength of the material. Fillers are generally added to increase the weight to reduce the cost of PVC & fillers reduces Adhesion Strength, which directly effects joining quality of the Ducting.The Ducting manufactured from heavy materials will create more resistance to flow of air as Duct manufactured for light weight Duct materials will take its round shape without any efforts. The Duct strength depends on the Adhesion Strength which is very high  in our Duct Material as the fabric is of open mesh which allows total fusion of both the layers of PVC through the opening of the Fabric.

Material : Pvc

Length : 25/50/100 Mtrs.+/-10%

Feature : Smooth finish, Easy installation, Ability to withstand adverse weather conditions, Corrosion proof

Material : PVC

Thickness : 10 mm

Width : 30 mm to 50 mm

Color : Yellow

Transparent polyurethane hose is generally made up with continuous copper coated/spring steel wire reinforcement helix between the polyurethane film overlap. The crystal clear glass like form is apt for visual product control. Further it is highly non abrasive and also has good chemical resistant properties. It also has superb tear potency. Further these are strong, sturdy, are light in weight and are fabricated in such a way that it ensures maximum air flow. It is an excellent choice for extensive range of application which includes exhaust, blowing ventilation fume removal, wooden or plastic particles [dust], and extremely abrasive particles.

Material : Polyurethane

Length : Upto 10 to 15 Mtrs

Material : PVC Coated Fabric

Working Pressure : 2 kg/cm2

Brand Name : Flexible Hose

Packaging Type : Roll

Material : Extruded Aluminum

Length : 15 meter

Temperature : 20 Deg.C. to + 70 Deg.C

Application : Green House, Poultry and Exhibition Halls

Application : Ventilation & Pneumatic Transport

Features : Corrosion resistance, Low maintenance, High strength, Sturdy construction

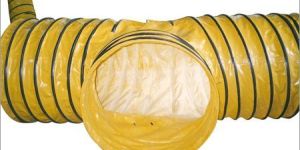

The special features of "RHINO" pvc semirigid & blower ducting We can manufacture ducting in varied diameter from 200mm to 3000mm. All the fabric joints are vulcanized 40mm wide with the help of special welding process. We are manufacturing premium quality ducting which is flame resistant as well as antistatic for usage in Coal Mines and Hazardous areas, conforming to NCB Specification. The offered ducting range is APPROVED by the DIRECTOR GENERAL OF MINES SAFETY (DHANBAD, INDIA). These are not affected by Humidity, Dust or Mine Water, and can be used again and again. Raw Materials used for production of ducts are checked for Tensile and Tear Strength. Manufactured ductings undergo Pressure & Leakage Test before being dispatched to the clients. Reducers, "T" or "Y" Pieces offered as per client specifications. Pressure Chart for both negative & positive pressure in Kpa is available on request.

Material : PVC

Diameter : 200mm to 3000mm

Feature : Long lasting, Strong & flexible, Perfect finish, Sturdy construction

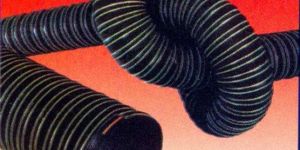

The double/triple ply neoprene hose is appropriate or suitable for temperature ranging from -50 to +150 Deg. C.Construction:The 2/3 Ply Neoprene Hoses are made with Neoprene coated Glass Fiber Fabric which has an implanted Steel Wire Helix as well as external Twin Glass Cord. We are competent of manufacturing our hoses ranging from 38 mm to 300 mm in diameter. These are engineered for both Positive and Negative Pressure.   It has its application in the below mentioned areas:Its application ranges from Printing Machines, Aircraft, Aerospace, Car Heating and Hot Dust Extraction, Vehicle & Engine Production. Further it is designed for Hot & Cold Air / Fume application of Positive as well as Negative Pressure.

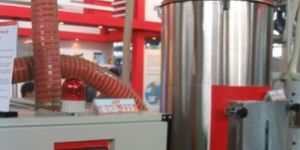

Construction: The 2 Ply Silicone Hoses are made with Silicone coated Glass Fiber Fabric which has an implanted Steel Wire Helix as well as external Twin Glass Cord. We are competent of manufacturing our hoses ranging from 38 mm to 300 mm in diameter. These are engineered for both Positive and Negative Pressure.   Application:  Aircraft; Aerospace, Vehicle and Engine Production, Car heating and Hot Dust extraction & designed for  Hot & Cold Air / Fume application of both Positive and Negative Pressures.Different Types of Silicone Hoses:-Straight Silicone Hoses Polyester Reinforced Silicone (See Alternative Materials) Available in 15 Colours Operating Temperature: (-) 60°C to (+) 180°C Continuous Silicone Hoses - Continuous Length 1 Meter to 4 MeterSilicone 1 Ply Heater Hoses   Extruded Silicone Available in 9 Colours Operating Temperature: (-) 60°C to (+) 200°C 45° Silicone Hose ElbowsAvailable in different sizes - 6mm, 8mm, 9.5mm, 11mm, 13mm, 16mm, 19mm, 22mm, 25mm, 28mm, 30mm and more... 135° Silicone Hose Elbows 90° Silicone Hose Elbows 180° Silicone Hose Elbows Straight Reducing Silicone Hoses 90° Reducing Silicone Elbows 45° Reducing Silicone Elbows Coupling Silicone Hoses Hump Bellow Silicone Hoses Vacuum Extruded Silicone Hoses T-Piece Silicone Hoses Wire Reinforced Silicone Hoses

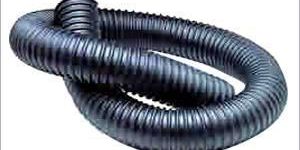

The offered hoses are used for fume removal various in light duty material handling equipment, construction machinery, vacuum pressure, etc. Manufactured using superior quality material such as spring steel wire (coated with pvc material), our high temperature santoprene hoses are available in different specifications.The santoprene hose is the most appropriate for 1300c from 38 to 600 mm in diameter.The hose is engineered and manufactured with incessant spring steel wire or pvc extruder reinforcement helxi amid the unsupported thermoplastic santoprene or the rubber cloth. For this reason, it has the properties of being abrasion resistant and holds up well in opposition to harm caused by the climatic conditions. In addition, no solvent is being utilized in the making of this product. Our santoprene hoses are being engineered by a process that makes sure a very even and leveled inside diameter and high potency as well as resilience.   It can be easily applied in the below mentioned areas: The Exhaust, Gases emitted from the Light or the Heavy motor Vehicles It has a light duty material handling It also enhances the ventilation Fume removal Further it is highly appropriate for usage in a variety of industrial sectors.

Material : Spring Steel Wire (coated with Pvc Material)

Usage : Fume Removal Various in Light Duty Material Handling Equipment, Construction Machinery, Vacuum Press

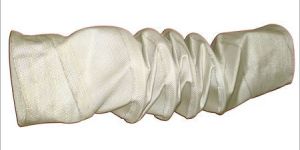

The offered hose is manufactured with the help of advanced technology using excellent quality High Temperature Flexible Hose spirally  reinforced with  Spring Steel Wire sandwitched between two layers  of  multi layers  made  from  Insulated Fabric  with  continuous  stitching suitable for +650 to 800 Deg.C. in standard lengths of 4 to 10 Mtrs. +/- 2%. Diameter: 101mm to 600mm.These  Hoses  are  suitable for suction of  Engine  Exhaust  Gas, Air Craft   Construction,  Military Construction,  Blast  Furnace Exhaust and Engine test.

Material : Insulated Fabric

Our Toilet Cart Dump Hose is widely used in aircraft, shipbuilding, railway, aerospace and other industries for air, gas, dust, dirt, fumes and waste removal.The specifications of the product are mentioned as below: It is made from Polyester Fabric which is covered with PVC on each of the side. It has continuous Spring Steel Wire reinforcement helix which is also available on the external periphery of hose, which is covered with PVC Extruded Wear Strip. The FR quality is also available. It has a Crush Proof Toilet Dump Cart PU Hose which is generally obtainable on special request.

Material : PU

Diameter : 75mm to 300mm

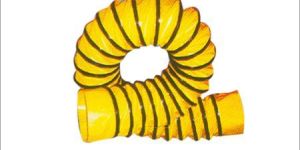

Pvc hoses are appropriate for 60 to 70 deg.C from 38mm to 1000mm diameterThese hoses have even inside diameter and are well acknowledged for their high potency as well as sturdiness. These are fabricated and engineered for their highest air flow. Further these hoses are quite light in weight and can be used with a variety of blowers, moveable evacuators, printing machines, fans, washing machines and dryer machines for both positive and negative pressure. Antistatic, fire resistant, m1 specification hoses are also available with us which are also have the weather resistance properties.Flexible pvc hose have the following key features: 38 mm to 1000 mm diameter in 4 to 10 meters in length They can easily withstand temperature ranging from -20 deg.C to + 60 deg.C Please note that m1 specification pvc hoses are also manufactured or supplied on request. Mentioned below are the 3 types of pvc hoses: Type - PFFH: these elastic pvc hose are made from the process of incessant spring steel wire strengthening helix between polyester fabric covered with pvc on both the sides Type - PSRH: these are partially stiff pvc hose which are made with continual spring steel wire reinforcement helix on the external periphery of the hose which is enclosed by pvc / extruded wear strip Type - UNPH: the flexible hose made from unsupported pvc film which is either coloured or transparent with continuous spring steel wire reinforcement helix amid the film overlap Has application on the below mentioned areas: It is extensively used for taking away the air, fumes, gas and dust. It is also used extensively in washing machine and tumbler driers.

Pressure : 1 Bar

Inner Diameter : 32-600 Millimeter (mm)

Shape : Round

Reinforcement : SS/Nylon as per users specification

Material : PVC

Color : Blue/Black/Yellow and Grey

Power : 2 x 200kw

Application : Tunnel, Mining

Material : PVC

Color : White

Feature : Leak Proof, Tear resistance, Easy to fit, Durability

This is highly reliable and extremely appropriate for withstanding the temperature ranging up to 70oC. It is easily made available in a variety of diameters which ranges from 75 mm to 300 mm in 4 to 15 Meter in Length.The 2 Ply Hose is being created from Polyester Fabric which is covered with PVC on each one of the sides with incessant Spring Steel Wire reinforcement helix on the outside periphery of this hose which is further enclosed by PVC extruded wear strip.In addition, the FR quality is also available.It can be applied in a variety of sectors as mentioned below: Railway Air Craft Ship Building Aero Space Vehicle and Engine Production The hose is further more utilized for taking away or eliminating the Gas, Air, Dust, Fumes, Dirt and Waste Removal, and it further operates for Positive as well as Negative Pressure.

Diameter : 75 mm to 300 mm

Length : 4 to 15 Meter

Material : Polyester Fabric
