Garg Machinery Udyog Pvt. Ltd. Bow Bazar, Kolkata, West Bengal

WITHERLON Knitted Fabric manufactured by UV Stabilized, Hi-Density, Virgin Quality Monofilament Yarn, thus, Hygienic and also resist the temperature up to 100° C

A Revolutionary change in the field of Withering Trough Mesh/ NetWe proudly announce that we have brought a Revolutionary Change In the Reid of Withering Trough Mesh/Net. NOW, you need not to Cut & Stitch the Withering Trough Mesh /Net. We will supply the HYLON & WITHERLON Just Tailor Made according to your Trough Size.We have now made the HYLON & WITHERLON MORE USERS FRIENDLY, with will give you the Excellent Withering Result to your Green Tea Leaves.We never say,Users Said, there is No Better Products than the HYLON & WITHERLON for WitheringHYLON & WITHERLON now becomes USE ONCE- USE ALWAYS and Unbeatable Ones. There will be NO WASTAGE in LENGTH & WIDTH.Simply Fit and Forget for Years.HYLON Hygienic Knitted Fabric For Withering TroughHYLON Hygienic Knitted Fabric Manufactured by UV Stabilized, Virgin quality, hi density Mono filament Yarn, thus, Hygienic & is Temperature Resistant up to 100 Degree Celsius.Color:Natural White.Hole Size: 4 Mesh x 3 MeshWidth(without any centre joint):3',4',5',6',7',8'& 9'Length:Any desired Length.WITHERLON Hygienic Interlocked Woven Fabric For Withering TroughWITHERLON Hygienic Interlocked Woven Fabric Manufactured by UV Stabilized, Virgin quality, hi density Mono filament Yarn, thus, Hygienic & is Temperature Resistant up to 100 Degree Celsius.Color:Natural White.Hole Size: 6 Mesh x 6 MeshWidth(without any centre joint):3',4',5',6',7',8', 9'& 10'Length:Any desired Length.Salient Features Of HYLON & WITHERLONNatural Colour HygienicUniform Air Circulation Uniform WitheringTailor Made Size AvailableNo Wastage for Joints in Length & Width Temperature Resistant up to 100 Degree Celsius.Bacteria FreeFungus Free Easily Washable Extremely Durable Easily Available

WELDCON Mild Steel Welded Mesh is manufactured with superior quality Mild Steel Rods & Welding is made by Electro Welding process and are available in different mesh size & thickness.

Permanent U Shaped Magnet has been manufactured with DFEB materials with Keepers from 88 kg. Lifting Capacity to 10 kg. Lifting Capacity to 5 kg. Lifting Capacity to 2 kg. Lifting Capacity U shaped Magnets has been manufactured with Alnico.

GMU round dial weather & dust proof stainless steel case, dual display °C & °F Mercury – in- steel, imported mercury filled. Inlet & Outlet/Exhaust temperature Thermometer, Non Corrosive Stainless Steel movement, fitted with Stainless Steel Vertical Immersion Stem / Sensor and Stainless Steel Process Connection BSP(M) 1/2“ cum ¾ “ Stainless steel Armoured Flexible Capillary tube will be fitted with vertical immersion Stem/Sensor for Inlet Temperature Meter.

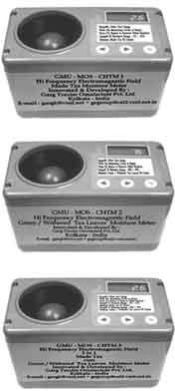

We are Offering the Latest World Class Gmu - Mos - Chtm , State of the Art Technology Moisture Meter and are Available in 3 Models.made Tea Moisture Meter:(model: Gmu - Mos - Chtm 1) Green /withered Tea Leaves Moisture Meter: (model: Gmu - Mos - Chtm 2) 2 in 1 Made Tea Cum Green / Withered Tea Leaves Moisture Meter:(model: Gmu - Mos - Chtm 3) Specificationgmu - Mos - Chtm Moisture Meters are Fully Computerized and Senses the Moisture Result Within 3 Seconds By Frequency Electromagnetic Field. the Working Principle of Gmu - Mos - Chtm Moisture Meter is Crc 16 I.e. Contains Micro Controller Based On Microchip Micro - Controller and Equipped with Rs 232 Interface for Calibration.how It Workson Pouring the Substances Into the Cavity , When We Press % Button to Get the Moisture Result , At that Very Moment Micro Controller Creates the Hi- Frequency Electromagnetic Field Into the Cavity and Radio Frequency Rays Passes Through the Substances , Senses, the Moisture Result % and Micro Controller Delivers the Moisture Result On the Screen and the Moisture Result Will Be Shown as L C Graphic Display(lcd)special Featuresgmu - Mos - Chtm Moisture Meter Shows the Moisture Result in Form of Lcd Within 3 Seconds .gmu - Mos - Chtm Moisture Meter Can Be Connected with Year Pc to Record the Moisture Result.gmu - Mos - Chtm Moisture Meter Can Be Connected with the Printer to Print the Moisture Result On a Paper Tape.gmu - Mos - Chtm Moisture Meter (standard Accessories):gmu - Mos - Chtm Moisture Meterpour Funnelabs Case Batterycleaning Brushuser's Manualoptional Accessories:gmu - Mos - Chtm Printer Calculator Will Be Supplied At Additional Cost.gmu - Mos - Chtm Moisture Meter Computer Software to Store the Moisture Result in the Pc At Additional Cost.gmu - Mos - Chtm Moisture Meter Spare Battery Will Be Supplied At Additional Cost.if You Want Any Further Clarification, Please Do Not Hesitate to Refer to Us.the Design and Specifications are Subject to Change for Enhance Performance.

HI POWER-IP’’ Stainlees Steel Magnetic Roller Can be Fitted in Wooden/ Pre-Fabricated M. S or S. S. Round/Square or Reotangular Hopper. The Magnetic Roller are available With/Without Threading.

Model : AM-SS-301 Body Construction: AISI 304 Quality Stainless Steel. Water Contact Parts: AISI 304 Quality Stainless Steel. Other Parts: Rust Proof, Powder Coated. Water Evaporation Capacity: 6 Liters/hr. Air Quantity: 500 CFM. Motor capacity: C.S.R Continuous rated, Single Phase, 200/220 Volt, 50 Hz.AC Supply. Dry Weight: 8 kg. Packing Dimension & Gross Weight: 550 mm X 450 mm (15 kg approx).

Model : FM-OS-503 Water Contact Parts: AISI 304 Quality Stainless Steel. Other Parts: Rust Proof, Powder Coated. Water Evaporation Capacity: 40 Liters/hr. Water Regulator: Imported Gate Valve. Air Quantity: 2500 CFM. Motor capacity: 0.75(3/4) HP, 3 Phase, 400/440 Volt, 50 Hz. AC Supply. Dry Weight: 40 kg. Mounting: Wall Mounting/Ceiling Hanger/Floor Mounting Stand or Trolley Mounting. Packing Dimension & Gross Weight: 650 mm X 650 mm X 650 mm (60 kg approx).

25mm OD x5mm Thick25mm OD x4mm Thick25mm OD x8mm Thick

Printer Interfacing Unit

PC Interfacing Unit

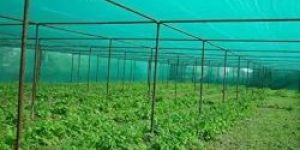

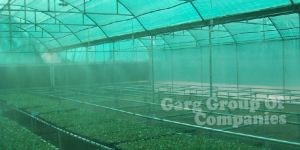

COOLANT UV Stabilized & Sunlight Reflector Agro / Nursery Shade Net manufactured by UV Stabilized, Hi-density Monofilament Yarn. Ultra Violet Stabilizer has been added to the Monofilament Yarn in adequate percentage, so that,COOLANT reflects the sunlight easily and gives the required shade / sunlight to the Nursery. Colour: Green / Black / Green N Black Shade: 90% / 75% / 50% / 35%Width: 2,3,4,5,6 Meters Length: 25,50,100 Meters (As per your requirement)

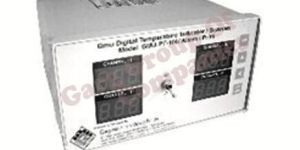

GMU the Latest State of the Art Technology Digital Temperature Indicator / Scanner manufactured on Microchip, Micro-Controller based and is fully computerized.The unit facilitated to connect with Temperature Data Logging (APU) cum Printer Interfacing Unit (If required). GMU Digital Temperature Indicator / Scanner manufactured in Single Channel,2Channel & 4Channel i.e. suitable for RTD PT 100 Thermocouples. GMU Instruments also can be manufactured in Single Channel, 2 Channel & 4 Channeli.e. suitable for B / E / J / K / R / S & T Type Thermocouples.GMU Digital Temperature Indicator / Scanner have 3 Digit Bright Red LED 0.56”Individual Display and Common Toggle Switch to select Temperature between °F °C.

MESHLON (TWN Quality) Tea Withering Net for Withering Trough manufactured by Hi-Density Granules and is Temperature Resistant upto 100°C. Colour- Black ●  Blue ●  Green Standard Width: 6’ (72”) but can also be manufactured 3’ (36”) / 4’ (48”) & 5’ (60”) against specific order.Standard Length: 100 Rft. But can also be Tailor Made according to your Trough Length.

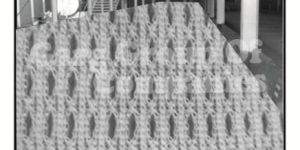

HYLON Knitted Fabric manufactured by UV Stabilized, Hi-Density, Virgin Quality Monofilament Yarn, thus, Hygienic and also resist the temperature up to 100° C

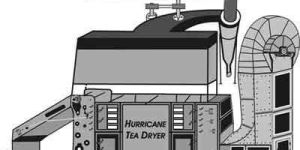

SALIENT FEATURESThree Stage Conventional dryerGear Drive Or Step Pulley Drive ArrangementControl Panel OperatedSuitable for:Coal/Wood/Le co/Oil/Gas Firing.Special Cyanide Free Plating trays.High Output & Low Maintenance Cost.Dust Collector SystemMoisture Extractor System.Pollution Free Environment.Low Power Consumption.Easy To Operate.Simple In Design.INTRODUCTIONGARG GROUP is a flagship organization in the field of Tea and serving the Tea World since last 2 decades. We are 0n Introducing the latest World Class State of the Art Technology.HURRICANE TEA DRYER, give you the optimum result at the minimum cost.HURRICANE TEA DRYER is Robust in Construction & Sophisticated in Design and is Simple to Use with the following featuresCOLD FEED ARRANGEMENTHURRICANE TEA DRYER has been fitted with PERFECTION Blank Feeder Trays and the gradient maintained special inclination degree in the unit. so that the, Fermented Leaf passes through the Feeder Trays and deliver to the drying Chamber.PERFECTION BLANK FEEDER DRYER TRAYSPERFECTION Round Back Blank Feeder Trays are Made from 18 Gauge CRC Sheet. fitted with 14 Gauge Rigid Pipe with Spedal cyanide Free Plating coupled with Cast Iron Ends.HURRICANE TEA DRYER has been incorporated with Revolving Spreader. which moves above the Top Row of the PERFECTION Blank feeder Trays.PERFECTION Blank Feeder Trays carries the Fermented Leaf. The Revolving Spreader adjusts the spreading Thickness of Fermented Leaf at your desired rate.DRYING CHAMBERHURRICANE TEA DRYER is fully insulated by asbestos fluff to prevent the heat loss. Special High Heat Resistance Glass windows are provided to see the Inside view clearly of Tea Firing conditions and Tray movements HURRICANE TEA DRYER is constructed with 1S-2062 Standard MS Ptates.HURRICANE TEA DRYER maintained the floor gradient of Drying Chamber In upward direction towards the feeding end to ensure the proper Inflow of air distribution throughout the entire machine.PERFECTION PERFORATED DRYER TRAYS ARRANGEMENTHURRICANE TEA DRYER has been fitted with PERFECTION Lip Back /Round Back Perforated Dryer Trays i.e. made from 20 Gauge CRC Sheet, fitted with 14 Gauge Rigid Pipe and have Special cyanide Free Plating coupled with Heavy Duty Cast Iron Ends, perforations details are as under:3/32" (2.381mm) Perforation for Top Two Circuits (4 Rows)1/16{"(1.587mm) Perforation for Bottom Circuit (2 Rows)TRAY CARRYING CHAINHURRICANE TEA DRYER Is coupled With High Tensile Tray Carrying Chain and all the Chain Pins are duly tempered to ensure longer life.PINIONSAll Pinions of HURRICANE TEA DRYER are Specially Hubs Treated and are made from 1S- 210 Grade Cast Iron to ensure longer life and smooth driving.BEARING HOUSINGHURRICANE TEA DRYER shafts move on the speedily designed Bearing Housing to run the Drying Chamber smoothlySCRAPPER UNITScrapper Unit is incorporated in the Drying Chambers underneath of the bottom Tray Circuit and moves on to the floor, which carries the fall through of very fine tea into the main discharge valve.DRIVE ARRANGEMENTHURRICANE TEA DRYER driven by 7.5 HP/5HP/3HP 1440 RPM TEFC Squirrel Cage , 4 Pole 400/440 Volt, AC Motor According to the Dryer Model/Capacity.VARIABLE SPEED DRIVE/STEP CONE Pulley DRIVE ARRANGEMENTHURRICANE TEA DRYER can be manufactured as per your specified Drive Arrangement, detailed as under: (a) Compact Infinite Variable Speed Drive Arrangement.(b) Step Cone pulley Drive arrangement.(While placing the order, please specify, required Drive Arrangements)SPEED REDUCER DEVICESpeed Reducer Device with Compact Infinite Variable Speed Drive arrangement.SAFETY DEVICEA very special Safety Device arrangement is mounted on the main driving shaft of the chamber coupled with arm and flange to prevent all sorts of damages and unlikely event of a jam.AIR SEALING DEVICESHURRICANE TEA DRYER consists of 11 sets of specially designed Aluminium Air Sealing Devices fitted with hanging adjustable baffles, which prevents the air leakage on Individual Circuit as well as to maintain the level of fired tea. Air Sealing Devices are fitted with hanging adjustable baffles and are incorporated In such a fashion that they will neither touch the tea nor the Tray Ribs. Therefore, there will be the Zero scope for breaking of Tea Granul and there will be no loss of Tea Blooms.EMERGENCY INSPECTION DOORSHURRICANE TEA DRYER has been provided with sufficient emergency Inspection doors to Inspect the tea as well as to inspect the foreign materials.INLET & EXHAUST THERMOMETERSHURRICANE TEA DRYER is coupled with latest GMU Inlet and Exhaust'Thermometers, detailed as under:(A) GMU INLET TEMPERATURE METER WITH HOOTER/ALARM FUNCTIONGMU Inlet Temperature Meter 6" Round Dial Electric Contact, Dual Display of °F &, °C with 20' long Capillary Tube fitted with 18" long Stainless Steel Stem and 3/4" or 1/2" BSP Thread for connection. Temperature ControlAlarm (Hooter), Wire Connector, Bulb Holder & ON/OFF Switch are fitted in Wooden Panel Board. Electric Contact Is fitted with Dial.Temperature Range: 0°F to 400°F & -20°c to 200°c(B) GMU EXHAUST TEMPERATURE METERER WITH HOOTER/ALARM FUNCTIONGMU Exhaust/Outlet Temperature Meter 6" Round Dial Electric Contact, Dual Display 0°F & 0°C, fitted with 12" long Stainless Steel Stem and 3/4" or 1/2" BSP Thread for connection. Temperature Control Alarm (Hooter) Wire Connector, Bulb Holder, & ON/OFF Switch are fitted in Wooden Panel Board. Electric Contact Is fitted with Dial. Temperature Range: 0°F to 400°F & -20°C to 200°CDOUBLE INLET AIR CHAMBERS & DELIVERY DUCT ARRANGEMENTDouble Inlet Air Chambers and Delivery Duct arrangements are made out of CRC Sheet and will be fully covered by anti radiation casing. filled by Glass Wool to prevent the heat loss.FAN ARRANGEMENTM. S. Fabricated Double Inlet centrifugal Fan Is Dynamically Balanced fitted with M. S. Shaft and mounted top of the air chamber. Fan driven by Suitable Electric AC Motor.DUST COLLECTOR & MOISTURE DISCHARGE UNITHURRICANE TEA DRYER has been especially designed with dust collector system to obtain the Fibre Free Made Tea and make pollution free environment in the dryer unit. A Special Duct has been provided to extract the moisture to throw it outside.CONTROL PANEL HURRICANE TEA DRYER will be controlled by the control panel and the sufficient regulators has been provided to operate dryer chamber, Hot Air Fan and Dust Collector Unit.GMU Hooter/Alarm Function Thermometer has been fitted to control the Maximum and Minimum Temperature of the Dryer.

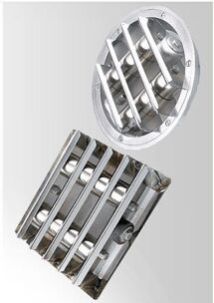

HI-POWER-IP” (Round & Square) Hopper Magnet Magnetic Rollers. Fitted in Round & Square Shaped Aluminium die Cast Frame.

HOLDALL Green Tea Leaves Carrying Bag To Pluck & Carry Green Tea Leaves From Garden To Factory & For Monorail Overhead Conveyor. HOLDALL Green Tea Leaves Carrying Bag is made of Interlocked Knitted Fabric manufactured by UV Stabilized Hygienic Food Grade (Virgin Quality) HDPE Monofilament Yarn. Top & Bottom Circumference Covered with Newar Tape with 2 Nos. Newar Tape Handle for Conveying and Easy Handling. HOLDALL Green Tea Leaves Carrying Bag is available in Natural white, Red, Blue, Green Colours or can be manufactured in your desired colour.

GAMA GAF Models Axial Flow Fans are designed with Die Cast Aluminium Impellers, blade angle are designed to deliver optimum air flow at minimum power consumption and constructed to withstand normal stress and strain, so as to render long trouble free service.GAMA Fans are statically & dynamically balanced and individually tested for rated air Volume.GAMA Fan Impeller is directly mounted on the motor shaft.GAMA Fan guard and entire sheet metal work is painted in a pleasant colour.GAMA Axial Flow Fan are available in different Models and are designed with six Die Cast Aluminium Blades and are capable to deliver 6000- 46000 CFM of air at ½” static pressure.GAMA Axial Flow Fan Is Statically and Dynamically Balanced.

Model : FM-OS-501 Water Contact Parts: AISI 304 Quality Stainless Steel. Other Parts: Rust Proof, Powder Coated. Water Evaporation Capacity: 40 Liters/hr. Water Regulator: Imported Gate Valve. Air Quantity: 2500 CFM. Oscillation: 170 degree angle. Gear Unit: Continuous Duty, Double Reduction Type. Motor capacity: 0.75(3/4) HP, 3 Phase, 400/440 Volt, 50 Hz. AC Supply. Dry Weight: 45 kg. Mounting: Wall Mounting/Ceiling Hanger/Floor Mounting Stand or Trolley Mounting. Packing Dimension & Gross Weight: 650 mm X 750 mm X 750 mm (65 kg approx).

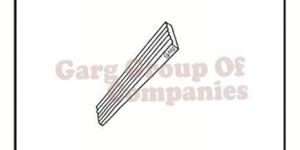

GMU” M15 High Speed SteelCTC Mini Grooving Chaser
