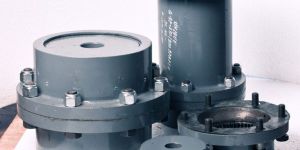

Gear Coupling Dealers in Kolkata

• Size: Multisizes
• Material: Metal
• Color: Metallic
• Shape: Round
• Thickness: 20-30mm
• Features: Finely Finished , Expansive Applications

• Application: Industrial

• Size: 100 inch
• Type: Tyre Couplings
• Material: Metal
• Shape: Round
• Thickness: 10-20mm, 50-60mm
• Certification: ISI Certified
• Color: Grey
• Condition: New
• Fetatures: Corrosion Proof, Excellent Quality, High Strength
• Brand Name: ABG
• Flexible or Rigid: Flexible

• Material: Metal, Pastic
• Certification: ISI Certified
• Color: Grey
• Size: 1 to 11 number
• Application: Connecting Shafts And Pipes
• Shape: Round
• Thickness: 10-20mm

• Type: AAR type e
• Brand Name: ADE
• Warranty: 12 months

We are the world renowned manufacturer of railway couplers.we have been manufacturing couplers for over 40 years in the field and recognised and reputed manufacturer and have been supplied all over the world.

• Country of Origin: India
• Material: Carbon Steel
• Head Shape: Round
• Certification: ISO 9001:2008
• Color: Blue
• Packaging Type: Packet
• Grade: C45
• Corrosion Proof: Yes
• Corrosion Resistance: Yes
• Speciality: High Strength

Gear coupling are torsionally rigid and are supplied to two designs – completely flexible and flexible/rigid. A completely flexible coupling comprises two hubs with an external gear and two outer sleeves with an internal gear. It’s a universal coupling for all sorts of applications and accommodates all possible misalignments (angular, offset and combined) as well as large axial moments. Machines, bearings, seals, and shafts are therefore not subjected to the additional forces, sometimes of considerable magnitude, which arise from unavoidable misalignment usually associated with rigid shaft couplings. A flexible/rigid coupling comprises one flexible geared half and one rigid half. It does not accommodate parallel displacement of shafts but does accommodate angular misalignment. This type of couplings are primarily used for “floating shaft” applications   Sizes 010 – 070 all have crowned teeth with a 20° pressure contact This enables to accommodate up to 1,5° static angular misalignment per gear mesh. However, minimizing the operational misalignment will maximize the life of the coupling as well as the life of other machinery components such as bearings etc.   Each sleeve flange is supplied with two pipe plugs 180° apart. This permits assembly of a full flex-coupling with four lubrication plugs positioned every 90° apart, to facilitate lubrication A Buna-N O-ring is fitted to the outer sleeve, to retain grease and exclude contaminants .

Committed to quality, we bring forth precision engineered Roto Gear Couplings. These Roto Gear Couplings are well suited for any conceivable mechanical power transmission systems in all industries. The teeth profile of Roto Gear Couplings provides good mechanical flexibility and compensation of parallel, angular and axial misalignment of the connected shafts. Roto Gear Couplings are available in following executions : Full geared flexible typeHalf geared flexible typeMill motor typeSpacer type Floating shaft typeBrake drum typeVertical type Working Principles Roto Gear Curved Tooth Couplings are suitable for any conceivable mechanical power transmission drives in all industries, large / medium / small. It is compact and lighter and thus suitablefor installation where space is a constraint. Roto Gear Couplings mainly comprises two Hubs with external machine-cut teeth of specially designed configuration, two flanged sleeves with internal teeth to match the two Hubs and a set of machine finished fasteners to both the two Flanged Sleeves when in installed position. Specially designed sealing arrangement is provided to prevent leakage of grease and ingress of outside dirt/water. Roto Gear Couplings have its components manufactured out of properly treated steels of quality which are best suited for all industrial mechanical power - transmission systems. Teeth profile are of specially designed configuration to provide ample mechanical flexibility and compensation of parallel, angular and axial misalignment of the connected shafts. Selection Select the Roto Gear Coupling of size that ill accommodate the diameter of the larger shaft of a drive.To ensure above coupling so selected has the required rating capacity : Check the service factor applicable to the drive from the service Factor ChartFind out the Rating HP/100RPM of the drive as per the folloing formula : HP X Service Factor X 100 ---------------------------------- = HP/100RPM RPM Check that the rating : HP/100 RPM of the selected Coupling is either equal to, or, great than the calculated rating as above.

We offer a wide range of high quality Full Geared Couplings at reasonable rates. We are trusted Suppliers and Exporters of Full Geared Couplings from West Bengal, Kolkata. These Full Geared Couplings are used to connect two different shafts or offset shafts. Our Full Geared Couplings transmit the motion of the shafts smoothly by absorbing shock. Customers can buy the Geared Couplings in different specifications and t industry leading rates.

This coupling is primarily used in tandem pairs connected by floating shaft; or as individual un;  it in conjunction with driver or driven shaft having a self aligning   support bearing.  Extensively  used  for  cross  traverse  and long travel line shaft drives of eot cranes when used singly accommodates  angular misalignment only. For more details, feel free to contact us.

• Wide Range: Full Gear , Semi Gear , Spacer Couplings

Unique gear couplings is a range to cater for torque ratings upto 114000 nm with triple crowning on gear teeth provide a most reliable and economic solution to many drive requirements. Superior sealing and higher bore capacities are features of these couplings, also available in spacer design, floating drive shafts with solid or light weight tubular intermediate shafts and with shifter arrangement for manual disengagement of drive, piloting on tooth ensures greater concentricitybetter dynamic balance.

Our company offers varied range of Industrial Gear Couplings, which are widely applied in various kinds of industries and made from excellent raw materials for giving accurate shape and dimension for meeting clients needs. These Flexible Geared Couplings offer the best performance and available at very cost-effective prices. Our company manufactures these Shaft Geared Couplings as per needs and requirements of customers. Apart from manufacturing, supplying and distributing, we are also engaged in wholesaling, trading and dealing these products. Some of the Assortments provided under this category Concave Jaw Coupling We offer Concave Coupling, which is simple and compact in construction and also capable of transmitting high torque at maximum speed. The torque is transmitted through cushion spider. Highly advanced cushion spider are used to absorb shock loads and torsion vibration. Concave Jaw Coupling Split Type Our company offers Split Jaw Coupling, which has additional features of quick disconnection of the coupling from driving/driven shaft for the purpose of servicing worn out cushion or drive/driven unit, just by removing a set of high tensile socket head screw with an Allen key. It has minimum downtime and thus increases productivity. Furthermore, it does not have any projecting part. Mecogear Coupling These Couplings offer high torque transmission and are also capable of both high loads and speed. The design Coupling is such of kind that it accommodates ample mechanical flexibility and compensation of parallel, angular and axial misalignment within allowable rating and permit axial end float.

The advantages of using Geared Coupling on all directly connected machinery is now recognized and appreciated by engineers and operating men. Gear couplings are intended to compensate for the usual and unavoidable errors in alignment and should allow free lateral flowto the connected shafts. Even when favourable conditions permit perfect alignment to the two Shafts, there is no assurance they will remain so, the vibrations, the sinking of foundation, wear of bearings and inaccuracies in machining are all common enemies to the safe and efficient operation of connected machinery.

• gear: couplings

We are offering gear coupling gear couplings is a range to cater for torque ratings upto 114000 nm with triple crowning on gear teeth provide a most reliable and economic solution to many drive requirements. Superior sealing and higher bore capacities are features of these couplings, also available in spacer design, floating drive shafts with solid or light weight tubular intermediate shafts and with shifter arrangement for manual disengagement of drive, piloting on tooth ensures greater concentricity/better dynamic balance. key features teeth curved as well as barreled improved seals – perform much better than o rings full teeth engagement – reduces uneven wear piloting on teeth od – ensures better dynamic balance higher bore capacities compact wide range – full gear , semi gear , spacer couplings full floating & semi floating shafts

The company is primarily engaged in the manufacturing and supplying of Gear Couplings all across the country. High tensile strength, anti corrosive nature, and durability are amongst the major attributes of our Gear Couplings. The Gear Couplings can be availed from us at the most competitive prices.

The advantages of using Geared Coupling on all directly connected machinery is now recognized and appreciated by engineers and operating men. Gear couplings are intended to compensate for the usual and unavoidable errors in alignment and should allow free lateral flowto the connected shafts. Even when favourable conditions permit perfect alignment to the two Shafts, there is no assurance they will remain so, the vibrations, the sinking of foundation, wear of bearings and inaccuracies in machining are all common enemies to the safe and efficient operation of connected machinery.

We Offers Flexible Gear Coupling Which are Used to Connect Motor to Fly Wheel and Fly Wheel to Reduction Gear and Reduction Gear to Pinion Stand with Various Range Size G-1 to G- 20. the Coupling is Triple Crowned Double Engagement Type. Max Torque 152000kgm Hex Bolt are Hardened and Ground to Fit Reamed Hole of Coupling. if Intersted Feel Free to Contact.

We offer gear coupling, half geared half rigid coupling, full gear coupling, mill motor type gear coupling, brake drum type gear coupling, half rigid gear coupling, gear coupling as per drawing dimension, shearpin type gear coupling, etc.
