Industrial Control Panel Dealers in Kolkata

We are offering Electrical Power Equipments which include Computer Consoles, Electronic Instrument Cabinets, PLC & Drive Panel Enclosures, Distribution Boards, Drive Panel Enclosures, PC Enclosures, Feeders Pillars, Control Desk With Mimic Diagram, Main Lighting Board(Draw Type & Non Draw Out Type), Power Control Centre (Pcc) (Draw Out & Non Draw Out Type), Fuse Distribution Board, etc.

• Features: Excellent performance, Low maintenance, Longer service life.

• Rated Insulation Voltage: 690 Volt AC
• Rated Operator Voltage: 110V (±10%), 220V (±10%), 415V (±10%) AC
• Withstand voltage: 8 KV for 1 Sec
• System: 3-Phase: 3 or 4 wire, 50Hz
• Rated Current: 100-500Amp
• Fault level: 50KA for 1 Sec

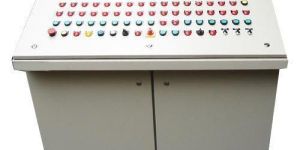

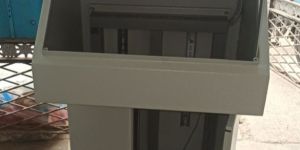

We design & build quality and cost effective Control Desk Panels with the latest technology as per our industrial requirements. Control Desks are used to control industrial processes in any type of industrial plant/manufacturing unit. They brought with the necessary protection devices, switches, push buttons & indicating lights to control the desired process. SPECIFICATION Ambient Temperature: 50°C Busbar Support: AL/CU as per client requirement Degree of protection: IP-54, 55, 66 Dimension (mm): As per requirement Current Monitoring: As per requirement Phase Monitoring: Possible as per requirement Type test to be performed: Short Circuit with Stand temperature rise with stand & Degree of Protection Panel Cote: 7 tank Powder Coated Paint or as per Client’s requirement. Paint: RAL9002 or as per client requirement Panel Mounting: Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame

• Brand Name: Technosoft
• I Deal In: New Only
• Mounting Type: Panel
• Rated Current: Upto 6300 Amps

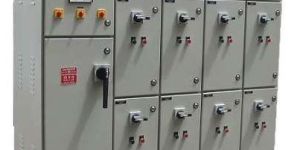

We manufacture optimum quality capacitor panels using the most optimum quality raw materials procured from the best vendors. We ensure that our capacitor panels are durable, rust free and efficient. These are extensively used for maintaining low tension and high tension in factories and wind mills. The capacitor panels, offered by us, are designed as per the requirements of the industry in compliance with ie rules. These panels are equipped with suitable breaking capacity that provides back-up protection and eliminates the need for hrc fuse replacements and are vermin proof as well. Our range of capacitor panels is highly reliable and is extremely cost efficient as there are no fuses.   Attributes : comes with incomer mccb and afcb relay power factor correction contractors based switching off capacitors works in normal or heavy varying load equipped with suitable breaking capacity provides back up protection power factor control   Applications : factories wind mills industry

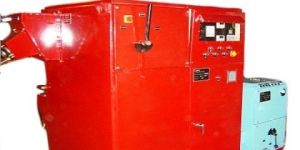

Sait Mine Line Pvt. Ltd. is a prominent manufacturer and exporter of high quality Industrial Control Panel that can be installed as per the needs of clients. This is designed and developed in compliance with international standards using high grade components with the help of cutting edge technology. The entire range of Industrial Control Panel is high in demand for its optimum performance, high durability, less maintenance, corrosion resistance and easy installation. Clients can avail this control panel as per their needs at highly competitive prices.

We provide highly functional range of Control Desk & Mimic Panels that is used for accurate demonstration of process plant where control panels and desks are used. With the help of this panel, one can view the whole plant sitting at one place so that we can easily recognize the status of operation or fault.

We design and manufacture Control Desk with fiber glass or acrylic mimic diagrams. These are completely equipped with annunciation equipment and are designed and manufactured for all types of Process Control Industries. These control desk can be offered on custom basis also.

• Power: 10 KVA to 1000 KVA
• Material: Mild Steel
• Frequency: 50/60 Hz
• Ip Rating: IP54
• Brand Name: ADEC
• Phase Type: 2 - Phase
• Power Source: Electrical
• Voltage: 415/440V AC
• Surface Finish: Paint Coated

We offers PC & Aux. Control desk that are used to control various motors/gadgets on/off, remotely settled in any comfortable place and for monitoring. Panel is located inside the area and multi-core cable is used to interlink panel & desk. We also offer this panel for use of Rice meal or flour meal etc.

• Application: Control Panel
• Voltage: 220V, 380V
• Material: ABS, Mild Steel, PVC
• Power: 1-3kw
• Power Source: Electric
• Phase: Double Phase, Single Phase, Three Phase
• Autoamatic Grade: Automatic

Used In : Process Units | Railways | Airports | Chemical Plants | Utility Plants | Sewage Plants | Manufacturing Units | Pharmaceutical Plants

Wide Range of Master Controllers, CAM /DRUM CONTROLLERS, REVOLVING CONTROL DESK working in Steel & Iron Industries, Ports & Docks in India. Cam / Drum Controllers up to 7-0-7 notches upto 150 Amps for direct motor controls with or without Rotor Resistance. Simplex & Duplex Master Controllers up to 5-0-5 notches with or without gate up to 16 cams. Revolving armchair Control desk fitted with various switches and meters completely wired upto terminals. Chair adjustable up & down, front & back.

Keeping in mind the exact demands of our valued clientele, we offer a wide range of Custom Built Heat Treatment Furnaces. These products are developed at advanced development unit using the best quality material and advanced technique. In order to meet the universal industry parameters, the entire range is stringently checked on diverse industry parameters. In addition, this product is available at low prices in the market.

industrial control panel, Electric Distribution Boxes, Junction Box

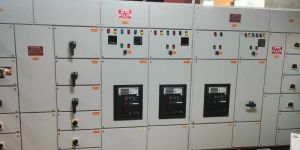

Industrial Automation Panel, PDB Cum APFC Panel, ACB Distribution Panel
