Instrumentation Cable Dealers in Rabindra Sarani, Kolkata

• Type: Instrumentation
• Material: PVC Insulated
• Length: 50-90 M
• Conductor Material: Aluminum
• Packaging Type: Roll
• Usage/Application: Industrial
• Protection Type: Shielded
• Brand: KEI

FOR CONNECTING TRANSFORMER BUSBAR AND MELTING ELECTRODES MULTILAYERS STRANDED ANNEALED BRIGHT BARE COPPER ELECTROLYTIC WIRES INSULATED WITH POLYESTER TAPES VARNISHED CAMBRIC DOUBLE INSULATION having effective thickness of 20 mils duly impregnated with highly polymerised thermosetting varnish suitable to withstand 400 volts. OVERALL ASBESTOS BRAIDED WITH HEAT PROOF FLAME PROOF BLACK COMPOUNDED EFFECTING OVERALL STRENGTH OF ASBESTOS AS HARD & AS FLEXIBLE TO SUIT TRAILING AND HIGH AMBIENT TEMPERATURE CONDITIONS GENERALLY MANUFACTURED IN 400 SQ. MM. CROSS SECTIONAL AREA ANY OTHER SIZE AS PER CUSTOMER'S DESIGN MAY BE FABRICATED.

• Country of Origin: India
• Type: Lt Control Cables, Power Control Cable
• Certification: ISI
• Color: Black, Green, Red, White, Yellow
• Feature: Quality Assured
• Voltage: 1100 V
• Jacket: Pvc
• Outer Material: Pvc
• Internal Material: Copper
• Thcikness: 0.5-1mm, 9.5-10mm
• Application: Equipment connection
• Conductor Material: Copper
• Insulation Material: XLPe
• Certification: ISI

Wires, Submersible Cable, Hook Up Wire, Mining Cables, signalling cable

Industrial applications such as factory floor are typically electrically noisy environments. Electrical noise either radiated or conducted as electromagnetic interference (EMI), can seriously disrupt the proper operation of other equipment. Shielding is needed to combat the effects of EMI. The shield can act on EMI on two ways. First it can reflect the energy. Second, it can pick up the noise and conduct it to ground. In either case, EMI does not reach the conductors. There are two types of shielding typically used for cables namely, foil and braid. Foil shielding uses a thin layer of aluminum, typically attached to a carrier such as polyester to add strength and ruggedness, which is good. A drain wire is used to terminate and ground the shield. Braid is a woven mesh of bare or tinned copper wires. The braid provides a low resistance path to ground and is much easier to termination by crimping or soldering when attaching a connector. The braid is more effective as a shield.

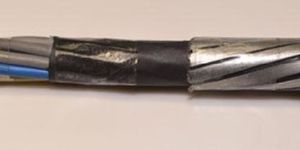

We are offering armoured pvc control cable. Construction: solid stranded annealed copper conductor & tinned bare general purpose hr pvc insulation cores laid up (filled if needed) frls general purpose pvc inner sheath

Owing to the vast experience in this field, M.E.M are able to manufacture and supply high quality of Rubber Trailing Cables. Made using top quality annealed Tinned Copper conductor and elastomeric compound. These cables are very durable and heat resistant. Our huge infrastructure facility is equipped with high-tech machines and technology. We manufacture these cables following modern techniques to obtain the right quality cables. The Rubber Trailing Cables are mainly used for trailing, festooning, mobile machines and crane application.

Highly acclaimed for its efficient reliability and function, this LT Control Cable is prepared using industrial grade of components that are sourced from reliable vendors present in the market. The unparalleled characteristics of this cable like insulation resistance and excellent breakdown strength make it unaffected by moisture and thus, can be used even underwater. It also shows good loading capacity and can be laid vertically or on steep slopes without causing any impingement. The reliable design of this offered range allows it to avoid damage due to chemical, corrosion oil or acid. The outer surface of the cable is tough and smooth at the same time making it abrasion proof. Our customers can avail this range in different specifications related to sizes, shapes and dimensions. Strict quality parameters are followed to check this cable making ensure the hassle free performance. FEATURES : Smoot finish Excellent durability Long lasting Provide safety against damage   SPECIFICATION : IS 1554 part 1- 1988 for PVC Insulated Cable.   APPLICATION AREAS : Communication industry Instrumentation industry Thermocouple extension

Instrumentation cables are designed for Transmission of Analog & Digital signals in instruments and Control Systems. Laser make instrumentation cables are designed to maintain high level of accuracy and sensitivity of the system without drop in signal. It is designed to obtain Maximum rejection of Electromagnetic noise, minimal cross-talk and minimal Electromagnetically or Electromanetically induced noise & common mode interference. Individual pairs or Triads are Colour coded for simplified identification & hook-up. rugged armoured versions are recommended for use in Intrinsically Safe Systems. The Aluminium Myler Tape screening ensures exact data and pulse transmission, protecting the cable against electromagnetic disturbances and interferences. Fire performance options are Designed to resist and withstand extreme fire conditions, with minimal emission of Toxic gases. Lead sheath provides excellent resistant to chemical, oil, gas & radial water blocking. Characteristics : Signal protection between pairs. Good electromagnetic protection from external influences. Excellent Electrical, Thermal & Physical properties. Flame Retardant, Fire Retardant & Fire resistant – Highly recommended in areas with high explosion & Fire risks. Lead sheath provides radial water tightness and resistance to chemicals & hydrocarbons. Excellent mechanical protection during laying, installation & service. Extra pulling force. Option class-5 conductor provides extra flexibility.   Application : Generally used for transmission of signals in control systems. Typical applications include audio, intercom, control, energy measurements, alarm circuits. Suitable for use in wet and dry locations. Armoured cables are recommended for Outdoor & Direct Burial. Unarmoured cables are recommended for indoor use.

We supply low tension cables according to national and international standards and to individual specifications for our customers. In the 0.65 kv - 1.1 kv range, the most commonly required cables are always in stock or production, guaranteeing availability. Cables with aluminium or copper conductors

• Type: Control Cable
• Certification: ISO 9001:2008
• Color: Black, Red, Yellow
• Voltage: 110V, 220V, 380V, 440V
• Power: 6-9kw, 9-12kw
• Feature: Crack Free, Durable, Heat Resistant, High Ductility, High Tensile Strength, Quality Assured
• Jacket: Pvc
• Internal Material: Copper
• Thcikness: 2.5-3mm, 3.5-4mm

These cables are used in conveyor machinery such as transfer cars, boom-stackers, side arm chargers, bulk material conveyors etc. They find application in almost every industry segment like Steel Mills, Cement Plants, Docks, Power Plants, Automobile Industries & Refineries and Petrochemicals.

• Outer Material: Rubber
• Frequency (Megahertz): 50-60
• Wattage: 5-Watt
• Inner Material: Copper
• Voltage Grade: up to 1.1 kv grade

Braided Cables are most suitable for interconnection of electrical measuring devices to instrument panel or instrument. They are used for measuring, monitoring and controlling machine tool manufacture, plant engineering and in all places where electrical interference fields can distort a signal transmission.

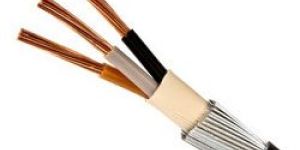

Construction Conductor :Solid/Stranded bare / Tinned copper Insulation ; PVC / FR PVC / HR PVC / FRLS PVC Inner Sheath: PVC/ FR grade PVC / FRLS PVC Unarmoured / Armoured : G.S. Wire / flat strip / Aluminum wire Outer Sheath: PVC/FR PVC / FRLS PVC Size : 1.5/2.5 Sq. mm to 2-61 core Standard: IS: 1554 (Part -1) Salient Features Electrolytic Grade copper, which is purest, a form of copper available. Manufactured in 100% self-generated power. to avoid even minutest weak point in insulation, sheathing or unevenness in conductor laying. In-House developed and manufactured polymers with the best available high-quality ingredients and plasticizers. Available in any number of cores as per requirements. Specially Formulated Outer sheath polymers for oil and chemical resistance. Application For control of power switch and relays

Control Cables is used in Power & Switching stations, Control Rooms, local distribution systems, Control Panels, industrial plants, commercial buildings, Cement , Steel, Refineries & Chemical plants.

1KV cables are designed and manufactured based on the national (IS) & international (IEC, BS) standards and project based customer specifications. Following are the standard stages of cable design & manufacturing.

• Conductor Material: Copper
• Insulation Material: PVC
• Cable Length: 90 Meter
• Working Voltage: 250 V
• Working Temperature: 450 deg.C
• Number of Core: 4 Core
• Packaging Type: Box

ABC / ATC conductor type-A/ HR-PVC insulated, individual & overall screened armored / unarmored, SPVC sheathed (Type-F) cables IS : 5608 (P-I,II,III) & VDE-207 61 Pair × 1.0 SQ.MM37 Pair × 2.5 SQ.MM   ABC/ATC conductor type-A/HR-PVC insulated, overall screened unarmored/armored, ST-1/ST-2 FRLS PVC sheathed (Type - G) cable IS : 5608 (P I,II,III) & VDE-207 61 Pair × 0.50 SQ.MM61 Pair × 1.0 SQ.MM 37 Pair × 2.5 SQ.MM
