Instrumentation Cable Dealers in Kolkata

• Material: Rubber
• Color: Different Colors
• Condition: New
• Application: Power Generation / Distribution
• Power/Voltage: 33KV
• Power Source: Electric

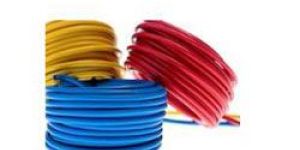

LT Power Cable Aluminium Conductor : Cables for Power Supply to Residential, Commercial & Industrial units 1.1 kV & 3.3 kV for Electrical Substations as per IS:1554-I & 2/ IS 7098-1 & 2 Single Core 10 SQ. mm to 1000 SQ. mm Multicore 6 SQ. mm to 630 SQ. mm     LT Power Cable Copper conductor : Cables for Power Supply to Residential, Commercial & Industrial units 1.1 kV & 3.3 kV for Electrical Substations as per IS:1554-I & 2/ IS 7098-1 & 2 Single Core 10 SQ. mm to 1000 SQ. mm Multicore 6 SQ. mm to 630 SQ. mm.

• Country of Origin: India
• Type: Lt Control Cables, Power Control Cable
• Certification: ISI
• Color: Black, Green, Red, White, Yellow
• Feature: Quality Assured
• Voltage: 1100 V
• Jacket: Pvc
• Outer Material: Pvc
• Internal Material: Copper
• Thcikness: 0.5-1mm, 9.5-10mm
• Application: Equipment connection
• Conductor Material: Copper
• Insulation Material: XLPe
• Certification: ISI

Solid stranded annealed copper conductor & tinned bare General purpose HR PVC insulation Cores laid up (filled if needed) FRLS General Purpose PVC inner sheath Armouring round galvanized steel wires strips FRLS General purpose PVC outer sheath

We bring forth the finest range of high tension and low tension Cables which are highly conductive. These HT and LT Cables are manufactured form the superior quality raw materials and are available in different types. Our HT and LT Cables have high endurance and are fit for safe long term usage.

FOR CONNECTING TRANSFORMER BUSBAR AND MELTING ELECTRODES MULTILAYERS STRANDED ANNEALED BRIGHT BARE COPPER ELECTROLYTIC WIRES INSULATED WITH POLYESTER TAPES VARNISHED CAMBRIC DOUBLE INSULATION having effective thickness of 20 mils duly impregnated with highly polymerised thermosetting varnish suitable to withstand 400 volts. OVERALL ASBESTOS BRAIDED WITH HEAT PROOF FLAME PROOF BLACK COMPOUNDED EFFECTING OVERALL STRENGTH OF ASBESTOS AS HARD & AS FLEXIBLE TO SUIT TRAILING AND HIGH AMBIENT TEMPERATURE CONDITIONS GENERALLY MANUFACTURED IN 400 SQ. MM. CROSS SECTIONAL AREA ANY OTHER SIZE AS PER CUSTOMER'S DESIGN MAY BE FABRICATED.

We are offering armoured pvc control cable. Construction: solid stranded annealed copper conductor & tinned bare general purpose hr pvc insulation cores laid up (filled if needed) frls general purpose pvc inner sheath

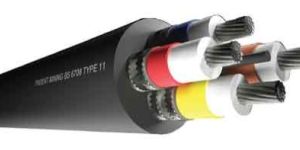

Designed and manufactured for use in continuous flexing, twisting and other abusive physical application where flame, abrasion, chemicals, moisture, impact, tearing and temperature extremes are considerations. Applications include Portable Power, Portable Control, Spring and Motor driven reels, Power tracks, Cable tenders, Cranes and Hoists.

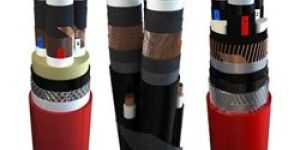

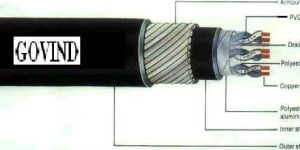

Instrumentation cables are designed for Transmission of Analog & Digital signals in instruments and Control Systems. Laser make instrumentation cables are designed to maintain high level of accuracy and sensitivity of the system without drop in signal. It is designed to obtain Maximum rejection of Electromagnetic noise, minimal cross-talk and minimal Electromagnetically or Electromanetically induced noise & common mode interference. Individual pairs or Triads are Colour coded for simplified identification & hook-up. rugged armoured versions are recommended for use in Intrinsically Safe Systems. The Aluminium Myler Tape screening ensures exact data and pulse transmission, protecting the cable against electromagnetic disturbances and interferences. Fire performance options are Designed to resist and withstand extreme fire conditions, with minimal emission of Toxic gases. Lead sheath provides excellent resistant to chemical, oil, gas & radial water blocking. Characteristics : Signal protection between pairs. Good electromagnetic protection from external influences. Excellent Electrical, Thermal & Physical properties. Flame Retardant, Fire Retardant & Fire resistant – Highly recommended in areas with high explosion & Fire risks. Lead sheath provides radial water tightness and resistance to chemicals & hydrocarbons. Excellent mechanical protection during laying, installation & service. Extra pulling force. Option class-5 conductor provides extra flexibility.   Application : Generally used for transmission of signals in control systems. Typical applications include audio, intercom, control, energy measurements, alarm circuits. Suitable for use in wet and dry locations. Armoured cables are recommended for Outdoor & Direct Burial. Unarmoured cables are recommended for indoor use.

Aerial Bunch Cable (AB) is a very noble concept for over head power distribution when compared to the conventional bare conductor in over head distribution system. AB Cable provides higher safety and reliability, lower power loses and ultimate system economy by reducing operative cost. It provides Lower distribution cost by restricting and anti tapping. XLPE insulated power conductor of aluminum are laid together twisted around a aluminum alloy bare or insulated messenger wire to form AB Cables. These cables are directly strung on distribution polls by means of hardware.   SPECIFICATION: IS - 14255 - 1995

LT control cables A Steel Major mandated buyjunction for the procurement of 300 types (A, B & C category items) of Low Tension (LT) power and control (PVC, XLPE and EPR insulated) cables. The quantity requirement was 600 km per annum.

• Type: Control Cable
• Certification: ISO 9001:2008
• Color: Black, Red, Yellow
• Voltage: 110V, 220V, 380V, 440V
• Power: 6-9kw, 9-12kw
• Feature: Crack Free, Durable, Heat Resistant, High Ductility, High Tensile Strength, Quality Assured
• Jacket: Pvc
• Internal Material: Copper
• Thcikness: 2.5-3mm, 3.5-4mm

• Outer Material: Rubber
• Frequency (Megahertz): 50-60
• Wattage: 5-Watt
• Inner Material: Copper
• Voltage Grade: up to 1.1 kv grade

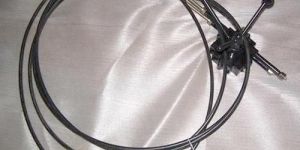

Control Cables:Control Cable which is mostly of copper conductors solid as well as stranded. The size of such conductors are upto 6mmsq. These are used for panel wiring relay protection, control of machines and equipment and myriad of other varieties. These are tailored made application as per specific customer need.   SPECIFICATIONS: - Control Cables can be manufactured as per IEC, other overseas specification and Indian Standards. - Control Cable may be either PVC or XPLE Insulated.

Construction Conductor :Solid/Stranded bare / Tinned copper Insulation ; PVC / FR PVC / HR PVC / FRLS PVC Inner Sheath: PVC/ FR grade PVC / FRLS PVC Unarmoured / Armoured : G.S. Wire / flat strip / Aluminum wire Outer Sheath: PVC/FR PVC / FRLS PVC Size : 1.5/2.5 Sq. mm to 2-61 core Standard: IS: 1554 (Part -1) Salient Features Electrolytic Grade copper, which is purest, a form of copper available. Manufactured in 100% self-generated power. to avoid even minutest weak point in insulation, sheathing or unevenness in conductor laying. In-House developed and manufactured polymers with the best available high-quality ingredients and plasticizers. Available in any number of cores as per requirements. Specially Formulated Outer sheath polymers for oil and chemical resistance. Application For control of power switch and relays

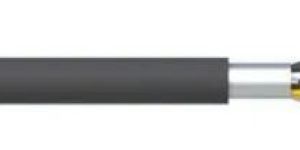

• Type: Instrumentation
• Material: PVC Insulated
• Length: 50-90 M
• Conductor Material: Aluminum
• Packaging Type: Roll
• Usage/Application: Industrial
• Protection Type: Shielded
• Brand: KEI

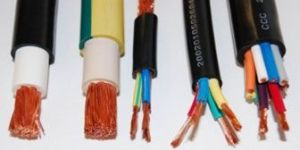

These cables are used in conveyor machinery such as transfer cars, boom-stackers, side arm chargers, bulk material conveyors etc. They find application in almost every industry segment like Steel Mills, Cement Plants, Docks, Power Plants, Automobile Industries & Refineries and Petrochemicals.

• Conductor Material: Copper
• Insulation Material: PVC
• Cable Length: 90 Meter
• Working Voltage: 250 V
• Working Temperature: 450 deg.C
• Number of Core: 4 Core
• Packaging Type: Box

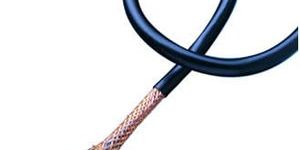

Braided Cables are most suitable for interconnection of electrical measuring devices to instrument panel or instrument. They are used for measuring, monitoring and controlling machine tool manufacture, plant engineering and in all places where electrical interference fields can distort a signal transmission.

We supply low tension cables according to national and international standards and to individual specifications for our customers. In the 0.65 kv - 1.1 kv range, the most commonly required cables are always in stock or production, guaranteeing availability. Cables with aluminium or copper conductors

Industrial applications such as factory floor are typically electrically noisy environments. Electrical noise either radiated or conducted as electromagnetic interference (EMI), can seriously disrupt the proper operation of other equipment. Shielding is needed to combat the effects of EMI. The shield can act on EMI on two ways. First it can reflect the energy. Second, it can pick up the noise and conduct it to ground. In either case, EMI does not reach the conductors. There are two types of shielding typically used for cables namely, foil and braid. Foil shielding uses a thin layer of aluminum, typically attached to a carrier such as polyester to add strength and ruggedness, which is good. A drain wire is used to terminate and ground the shield. Braid is a woven mesh of bare or tinned copper wires. The braid provides a low resistance path to ground and is much easier to termination by crimping or soldering when attaching a connector. The braid is more effective as a shield.
