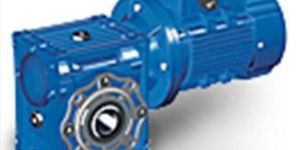

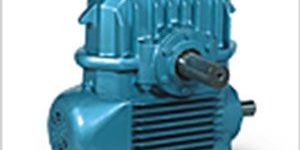

RangePower range upto 350 KWReduction Ratio range 5/1 to 4900/1What is it?Case hardened and profile ground screwed threads meshing with smoothly finished bronze wheel to transmit torque at Right angle.Characteristics» Perpendicular drives (input to output)» Lower efficiency beyond 40/1 ratio» Compact for higher ratio» Semi skilled manpower for maintenance» Irreversible beyond ratio 60/1Major IndustriesSugar, Elevator, Textile, Rubber, Steel Industry, Power Plants, Mines and Minerals, Waste Water Treatment, Paper,Plastic & Leather

We are the main supplier of this product.

Type : Standard

Certification : CE Certified

Weight : 10-20kg

Voltage : 220V

Driven Type : Electric

Phase : Single Phase

Current Type : AC, DC

Frequency : 50 Hz

Range Power range upto 250 KW. Reduction ratio upto 25.6/1Applications Plastic Extrusion & PVC Extrusion Features » The gear units are quite capable to transmit the high torque required for pressurising and plasticising moulding materials and also to absorb the high axial thrust load through built-in spherical roller thrust bearing. The axial bearing housing is standardised to accommodate suitable thrust bearings and corresponding output shafts with key are splined.» Sizes available from 112mm to 355mm center distance Extruder Gearbox Rating & SelectionInstallation & Maintenance

Single Phase Motors are used in variety of applications in households and small industrial sectors, where three phase power supply is not available. Single Phase motors are classified based on the type of starting mechanism. Widely used starting mechanisms are SplitPhase, Capacitor Start and Run, Capacitor Start Induction Run & Capacitor Start Capacitor Run. Depending upon the application load characteristics, mounting suitability and cooling mechanisms, we have single phase motors in various output powers, constructions and enclosures in the product categories given below:

RangeFrom 0.09 KW to 55 KW. Output speed from 1.3 to 676 RPMApplicationsConveyors, Agitators, Elevators, Cranes, Crushers Features Industries covered are Chemicals, Pharma, Packaging, Food Processing, Plastic, Automation etc. Available in 14 sizes

Features The important feature include high efficiency and load carrying capacities combined with long life and reliable service.

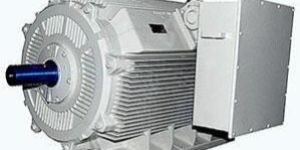

CG has an exemplary facility with an established manufacturing range of low voltage motors. All the manufacturing units are well supported by robust infrastructure. With world class infrastructure, we are satisfactorily meeting the client’s expectations. We have employed the most sophisticated and inclusive range of equipment and machinerys to carry out the bulk or customized order in most hassle-free and timely manner. Our core competencies lie in our manufacturing facility conforming to the international quality standards. In our continuous effort, to bring out the latest, most advanced product into market-place we continuously add many new services, features and introduce new innovative solutions so as to ensure complete customer satisfaction.For better reliability of windings, we are using automated coil formation & Insertion machines. The windings are impregnated in VPI Plant. All the motors manufactured undergo rigorous testing at a computerized test plant.Low Voltage (LV) AC motors range cast iron and aluminium motors conforming to IEC and NEMA MG 1 Standards.

CG has an exemplary facility with an established manufacturing range of low voltage motors. All the manufacturing units are well supported by robust infrastructure. With world class infrastructure, we are satisfactorily meeting the client’s expectations. We have employed the most sophisticated and inclusive range of equipment and machinerys to carry out the bulk or customized order in most hassle-free and timely manner. Our core competencies lie in our manufacturing facility conforming to the international quality standards. In our continuous effort, to bring out the latest, most advanced product into market-place we continuously add many new services, features and introduce new innovative solutions so as to ensure complete customer satisfaction.

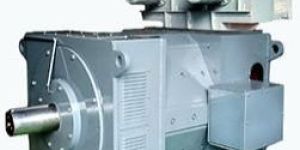

CG is fully equipped to manufacture state-of-the-art LAMINATED YOKE DC Motors up to 2200 kW (50000 Nm torque) in frame size up to 710 in order to cover all the variable speed drive applications.The D.C. motor designs are with the latest technology developed and optimized with FEM/ Flux plotting techniques to give maximum torque for each kg of material used. In-house critical facilities like shaft grinding on CNC, Commutator etc. are monitored and tested rigorously to ensure that each motor satisfies a rigid set of performance parameters. The high quality standards maintained in manufacturing and testing gives superior electrical and mechanical performance-making the motors most suitable for operating in tropical environment. Mandideep (Bhopal) plant is accredited with ISO 9001, ISO 14001 & OHSAS 18001. We are committed to deliver quality product by stringent quality checks in all stages from pre sales to delivery. Our motors are exported to all major countries.

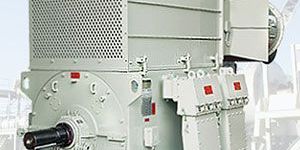

CG offers both Squirrel Cage (TPC & FTC Range) and Slip Ring (TPR & FTA Range) motors in horizontal (IMB3), vertical (IMV1) and inclined (IMB5, IMV5) mounting options to suit every customer requirement.Built in accordance with IEC 60034-1 / IS 325 standards, we offer customized, energy efficient and intelligent motors for various applications in IP23 & IP55 enclosures. We offer a wide range of cooling systems ranging from Self Circulation type (IC611) to independent forced circulation circuits (C616) and Tube Ventilated (IC511) to fin cooled (IC411) types.The motors offered ranging from Open Air Circuit (IC01) and Closed Air Circuit (IC611) to independent externally fed air circuit (IC616). These are designed for optimum performance in adherence with application and site requirements of performance and space.These motors have been designed to meet diversified application demands, while maintaining excellent performance and the highest quality. The robust design helps function with variable voltage, variable frequency drives.

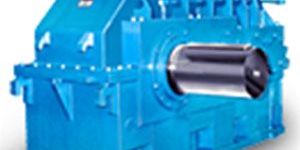

Range Power range upto 5500 KWReduction Ratio range upto 650/1What is it? Case hardened & Profile ground Steel Gears with inclined tooth to transmit the torque between parallel shafts with minimum noise. Characteristics » Parallel gears (Input to output)» Very high efficiency at all ratios» Skilled manpower for maintenance» Ideal for very high power transmission systems i.e. > 50KW Major Applications For applications > 50Kw. Agitators, conveyors, crushers, cranes, Larger ball mills, mixers, Aerators, Coal pulverising mills, Plastic extruders, Fin cooler drives, Kneaders, Thickeners Major Industries Thermal Power Plant, Sugar, Cement, Paper, Solvent Extraction, Plastic, Rubber, Steel Industry, Mines and Minerals.

Range Power range upto 5500 KW. Reduction ratio range upto 650/1 Applications For applications > 50KW Agitators, Conveyors, Crushers, Cranes, Larger Ball Mills, Mixers, Aerators, Fin Cooler Drives, Kneaders, Thickeners. Features » Case hardened and Profile ground Steel Gears with inclined tooth to transmit the torque between parallel / Right Angle shafts with minimum noise.» Industries covered are - Sugar, Cement, Paper, Solvent Extraction, Rubber, Steel Industry, Power Plants, Mines and Minerals, Chemical» Sizes available from 112mm to 355mm center distance

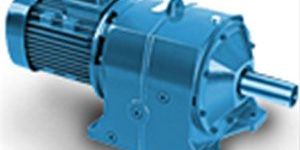

Compact Gear train with drive motor on single base frame to transmit power co-axially with minimum noise. Power range upto 37 KW Reduction Ratio range upto 1251 Caxial gears with compact configuration (Input to output in same line) » Very high efficiency at all ratios » Can become perpendicular using a pair of bevels » Skilled manpower for maintenance » Ideal for very low power transmission systems i.e. < 10KW

RangePower range upto 37 KWReduction Ratio range upto 125/1What is it?Compact Gear train with drive motor on single base frame to transmit power co-axially with minimum noise.Characteristics» Caxial gears with compact configuration (Input to output in same line)» Very high efficiency at all ratios» Can become perpendicular using a pair of bevels» Skilled manpower for maintenance» Ideal for very low power transmission systems i.e. < 10KWMajor IndustriesCement, Rice Mill, Solvent Extraction, Ceramic Industries, Steel Industry, Power Plants, Minerals, Food & Tobacco

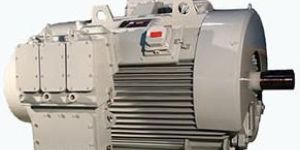

Efficient use of energy enables commercial and industrial facilities to minimize production costs, increase profits, and stay competitive. The majority of electrical energy consumed in most industrial facilities is used to run electric motors. Energy-efficient motors now available are typically from 2 to 6 percent more efficient than their standard counterparts. This efficiency Improvement translates into substantial energy and money savings.CG offers an entire range of energy efficient motors as per the latest IEC, IS & NEMA standards and also complies with the efficiency norms of each geographies.

Considering our marketing prowess and support infrastructure for providing efficient after sale service, Crompton Greaves appointed us as their authorized dealer for Electric Motors from teh year 2005. We have been consistently among the top five dealers on All India basis for Crompton Greaves there after.

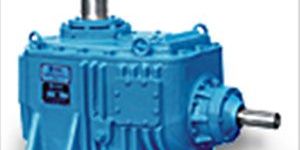

Range Power range upto 600 KW. Reduction ratio upto 15.4/1 Applications Cooling Tower and Heat Exchanger Features » Case Hardened and Lapped steel spiral bevel gears to transmit the torque between right angle shaft. Unicase design with Pumpless Lubrication and three-point Foundation.» Industries covered are - Sugar, Cement, Paper, Solvent Extraction, Steel Industry, Power Plants.» Sizes available from 140mm to 450mm center distance. Product Catalogue Product CatalogueInstallation & MaintenanceFin Cooler Gearbox Product Catalogue

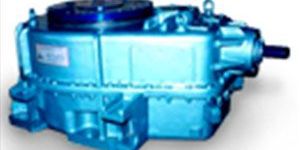

Range Power range upto 400 kWApplications Vertical Coal Pulverizing Features » Bevel helecal gear units capable of taking large vertical downward thrust load. Cast Iron Case

For better reliability of windings, we are using automated coil formation & Insertion machines. The windings are impregnated in VPI Plant. All the motors manufactured undergo rigorous testing at a computerized test plant.

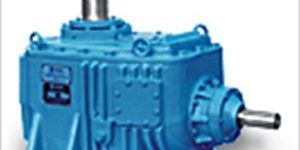

Range Power range upto 5500 KWReduction Ratio range upto 650/1 What is it? Case Hardened and Lapped steel spiral bevel gears to transmit the torque between right angle shaft at first stage and other stage transmission through Helical gears. Characteristics » Perpendicular gears (Input to output)» Very high efficiency at all ratios» Skilled manpower for maintenance» Ideal for very high power transmission systems i.e. > 50KW Major Applications For applications > 50Kw. Conveyors, Bucket elevators, Toasters, mixers, cooling towers, Coal pulverising mills

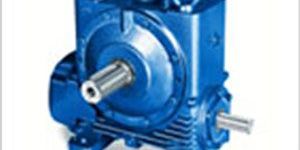

Range From 0.06 KW upto 7.5 KW. Ratio range from 7.5/1 upto 100/1Applications Converyors, Packaging, Loading, Automation

Range 112 to 250 with ratio of 25.6:1 to 42.5:1Applications Water Filteration Features » "GA" series parallel shaft vertical gear drives in triple reduction are intended to satisfy characteristic requirements and conditions encountered in Aerator application.» Sizes available from 112 to 250 with ratio range of 25.6 : 1 to 42.5 : 1 Aerator Gearbox Rating & Selection

We understand your needs, from power supply to process Supplying the technical solution is one thing, making sure it works according to your requirements is another. That requires personal commitment and a true understanding of your process. Adding our engineering competence will help you improve efficiency. We can design complete drive solutions or deliver turn-key projects, including everything from engineering to commissioning. Drive solution optimized for your process: Knowing your process and understanding your needs means we can offer a fit-for-purpose drive solution, tailored to your requirements. Based on our in-depth knowledge and long experience, we will combine the different components into an optimized drive solution that will give you the best total performance. Our engineering services can include, for example, electro mechanical engineering, software development, communication solutions, remote access, PLC programming, motor dimensioning or configuration. Turn-key projects for maximum security: You can let us take responsibility for the complete delivery, including engineering, cabinet construction, installation of motors and transformers, and commissioning. We take responsibility for the system`s performance with regards to operational and environmental conditions, specific requirements for EMC performance, IP classification or cooling, etc. Or we can simply assist you in sizing the components. Whichever you choose, you will benefit from us knowing what will work in your application.
