N K INSTRUMENTS Raja Bazar, Kolkata, West Bengal

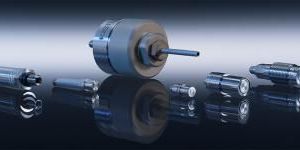

Strain gauge technology-based pressure transducers from HBM provide reliable and trustworthy results even with highly dynamic applications at high numbers of load cycles - for minimal pressures up to 15,000 bar.

Kistler offers both piezoelectric and piezoresistive sensors to measure pressure – so we have the right solution for many applications. Piezoelectric pressure sensors are suitable for measuring highly dynamic, dynamic and quasi-static pressure curves or pulsations. Piezoresistive pressure sensors are suitable for measuring static and quasi-static pressure curves.Piezoelectric Sensors: Model: 601A, 601H, 603B, 6001, 6005, 6031, 7001,7005, 70031 Piezoresistive Sensors:  Model: 4260,4262,4264 & 4080 High Pressure Sensor: Model: 6229A.., 4067…, 6052B. Engine Monitoring: Model: 6013CA, 6313CA, 6302A, 7013C.., 7613C… High Pressure Sensor, Ballistics Model: 6217 Low Pressure Sensor, Engine Development, Inlet/ Outlet Measurement, Model: 4005A, 4043A, 4045A, 4073A, 4075A High pressure sensor, Engine Development, Injection, Model: 4065A, 4067A, 6229A High pressure sensor, Engine Development, Cylinder Pressure, Model: 6052B, 6053BB.., 6057A.., 6115A, 6067c, 7061B

Condition : New

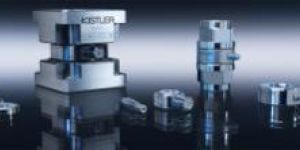

Thanks to their rugged design, piezoelectric quartz sensors from Kistler keep precise track of quasi-static and highly dynamic force processes, even when conditions are difficult. Our force sensors can also handle simultaneous measurements of multiple orthogonal force components. Single Component: Direct Force Sensor 9001A … 9071A,9101A … 9104A, 9130B … 9136B, 9130BA … 9136BA, 9601A1, 9602A1 ,9602AA1 Force Link: 9173B … 9176B, 9301B … 9371B Indirect Force Measurement (Single Component): Measuring Pin: 9241C, 9243B, 9245B, 9247A Strain Sensor: 9232A, 9233B, 9234A, 9235B Multi Component:   Direct Force Sensor: 9017B, 9047B, 9067, 9067B, 9077B, 9251A, 9601A2…, 9601A3…   Force Link: 9317B,9327A, 9347B, 9367B & 9377B   Cutting Force Dynamometer:   9272, 9255C, 9257B, 9129A, 9129AA … etc, sensors for dynamic and quasi-static measuring of the three orthogonal components of a force, measuring of cutting forces during turning, milling and grinding

Eddy Current Dynamometers are designed for Universal Application in all Types of Testing like for Engines, Turbines, Motors, Components and PTO testing.  THE APPLICATION• Universal range of application for examinations on engines and engine assemblies• Development of Petrol & Diesel engines for cars and commercial vehicles• Development and testing of engine assemblies, e.g. Pistons, Ignition systems, Sealing, Filters, Carburetor and Fuel Injection equipment, Exhaust gas ducting and catalysts• Quality Control• Development and Testing of Fuels and Lubricants

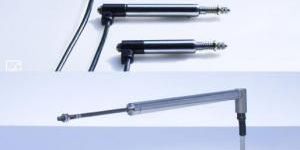

The inductive displacement measurement principle has penetrated many sectors of industry and research because it is both robust and maintenance-free.   For years, HBM has gained experience in the field of inductive transducer technology and has been building inductive displacement transducers, which can be used universally for measuring displacement in conjunction with carrier frequency amplifiers.

Every data acquisition task has its own special challenges. Whatever your application, mobile or stationary, on a test cell or under extreme environmental conditions, our range of DAQ has the right measurement data acquisition system / measuring amplifier for your needs.We provide solutions for every Data Acquisition application ranging from strain gauge Quarter, Half & Full bridge to Voltage & current output from transducers.

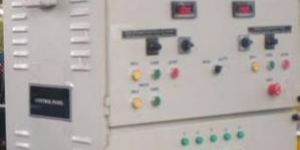

The testing in a soil bin test setup can be carried out by two to three persons as the operations for trolley movement and rotavator movement are all controlled from centrally located control panel. One can easily set up the experiment and record the data from centrally located Data Acquisition System and Computer placed near to the control panel.

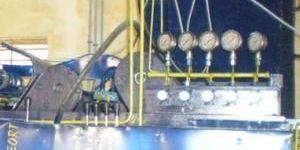

The Soil Bin Test Setup has hydraulic cylinders for height adjustment of soil processing tools i.e. rotavator, leveler & roller and for the implements testing arrangement using EORT, Cone Penetromenter etc. There is hydraulic power pack and manual controls for operating the hydraulic setup.B

Cone Penetrometer with force and displacement sensor helps determine the compaction or hardness of soil at various depths.  The force is measured using a U9C Force sensor with a range of 5 kN and depth of the penetromenter is measured with displacement transducer having a range of 200 mm.

With the years of experience and backed by the team of industrial experts, we are able to offer a huge array of Computerized Engine Test Rigs to our clients. These Engine Test Rigs are aesthetically designed and precision-engineered for their higher functionality and durable work life. Moreover, all these Computerized Engine Test Rigs are rigidly tested on various quality parameters to deliver a flawless range at the client's end.

Accurate acceleration sensors are essential when measuring vibrations that can be heard as noise or felt as oscillations in vehicles or machines (noise, vibration, harshness – or NVH for short). In bridge-building and space travel too, vibration measurement is a key factor in verifying safety and cost-effectiveness. Kistler's piezoelectric acceleration sensors always keep precise track of amplitude and frequency when measuring vibrations. Accelerometers Low Amplitude, Low Frequency Single Axis, Model: 8310A, 8312A, 8330A etc General Purpose Vibration Measurement, Single Axis, Model: 8202A10, 8203A50, 8274A5, 8276A5, 8704B, 8720A, 8702B, 8710A Shock/Impact/Impulse Measurement, Single Axis, Model: 8044, 8743A…, 8742A…  Miniature, Light Weight, Single Axis, Model: 8614A…, 8730A…, 8778A… Modal Analysis & Structural Testing, Single Axis, Model: 8772A…, 8632C… etc TEDS-Accelerometer, Single Axis, Model: 8704B100T, 8772A50T etc. Low Amplitude, Low Frequency Triaxial, Model: 8393A10, 8393A2 etc General Purpose Vibration Measurement, Triaxial, Model: 8792A500, 8793A, 8794A, 8792A100, etc  Miniature, Ultra Light Weight, Triaxial, Model: 8694M1 Modal Analysis & Structural Testing, Triaxial, Model: 8690C50, 8690C10, 8690C5 etc   TEDS-Accelerometer, Triaxial, Model: 8793A500T, 8690C10T etc.r
