PREMIER IRRIGATION ADRITEC PVT LTD. Alipore, Kolkata, West Bengal

Emission Rate a The original take-apart emitter.Installation versatility - can be installed directly on tubing or on distribution tubing.To IS 13487 Class A, ISI marked.Widely used particularly for orchards, coconuts, grapes etc 4 LPH TABE Nominal Emission Rate - 4 LPHUniformity of Emission Rate - Unregulated , Category –AMean Emission Rate - 3.98 LPHNominal Test Pressure - 1.0 BarRange of Working Pressure - 0.6 - 2.0 Bar.

Extremely strong system for large farms and plantations with high static heads.Only two hooks (unlike three or four which are difficult to handle) for easy coupling/uncoupling.Spring loaded hooks for security. With different pipe ratings to cost effectively meet all pressure requirements. Suitable for high pressure ratings.Sizes up to 160mm diameter.ISI marked IS:14151 quality pipes.Very wide range of fittings.

Premier Souldered End Groove Clamp Coupled Fast and simple to installFoolproof jointing Corrosion proofWide range of pressure ratingsResistant to shockExceptional durabilityLowest lifetime costWidely used in developed countries for potable water supply, gas distribution, irrigation, mining and industrial Removing The Hazards Of In-Field Butt Welding The PREMIER approach is the application of logic - rather than trying to provide ideal welding conditions in the field the process is reversed and pipes are welded under ideal conditions in the factory, tested, then taken to the field. Field butt welding is always a troublesome business requiring close supervision, protection from the elements, a generating set and has low productivity. If there is a failure during testing, the repair and rewelding are particularly complicated.

For low and medium pressure permanent mains, landscape irrigation and other piping applicationsManufactured to IS:4985 and ISI marked.Solvent welded joints

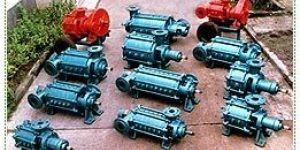

Details : Manufactured in-house, suitable for larger farms and plantations. Specially designed for sprinkler irrigation. High efficiency saves power. Robust and durable. Diesel and electric driven pumpsets. Spares and service support.

Type : Automatic

Certification : CE Certified

Application : Agriculture

Voltage : 220V

Fuel : Electric

Theory : Axial Flow Pump

Power : 1-3kw

Structure : Diaphragm Pump

Applications Normal gauges are generally used for general applications where vibration & pulsating media is not a factor.   Specifications Dial Sizes 50mm Steel with powder coating Brass or SS Working Parts 1/8” bsp or npt connection Bottom Direct Mounting

Special compound for strength, toughness and crack resistance. To IS12786, amendment no.5 ISI marked.Full range of fittings.

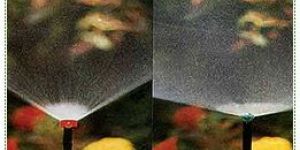

Strong, made of engineering plasticAvailable in full, half and quarter circle. Economical.Popular for oil palm, vanilla, flowers etc.Connection: 5mm male thread.Colour: Full circle low discharge DX-F-LD – Blue            Full circle DX-F - Orange            Half circle DX-H - Green             Quarter Circle DX-Q – RedMaterial: Polyacetal

A very popular system with high quality couplers for agriculture and medium sized lantations. Double Hooks coupling system with springs for extra security. Does not uncouple when pump restarts after power failure – resist shocks High quality sealing ring lasts longer. SL system for normal use. SL-HP for higher pressures. ISI marked IS:14151 quality pipes. Wide range of fittings. Available sizes are 63, 75, 90, 110mm diameters. Maximum working Pressure: for 63 & 75mm – 5.9bar and for 90 & 110mm – 4.0 Bars

Model FT 30 - volume of tank: 30 litresModel FT 60 - volume of tank: 60 litresModel FT 90 - volume of tank: 90 litresFormed and welded from steel sheet 3mm thick, dished ends. Integral mounting base. Protected all over by heat fused epoxy/polyester powder coating, colour : orange. Outlet has stainless steel screen filler. Includes: drain valve, air valve, inlet and outlet connecting hoses each 1m length with ½" BSP fm connection both ends.

Model,Cat. No.:1”,25mm – 25AVRVInstant and continuous vacuum relief Large air chamber for air reliefSeal tight at 0.34 bar/5 psi8 bar/125 psi working pressure Max. operating pressure:10 bar/145 psi Protection capDurable, weather resistant, corrosionresistantConstruction : ABS plastic and elastomersealInlet : 1” NPT male thread
