Track Bolts
We manufacture and supply fish plates to suit UIC, BS and other standard rail profiles. We have already developed a wide range of rolled fish plate profiles for rail sections such as: UIC 60, UIC 54, U33, BS 80A, BS 90A, IRS 52 KG and IRS 90 Lbs
...more

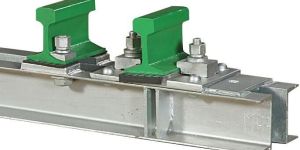

steel channel sleeper
Steel channel sleepers are designed for use in the railway tracks running over bridges where a resilient ballast bed cannot be used. Steel channel sleepers are fabricated from steel channel sections, wherein two channels are welded together to obtain the required strength. Both running and guard rails are accommodated on the channel sleeper. The running rails are fixed to the canted bearing plate using clip and bolt rail fastening system. However the guard rails are bolted directly on the sleepers. Rubber pads are also provided under each rail and sleeper to absorb the shocks and dampen the vibrations. Steel channel sleeper with all steel fittings are hot dip galvanized to enhance the service life of the product.
...more
Rail Clips
rail clips to customer requirement. We are well equipped with design facilities and are capable of supplying elastic clips as per the rail section and toe load requirement of the customers. All arrangements for testing are available at our works. Finite element analysis to design clips is adopted. Special coatings like electroplating or tip galvanizing andor powder coating can be applied on the clips depending upon the customer’s request.
...more

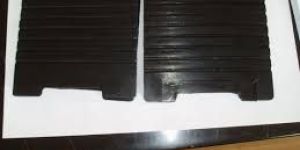

Grooved Rubber Pad
Rahee is an RDSO approved manufacturer of Grooved Rubber Sole Plate (GRSP), for use on Rail Tracks. We have the capability to design and manufacture pads as per customer specification in line with international standards. We manufacture pads for use with Channel Sleepers on Bridges, Turnouts, Rail Expansion Joints and running rails tracks.Resilience for rail vibration.Higher creep resistance.Increase in service life of rails, sleepers and other rail fastening.Electrical resistance.
...more
Glued Insulated Joint
Glued insulated joints are used in tracks that meet certain requirements regarding stability, good tamping and sleeper quality. It consists of glass fibre cloth insulated fishplates, a corresponding number of insulated high-tensile bolts and end post made of insulating material. They can be assembled in-situ or at works. It meets International standards for insulation resistance, pull load, deflection test, wet insulation test etc. Every fabricated assembled joint is checked for vertical and lateral alignment. Joints are subjected to insulation resistance test in dry condition. Pull out test is also carried out at works as a prototype test. The prototype test also includes insulation test in dry condition and test in wet condition.
...more
flash butt welders
Rahee with its vision to provide one stop solution from components to commissioning of tracks, set its footprints in the Mobile Flash Butt Welding business in the year 2005. Since then there has been no looking back and the company today possesses six state of the art Mobile Flash Butt Welding Plants, serving customers’ requirements all over India.Rahee also carries our Mobile Flash Butt Welding activities.Its team of well-qualified engineers use some of the best welding equipments to deliver high quality welds to the customers.
...more
Elastic Fasteners
ZRF is a unique innovative solution designed by Rahee to overcome the shortcomings of the present fastening system used by railways on bridges. Rahee’s design of ZRF assembly on Steel Channel Sleeper or H-beams meets the requirement of IRPWM (i.e. Rail free fastening). The Rahee design uses Elastic Rail Clip Mk-III, which is same as used on standard Track on the approaches at the Bridges in Indian Railways.Provides no restraint on longitudinal movement of Rail.Provides rigid lateral support to Rail for stability, correct gauge and alignment.Provides vertical stability to Rail by use of Elastic Fastening.
...more
Rail Expansion Joints
Elastic Fastenings
Track Works
