Saifee Engineering Industries Canning St, Kolkata, West Bengal

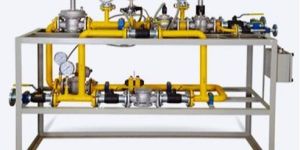

Integrated Process Control/Flame Supervision Safety Interlocks Of International Standards Regulation Of Pressure, Flow And Fuel| Air Ratio Options For Alarm And Data Logging Customizable To User Requirements

Max Flow Rate : 50 M3/Hr To 600 M3/Hr

Design : Modular Design

Shape : U Type

Application : Industrial

Packaging Type : Carton Box

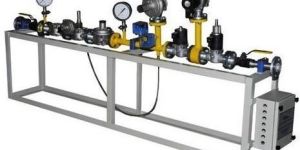

Integrated Process Control/Flame Supervision Safety Interlocks Of International Standards Regulation Of Pressure, Flow And Fuel| Air Ratio Options For Alarm And Data Logging Customizable To User Requirements

Max Flow Rate : 50 M3/Hr To 600 M3/Hr

Type : Straight Type

Design : Modular Design

Application : Industrial

Packaging Type : Carton Box

Key Features : Our Units are design to supply Fuel Oil at a predetermined constant pressure And temperature to ensure efficient Combustion These compact units prevent undesirable variations intemperature caused by heat loss and varying rates of Oil Flow in long lines from Heaters located at considerable distances.

Color : Grey

Voltage : 220V

Automatic Grade : Automatic

Power : 1-3kw

Power Source : Electric

Pressure : High Pressure

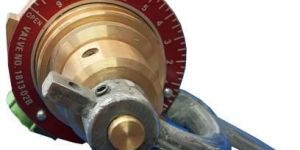

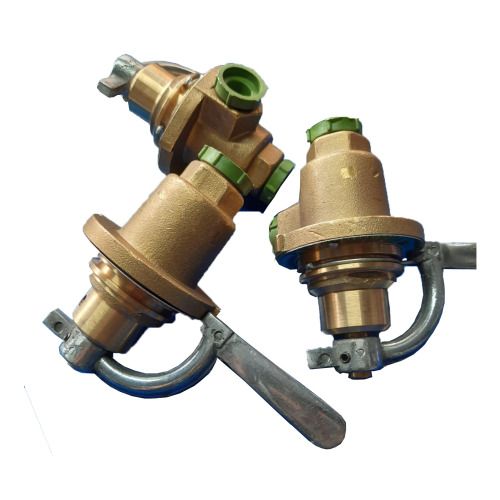

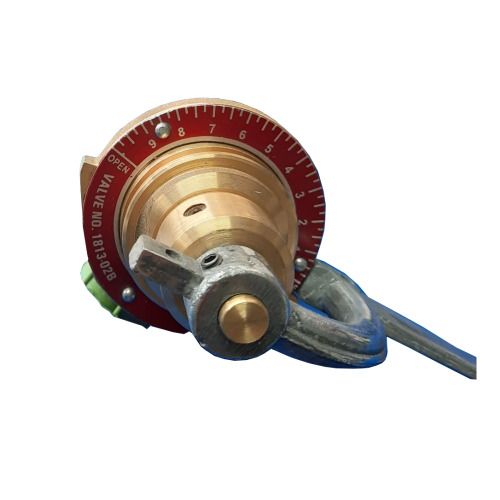

Uses :  For micro-metering of oil to burners with 100% shutoff capability. Oil Valve are available in 6 sizes depending on the oil flow requirements. It also allows shutting off the burner without disturbing the Sensitrol Oil Valve’s limiting orifice setting. Sensitrol Oil Valves is a tight shut-off valve with precision V-oil port for micro-metering and uniform flow of oil through-out the 180 degree sweep of the control handle It is tight shut-off valves that prevent dribbling of oil into the burners during shut-down

Material : Brass, Gunmetal

Application : Industrial

Weight : 5 Kg

Color : Golden

Number Of Way : 2way

Color : Grey

Voltage : 220V

Automatic Grade : Automatic

Power : 1-3kw

Driven Type : Electric

Pressure : High Pressure

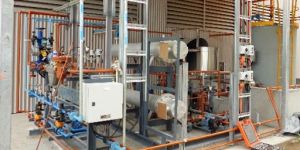

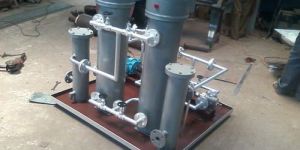

Key Features : Our Units are design to supply Fuel Oil at a predetermined constant pressure And temperature to ensure efficient Combustion These compact units prevent undesirable variations intemperature caused by heat loss and varying rates of Oil Flow in long lines from Heaters located at considerable distances. Simplex Pumping and Heating are low cost and small size unit which consist of one number oil gear pump with motor and with vertical type heating unit along with other accessories such as pressure regulating valve, ball valve pressure gauges/temperature gauges. Duplex Pumping and Heating are also available, the unit consist of two number of oil gear pump with motor and with vertical type heating unit along with other accessories such as pressure regulating valve, ball valve pressure gauges/temperature gauges. Single and stand by options for pumping and heating unit are available in duplex system. High Pressure Pumping and Heating Units are designed for fuel handling systems, where the pressure required is above 100 psi. Different combination with heaters and pumps are also available

Application : Industrial

Voltage : 220V, 380V, 440V

Power : 1-3kw

Driven Type : Electric

Frequency : 50 Hz

Fuel Type : All

Packaging Type : Carton Box

Usage : Industrial, Laboratory

Material : Stainless Steel

Shape : Rectangular

Voltage : 220V

Driven Type : Electric

Display : Digital

Type : Tank Heaters

Application : Industrial Use

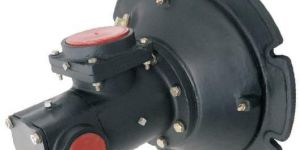

4114 SAIFEE GAS BURNERS ARE SEALED IN  burners used for a wide variety of industrial applications. These burners are capable of efficient operation throughout a wide range of preheat air temperatures, and are equally stable on low temperature ovens as well as high temperature furnaces for reheating , forging, melting, drying etc. The sealed mounting stops unwanted air from the atmosphere from entering the burner, which helps maintain furnace pressure, controlled atmosphere and better oil/gas ratio for improved product quality. Saifee Gas burners are stable with 100% or more excess air. They can be turned down to much lower range but stability limits vary depending on burner size and furnace condition. For prolonged operations with low air pressure at temperatures above 850 dEGREE C, please specify an alloy burner nose. Burners are suitable for preheated combustion air upto 350 degree C.

Material : Stainless Steel

Application : Industrial Use

Color : Black

Installation : Portable

Type : Vertical

Application : Industrial Use

Packaging Type : Carton Box

Corrosion Resistance : Yes

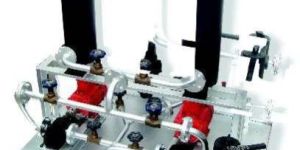

Key Features : Our Units are design to supply Fuel Oil at a predetermined constant pressure And temperature to ensure efficient Combustion These compact units prevent undesirable variations intemperature caused by heat loss and varying rates of Oil Flow in long lines from Heaters located at considerable distances.

Type : Duplex

Voltage : 220V

Automatic Grade : Automatic

Power : 1-3kw

Driven Type : Electric

Pressure : High Pressure

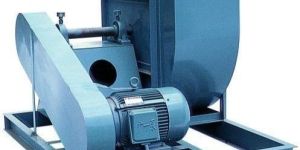

Type : V Belt Drive

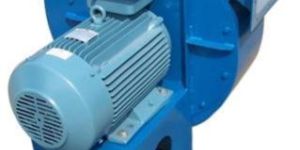

Type : Direct Drive

Power Source : Electric

Type : Coupling Drive

Power Source : Electric

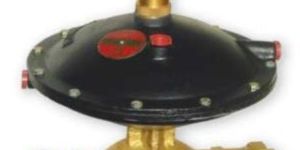

SAIFEE RATIOTROLS proportion oil flow to combustion air flow in cross-connected control systems. Outlet oil pressure from the Ratiotrol is proportional to impulse air signal. As combustion air is turned up or down, the Ratiotrol causes oil to follow it in proportion. Desired air/oil ratio is set with a Sensitrol Oil Valve at the burner.

Application : Industrial

Packaging Type : Carton Box

Finishing : Polished

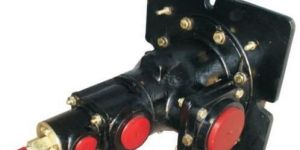

6172 DUAL-FUEL BURNERS  are widely used on heat treat and non-ferrous melting furnaces, kilns, ovens, air heaters, dryers, chemical process equipment, and other applications where superior temperature uniformity is required. (For higher temperatures, use 6175 burners.)These sealed-in, nozzle-mix burners for gas and/or distillate oil are stable on stoichiometric ratio with large amounts of excess air, or with up to 50% excessfuel (provided additional air for combustion is in the furnace near the burner).

Material : Stainless Steel

Feature : High Efficiency Cooking, Non Breakable

Automatic Grade : Manual

Working Pressure : High Pressure

Frame Size : 1300 Mm X 1800 Mm

Installing : Portable

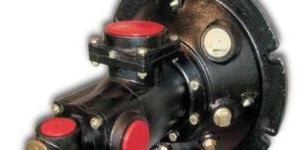

SAIFEE 6114 DUAL FUEL BURNERS  are ealed-in burners for burning gas, light or heavy oil for wide variety of applications. Capable of efficient operation throughout a wide range of preheat air temperature. These are equally stable on low temperature ovens and high temperature furnace such as reheating, forging, melting, hot air generators etc. Sealed mountings prevents unwanted air from the atmosphere entering the burner which helps to maintain furnace pressure, controlled atmosphere, and better gas/ air ratio. Thus better product quality is achieved.

Material : Stainless Steel

Feature : Easy To Clean, High Efficiency Cooking

Automatic Grade : Manual

Frame Size : 1300 Mm X 1800 Mm

Installing : Portable

SAIFEE SERIES 5253 OIL BURNERS  are designed to give maintenance-free operation using heavy oil or light oil. There are no "frills" on this burner — it has a heavy cast iron body with a clean design that avoids clogging even when used on tough jobs such as forge furnaces fired with heavy oil.   BURNER CAPACITY Total air capacity of the burner is listed under Table 1 for a single blower supplying 12 osi combustion air and 14 osi atomizing air for lightoil operation, and 20 osi combustion air and 22 osi atomizing air for heavy furnace oil operation. Use Table 2 and 3 when selecting separate blowers for combustion and atomizing air. For sizing of blowers or burners at other pressures, add figures from Table 2 and 3 to get total capacity. On oil operation these capacities are increased 20% by the additional air supplied through the atomizing air connection. When burning with the shutter open, burner capacities may be doubled if furnace conditions ensure sufficient secondary air.   BURNER OPERATION Oil with viscosity of 70 to 90 Seconds Redwood 1 and a pressure between 25 and 30 psi shouldbe supplied to an Air/Oil Ratiotrol which will deliver oil to the burner at pressure proportional  to the main air pressure, thus maintaining the correct air/oil ratio at all firing rates. Atomizing air pressure at the burner may be as low as 14 osi when using distillate oil and 22 osi when using heavy oil.   BURNER CONSTRUCTION The heavy cast iron body can withstand rough handling. All internal parts of the 5253 burner are machined. The smooth surface stays free of oil deposits and dirt, greatly minimizing the need for cleaning. Oil is put through the burner in a straight passage with large cross-sectional area permitting visual inspection for clogging and easy clean-out if necessary. The burner oil valve is the well known Saifee sensitrol, a nonplugging V-port oil valve which produces small and uniform flow rate changes throughout the 180º sweep of the control handle. with a clean design that avoids clogging even when used on tough jobs such as forge furnaces fired with heavy oil.

Type : Oil Burners

Diameter : 3-5inch, 5-7inch

Installing : Portable

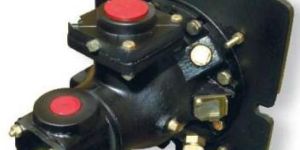

SAIFEE SERIES 5172 OIL BURNERS  are sealed-in, nozzle mix burners for distillate oil (100 SSU viscosity maximum) that are stable with excess air or up to 50% excess fuel (provided additional air for complete combustion is in the furnace near the burner).     TEMPERATURE UNIFORMITY Excess air can improve temperature uniformity by avoiding hot spots in front of burners, by churning furnace atmosphere to reduce stratification, and by creating positive furnace pressure to eliminate cold air infiltration.

Material : Stainless Steel

Application : Industrial

Color : Black

Feature : Non Breakable

Working Pressure : High Pressure

Installing : Portable

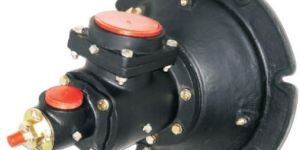

SAIFEE 5114 OIL BURNERS  are sealed-in burners for light or heavy oil used for a wide variety of industrial applications. These burners are capable of efficient operation throughout a wide range of preheat air temperatures, and are equally stable on low temperature ovens as well as high temperature furnaces for reheating, forging, melting, drying etc. The sealed mounting stops unwanted air from the atmosphere from entering the burner, which helps maintain furnace pressure, controlled atmosphere and better oil/air ratio for improved product quality. Saifee burners are stable with 100% or more excess air. They can be turned down to atomizing air only, but stability limits vary depending onburner size and grade of oil. For prolonged operations with only atomizing air at temperatures above 850 degree C, please specify an alloy burner nose.

Material : Stainless Steel

Application : Industrial

Color : Black

Feature : Non Breakable, Rust Proof

Working Pressure : High Pressure

Installing : Portable
