Scientific Instruments Dealers in Kolkata

• Country of Origin: India
• Application: Industrial
• Feature: Accuracy, Spiral Water Meter
• Operating Temperature: 10-50D/C
• Driven Type: Electric
• Flow Range: 6 to 26 Feet/Min

The traditional method for measuring the flow of air blown up through a grain heap. Suited to under-floor systems and blowing fans, the meter is used to confirm that there is adequate flow of air emitting from the surface of the grain. Ventilated grain ensures that the moisture content of the stored grain is kept within a safe limit by the steady flow of air through the grain. The INDUS Crop Airflow Meter for grain is an essential instrument for the successful storage of grain in bulk where under-floor blowing systems are in use.Principle of operationA lightweight float, made from a thin aluminium disc, moves up and down a tapered transparent tube. A wire running through the centre holds the float in place. The float has been designed to spin, removing possible errors by reducing friction. Air passing up the tube supports the float at a height where its weight is balanced by the pressure drop of the air. A scale on front side gives the flow rate in ft/min. On the opposite side of the tube is a white strip to aid reading the flow rate.

• Input Voltage: 230v, +/- 10%, 50hz, 1 Phase A.c.
• Output Voltage: 50 Ma
• Capacity: 50ma Maximum in the H.v.side
• Tripping Current: 25ma & 50ma (toggle Switch Provided)
• Duty Cycle: Intermittent I.e., 5 Min. On & 1 0 Min.off
• Mode of Operation: Manual

• Packaging Type: WOODEN BOX

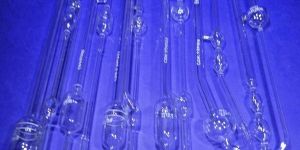

glass viscometer tube with calibration certificate at 40 & 100 deg c

PISCO™ Brand Viscometers are manufactured from crystal clear borosilicate glass true bore capillaries. The design and dimensions are maintained complying strictly with IS/BS/ASTM Specifications.Each Viscometer is individually checked in our own calibration laboratory with required atmosphere and calibrated/certified instruments using certified CANNON oils/liquids.PISCO™ Brand calibrated Viscometer tubes are regularly used by most of Oil companies, Petrochemical Industries and other research laboratories.PISCO™ Viscometer Tubes available with CALIBRATION CERTIFICATE and CERTIFIED at 40ºC or 40ºC/100ºC or as per your required temperature.In the following models/types. U’ Tube, Direct Flow, Type BS/U. Our Cat. No. 835(a) Suspended Level, Type BS/IP/SL. Our Cat. No. 835(b) Suspended Level, Shortened Form, Type BS/IP/SL(S). Our Cat. No. 835(c) Suspended Level, Miniature, Type BS/IP/MSL. Our Cat. No. 835(d) Cannon-Fenske, Direct Flow for transparent liquid, Type BS/IP/CF. Our Cat. No. 835(e) ‘U’ Tube Reverse Flow for opaque liquid. Type BS/IP/RF. Our Cat. No. 835(f) Cannon-Fenske Reverse Flow for opaque and transparent liquids, ASTM D 446/2515. Our Cat. No. 838(a) Cannon-Ubbelohde ASTM D 446/2515. Our Cat. No. 838(b) Ubbelohde for transparent liquids ASTM D 446/2515. Our Cat. No. 838(c)

• Country of Origin: India
• Type: Spectrophotometers, Visocmeter
• Certification: CE Certified, ISO 9001:2015
• Application: Industrial, Laboratory
• Color: Silver, White
• Feature: Easy To Use, High Accuracy, Light Weight
• Display Type: Digital
• Display: Digital
• Measuring Range mpa.s: 20 - 6,000,000
• Adapter Type: 0.3 to 60
• No of Speed: 8-54

• Brand Name: Navis
• Power: 24V
• Power Source: Battery

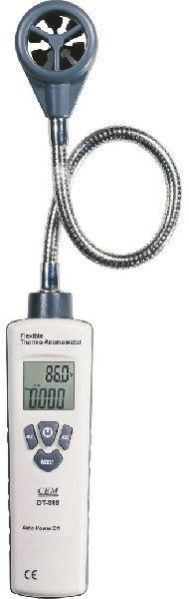

• Application: Measuring The Ambient Temperature, Current Wind Speed/ Direction,Maximum Wind Speed,Wind Chill - Subjective Ambient Temperature
• Display Type: Digital
• Type: Anemometer
• Range: 0,6...50 m/s
• Wind speed measurement range: 0,6...50 m/s
• Wind direction measurement range: 0 - 359 (6 graph resolution)
• Temperature measurement range: -30....+60 C
• Wind speed units: m/s, km/h, knots, mph
• Temperature units: degree C, degree F
• Wind speed averaging period: Selectable 2 s, 10 s, 30 s
• Wind direction averaging period: 10 s
• Wind speed resolution: 0,1 m/s
• Wind direction resolution: degree 6
• Wind speed accuracy: +/- 2,5 %, calibration possible in 0,5% steps
• Wind direction accuracy: +/- 2,5 , adjustable offset +/- 180 degree
• Antenna input: 50 Ohm, SMA connector
• With standard range sensor: Up to 500 m visible distance
• With extended range sensor: Up to 1300 m visible distance
• With Yagi antenna: 3-4 x nominal range
• Power consumption:: Max. 300 mA
• Temperature operating range: -30 ... +60 C
• Outputs: 4 x relay, contact rating 2 A/24 V, programable ON and OFF delays
• Alarms: Adjustable max. alarm red light + continuous sound signal , Adjustable pre. alarm yellow light + interupted sound signal
• Adjustable pre. alarm yellow light + interupted sound signal Sound signal (integrated buzzer): 85 dB/10 cm
