Shivam Industries Lal Bazar, Kolkata, West Bengal

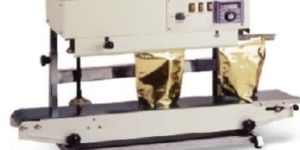

Vertical Band sealer is used to seal thermoplastic bags of any size, length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm.The sealing process is the same as the horizontal band sealer which requires the operator to feed the pouch between two rotating rollers on one side of the machine. The pouch is then automatically guided through two heated brass jaws followed by a cooling zone and then finally passes through the embossing rollers which provide a dotted impression on the seal. The filled pouch rests on a motorized conveyor belt. The heat and the conveyor speed is adjustable using a thermostat and a pot. Band sealers are ideal for medium to large scale production where sealing speed is a major factor. These machines are used to seal a variety of products such as Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, Pet Food, Pastas, Pastries, Flour, Parts, Vegetables etc.

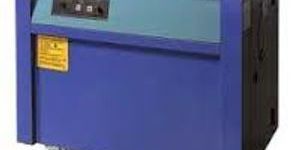

Semi-Automatic box strapping machines are used to strap polypropylene straps on cartoons, oil tins, wooden boxes, cartons etc. Our Semi-Automatic box strapping machine carries an in-built motor to provide tension and uses heat application to fasten the straps together. These machines are used to strap small to medium sized objects of different shapes such as rectangle, square, cylindrical etc. All the operations relating to the machine is PCB controlled. The machine can strap boxes weighing up to 40 Kgs. The strapping process requires the operator to install the strapping roll on the machine and the box that needs to be strapped needs to be placed on the machine. The feed button on the machine needs to be pressed to eject the strap. The strap head is then wound around the object and finally pressed inside the chute which is located on top of the machine which competes the strapping process. Such machines are used for strapping operations at airports, warehouses, transport companies, factories, cottage industries, manufacturing units etc.

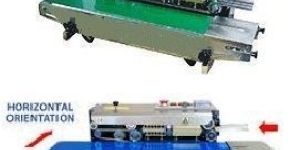

The ECS900VS and the CS900VS band sealer consists of a sturdy stainless steel construction which is best suited to seal commodities which are corrosive in nature such as detergent, salt, fertilizers pesticides etc. Band sealer is used to seal thermoplastic bags of any size length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm. The sealing process is simple which requires the operator to feed the pouch between two rotating rollers on one side of the machine. The pouch is then automatically guided through two heated brass jaws followed by a cooling zone and then finally goes through the embossing rollers which provide a dotted impression on the seal. The filled pouch rests on a motorized conveyor belt. The heat and the conveyor speed is adjustable using a thermostat and a pot. Band sealers are ideal for medium to large scale production where sealing speed is a major factor.These machines are used to seal a variety of products such as Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, Pet Food, Pastas, Pastries, Flour, Parts, Vegetables etc.

The ECS900HS and the CS900HS band sealer consists of a sturdy stainless steel construction which is best suited to seal commodities which are corrosive in nature such as detergent, salt, fertilizers pesticides etc. Band sealer is used to seal thermoplastic bags of any size length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm. The sealing process is simple which requires the operator to feed the pouch between two rotating rollers on one side of the machine. The pouch is then automatically guided through two heated brass jaws followed by a cooling zone and then finally goes through the embossing rollers which provide a dotted impression on the seal. The filled pouch rests on a motorized conveyor belt. The heat and the conveyor speed is adjustable using a thermostat and a pot. Band sealers are ideal for medium to large scale production where sealing speed is a major factor.These machines are used to seal a variety of products such as Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, Pet Food, Pastas, Pastries, Flour, Parts, Vegetables etc.

Shrink Tunnel Machine is used for shrink packaging of various commodities such as foodstuff, beverage, medicines, cd and dvd boxes, hardware items, cosmetics, books, toys and electronic products etc. Its also used in batch packing (Eg. pack of 3 DVD boxes) which enhances the look of the goods and also reduces the packaging cost significantly. Shrink Tunnel machines are available in four sizes and adopts the hot-wind and down cyclone mechanism for shrinking. It may be used for shrinking Shrink Films such as PVC, PP and POF. The machine comes with adjustable temperature controller, variable speed regulator and tunnel height adjustment mechanism. Shrink Tunnel is essential for companies which have bulk packaging needs where packaging speed is a major concern.

Shrink Chamber integrates Sealing and Shrinking in a single machine. It is suitable for all sorts of films such as POF, PVC and PP shrink films. It is used for outer shrink packaging of various items such as books, toys, foodstuff, cosmetics, medicines, video discs, electronics etc.  The sealing process requires the operator to adjust the temperature and  introduce the product between the sleeves of the film and then pressing the handle. Once the shrinking process is complete the operator has to release the handle. The machine can be used for a long time without overheating the ambient environment. The chamber consists of an adjustable package support to meet the different product sizes.

Pedal Hot Bar Sealers are used to seal lamination pouches of various widths upto 24 inches. The frame of the machine is sturdy which supports heavy duty production. The jaw of these sealers are made nickel coated iron. There are two types of hot bar sealers available namely diamond hot bar and tram line hot bar sealers. The diamond hot bar sealer makes a dotted impression whereas the tram line hot bar sealer makes serrated lines when sealing. The jaw of the sealer consists of a box or a strip shaped element to heat it. The heating and the sealing time is adjustable as per the thickness of the pouch. The impression made by these machines is prominent. Such machines are used in small to medium sized factories for sealing products like detergent, agricultural produce, salt, chemicals etc.

Pedal Impulse sealer is a foot operated machine used to seal all sorts of plastic pouches such as LD, PP, Laminates etc. The machine consists of a transformer to achieve the required heat to seal the plastic. The sealing that is achieved is instant and perfect and is 1.5 mm wide which is expandable to 4 mm. The machine is equipped with an adjustable timer, a buzzer and a Light Emitting Diode as sealing indicators. The sealing time may be lengthened or shortened according to the thickness of the plastic. These machines are perfect for sealing granules, powder and liquid products such as water. Such machines are used in bakeries, shops, cottage industries, pharmaceuticals, FMCG etc. Round Element option is also provided for sealing and cutting the pouch simultaneously. Double sealing may also be availed on request.

The EFS140 and EFS180 are two variants of Economy Foil Sealers available with us. These machine is easily affordable by small scale and cottage industries with small or medium scale production needs. Foil sealers are used to seal Aluminium/Blister foils on cups, plastic cans, bottles, containers etc. The height and the temperature of the machine can be adjusted according to the users convenience. The machine comes with a thermostat and heating indicator lamps which automatically switches off when the desired temperature is reached. The sealing process requires the operator of the machine to place the aluminum/blister foil on the container and then placing it on the sealing platform and then finally pressing on the handle until the sealing disc presses on the container. Once the container is sealed the operator may slowly release handle. This completes the sealing process. The sealing attained is pilfer and leak proof.

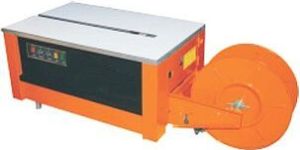

Low Table Top Semi-Automatic box strapping machines are used to strap polypropylene straps on cartoons, oil tins, wooden boxes, cartons etc. Our Semi-Automatic box strapping machine carries an in-built motor to provide tension and uses heat application to fasten the straps together. These machines are used to strap small to medium sized objects of different shapes such as rectangle, square, cylindrical etc. All the operations relating to the machine is PCB controlled. The machine can strap boxes weighing up to 40 Kgs. The strapping process requires the operator to install the strapping roll on the machine and the box that needs to be strapped needs to be placed on the machine. The feed button on the machine needs to be pressed to eject the strap. The strap head is then wound around the object and finally pressed inside the chute which is located on top of the machine which competes the strapping process. Such machine are used for strapping operations at airports, warehouses, transport companies, factories, cottage industries, manufacturing units etc.

L - Sealers are used to seal and cut the Shrink Film in an L shape once the product is inserted between the slit sleeves of the film after which the product may be shrink wrapped using a Hot Gun/Shrink Tunnel. L- Sealer is used for packaging electronic items, foodstuff, cartons, medicine boxes, cell phones etc. It can be applied to all sorts of films such as POF, PVC and PP.  * Basic Difference between LSM5045 and LSS5045 is that the former does not have auto feeding to tunnel via a conveyor which the latter does.

Pedal Impulse sealer is a foot operated machine used to seal all sorts of plastic pouches such as LD, PP, Laminates etc. The machine consists of a transformer to achieve the required heat to seal the plastic. The sealing that is achieved is instant and perfect and is 1.5 mm wide which is expandable to 4 mm. The machine is equipped with an adjustable timer, a buzzer and a Light Emitting Diode as sealing indicators. The sealing time may be lengthened or shortened according to the thickness of the plastic. These machines are perfect for sealing granules, powder and liquid products such as water. Such machines are used in bakeries, shops, cottage industries, pharmaceuticals, FMCG etc. Round Element option is also provided for sealing and cutting the pouch simultaneously. Double sealing may also be availed on request.

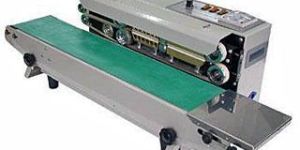

Band sealer is used to seal thermoplastic bags of any size, length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm.The sealing process is simple which requires the operator to feed the pouch between two rotating rollers on one side of the machine. The pouch is then automatically guided through two heated brass jaws followed by a cooling zone and then finally passes through the embossing rollers which provide a dotted impression on the seal. The filled pouch rests on a motorized conveyor belt. The heat and the conveyor speed is adjustable using a thermostat and a pot. Band sealers are ideal for medium to large scale production where sealing speed is a major factor. These machines are used to seal a variety of products such as Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, Pet Food, Pastas, Pastries, Flour, Parts, Vegetables etc.

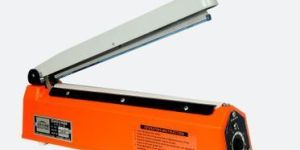

Hand impulse sealers are used to seal all sorts of plastic pouches such as LD, PP, Laminates etc. The machine consists of a transformer to achieve the required heat to seal the plastic. The machine is equipped with an adjustable timer, a buzzer and a Light Emitting Diode as sealing indicators. The sealing time may be lengthened or shortened according to the thickness of the plastic. These machines are perfect for sealing granules, powder and liquid products such as water. Such machines are used in bakeries, shops, cottage industries, pharmaceuticals, FMCG etc. Round Element option is also provided for sealing and cutting the pouch simultaneously. Double sealing may also be availed on request.

TS80 D Cup Sealer is used to seal laminated foil lid or a transparent plastic on the top of round plastic trays on 2 cups at a time. The temperature of the heating plate is maintained by a digitally controlled PCB. The sealing process requires the operator to set the desired temperature and then place the plastic tray inside the die and finally pressing on the handle which seals the tray. The machine is made of stainless steel body to prevent corrosion from spillage. This machine may be used for packaging mineral water, milk, ice cream, yogurt, fruit juice, ghee, oil, fruit pulp, perishable products, jam & jelly, sauce, pickles, honey, sweets, cosmetics, pharmaceuticals products , pesticides, liquid soaps, inks, adhesives, paints, grease & lubricants, blister packs etc.

The TS95 and TS123 Tray/Cup Sealer may be used to seal laminated foil lid or a transparent plastic on the top of round plastic trays. The temperature of the heating plate is maintained by a digitally controlled PCB. The sealing process requires the operator to set the desired temperature and then place the plastic tray inside the die and finally pressing on the handle which seals the tray. The machine is made of stainless steel body to prevent corrosion from spillage. This machine may be used for packaging mineral water, milk, ice cream, yogurt, fruit juice, ghee, oil, fruit pulp, perishable products, jam & jelly, sauce, pickles, honey, sweets, cosmetics, pharmaceuticals products , pesticides, liquid soaps, inks, adhesives, paints, grease & lubricants, blister packs etc.

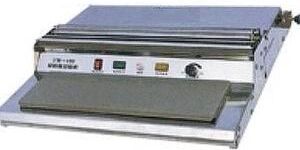

Cling film tray wrapping sealer adopts electronic constant temperature control for cutting and shrinking. Cling film tray wrapping sealer is widely used to pack cling film on food, vegetable which is an ideal equipment for supermarket and buffet. The sealing process requires the operator to place the tray on the heating plate and wrapping it on the tray manually. Once the film is heated it will shrink and stick on the tray. Once the process is complete the operator may remove the tray.

Shivam Bag Closer (DA) is a single needle, single thread chain-stitch bag closing/stitching machine. This machine may be used to stitch all sorts of paper, textile and poly bags made from HDPE/PP etc. The stitching process is simple which needs the operator to feed the filled bag in upright position between the presser foot and the throat plate and then press the push button beneath the handle. The feed mechanism consists of wider presser foot and feed dog with a bigger throat plate. The parts of the machine are tempered which makes them wear resistant, hence the repair costs and the machine downtime are kept to the bare minimum. The machine is capable of functioning under extreme conditions which makes is extremely robust.

The AFCS900 Band Sealer machine is used to seal a to seal thermoplastic bags of any size, length and thickness up to 500 micron. The sealing width is adjustable up to 10 mm. These machines are capable of filling air such as nitrogen in the pouch while sealing it which enhances the shelf life of the product when packed. The sealing process is the same as the horizontal band sealer which requires the operator to feed the pouch between two rotating rollers on one side of the machine. The pouch is then automatically guided through two heated brass jaws followed by a cooling zone and then finally passes through the embossing rollers which provide a dotted impression on the seal. The filled pouch rests on a motorized conveyor belt. The heat and the conveyor speed is adjustable using a thermostat and a pot. Band sealers are ideal for medium to large scale production where sealing speed is a major factor.

The TS 800 Tray Sealer may be used to seal laminated foil lid or a transparent plastic on the top of 8 compartment plastic trays. This machine may be used to seal seasoned food and are very useful for shops, restaurants, fast food, food delivery services, supermarkets home and factory. The temperature of the heating plate is maintained by a digitally controlled PCB. The sealing process requires the operator to set the desired temperature and then place the plastic tray inside the die and finally pressing on the handle which seals the tray. The machine is made of stainless steel body to prevent corrosion from spillage. This machine may be used for packaging mineral water, milk, ice cream, yogurt, fruit juice, ghee, oil, fruit pulp, perishable products, jam & jelly, sauce, pickles, honey, sweets, cosmetics, pharmaceuticals products , pesticides, liquid soaps, inks, adhesives, paints, grease & lubricants, blister packs etc.

The TS500 Tray Sealer may be used to seal laminated foil lid or a transparent plastic on the top of 5 compartment plastic trays. This machine may be used to seal seasoned food and are very useful for shops, restaurants, fast food, food delivery services, supermarkets home and factory. The temperature of the heating plate is maintained by a digitally controlled PCB. The sealing process requires the operator to set the desired temperature and then place the plastic tray inside the die and finally pressing on the handle which seals the tray. The machine is made of stainless steel body to prevent corrosion from spillage. This machine may be used for packaging mineral water, milk, ice cream, yogurt, fruit juice, ghee, oil, fruit pulp, perishable products, jam & jelly, sauce, pickles, honey, sweets, cosmetics, pharmaceuticals products , pesticides, liquid soaps, inks, adhesives, paints, grease & lubricants, blister packs etc.

The TS190X142X2Tray Sealer may be used to seal laminated foil lid or a transparent plastic on the top of rectangle plastic trays. The temperature of the heating plate is maintained by a digitally controlled PCB. The sealing process requires the operator to set the desired temperature and then place the plastic tray inside the die and finally pressing on the handle which seals the tray. The machine is made of stainless steel body to prevent corrosion from spillage. This machine may be used for packaging mineral water, milk, ice cream, yogurt, fruit juice, ghee, oil, fruit pulp, perishable products, jam & jelly, sauce, pickles, honey, sweets, cosmetics, pharmaceuticals products , pesticides, liquid soaps, inks, adhesives, paints, grease & lubricants, blister packs etc.
