Spherical Bearings Dealers in Kolkata

• Brand Name: FAG

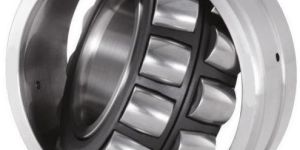

Spherical Roller Bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages. The inner rings with cylindrical or tapered bores. The symmetrical barrel rollers freely align themselves to the concave outer ring raceway. As a result, shaft deflections and mislignments of the bearing seats are compensated. X-LIFE Many sizes of spherical roller bearings are supplied in X-life design. These bearings do not have a central rib on the inner ring so longer barrel rollers can be fitted; improved kinematics, optimised surfaces and even higher performance materials are possible. As a result, the bearings show a significant increase in the basic dynamic load rating and, under the same operating conditions, in the basic rating life. In certain applications, a smaller design of bearing arrangement can therefore be used if necessary.

• Finishing: Polished
• Application: Industrial
• Type: Roller Bearing
• Material: Chrome Steel
• Packaging Type: Box
• Brand Name: FYH

• Type: Roller Bearings
• Brand Name: SAB Bearings
• Condition: New
• Packaging Type: Wooden Crates
• Usage: Industrial
• Bearing Number: 24176, 24184, 24192, 29320, 29322, 29324, 29326, 29328, 29330, 29332, 29334, 29336, 29338, 29412

• Country of Origin: India
• Type: Spherical Roller Bearings
• Brand Name: Power Drive
• Certification: TUV Certified
• Color: Silver
• Finishing: Chrome Finish
• Shape: Round
• Condition: New
• Application: Industrial
• Packaging Type: Carton Box
• Packaging Size: 10 Pieces

Axial spherical roller bearings are single row, self-aligning roller bearings. They comprise solid shaft and housing washers and asymmetrical barrel rollers with cages. The cage holds the roller and cage assembly together with the shaft locating washer. The bearings can be dismantled. The parts of the bearings can be fitted separately. Axial spherical roller bearings can support very high axial loads and permit relatively high speeds. Both under the harshest of operating conditions. For example in gearboxes, calenders, engines in marine applications and rudder engines, lifting gear, construction machinery and rolling mills.

Spherical roller thrust bearings are of separable construction, The shaft washer is assembled with the cage and a number of asymmetrical spherical rollers and has to be used along with a housing washer having sphered raceway. During mounting, the rings are to be fixed on to their respective seats – shaft washer on the shaft and housing washer on to the housing and then they have to be put together carefully They are manufactured in multiple series. The raceway of the housing washer is at an angle with it’s ais of rotation, so as to be able to allow the rollers to remain in touch with it. As a result, a spherical roller thrust bearing is capable of carrying both a radial as well as an axial load. Spherical roller thrust bearings – because of their internal geometry – are capable of accommodating certain amount of misalignment. However, they can take axial loads only from one direction, and may need to be used in pairs in Back-to-Back or Face-to-Face arrangement, if thrust load from both the directions are to be carried. Spherical roller thrust bearings are capable of compensating misalignment and shaft deflection. The bearings are manufactured in normal accuracy. However, bearings with higher running accuracy can also be supplied. CLICK FOR MORE DETAILS

mageba RESTON-SPHERICAL bearings ensure the controlled transfer of forces between a structure’s superstructure and its substructure. They also facilitate rotations about every axis and movements in every direction. A convex curved element, sliding on a matching concave surface, transfers vertical forces while allowing the required rotations.

We are the exporter, trader, importer & supplier of Spherical Roller Bearings. These Spherical Roller Bearings are used for high precision application and its purpose is to reduce the rational friction and support radial and axial loads. These Spherical Roller Bearings are made of different materials like stainless steel, chrome steel, ceramic steel and many more. Features:    * Reduce the rational friction    * Support radial and axial loads    * Made of different materials

Bearing house offers to his with a qualitative range of Heavy Duty Spherical Roller Bearings. These products are used to capable managing high radial loads even at times when misalignment, poor lubrication, contamination, extreme speeds or critical application stresses are present. Bearing House offers our clients with a wide range of Heavy Duty Spherical Roller Bearings . We also offer Heavy Duty Spherical Roller Bearings in customized specifications as per the clients’ requirements.

A rolling-element bearing, which is also known as a rolling bearing, carries a load by placing rolling elements (such as balls or rollers) between two bearing rings called races permitting rotation with low friction and angular misalignment. The bearing is mainly designed for high radial loads and heavy axial loads in a single direction. Typically, these bearings tend to support a rotating shaft in the bore of the shaft washer which can sometime get misaligned in respect to the housing washer. The misalignment can occur due to the spherical internal shape of the house washer.

• Material: Chrome Steel
• Bearing Number: 24144
• Type: Roller Bearing
• Bore Size: 220x370x150
• Outer Diameter: 370mm
• Bore Diameter: 220mm
