Synergy Industrial Services Pvt. Ltd Bally, Kolkata, West Bengal

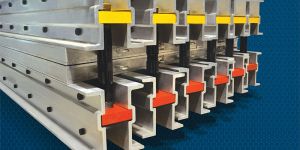

Synergy designs & manufactures Portable Belt Vulcanizing Press for Indian & Overseas customers for all types of Conveyor Belt such as Steel Cord Belt, Pipe Conveyor Belt, Steep Angle Belt and General Fabric Belt.

For vertical conveying of bulk material over a significant height or carrying a material at a steep angle, belt with side walls and cleats are installed on a modular system called steep angle conveyor. Such installations found wide application in Steel, Power Plants, Mining & Mineral processing industry and ship loading & unloading in ports by the virtue of space saving logistics and easy maintenance. Synergy engineers and supplies the complete system that includes sidewall belt of European origin. Mechanical components consisting of pulleys, deflection wheels, guide wheels & special idlers, technological structure and drive systems are manufactured in Synergy's manufacturing plant at Kalyani. The system is backed-up by engineering design ,commissioning service and trouble shooting. Such systems have been delivered extensively to the Indian Steel Plants as well as Overseas projects.

Synergy designs & manufactures Portable Belt Vulcanizing Press for Indian & Overseas customers for all types of Conveyor Belt such as Steel Cord Belt, Pipe Conveyor Belt, Steep Angle Belt and General Fabric Belt.

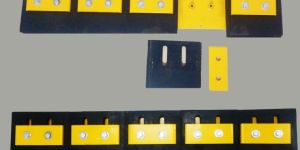

Spillage in bulk material handling system is a perennial problem, particularly at transfer points. Conventional rubber was being used until recently. However, in the prevailing scenario of higher productivity norms, this conventional system is obsolete. Synergy offers a technically superior, better designed, skirt sealing system to meet stringent operational requirement.

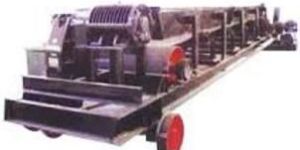

Synergy manufactures and delivers Shuttle conveyors as per the requirement of their valued customers either based on their own design and engineering or of our design and engineering based on technical data received from client.Shuttle conveyors are troughed belt conveyors mounted on trolleys with wheels which travel on rails. They receive feed from feed hoppers located above them and in turn feed bunkers placed below them and spaced at desired distances.

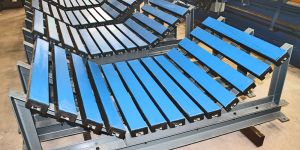

Synergy offers impact pads for very low co-efficient of friction, high abrasion resistance, high impact absorption and effective support to the conveyor belts. The cradles on which the pads are fixed follows a unique design based on our experience and impact requirement. The pads are made of profiles that are combination of UHMW (Ultra Height Molecular Weight) and Wear Resistant rubber of required mechanical properties. The pads are available in various combination thicknesses appropriate to a working condition. Installation services are available from synergy for mechanical structure and the pads.

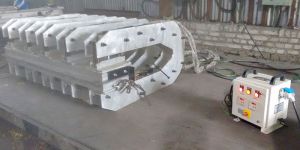

Edge wear is a common phenomenon with conveyor belt especially in steel cord belts.Rebuilding the edge for restoring capacity becomes an absolute necessity wherever the edge wear is noticed on a longer section of the belt. In such a situation we offer well designed edge repair press which is portable and can rebuild the edge in longer sections.

Conveyor Pulleys for applications such as SteepAngle Conveyor, Pipe Conveyor, and Long Distance Conveyor are available from Synergy and have been delivered extensively to Steel Plants, Cement Plants and Power plants. Types of Pulley Manufactured 1. Drive Pulley 2. Head Pulley 3. Return Pulley 4. Tail Pulley 5. Take up Pulley 6. Snub Pulley 7. Bend Pulley 8. Deflector Pulley 9. Beater Pulley These Pulleys come generally with Lagging (Ceramic or Rubber) as per client’s preference. Range of Pulleys Manufactured. Parameters Range Shell Diameter 193.7 mm - 1600 mm Face Width 300 mm - 2200 mm Shaft Diameter 45 mm – 400 mm Shell Thickness 6 mm – 28 mm

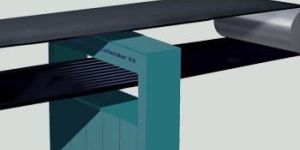

Conveyor Belt Scanner, marketed and serviced by Synergy, is a new generation product that can monitor conveyor belts of all critical applications. for more details, please check the link below

The STARCLEAN® scrapers are of German origin from the house of Schulte-Strathaus with class leading cleaning efficiency and operating life. At any given point of time, this scraper are automatically adjustable to the belt hence nullify any requirement for re-adjustment and maintenance. Our ranges of scrapers are suitable for Reversible operation. User can choose Primary Scraper blades of PU or Tungsten Carbide, Secondary Scraper are strictly made of Tungsten Carbide.

We offer specially designed press which can repair a belt on site, to ensure extended belt life. With this press the longitudinal slit, localized damage, holes or any other similar external injury can be repaired.

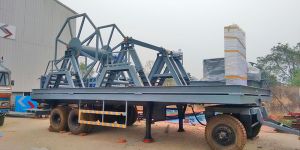

Popularly known as belt coiler and De-coiler or Belt Reeler, this equipment has assumed a very critical component of commissioning a new belt and replacing the old belt with minimal effort. With heavy duty conveyors finding place in the material handling sector, such equipments has become an integral part for Pipe conveyor and long-distance conveyor installations. In modern conveyor systems, a belt reel can weigh as heavy as 60 tonnes and invariably demand a suitably engineered equipment. Synergy design , manufacture and supply such tailor-made equipments with complete support service and have catered to the specific applications steel plants, mining industry and oil refineries, both domestic and international
