T.M. ENGINEERING EQUIPMENTS BBD Bag, Kolkata, West Bengal

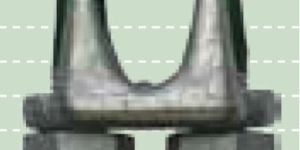

Applications Van Beest offers a wide range of wire rope clips, specifically standardized models such as EN13411-5, US Federal Specification wire rope clips and DIN wire rope clips. Range The Green Pin® wire rope clips are drop forged and have a bridge with grooves to fasten the wire rope properly in the clip; the DIN wire rope clips have a malleable base, without grooves. Design The finish is either electro-galvanized or hot dipped galvanized, unless otherwise specified. Finish Upon request, all wire rope clips can be supplied with a works certificate.

The DCV500 drum clamp has been designed to lift and transport steel drums in the vertical position. One clamp can be used to lift drums with or without their lids by gripping the rim of the drum. Its light weight and small overall design makes it ideal for picking up drums that sit tightly on pallets. The centre of gravity of the drum is below the lifting point during transportation. The DVC500 is also available with a ‘lock on / open latch’. Please contact the Camlok sales team for further details.

Applications Turnbuckles are normally used for rigging or tensioning of wires, ropes, rods etc. They are are designed for straight / in-line rigging, tensioning or lashing. Range Van Beest offers a wide range of turnbuckles, i.e.: • Load rated Green Pin® turnbuckles; • Open body rigging screws generally to DIN 1480; • Rigging screws with welding ends; • Closed body rigging screws; • Special turnbuckles for lashing (hamburgers). Design Green Pin® turnbuckles are manufactured to ASTM F1145-92, formerly U.S. Fed. Spec. FF-T-791, and have a safety factor of 5 to 1. The Green Pin® turnbuckles are drop forged. Turnbuckles can be equipped with the following end fittings: eye/eye, hook/hook, hook/eye, jaw/jaw and jaw/eye. All parts are interchangeable, locking nuts are supplied with all sizes. Rigging screws generally to DIN 1480 are available with welding ends and in hook/eye, eye/eye, hook/hook and jaw/jaw combinations. Closed body rigging screws are available in jaw/jaw, jaw/eye and eye/eye combinations.

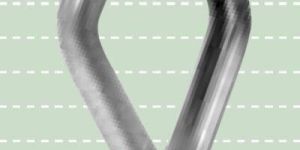

Applications Thimbles are used to protect steel wire rope, fibre rope or synthetic rope. They are available in various models and sizes. All indicated types of thimbles can be used in combination with the above mentioned types of ropes. Range Van Beest offers a wide range of thimbles, from nationally standardized models to all types of commercially available thimbles. Design Thimbles can be cold-rolled, hot-rolled or die-cast, depending on the specific use of the thimbles. Finish The finish is either self coloured, painted, electro-galvanized or hot dipped galvanized. Certification Upon request, all thimbles can be supplied with a works certificate. Instructions for use It is required that the thimbles are regularly inspected and the inspection should take place in accordance with the standards given in the country of use. This is required because the products in use may be affected by wear, misuse, overloading with a consequence of deformation and/or alteration of the steel structure. The dimensions of the thimbles must be so that the (wire) rope fits properly into the groove of the thimble. The nominal size of the thimble is the diameter of the (wire) rope with which it is intended to be used. For (wire) ropes of intermediate sizes, the next larger size of thimble must be used.

Type : Thimbles

Color : Silver

Condition : New

Packaging Type : Box

Country of Origin : India

Applications Thrust bearing swivels are used to prevent wire rope or chain from transferring their normal twisting motion to the item being lifted. Our swivels can be supplied with two types of end fittings. Green Pin® swivels are not designed to rotate under load, but are intended as positioning devices only. For rotation under load, thrust bearing swivels should be used. Range Van Beest offers two types of swivels: • Green Pin® swivels, ranging from Working Load Limit 0.39 up to 20.5 tons, with eye-eye or jaw-eye terminals; • Thrust bearing swivels, ranging from Working Load Limit 1 up to 40 tons, with eye-eye terminals. Van Beest can also offer other types of swivels in grade 8 and grade 10. Please see our Excel® catalogue for more information.

The TSH ‘swivel hook’ screw clamps offer many possible applications. It is particularly useful for lifting, transferring and pulling sheet metal, girders and steel constructions. The clamps are supplied complete with an alloy safety shackle, that allows for pulling in 180′ degrees. NB. The plate surface of the material to be lifted must not exceed a hardness level of HRC 30/Brinell 300.

Applications Sockets are used to attach steel wire rope to a fixed point to which the socket is to be connected. This can be as an anchoring system for tubes or pipes, anchor wires of dredging material, anchor cables of oil platforms, towing cables or for fastening cables in construction purposes such as bridges, roof construction etc. Sockets are the strongest steel wire rope end fitting and if they are assembled in the proper way they can meet at least the breaking strength of the steel wire rope. In the past melted zinc was poured into the sockets to attach the steel wire rope; nowadays suitable resins have been developed for this purpose. Range Van Beest offers a wide range of sockets, i.e.: • Closed spelter sockets; • Open spelter sockets; • Open wedge sockets; • Short bow sockets; • Open swage sockets; • Closed swage sockets. Design Green Pin® open and closed spelter sockets and open wedge sockets are made from cast high tensile steel. These sockets carry the following markings: – socket number; – diameter wire rope in mm and inches; – manufacturer’s symbol; – batch number; – CE conformity code. With shortbow sockets you save money in replacement costs by eliminating costly downtime. Swage sockets are drop forged from special bar quality carbon steel C-1035 and spheroidized annealed to be suitable for cold swaging.

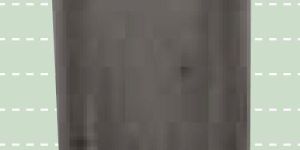

Applications Van Beest offers a wide range of sleeves, in both aluminium and carbon steel. Range Aluminium wire rope sleeves are manufactured according to DIN 3093 A. For safety in fabrication and application our sleeves are of seamless construction corresponding with the requirements of DIN 3093 A regarding material composition and mechanical properties. Prescon carbon steel sleeves are manufactured from carbon steel and feature the Swaging Verification System in which the colour changes intensity after swaging. This system helps the sling manufacturer to determine whether or not the sleeve has been pressed. The sleeves are of seamless construction and fit industry standard dies. Design Aluminium sleeves are self coloured. The smaller dimensions of Prescon sleeves, up to and including 16 mm, are colour coded, larger dimensions are self coloured. \

The CR rail clamps are designed to lift single rails securely and safely. The clamp is designed to fit most types of rail section sizes currently in use. The clamp has a narrow profile to enable attachment to an individual rail that is stacked side by side with other rails. The clamp is locked onto the rail-head via a lever operated spring mechanism. It is recommended to use clamps suspended from a lifting beam for long rail lengths. Clamps can be supplied with a short length of chain and lifting eye as shown in the illustration. This MUST be specified at the time of order.

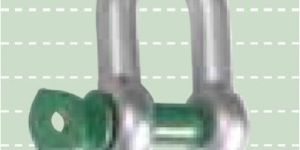

Applications Shackles are used in lifting and static systems as removable links to connect (steel) wire rope, chain and other fittings. Screw pin shackles are used mainly for non-permanent applications. Safety bolt shackles are used for long-term or permanent applications or where the load may slide on the pin causing rotation of the pin. Chain or dee shackles are mainly used on one-leg systems whereas anchor or bow shackles are mainly used on multi-leg systems. Range Van Beest offers a wide range of bow and dee shackles, depending on the application on which the shackle is going to be used; the range stretches from Working Load Limit (WLL) 0.33 tons to 1500 tons. Therefore, our customers have a very extensive range to choose the shackle exactly suitable for the application. Most of the shackles are directly available from stock. Furthermore, shackles can be supplied to many standards such as the US Federal Specification RR-C-271, EN 13889, British Standard 3032, DIN 82101, DIN 82016 etc. Polar shackles are for use in extreme climatic conditions with material properties guaranteed up to temperatures of -40oC, and furthermore we offer a wide range of general commercial shackles, which are not suitable for lifting but merely for fixing purposes.

 EN 818-2 with increased load capacity The high duty chain in grade 10 Round steel chains for use in lifting or lashing chains Maximum working temperature: 380 °C Standard surface: blue Please consider the user information.

The TRU round stock grabs are designed to pick up tubes, pipes and rolls or similar round stock material with a diameter of up to 600mm. They are extremely easy and simple to use and make for safe lifting. Options: Available with automatic open / close device. Jaws can be fitted with plastic or rubber pads to minimise marking of surfaces. NB: When using the protective lining, it is important that the surfaces are dry, clean and free of oil and grease.

These clamps were designed for use in the hazardous environment of Nuclear Power Plant decommissioning. The clamps were used to lift and transport the sections from within the reactor to a waste holding area for safe disposal.

The PH pipe hooks are used in pairs for the safe transport of pipes. The shackles are included with the hooks. There are two options available: the standard hooks are supplied uncoated without a lining, but there is also the option to have polyurethane coated applied for additional protection to the pipe being lifted.

The PP pile pulling clamps are designed to pull out driven piles or trench shielding. The clamps have a narrow opening and a deep slot to ensure that the pile is gripped firmly. It is extremely difficult to determine the forces required to pull out driven piles so it is recommended that a load indicator is used to ensure the WLL of the clamp is not exceeded. The PP clamp is supplied as standard with a double locking mechanism to ensure that the clamp remains ‘locked on’ and does not become unlocked during extraction of the pile.

The PR1500 paper reel head clamp has been developed to lift single or, with the use of a spreader beam,several reels simultaneously. The design allows easy access to reels in confined spaces and is part particularly useful for handling reels in open top freight boxcars, container ship holds and cargo storage facilities. The clamp is fabricated from steel and is fitted with rubber lifting pads to ensure a safe grip and prevent damage to the load.

patent-pending load distributor with optimized form for pewag winner connex system Persuasive thanks to a flat construction design. Quenched and tempered, and can be used twice as long as other load distributor. Your advantages – twice the durability with less wear: The heat treated load distributors exhibit a better wear resistance. In case one side is worn out, you can continue using the load distributor by turning it 180° – the durability of the product is twice as long Additional advantages of the load distributor: The flat optimized design leads to an improved balancing effect of the chain legs An outstanding addition to the pewag winner program Simple and quick mounting thanks to the Connex connection links CW The 4-leg pendents can be used with an increased load capacity – if necessary you may choose a smaller chain dimension (examination by a professional required) For the safe adjusting of the load distributor, please consider the working load limit of the pendent rings.

The TDI inside grabs are specifically designed for the handling of cylindrical or rectangular objects such as coils or box section. These grabs are available with three different jaw options dependant on your application. The jaw options available are: Profiled steel, case hardened serrated, or rubber protective lined. For inside grabs with jaws with protective lining, the inside surface of the material being lifted must be free of oil and grease. When ordering please advise the jaw lining required.

The ACH horizontal plate clamps offer superb flexibility because of the large adjustable jaw opening. The jaw is adjusted using a simple ratchet mechanism. These clamps are to be used in pairs and are especially suited to the transportation of large plate bundles.

The TTT horizontal girder clamps have been designed to be used in pairs and can be used on girders up to a surface hardness of HRC 30/Brinell 300. The unique design of the split toe allows long sections of girders to be lifted with out the use of a spreader beam. This is achieved by using a pair of clamps with a 2-legged chain sling.

These 3-Jaw horizontal clamps were designed originally for a large construction site project who used them to lift heavy bridge sections. Used in pairs, they had a working limit of 20 tonnes.

The CX plate clamps shares all the benefits of the CY clamps, but are specifically designed for more heavy duty applications. The other benefit that the CX clamps offers over the CY clamps is that vertically racked plates can be turned through 90 (as shown in illustration). NB: The plate surface of the material must have a hardness level below HRC 30/Brinell 300.

The HGC hand grip clamps are suited for the individual transport of light and thin plates. They have a jaw capacity of up to 10 mm and can lift up to 250kgs. To operate the clamp you simply press down on the hand grip which compresses a spring. This allows the clamp to open and slide onto the plate. The plate can then be lifted and transported using the ergonomically designed hand grip. The positive spring pressure prevents the plate from accidentally slipping out of the clamp. NB. Plate surface of material lifted must not exceed a hardness level of HRC 30/Brinell 300.

According to EN 1677-1 with increased load capacity For pewag connex and welded system For applications where jaw size “g” of the HSW hook is inadequate, mainly foundries. Before using the hook, check whether hooks without safety catch are allowed to be used for this particular application.
