Tata Steel Limited Park Street, Kolkata, West Bengal

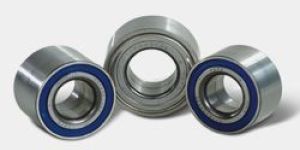

Tata Bearings offers customers 1st generation Hub Unit Bearings – complete wheel end solutions – which are pre-adjusted, greased and sealed for life. These bearings are far more tasting, compact, lighter, easier to install and cost-effective. The Hub Unit Bearings components include outer rings, two inner rings, balls, polyamide cage and heavy-duty seals. The seals are specially designed by Tata Bearings to match wheel hub application and have springs loaded with special steel flinger capable of preventing ingress of heavy mud and slurry.

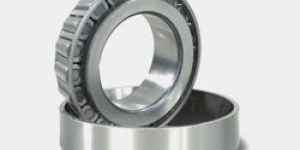

  These specially designed Taper Roller bearings from Tata Bearings are built to take large axial forces and sustain large radial forces. In these separable roller bearings mounted in pairs with rolling elements and raceways tapered, the four basic components are the cone, cup, tapered rollers and cage. The cone, cage and tapered rollers together form the inner ring assembly, which is separable from the outer ring. To prevent concentrating of stress at the roller’s edges, the line contact between roller and raceway is modified by Tata Bearings by crowing both rollers and raceways. This range of Tata Bearings is so designed that the extensions of raceway and roller, converge at a point on the axis of rotation. The tapered configuration facilitates the rolling motion of roller on raceway, and generates a ‘seating force’, pushing the roller against the large rib of the inner ring. This prevents the rollers from skewing off-apex, thereby always keeping them positively aligned and in contact with the inner ring rib. These bearings can not only carry a combination of radial and thrust loads, the long-line contact between rollers and races enables them to carry high loads. Depending on the magnitude of the load to be carried, the contact angle of the bearings may be narrow or wide. Taper Roller Bearings from Tata Bearings are being increasingly used in light, medium & heavy commercial vehicles, tractors, passenger cars – in the gear box, bevel pinion, front and rear wheels, water pump, etc.

These specially designed Taper Roller bearings from Tata Bearings are built to take large axial forces and sustain large radial forces. In these separable roller bearings mounted in pairs with rolling elements and raceways tapered, the four basic components are the cone, cup, tapered rollers and cage. The cone, cage and tapered rollers together form the inner ring assembly, which is separable from the outer ring. To prevent concentrating of stress at the roller’s edges, the line contact between roller and raceway is modified by Tata Bearings by crowing both rollers and raceways.

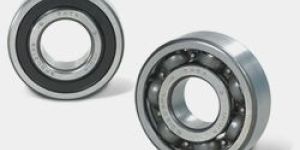

Special ball bearings are available from Tata Bearings to suit some specific applications. The basic design principle of these types of bearings are of Deep Groove Ball Bearings but many features have been added to take care of high angular misalignment, special purpose double lip seals, etc.

Special ball bearings are available from Tata Bearings to suit some specific applications. The basic design principle of these types of bearings are of Deep Groove Ball Bearings but many features have been added to take care of high angular misalignment, special purpose double lip seals, etc. Tata Bearings offers its customers special ball bearings (SP & SEL Series) in different sizes for crank shaft applications, propellor shaft, all wheels, etc. The load capacities mentioned in the table are in accordance with ISO 76 & ISO 281:1997 (E). Some of these special bearings are available with extended inner race and some with extended outer race with special groove required for fitment. Tata Bearings production plan is flexible and can be tailored to address the specific requirements of customers. The Application Engineering Cell of Tata Bearings Technical Services department is ready to meet customer needs.

Self Aligning Clutch Release Bearings from Tata Bearings find wide usage in small vehicles and modern cars. These lightweight, low-torque and long lasting Self Aligning Clutch Release Bearings from Tata Bearings come with resin sleeve, in response to continued requirement for improved fuel-efficiency. The bearing is packed with grease, which lasts longer, can withstand a wide temperature range, and has outstanding high-speed performance. This product from Tata Bearings has been able to clear the evaluation criteria of one-million release cycles in the clutch release endurance test rig.

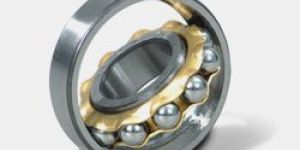

Magneto Bearings from Tata Bearings are designed to, facilitate mountain in magnetos. These are separable bearings similar to single-row deep groove bearings. The outer ring has only one shoulder, forming one side of the ring groove, the other side being open. This design enables the outer ring to be removed end-wise from the inner ring, with the cage holding the ball complement. As magneto bearings transmit axial force in only one direction, two bearings are required to be mounted against each other for axial location on a shaft. Tata Magneto Bearings have found regular use in some of India’s reputed textile spinning mills.

Magneto Bearings from Tata Bearings are designed to, facilitate mountain in magnetos. These are separable bearings similar to single-row deep groove bearings. The outer ring has only one shoulder, forming one side of the ring groove, the other side being open. This design enables the outer ring to be removed end-wise from the inner ring, with the cage holding the ball complement. As magneto bearings transmit axial force in only one direction, two bearings are required to be mounted against each other for axial location on a shaft. Tata Magneto Bearings have found regular use in some of India’s reputed textile spinning mills.

Diameter : 6mm, 8mm, 10mm, 12mm, 16mm

Grade : Fe 500

Application : Construction

Brand Name : TATA TISCON

Tata Bearings offers customers 1st generation Hub Unit Bearings – complete wheel end solutions – which are pre-adjusted, greased and sealed for life. These bearings are far more tasting, compact, lighter, easier to install and cost-effective. The Hub Unit Bearings components include outer rings, two inner rings, balls, polyamide cage and heavy-duty seals. The seals are specially designed by Tata Bearings to match wheel hub application and have springs loaded with special steel flinger capable of preventing ingress of heavy mud and slurry.

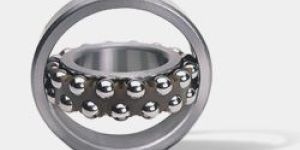

Double Row Self Aligning Ball Bearings from Tata Bearings are built for use where considerable amount of shaft deflection or angular misalignment are expected. The design comprising of two rows of ball sets with cages and a common spherical raceway in outer rings, makes these bearings capable of taking angular misalignment of shaft relative to housing. These bearings from Tata Bearings allow the lowest friction of all rolling element bearings, and are able to run cooler even at high operating speeds.

Double Row Self Aligning Ball Bearings from Tata Bearings are built for use where considerable amount of shaft deflection or angular misalignment are expected. The design comprising of two rows of ball sets with cages and a common spherical raceway in outer rings, makes these bearings capable of taking angular misalignment of shaft relative to housing. These bearings from Tata Bearings allow the lowest friction of all rolling element bearings, and are able to run cooler even at high operating speeds.

  Double Row Angular Contact Ball Bearings from the Tata Bearings portfolio are capable of taking ‘combined loads’, i.e., high radial and axial load increases with increase in contact angle. This bearing is particularly suitable for application demanding rigid axial guidance. Tata Bearings offers customers Double Row Angular Contact Ball Bearings for fan-support applications for commercial vehicles, amongst other applications. The bearings are fitted with high temperature grease and seals with special inner ring grooves which prevent the entry of external contaminants like dust and water. The raceway groove manufacturing of the outer rings and inner rings of these bearings are carried out in world class machines with diamond rolls for better geometrical accuracy and superior quality, resulting in longer life.

Deep Groove Ball Bearings from Tata Bearings come with race dimensions close to the dimensions of the balls that run in it. These have higher load rating for their size, but are less tolerant of misalignment of the inner and outer races. These rigid, non-separable radial bearings comprise of the inner race, outer race, balls and cage, where the inner and outer race have deep grooves within which the balls move. The groove radii are slightly greater than the ball radii. This geometry of the grooves makes the high radial and axial load bearing capacities, and also for combined loads. This range of Tata Bearings find extensive use in two wheelers, passenger cars, commercial vehicles, white goods, pumps and motors. The range comprises of standard single row deep groove ball bearings in the following configurations: With non-rubbing dust shields (name suffixes Z and ZZ) With rubbing oil seals (name suffixes RS and 2RS) With snap ring groove (name suffix N) With snap ring groove and ring (name suffix NR)

Clutch Release Bearing from Tata Bearings are designed for engagement and disengagement of clutch in commercial vehicles and tractors. These bearing are fitted with special accessories to prevent external contamination. The bearings have a front cover made of special heat-treated steel, for wear resistance during clutch engagement. Special assembly and controls are employed for cup caulking and closing with the front cover to prevent the relative rotation of front cover.

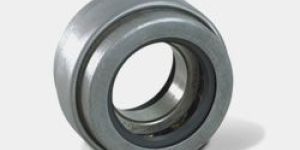

Centre Bearing from Tata Bearings is specially designed for propeller shaft applications in heavy commercial vehicles. These bearings are fitted with two heavy-duty long spring loaded life oil seal on both sides which prevent the bearings from external contamination like mud, water and moisture. At the same time these bearings show excellent capability in retaining grease. Bearings and oil seals are assembled in a phosphatised coated cup which has excellent resistance to rust, corrosion and moisture and provide maximum mileage to vehicles. The specified load rating as shown in the table, are calculated as per ISO281:1997(E).

Centre Bearing from Tata Bearings is specially designed for propeller shaft applications in heavy commercial vehicles. These bearings are fitted with two heavy-duty long spring loaded life oil seal on both sides which prevent the bearings from external contamination like mud, water and moisture. At the same time these bearings show excellent capability in retaining grease. Bearings and oil seals are assembled in a phosphatised coated cup which has excellent resistance to rust, corrosion and moisture and provide maximum mileage to vehicles. The specified load rating as shown in the table, are calculated as per ISO281:1997(E).
