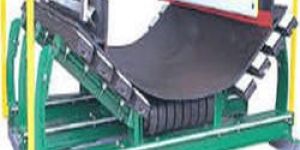

The Spill-Ex Universal Support System is effective to control belt sagging between the idlers and thus improve the performance of the skirt board sealing system. The support system is of Universal type which is fully adjustable to suit different belt widths, trough angles and conveyor profile encountered at various material handling sites. It consists of : A) Two support bars made of UHMWPE which has a very low coefficient of friction. This provides a very smooth supporting surface for the belt to slide on. B) An arrangement to adjust the portion of the support bars with respect to the belt.

To control miss-tracking effectively, tracker rollers are required to be installed on returns as well on the carrying side of the belt. The return side does the main tracking function as the total belt width is in contact with the roller. “TRU-TRAC makes belt misalignment a thing of the past!” The tracker has a positive tracking action Vibration free rolling action Strengthened centre shaft Rubberized outer drum for increased traction Minimum force needed to activate the tracker Flat Return Tracker This is installed on the return belt and forms the main tracking for general duty conveyors. Dual Return Tracker This is also installed on return belt and forms the main tracking roller for special belt which are wide, heavy duty & high speed. Trough Tracker This is installed on carrying side of belts and forms a supporting tracking system to augment the effort of main tracker roller.

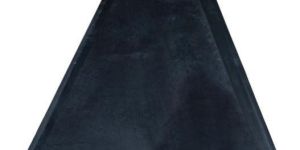

Tega Mill Linings provide optimal grinding solutions in major mineral processing plants all over the world. Tega  rubber lining system is the preferred lining system for secondary ball mills; regrind mills, rod mills and scrubbers. Fastening System : Tega reinforced lifters have an integrated aluminium track to accommodate the fixing clamp. Non-reinforced Tega Lifter Bars are installed with detachable steel clamps which can slide inside the groove on the lifter base and be bolted to the mill shell. Tega Lining bolt attachment systems are compatible with conventional attachment for rubber linings used in grinding mills. The latter are available with different grades of steel as well, if required for very high or low pH-values. Application Area : AG Mill , Ball Mill , Scrubber , Batch Mill , Rod Mill , Mixing Drum , Pebble Mill , Slag Mill , FGD Mill , Regrind Mill.

Feature : Benefits

Reduction in noise level. : Environment friendly. Reduced noise pollution

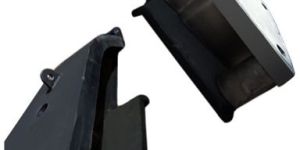

TEGA Pulp Dischargers & Upper Discharge Cone have been designed to be used in AG , SAG , Grate Discharge Ball Mill , etc. Our TEGA Discharger system can be installed in the mill irrespective of any existing liners. Our Discharge system is tested for fitment through TEGA FITSYM. Application Area : AG Mill / SAG Mill / Grate Discharge Ball Mill Advantages of our TEGA Discharger System : Easier Handling Faster Installation Increased Life Can be installed irrespective of existing liner type

The Conventional impact idlers, sheathed in rubber sleeves or rings, are not always sufficient to absorb the impact energy  of the heavy falling materials at the loading zone of the conveyor. The heavy Impact load often damage of the belt due to line contact. . The Idlers being a rotating part are also susceptible to damage and failure of bearings due to accumulation of dust and grime. The malfunctioning of these idlers cause frequent conveyor breakdown and require repeated maintenance. Tega JUMBO Impact Bed systems are designed to work in such adverse conditions by effectively dampening the impact of heavy materials. Being a non-rotating part JUMBO requires Zero maintenance thus decreasing downtime, increasing operational efficiency and lowering maintenance cost. Tega JUMBO Impact bed system comprises of Impact saddles and frame, which is custom designed as per the application severity and duty conditions. Tega Impact saddles is made of UHMWPE (Ultra High Molecular Weight Poly-Ethylene) for smooth gliding of the conveyer belt. The support frame, which is usually made of Mild Steel. A spring mechanism along with rubber is squeezed between the frame structure and saddle and hence the elasticity of the spring and rubber is fully utilized in this design and the low-friction feature of the UHMWPE always ensures smooth conveyor movement, with minimal wear of belt bottom cover.

The Tega innovated SPILL-EX skirt sealing system is simple yet effective in making conveyor loading stations completely spillage free. Side Skirt Sealing : Skirt sealing is generally provided on both sides of the skirt board; however, for conveyors that are inclined upwards or for those handling fines, sealing of the rear of the belt is necessary. Rear Skirt Sealing : Rear skirt sealing is provided with a fixed length backing Skirt plate that is based on belt width. The height of the rubber blocks are 100 mm more than the standard size of the side skirt sealing to compensate for trough height. To order, select the options mentioned here to suit specific conveyor application. In case your order does not specify these details, supply will be with Standard Model Backing Plate of Type L, using carbon Steel material and Rubber Blocks.

ega Mill Linings provide optimal grinding solutions in major mineral processing plants all over the world. Tega rubber lining system is the preferred lining system for secondary ball mills; regrind mills, rod mills and scrubbers.Tega reinforced lifters have an integrated aluminium track to accommodate the fixing clamp. Non-reinforced Tega Lifter Bars are installed with detachable steel clamps which can slide inside the groove on the lifter base and be bolted to the mill shell. Tega Lining bolt attachment systems are compatible with conventional attachment for rubber linings used in grinding mills. The latter are available with different grades of steel as well, if required for very high or low pH-values.

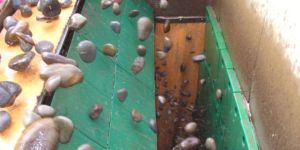

Polyurethane liners are a synthesis of polyols & isocyanides chain extended or cross linked into giant molecular complexes. This material has combined properties of rubber as well as plastic. Polyurethane wear plates are normally steel backed plates where steel is bonded with polyurethane available in customized sizes. The backing steel prevents fines to penetrate behind the liner plate hence preventing bulging of the liner which otherwise causes liner dislodging. They are harder material compared to rubber but softer than plastic and provide an excellent degree of abrasion resistance together with flow ability.

Tega has more than 500 grinding mills lined globally in SAG, AG, Ball, Primary and Secondary milling applications lined with Rubber Liner and Rubber metal composite liners. Mill liner is the flagship business of Tega with customers spread over 68 countries. Tega has been delivering Mill Lining solutions for more than 35 years and has been a preferred mill lining supplier for customers globally.

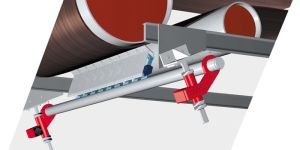

HOSCH EQUIPMENT (India) Ltd. is a joint venture with 50:50 equity participation between Tega Industries Limited and HOSCH (GB) LTD. UK. The Indian company started its operations in January 1992. The company’s undaunted effort to provide quality products and services has qualified it as the first ISO 9001 company in India in this product segment. Conveyor belt cleaning is a very complex topic and a challenge which HOSCH has taken up from the very start with an extremely high investment in personnel and equipment. Concentrating on such a specialized technical task, we have acquired expertise in the field over the course of years. This has been achieved in co-operation with leading institutes in bulk material handling. The research and evidence has meant a considerable advance in knowledge for us. For that reason, due to the wealth of experience gathered, HOSCH is considered the expert worldwide in all matters of conveyor belt cleaning. We consider ourselves to be qualified advisers to our customers. Our specialists are able to offer the best possible solution to the operators of the plants with our method and our technology.

With over 12 years of practical experience in manufacturing and supplying in mining & mineral processing equipments, Tega provides full technical & engineering support along with its wide range of cyclones. Tega commits itself in delivering unique highly efficient wear resistant mineral processing equipments capable of Extra Capacity along with considerably low power consumption and high wear life.The unique design allows Tega hydrocyclones to operate at higher solids percent with same efficiency thereby reducing the slurry volume handled by the pump. This in turn reduces the pump power consumption as well as pump size.

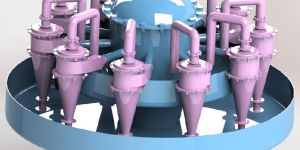

In applications with higher flow rates multiple Cyclones can be accommodated within a single structure, hence reducing the floor space requirement greatly. All the structures are of reinforced steel, lined with superior wear resistant rubberceramics.The basic difference between Mushroom and Cluster is that the later can incorporate even more cyclones within a single system.

A revolutionary idea and a great deal of entrepreneurial spirit: In 1975, Hans-Otto Schwarze used this combination and founded HOSCH. The initials of the graduated engineer served as a simple, but unmistakable trade name.The headquarters were extended in 2001 and accommodate a modern training center as well as the research and development department for the whole HOSCH group, which has grown to consist of 13 international companies with more than 400 employees worldwide. The formerly small owner-led company has in the meantime become a global player, being a specialist in innovative products and maintaining its position as the world market leader in belt cleaning technology through continuous development and expansion. HOSCH EQUIPMENT (India) Ltd. is a joint venture with 50:50 equity participation between Tega Industries Limited and HOSCH (GB) LTD. UK. The Indian company started its operations in January 1992. The company’s undaunted effort to provide quality products and services has qualified it as the first ISO 9001 company in India in this product segment. Conveyor belt cleaning is a very complex topic and a challenge which HOSCH has taken up from the very start with an extremely high investment in personnel and equipment. Concentrating on such a specialized technical task, we have acquired expertise in the field over the course of years. This has been achieved in co-operation with leading institutes in bulk material handling. The research and evidence has meant a considerable advance in knowledge for us.

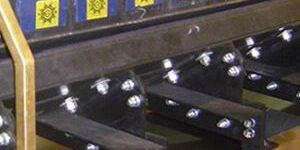

The Tega Friflo Impact Pad is a fusion of three different layers. The top layer is made of UHMWPE – for smooth gliding of the conveyer belt. The middle layer is a made of rubber – to cushion the impact load, while the lower layer is for fastening impact pads on the support frame, which is usually made of aluminum.       Type ‘H’ This is a pad with ‘H’ type reinforcement and clamping of this pad is done with ‘H’ type aluminum clamps, hexagonal headed bolts, nylock nuts & washers.   Type ‘P’ The ‘P’ type pads do not contain any reinforcement & is clamped with ‘P’ type aluminum clamps, hexagonal headed bolts, nylock nuts & washers.   Type ‘T’ This pad having ‘T’ type reinforcement and clamping is done with square headed ‘T’ bolts, Nylock nuts & washers.

The Tega innovated SPILL-EX skirt sealing system is simple yet effective in making conveyor loading stations completely spillage free. Skirt sealing is generally provided on both sides of the skirt board; however, for conveyors that are inclined upwards or for those handling fines, sealing of the rear of the belt is necessary. Rear skirt sealing is provided with a fixed length backing Skirt plate that is based on belt width. The height of the rubber blocks are 100 mm more than the standard size of the side skirt sealing to compensate for trough height.

TEGA has a database of 5000 conveyors and chutes having detailed record of their problems and their solutions. The in-house Research and Development team has assimilated this knowledge and effectively leveraged available technologies and software to come up with design solutions responsive to the market needs. The design team in TEGA Conveyor Products undertakes the following activities.

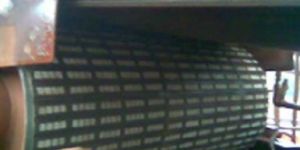

Lagging of the conveyor pulley is essential to improve conveyor belt performance. The use of lagging reduces belt slippage, improves tracking and extends life of belt, bearing & other components. TEGA Ceramic Pulley Lagging is especially suited for pulleys with slippage and excessive wear & tear problems which make normal rubber lagging ineffective. Tega ceramic pulley lagging is widely used on the drive pulleys and can also be used on snub, bend and tail pulleys. This innovative new product incorporates square ceramic tiles with unique circular nubs which help in proper grip of the belt under wet muddy or any such arduous conditions. CN Bonding System :  This extra layer of specially developed rubber at the bottom of ceramic pulley lagging ensures higher bonding strength with rubber to metal surface of the pulley.

Lagging of the conveyor pulley is essential to improve conveyor belt performance. The use of lagging reduces belt slippage, improves tracking and extends life of belt, bearing & other components. TEGA Ceramic Pulley Lagging is especially suited for pulleys with slippage and excessive wear & tear problems which make normal rubber lagging ineffective. Tega ceramic pulley lagging is widely used on the drive pulleys and can also be used on snub, bend and tail pulleys. This innovative new product incorporates square ceramic tiles with unique circular nubs which help in proper grip of the belt under wet muddy or any such arduous conditions.

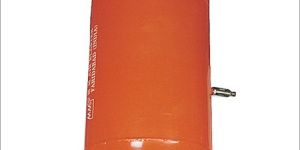

Bulk solids, particularly fines when stored in hopper bin silo, do not flow smoothly resulting in phenomenon like rat holing, bridging, arching. Air Blaster when used alongwith suitable liners, prevent blockages and buildup in critical applications. Generally these clogging can be removed by the liners itself. However in case of inadequate hopper half angle and opening or discharge area (diameter or diagonal); the blockages become critical where the blasting system is employed as an aid to the liners. specified quantity of compressed air at 4-8 bar (60-120 psi) is released in a few milliseconds into the bin, at the position of the blockages. The impulse of the blasting force (the energy released) overcomes the compressive strength of the material and thus, free flow is restored.

Tega Industries Ltd. is a global leader in designing, engineering and production of wear and flow consumables for the mineral beneficiation, mining and bulk solids handling industry. We offer a range of customized abrasion and wear resistant products and services as per customer’s specific applications. We can re-design and improve the performance of an existing part or product no matter what the size and specification of use.
