Temperature Transmitter
Get Price Quote
1 Piece (MOQ)
Miniature Head Mount Two wire Temperature Transmitter Model LTX-3000-H, which accepts (Pt-100) or thermocouple or variable resistance signal as the input and provides dc current output of (4-20) mA proportional to mV or resistance values. These transmitters are extensively used to minimize the effect of electrical noise and to eliminate the need of long runs of special compensating and three wire cables since ordinary pair of copper wires can easily be used to transmit the measured temperature without the drop or loss of signal.Features Two wire design (supply and output on the same lines). Accepts RTD (Pt-100) / thermocouple / millivolt input. (4-20) mA non-isolated and isolated output from the sensor. ZERO and SPAN adjustments for on-site calibration. Easily fits in std. thermocouple head (weather or flame proof or in explosion proof JB). Loop supply of 12 to 36VDC (with loop continuity LED) Saturation or open sensor current limited to 25mA. Reverse polarity protection. Available in both head mount and DIN rail mount. Applications Carry thermocouple or RTD signals over long distance without noise and loss of accuracy. Eliminates use of costly compensating cable. Useful for converting other mV/Ohms signal to equivalent 4-20mA loop
Temperature Transmitter
Get Price Quote

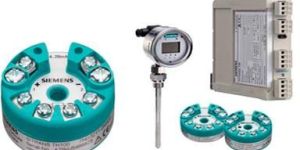

TH100/200: Ultraflexible - with the universal SITRANS TH200 transmitter, Two-wire devices for 4 to 20 mA • TH300- SITRANS TH300 transmitters can be used in all industrial sectors. Its Two-wire device with O/P 4 to 20 mA, HART Protocol, Universal input for virtually any type of temperature sensor • TH400 - The SITRANS TH400 temperature transmitter is a small field bus transmitter for mounting in the connection head of form B. Profibus Communication is also available in this transmitter. • TF200/TF300 The temperature transmitter SITRANS TF works where others feel uncomfortable. HART, Universal input both are applicable in these model. Output 4 to 20 mA, universal Field indicator for 4 to 20 mA signals with Digital Display unit. • TF 400 where temperatures need to be measured under particularly harsh conditions. Blind type with Profibus & Field bus Communication .
Best Deals from Temperature Transmitters
Temperature Transmitter
Get Price Quote
TxPT2 RTD PT100 Temperature Transmitter converts an analog signal from a PT100 resistance thermometer to a 4 – 20 mA output signal. It is designed for a two-wire connection in which the supply current value conveys the information about temperature.

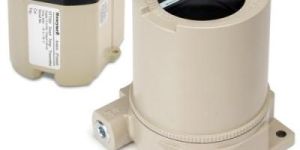

STT250 Smart Temperature Transmitters
Get Price Quote
STT250 Smart temperature transmitters are used to monitor and control temperature of critical rotating and static assets thereby enhancing equipment health and performance. In several process heating applications, these are employed to control process temperatures leading to energy efficiency and product quality. STT250 converts low level inputs from a variety of temperature sensors such as RTDsTCs into current output and is capable of transmission over long distances through noisy plant environments. STT250 is available in different forms - as a module, capable of getting into a temperature sensor head or Mounted in the DIN Rail panel or Field Mounted on a two inch pipe. These units come with several communication options which include 4 to 20ma analog output, HART Protocol Version 56 and DE Protocol.
Temperature Transmitters
Get Price Quote
Pressure Gauges, Shaft Encoder, IP Converter, Magnehelic Gauge Calibration
Temperature Transmitter
Get Price Quote
current transmitter, embedded control systems, voice integrated circuit
