• Upto 10 Module/3 D.P. • Outer Diameter Upto 300 mm/12" • Face Widths upto 500 mm/19" • In Single or multi starts • Center Distance from 25mm/1" to 500mm/20" • Generally Worm Shafts are made from EN 353, Case Carburised, Hardened and Tempered upto 55-60 HRC. • They are then accurately ground. Tooth Flank are ground on Worm Profile Grinder • Also offered in other metals with or without hardening like in Mild Steel, EN8, EN 19, EN 24, Cast Iron or as specified • standard and custom made as per Specifications, Drawing or Sample • Worm shafts like for Worm Gear Boxes (most of the makes) of C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ex-Stock (Subject to conformation). • For Automobiles and Industrial uses • Worm Shaft and Worm Wheel Pairs are suitable for power transmission in right angle • Reverse engineering of Gear sets and Gear Boxes

• Upto 20 Module/1.5 D.P. • Outer Diameter Upto 2100mm/80" • Face Widths upto 800 mm/31" • In Single or multi starts • Center Distance from 25mm/1" to 500mm/20" • In Cast Iron, Bronze (PB2S), or as specified • Optionally available Custom made as per Specifications, Drawing or Sample • Worm Gears are available on very tight delivery schedules, some Worm Wheel & Worm shafts Pairs like for Worm Gear Boxes (most of the makes) of C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ready-Stock. Other ratios are also available within One day of placing Order or on short notice (subject to conformation). Gear Box Overhauling and Rebuilding Services.

The AGNEE Worm Gearboxes have Cast Iron Gear Case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. The Worm Shaft is made of Alloy Steel, duly hardened and tempered. The Worm Wheel is made of Chill Cast Phosphorous Bronze and teeth accurately Generated on Gear Hobbing Machines. They are supported on Extra Heavy Duty Taper Roller anti friction Bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level. Air cooling is effected by means of standard polypropylene or metal fans. Please read the Selection of Correct Worm gearbox for choosing the correct one for your application. They are available in: • Vast range of Models suit every individual's requirement • Some Models like C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ex-stock or on short notice • Center Distances from 40 mm to 400 mm • In Single or Double Stage Reductions • Ratios from 5:1 to 4900:1 • Also made as per customer's specifications, Drawing, requirements • Overhauling of Old Gear Boxes also undertaken, Early delivery schedules • Adaptable Worm Gear Boxes, range from CD 25mm to 85mm Right angle worm gearboxes contain input shafts that are positioned perpendicular to the output shafts. Right angle worm gearbox have up to 98% efficiency levels, and are common in printing presses and glass cutting equipment.

AGNEE offers easy-to-fit, shaft mounted Crystalliser drives rated up to 10.0 HP, and for output speeds 1 to 0.25 RPM to cover standard range of horizontal type sugar crystallisers 30 T to 150 T capacities and up to 350 T capacity for vertical crystallisers. Developed after an in-depth study of typical crystalliser installations, AGNEE crystalliser drive employs high efficiency spur gearing instead of conventionally used worm gearing. The overall efficiency of AGNEE crystalliser drives is better than 90% and the installed motor rating is optimally used resulting in attractive savings in power consumption. The drive arrangement consist of electric motor a multi-stage planetary gear reducer and a single stage spur gear transmission. The electric motor is flanged-mounted to the input of the planetary gear reducer, which in turn is flange-mounted to the input of spur gear transmission. The hollow input of the spur transmission can be keyed directly on to the crystalliser shaft. The drive unit can be aligned in a convenient direction with respect to the crystalliser axis and its torque arm structure is to be bolted at the convenient place. No other additional structure, such as base frames or any couplings are required. The drive unit is completely enclosed & oil-tight. All internals including bearings are oil-lubricated, oil change is recommended only once a season.

• Upto 20 Module/1.5 D.P. Outer Diameter Upto 2500 mm/100" in spur gear and Pinion Required information for quotation: Material of Construction - steel, EN 8, EN 24, EN 353, SAE 8620 etc Teeth Specification - pitch in Module or DP, Helix Angle Outer Diameter Bore size Key way size Hub size if any Any other requirement

The company is chiefly engaged in the manufacturing and supplying of Spiral Bevel Gear Set all across the country. The Spiral Bevel Gear Set, which we offer, is known for its excellent performance and durability. Our Spiral Bevel Gear Set can be availed at the most competitive prices. Specifications Spiral Bevel Gear Set teeth cut on gleason no 16 spiral bevel gear generatorsGenerally in case hardening steel hardened tempered and lapped. But also in other alloy steel, case hardened steels, mild steel, stainless steel, induction hardened, cast iron, or as specified for automobiles and industriesCustom made as per specifications of the clientsTeeth Size from 1 Module/10 D.P. to 10 Module/2.5 D.POuter diameter from 24 mm/1" to 300 mm/12"Face widths up to 250 mm/10"Required information for quotationMaterial of construction - Steel, hardening and tempering requiredTeeth specification - pitch, angleOuter diameterFace angleBore sizeKey way sizeHub size Construction Where two axles cross at point and engage by means of a pair of conical gears, the gears themselves are referred to as bevel gears. These gears enable a change in the axes of rotation of the respective shafts, commonly 90o. A set of four bevel gears in a square make a differential gear, which can transmit power to two axles spinning at different speeds, such as those on a cornering automobile. There Are Four Basic Types Of Bevel Gear Sets Straight Bevel Gears: These gears have a conical pitch surface and straight teeth tapering towards an apexZero Bevel Gears: This is similar to a bevel gear except the teeth are curved. In essence, Zero Bevel Gears are Spiral Bevel Gears with a spiral angle of zeroSpiral Bevel Gears: The teeth are curved teeth at an angle allowing too contact to be gradual and smoothHypoid Bevel Gears: These gears are similar to spiral bevel except that the pitch surfaces are hyperboloids rather than cones. Pinion can be offset above or below gear center, thus allowing larger pinion diameter, and longer life and smoother mesh, with additional ratios e.g., 6:1, 8:1, 10:1The design of bevel gears results in thrust forces away from the apex. With the bearing limitations the gears have to be carefully designed to ensure that they are not thrown out of alignment as they are loaded..

• Model in 7 sizes from B to H with nominal gear ratios of 5:1, 13:1 and 20:1 • Extended 2 year warranty (optional). • Mounts direct onto the driven shaft: • No alignment problems. • No shaft couplings. • Flexible motor mounted in a convenient position. • No expensive adjustable base plate is required for the motor, as V-Belt tensioning is done by the use of a torque arm which can be simply shortened or extended to swing the shaft mounted speed reducer about its output hub to tension the 'V' -Belts. • Quick and easy speed changing via belt drive. • Final output speed can be very accurately obtained by adjusting the 'V' -Belt' drive ratio. • High efficiency by using helical gears o Single - 98% efficiency. o Double - 96% efficiency. • Anti-run back device can easily be fitted on site. • Most shaft mounted speed reducers use "6000" series I. S. O. plan Taper Roller Bearings, stocked around the world. • Double lip type oil seals used throughout. • Shaft Mount Gear boxes can be mounted in any position. • Proven history of success in all industrial applications; particularly, conveyors & elevators in the construction industry. • Long established and proven drive system. • Wide range of variation available: • Shaft mount, face mount, foot mount, motor mount, hydraulic input, screw conveyor adaptor. • Ultra compact when compared to other designs. • AGNEE offers a full comprehensive repair facility including spares availability

We are offering inline helical geared motors. Features • helical gear units are designed for continuous duty under difficult operating conditions. • gears are carburized to a hardness of 58 - 62 hrc for durability. • gearcase and flanges of high strength gray cast iron. • foot mounted, flange mounted. Technical data • input power : 0.18 kw to 90 kw. • transmission ratio : 1.4-250 • mounting structure : foot & flange mounted. • model : model: m-03 to m-14 • applications: conveyors, agitators, elevators, cranes, crushers • industries covered are chemicals, pharma, packaging, food processing, plastic, automation etc.

Brand Name : Agnee

• upto 10 Module/2.5 DP • Outer Diameter upto 540 mm/21" • Face Widths upto 200 mm/8" • Pinions are generally made from EN 353 case Hardening Steel and Gears are generally made from SAE 8620 Case Hardening Steel. Other metals like 20Mn5Cr5, EN 36 or EN 24, EN 19 full hardening steel can be taken for good quantities • They are case carburised, Hardened and Tempered to HRC 55-60. • They are then accurately ground. Teeth Flanks are ground on Teeth Profile Grinding Machine • for Automobiles and Industries • Custom made as per Specifications, Drawing or Sample

Single Reduction Worm Gearboxes - Horizontal Type Sizes AGNEE H 100 to AGNEE H 425

The Hydro mechanical division for Hydro power and Irrigation Project is our core strength and is backed by three decades of experience and success. Our expertise covers the entire gamut, from designing, detailed engineering, manufacturing, supplying, installation, testing & commissioning of complete range of Hydro-mechanical equipments. Well Equipped machine shop and the most talented manpower help us sustain high efficiency and service levels, and uncompromising quality at all times, Our repertoire of designing and production includes Vertical gates, Radial gates, Draft Tube gates, Intake gates, spillway and Stoplog gates, Hydraulic / Electrical Servo motor hoists, EOT and Gantry cranes, Trash racks and Trash rack cleaning machines and even building specified steel structures for bridges, towers and industries among others. In addition, we have key and critical state-of-the-art plants, tools and equipments, and manpower required to execute turnkey contracts for projects of any magnitude. • winches upto 20 tons • cranes and hoists upto 100 tons • gates, embedded parts, penstocks and structures upto 20 ton weight What sets us apart are focus, meticulous planning and the ability to perform beyond expectation even under the most challenging situations. It is an immense opportunity for us, to prove our expertise and to create history once again. Our gate to success lies in our constant bunger for taking challenges and excelling in it time and again.

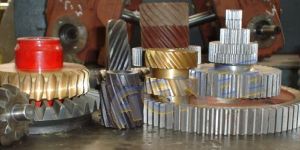

Helical Gears and Pinions • Upto 20 Module/1.5 D.P. • Outer Diameter Upto 1250 mm/50" in Helical gears and Pinions Face Widths upto 800 mm/31" • Required information for quotation: Material of Construction - steel, EN 8, EN 24, EN 353, SAE 8620 etc Teeth Specification - pitch in Module or DP, Helix Angle Outer Diameter Bore size Key way size Hub size if any Any other requirement

We offer Helical Gearbox.

We offer Helical Gearbox.

We offer Helical Gearbox.

we are offering Helical Gearbox.

Country of Origin : India

AGNEE Double Reduction Worm Speed Reducers are two stage worm reduction units. A specially designed primary worm reduction unit is integrally mounted on a standard single reduction AGNEE worm reducer which forms the second stage. The composite units provide the most compact and rigid arrangement for large reduction of speed necessary for slow moving machinery. A wide range of ratios up to 4900:1 is available. The worm shafts are made of high quality case hardening steel, accurately generated, ground and super finished. The worm wheels comprise of phosphor bronze centrifugally cast rims of substantial sections welded to rigid centers. Considerable flexibility of shaft layout is permissible with all types of Double Reduction units. The dimension drawing for each series shows the different shaft handing arrangements and the appropriate reference should always be quoted when ordering.

We are offering bevel helical geared motor. series ak right angle drive helical bevel helical gear motors offer ratios from 8:1 to 160:1 in three stages or up to 10000:1in five stages. Motors are available up to 90kw and output torque capacity up to 12,300 nm. the series k geared motor is designed with integral cast feet for base or end mounting and can be offered with single or double extended output shafts. Units are also available shaft mounted or with output flanges and are available for mounting horizontally or vertically. The units can also be offered with a bolt on torque reaction bracket and all variants are available either motorised or with an input shaft assembly. adding to the new range of agnee gear motors this product takes advantage of our many years of accumulated design expertise together with the use of high quality materials and components. The end result is a series of speed reducing geared motors offering high load carrying capacities, increased efficiency, quiet running and reliability. the range includes 9 sizes of unit ak03, ak04, ak05, ak06, ak07, ak08, ak09, ak10 and ak12 features of bevel helical gear motor standard motor connection (iec frame). ability to fit double oil seals, on input and output shaft as required. all units are dimensionally interchangeable with other major manufacturers. units are manufactured and assembled from a family of modular kits for distributor friendliness minimising inventory and maximising availability. motorised units can be fitted with a backstop module and reducer units can be fitted with a backstop and fan. applications: -conveyors, agitators, elevators, cranes, crushers -industries covered -are chemicals, pharma, packaging, food processing, plastic, automation etc.

Brand Name : Agnee

H Series Bevel Helical Gearboxes and Helical Gearboxes: AGNEE H series helical parallel shaft and bevel helical right angle drive industrial gearboxes have been introduced to meet the requirements of today's demanding applications in the medium and heavy-duty sector of the power transmission market. The modular design and construction of the Series H offers many engineering and performance benefits including a high degree of interchangeability of parts and sub assemblies. This in turn provides considerable economies of production while maintaining the highest standard of component integrity. Apart from standard range, Gear Boxes are also tailor made to suit individual requirement or as per specifications provided. Please feel free to discuss your requirement and we shall be pleased to make suitable suggestions. Product Specification: Gear tooth geometry design combines maximum efficiency with high load carrying capacity and minimal noise generation. Serviceability of the product was key in the design of the Series H range allowing easy maintenance for long life and reliability, which are synonymous with our field reputation. • Unit Sizes: 80, 90, 100, 112, 125, 140, 160, 180, 200, 225, 250, 280, 315, 355, 400, 450, 500, 560, 630 • Transmission ratio: 1.2 - 637 • Input Power: 0.61 KW to 5,000 kW • Torque: Up to 117,000 Nm The Bevel Helical Gearbox Housing is usually made of Close Grain Cast Iron. Sometimes Housing is also offered in Structural Steel when the application demands. They are rugged, corrosion resistant and absorb shock and vibration. The Helical Pinion is made of EN 353 Case Hardening Steel, Helical Gears are made of SAE 8620 Case Hardening Steel. The teeth are generated on Gear Hobbing Machine. They are then Case carburized, Hardened and Tempered. Finally, they are surface ground to close tolerances. The teeth Flanks are ground on Teeth Profile Grinder. This leads to very good efficiency and a quiet working condition. The Output shafts are from alloy steel forging or bars. Low speed shafts can be solid or hollow type. Bearings are fitted on a accurately bored journal and taper roller Bearings are used. Features & Benefits of Bevel Helical Gearboxes : AGNEE Series H Bevel Helical Gearbox takes advantage of our many years of accumulated design expertise together with the use of high quality materials and components, and has the following features & benefits: • Profile ground helical gears. • High level of surface finish for quiet running. • All Gears and Pinions case carburised, Hardened and Tempered • Teeth Profile Ground • Units can be offered in horizontal or vertical mounting positions • All units are also available with hollow bore for output shaft mounting. • Output bores can be connected by shrink disc.

We are offering agnee techbox af series parallel shaft mounted helical geared motors.agnee techbox 'af series' parallel shaft helical geared motors are extra-slim parallel shaft helical gearmotors and are the perfect solution when space is limited. The many different sizes and designs ensure that the gearmotors can be used in a wide variety of applications even under the most unfavorable conditions. Agnee af parallel shaft helical gearmotors are typically used in conveyor and materials processing applications. Series af parallel shaft mounted geared motors offer ratios from 5:1 to 100:1 in double reduction form and in combined units form upto 20,000:1.motors are available upto 45 kw giving a maximum output torque of 7200nm.the series af geared motors are primarily designed as a shaft mounted unit incorporating an integral torque reaction bracket. You can choose from foot-mounted, flange-mounted or shaft-mounted options. The units are also available with bolt-on feet or output flanges and output shafts of single and double extension. All variants are available either motorized or with output shaft assembly. Available versions • foot-mounted or flange-mounted • b5 or b14 flange-mounted • solid or hollow shaft features torque ratings consistently high, gear ratios in close progression, numerous mounting options along with compact dimensions will ease the engineering of any application the housing from nodular cast iron ensures robustness even in the harshest environment and the class of precision the gear are machined into helps producing an extremely quite and vibration-free operation. • sizes: af-04, af-06, af-07, af-08, af-09, af-10 • universal cases • can be used even in narrow construction space • high gear ratios (plug in pinion) • hollow shaft on both sides possible • very energy efficient (efficiencies of 98% per stage) • power up to 45 kw • gears with shaved or ground profile • gearing with 2 , 3 , 4 and 5 reduction stages • reduction ratios between 5:1 to 100:1 , 63:1 to 355:1, 360:1 to 5600:1 and 4500:1 to 20000:1
