zerol bevel gear
They connect intersecting axes and come in several types. The pitch surface of bevel gears is a cone. They are useful when the direction of a shaft's rotation needs to be changed. Using gears of differing numbers of teeth can change the speed of rotation. They are usually mounted on shafts that are 90 degrees apart, but can be designed to work at other angles as well. These gears permit minor adjustment during assembly and allow for some displacement due to deflection under operating loads without concentrating the load on the end of the tooth. For reliable performance, Gears must be pinned to shaft with a dowel or taper pin.
...more

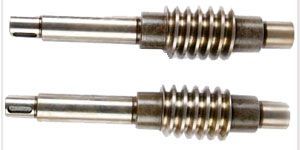

Worm Shaft
Worm shaft Generally Worm Shafts are made from EN 353, Case Carburised, Hardened and Tempered upto 55-60 HRC. They are then accurately ground. Tooth Flank are ground on Worm Profile Grinder. Also offered in other metals with or without hardening like in Mild Steel, EN8, EN 19, EN 24, Cast Iron or as specified. standard and custom made as per Specifications, Drawing or Sample. Worm shafts like for Worm Gear Boxes (most of the makes) of C.D. 50, 60, 75, 85, 100 mm, Ratio 30:1 or 40:1 are usually available Ex-Stock (Subject to conformation). For Automobiles and Industrial uses Worm Shaft and Worm Wheel Pairs are suitable for power transmission in right angle Reverse engineering of Gear sets and Gear Boxes.
...more
Worm gearbox motor
The AGNEE Right Angle Worm Gearbox have Cast Iron Gear Case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. The Worm Shaft is made of Alloy Steel, duly hardened and tempered. The Worm Wheel is made of Chill Cast Phosphorous Bronze and teeth accurately Generated on Gear Hobbing Machines. They are supported on Extra Heavy Duty Taper Roller anti friction Bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level. Air cooling is effected by means of standard polypropylene or metal fans. Please read the Selection of Correct Worm gearbox for choosing the correct one for your application.
...more
Worm Gearbox
Worm Gearbox have Cast Iron Gear Case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. The Worm Shaft is made of Alloy Steel, duly hardened and tempered. The Worm Wheel is made of Chill Cast Phosphorous Bronze and teeth accurately Generated on Gear Hobbing Machines. They are supported on Extra Heavy Duty Taper Roller anti friction Bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level.
...more
Worm Gear Reducer
In stone mining worm gearbox are used in wide variety of mining machines like Stone Slotters in Kota stone mining. Here the ambient temperatures are the extremist possible, crossing 50°C. In summers, strong dust storms compound the harsh environmental conditions. Water slurry is strewn everywhere, sometimes contaminating the lubrication oil. The outdoor nature of mining means that the Gearbox has to withstand all the environmental problems as well the rough handling. Here, in this environment and working condition, AGNEE worm gearboxes are numero uno choice of mining machine manufacturers and users.
...more
Worm Gear Motor
The AGNEE Right Angle Worm Gearbox have Cast Iron Gear Case of streamlined design completely air tight, dust proof and capable of being installed in open without any cover. The Worm Shaft is made of Alloy Steel, duly hardened and tempered. The Worm Wheel is made of Chill Cast Phosphorous Bronze and teeth accurately Generated on Gear Hobbing Machines. They are supported on Extra Heavy Duty Taper Roller anti friction Bearings of ample margin of safety to allow adequate journals as well as thrust loads. Lubrication is effected by splash of oil from the sump. Thus, no special care is required except for occasional oil topping to the required level. Air cooling is effected by means of standard polypropylene or metal fans. Please read the Selection of Correct Worm gearbox for choosing the correct one for your application.
...more
Straight Bevel Gears
Straight bevel gears are the simplest of the bevel gears. They are manufactured on precision generating machines by indexing method ensuring that the teeth should be of tapered depth and thickness. Teeth are cut on the outside of the cone. They have a straight tooth geometry, which if extends, passes through the intersection of their axes. Straight bevel angle can also be with one gear flat with a pitch angle of 90 degrees. These have conical pith surfaces that operate on intersecting axes. They can be designed and cut to operate on any shaft angle. In straight bevel gears when each tooth engages it impacts the corresponding tooth and simply curving the gear teeth can solve the problem. Straight bevel gears come in two variations depending on the fabrication equipment. They are grouped into Gleason type and the standard type. Major percentage of them is of Gleason type with a coniflex form that gives almost an imperceptible convex appearance to the tooth surface. In the standard form, the gear has no profile shifted tooth.
...more

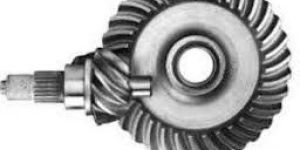

spiral gears
These gears are also known as crossed helical gears. These gears are mounted on shafts that do not intersect and that are at an angle to each other. The angle is usually 90 degree.
...more
Shaft Mounted Speed Reducer
AGNEE Shaft Mounted Speed Reducer (SMSR) is one of the most versatile drives offering the largest ratio range and capable of powers up to 280kW. haft Mounted Speed Reducers (SMSR) are ultra compact when compared to other designs. Send Enquiry In Stock SMSR Gearboxes AGNEE Shaft Mounted Speed Reducer (SMSR) is one of the most versatile drives offering the largest ratio range and capable of powers up to 280kW. Features Model in 7 sizes B, C, D, E, F, G, H with nominal gear ratios of 5:1, 13:1 and 20:1 Extended 2 year warranty (optional). Mounts direct onto the driven shaft: No alignment problems. No shaft couplings. Flexible motor mounted in a convenient position. No expensive adjustable base plate is required for the motor, as V-Belt tensioning is done by the use of a torque arm which can be simply shortened or extended to swing the shaft mounted speed reducer about its output hub to tension the 'V' -Belts. Quick and easy speed changing via belt drive. Final output speed can be very accurately obtained by adjusting the 'V' -Belt' drive ratio. High efficiency by using helical gears Single - 98% efficiency. Double - 96% efficiency. Anti-run back device can easily be fitted on site. Most shaft mounted speed reducers (SMSR) use "6000" series I. S. O. plan Taper Roller Bearings, stocked around the world. Double lip type oil seals used throughout in shaft mounted gearbox. Shaft Mount Gear boxes can be mounted in any position. Proven history of success in all industrial applications; particularly, conveyors & elevators in the construction industry. Long established and proven drive system. Wide range of variation available: Shaft mount, face mount, foot mount, motor mount, hydraulic input, screw conveyor adaptor. Shaft Mounted Speed Reducers (SMSR) are ultra compact when compared to other designs. AGNEE offers a full comprehensive repair facility including spares availability for shaft mounted gearboxes.
...more
Shaft Mounted Gearbox
No expensive adjustable base plate is required for the motor, as V-Belt tensioning is done by the use of a torque arm which can be simply shortened or extended to swing the shaft mounted speed reducer about its output hub to tension the 'V' -Belts. Quick and easy speed changing via belt drive. Final output speed can be very accurately obtained by adjusting the 'V' -Belt' drive ratio. High efficiency by using helical gears
...more

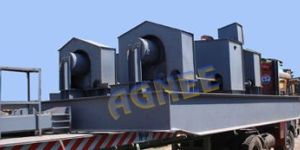

Rope Drum Hoist for Hydel and Irrigation Project
WIRE ROPE OPERATED HOISTS AND E.O.T. CRANES Hoists are fixed type equipments and used for lifting the loads (Gates). Electrically operated Overhead Traveling (E.O.T.) cranes are used for lifting and moving the load (Gates) from one place to another. Wire rope operated hoists are used for Lifting Radial Gates, Barrage Gates, and Intake Gates. Generally E.O.T. Cranes are used for Lifting and moving Emergency Gates, Trash Rack Panels and also used in pump houses. Wire rope operated Hoists or Cranes are used when a positive thrust is not required. These Hoisting units mainly consist of Drive Unit Assembly includes Electric Motor, Gear Box, and E.M. Brake etc. Gear Train Assembly. Wire Rope Drums. Wire ropes, Pulley and fixing arrangement. Generally Gates are lifted and lowered at speed 400-600 mm/min.
...more

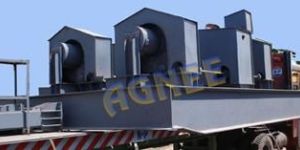

Rope drum hoist
Hoists are fixed type equipments and used for lifting the loads (Gates). Electrically operated Overhead Traveling (E.O.T.) cranes are used for lifting and moving the load (Gates) from one place to another. Wire rope operated hoists are used for Lifting Radial Gates, Barrage Gates, and Intake Gates. Generally E.O.T. Cranes are used for Lifting and moving Emergency Gates, Trash Rack Panels and also used in pump houses. Wire rope operated Hoists or Cranes are used when a positive thrust is not required.
...more
Roller Chain Sprockets
As per British and ANSI Standard In Mild Steel, Stainless Steel, Alloy Steel, Hardened and Tempered Steels, Case Hardened Steels, Induction hardened, Cast Iron, or as specified for Automobiles and Industries Custom made as per Specifications, Drawing or Sample in 14 Pitch to 5 Pitch, for Simplex, Duplex an Triplex, Quadruple Chains Outer Diameter from 25mm1 to 1800mm71
...more
Radial Gate
Well Equipped machine shop and the most talented manpower help us sustain high efficiency and service levels, and uncompromising quality at all times, Our repertoire of designing and production includes Vertical gates, Radial gates, Draft Tube gates, Intake gates, spillway and Stoplog gates, Hydraulic Electrical Servo motor hoists, EOT and Gantry cranes, Trash racks and Trash rack cleaning machines and even building specified steel structures for bridges, towers and industries among others. In addition, we have key and critical state-of-the-art plants, tools and equipments, and manpower required to execute turnkey contracts for projects of any magnitude.
...more

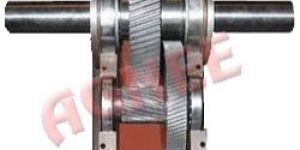

Pump Jack Helical Gearboxes
The Agnee Pump Jack Helical Gearboxes are widely acceptable and are used in pump jacks for oil (petroleum) exploration from the oil wells. The AGNEE Pump Jack Helical Gearbox is made of Close Grain Cast Iron. They are rugged, corrosion resistant and absorb shock and vibration. The Reducer Gearing is Helical type made from high quality alloy steel, hobbed, case hardened, tempered and surface finish and profile ground to class 10 AGMA quality with a 2.0 Service Factor (Best in the industry). That leads to a very good efficiency and a quiet working condition. The shafts are from alloy steel forging or heat treated Bars. Bearings are fitted on a ground journal and are taper roller type. These are heavy duty units with superior self oiling systems for extended life in the field. These units have oil level indicators for easier preventive maintenance. The product conforms to the international quality needs.
...more

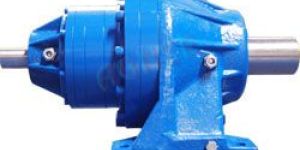

Planetary Gearbox
Agnee manufactures Planetary Gearbox for various Industrial applications operated by Electric motor and Hydraulic motor. Agnee providing customers with High Quality, Cost Effective, Power saving, Planetary gear box with wide range of power transmissions. We are manufacturer and exporter of planetary gearbox & geared motor and our gearboxes are being exported on regular basis to various developed and developing nations since long time. So feel free to become a privileged buyer and purchase for the most competitive prices offered by us. Principle: Planetary Gearbox consist of an Internal toothed Ring Gear to which are set 3 Planets mounted on the Planet Carrier engaging also with the Sun Gear (Pinion) and reduced output speed is taken through Planet Carrier and Ring Gear is remain stationary. Output shaft maintaining the same direction of rotation as Input. Salient Features of Planetary Gearbox: High Reduction Ratios, Power Saving, High Efficiency Long Life, Space-Saving Compactness, Higher Overload Capacity, Reliable and Trouble-Free Service, Greater stability, Compact and Co-Axial Sturdy, No-Self Locking Property, Load distribution among planetary gears. Models Available: Low Backlash Planetary Gear Box Bevel Planetary Gear Box Worm Planetary Gear Box Input Type Male Shaft, Hollow Input Output Type Male Shaft, Hollow Input, Spline Shaft
Output Torque : 10 Nm to 1,450,000 Nm
Mounting Type : Flange/ Foot
Input Speed : 1440 rpm
...more
planetary gear drive
The drive arrangement consist of electric motor a multi-stage planetary gear reducer and a single stage spur gear transmission. The electric motor is flanged-mounted to the input of the planetary gear reducer, which in turn is flange-mounted to the input of spur gear transmission. The hollow input of the spur transmission can be keyed directly on to the crystalliser shaft. The drive unit can be aligned in a convenient direction with respect to the crystalliser axis and its torque arm structure is to be bolted at the convenient place. No other additional structure, such as base frames or any couplings are required. The drive unit is completely enclosed & oil-tight. All internals including bearings are oil-lubricated, oil change is recommended only once a season.
...more

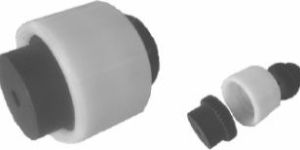

nylon gear
Double cardanic curve tooth gear coupling Accommodated axial, parallel and angular shaft misalignment Suitable for vertical and horizontal application Simple & easy to assemble - Axial plug In Low weight & low inertia Maintenance free due to combination of steel & nylon Useful for all applications of general engineering & hydraulics.
...more
miter gears
Miter gears are bevel gears put together with equal numbers of teeth and axes that are usually at right angles. Miter is the surface forming the beveled end or edge of a piece where a miter joint is made. Miter gears are cut with a generated tooth form that has a localized lengthwise tooth bearing. They are offered in various modules, number of teeth, speed ratio, materials and designs. Miter gears are made of steel, brass, bronze, aluminum, nylon and duracon.
...more
mild steel gears
The materials used for the manufacture of gears depends upon the strength and service conditions like wear, noise etc. The gears may be manufactured from metallic or non-metallic materials. The metallic gears with cut teeth are commercially obtainable in cast iron, steel and bronze. The non-metallic materials like wood, rawhide, compressed paper and synthetic resins like nylon are used for gears, especially for reducing noise.
...more
mechanical bearings
A bearing is a mechanical device that supports the moving parts of a machine and to guide or confine its motion, while preventing motion in the direction of applied load. Its primary purpose is to reduce friction with a minimum loss of energy and at the same time should control the rate of wear. Bearings are made to support radial loads, thrust loads, or combined radial-thrust loads. Bearings can be located at: 1) Between the shafts frame of the machine, or 2) Between the contact members and the frame of the machine. or 3) Between the contact members and the frame or between the contact members and linkage members. The two most common forms of bearings are rotary bearings and linear bearings. Linear bearings are used to permit motion in a straight line. For example, a drawer makes use of linear bearings to help pull the drawer in and out. Rotary bearings help an object move around a central point. For example, a wheel on a shaft rotates using rotary bearings. Rotary bearings can include one-direction rotation and oscillation. With oscillation, the rotary bearings only go through a part of a revolution.
Specialities : Inherently precision mechanisms.,Simple methods of lubrication.
...more
Materials mild steel gears
The materials used for the manufacture of gears depends upon the strength and service conditions like wear, noise etc. The gears may be manufactured from metallic or non-metallic materials. The metallic gears with cut teeth are commercially obtainable in cast iron, steel and bronze. The non-metallic materials like wood, rawhide, compressed paper and synthetic resins like nylon are used for gears, especially for reducing noise.
...more
Jaw Couplings
Simple construction - quick easy installation - No special tools required. Flexible insert caters for incidental angular, parallel and axial misalignment. Absorbs shock loads and damps small amplitude vibration. Insert design presets correct distance between hubs, using raised pads on each leg of the insert. Available in a range of stock bore sizes. Can also be supplied with finished bore & keyway. Unaffected by moisture, grease and oils-including non-aromatic and non-ketone solvents and temperatures with in range – 40°C to +100° C. Spacer coupling with spacer size depending upon the distance between two shaft ends (DBSE).
...more
Inline Helical Geared Motor
AGNEE ‘AM-Series’ Inline Helical Geared motors in Double / Triple reduction models having motorised /solid inputs are intended to satisfy all the requirements of a reliable drive for slow-speed high-torque application. Standard range of AGNEE helical geared motors, available in foot-mounted and flange-mounted versions, offer un-parallel performance covering output speed graduated from 9 to 1230 rpm with motor power ratings ranging from 0.18 kW to 90 kW. The gearbox and motor built as a single unit looks stylishly compact which ultimately results smooth and silent operation in an efficient fashion. The solid input version incorporates an input solid shaft mounted on a bearing housing having dual bearings of ample capacity. Features of Inline Helical Geared Motor / Helical Inline Gearbox - Helical Gear Units are designed for continuous duty under difficult operating conditions. - Gears are case carburized to a hardness of 58 - 62 HRC for durability. - Gear case and flanges of high strength gray cast iron. - Available in Foot mounted or flange mounted options Applications: Conveyors, Agitators, Elevators, Cranes, Crushers Industries covered are Chemicals, Pharma, Packaging, Food Processing, Plastic, Automation etc.
...more
Automotive Sprockets
We have positioned ourselves as a major Automotive Sprockets providing company in India.
...more
Industrial Automation
Agro Engineers is one of the premier organizations involved in providing a wide range of Industrial Automation at very leading rates.
...more
Shaft
We have positioned ourselves as a major shaft providing company in India.
...more
Shaft Collars
Agro Engineers is one of the premier organizations involved in supplying a wide range of shaft collars at very leading rates.
...more
