Earth Testers Dealers in Lucknow

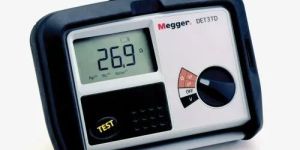

• Brand Name: Megger
• Model Name/Number: DET3TD
• Display: LCD
• Safety: IEC61010-1 CAT IV 100 V*EN61557-1, EN61557-5
• Weight: 1 kg
• Battery Type: 8 off AA cells
• Battery Life: 3 hours or 700 consecutive tests
• C spike check: Automatic
• Noise rejection: 40 V peak to peak
• Resistance accuracy: 2% +/- 3 digits
• Resistance range: 0.01 to 2000 Ohm
• Maximum probe resistance: Rp limit: 100 k ohm (50 V output voltage)
• Earth voltage accuracy: 2% +-2 V
• Earth voltage range: 0 - 100 V a.c.
• Test voltage: 25 V or 50 V, user selectable (factory setting 50 V)
• Test frequency: 128 Hz
• Operating temperature range: -15 to +55 Degree Celsius
• Storage temperature range: -40 to +70 Degree Celsius
• Ingress protection: IP54
• Dimensions: 203 x 148 x 78 mm (8 x 5.7 x 3.2 inches)

product specifications brandkyoritsu includes 7095a (earth resistance test leads)x1set (red-20m, yellow-10m, green-5m), 8032 (auxiliary earth spikes)x1set, 7127a (simplified measurement probe)x1set, r6 (aa)x6, 9121 (shoulder strap), instruction manual, carrying case : 9084(carrying case[soft]:4105a only)   accuracy earth resistance: ±2% rdg ±0.1 ohm (20 ohm range)   ±2% rdg ±3 dgt (200 ohm/2000 ohm range)   earth voltage: ±1% rdg ±4 dgt   overload protection earth resistance: 280 v ac for 10 seconds   across 2 of the 3 terminals   earth voltage: 300 v ac for 1 minute   warranty 1 year   power source 6x1.5v batteries (r6 aa)   dimensions 105x158x70 mm   weight 550 g   standards applicable: iec 60529 ip54   safety: iec 61010-1 cat iii 300v pollution degree 2, iec 61557   item code kew 4105a   measurement range earth resistance: 0-20 ohm/0-200 ohm/0-2000 ohm   earth voltage [50-60 hz]: 0-200 v ac   items in pack 1 piece
