Folding Machine Dealers in Lucknow

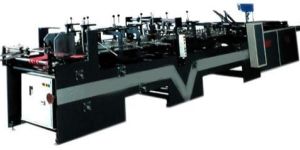

• Model: Hy - Tek 45 PFG - LB
• Substrate: Duplex Board
• Size width open blank Maximum: 45 cm
• Minimum open blank: 120 (L) x 100 mm
• Drive : AC Motor VFD: 5 HP (3.7 KW)
• Speed: 600 ft. (approx) per minute
• Space required : Length: 7.95 meters. (26 ft.)
• Width: 1.15 meters (4 ft.)

Features : Feeder unit:Pile of Carton blanks is placed in the feeder between two adjustable side plates.Feeder belts pull the bottom blank from the pile into the machine. Feeder equipped with Electro magnetic clutch for instantaneous starting and brakings Pre folder:Crease lines 2 & 3 are pre folded in this section and laid flat again & transfered to folding section various attachments for lock-bottom,CD covers etc.can be integrated here. Pressurised top Track system:Spring loaded pin mounted with bearing to apply pressure Folding Station:Sequential gluing is applied and seams are joined. The cartons are transfered to compression and delivery section.Batch counter and kicker track output Compression/Delivery section:This unit runs slowly Here the cartons move between two rotating compression aprons,to allow the glue to bond the cartons under controlled pressure Optional Upgrades:A pre feeder can be installed ahead of the feeder for an uninterrupted flow of blanks into the machine
