Shashi Cable Ltd Kanpur Road, Lucknow, Uttar Pradesh

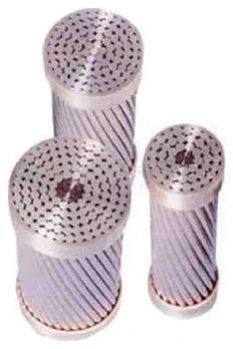

Greased Conductor are ACSR, AACSR conductor with high temperature grease filled in the steel core or in complete conductor. Key Benefits : Additional corrosion protection is available through application of grease

Development of modular control inside our warehouse helps in proper organization of the products and ensure complete safety while storage. The entire system is properly managed by our warehousing experts. Raw materials are the essential bottleneck assets that are highly important for the production of the finished goods. Thus, we stringently check the inputs before procurement.

Bare Aluminium Alloy Wires are fabricated from a range of aluminium alloys depending on the specific requirements of customers. These bare aluminium alloy wires are used in various industries.

ACSR conductors consist of a solid or stranded steel core surrounded by strands of aluminum (E.C. GRADE). ACSR conductors are available in a wide range of steel, containing carbon from 0.5% to 0.85 %. The higher strength ACSR conductors are used for river crossings, overhead ground wires, installations involving extra long spans etc. Against any given resistance of conductor, ACSR may be manufactured within a wide range of tensile strength as per the requirement. Key Benefits : The principal advantage of these conductors are high tensile strength so that they are used for longer spans with less supports. Due to the greater diameter of ACSR conductors a much higher corona limit can be obtained causing big advantages on high as well as extra high voltage overhead lines.

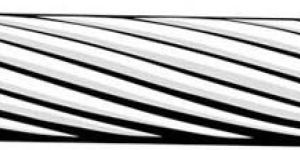

ACAR Conductors offered by our company are made from superior quality material for ensuring excellent performing life. These conductors are extensively used in power distribution segment because oft heir various electrical properties. The availability of the ACAR conductors at affordable prices has eased the customers. Key Benifits : Convenient InstallationLow maintenanceCost effectiveHigh transmission capacity

ACAR Conductors offered by our company are made from superior quality material for ensuring excellent performing life. These conductors are extensively used in power distribution segment because oft heir various electrical properties. The availability of the ACAR conductors at affordable prices has eased the customers. Key Benifits : Convenient InstallationLow maintenanceCost effectiveHigh transmission capacity

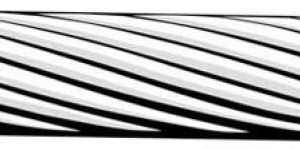

AACSR is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded over a high-strength zinc coated steel core. The core may be single wire or stranded depending on the requirement customer. The proportions of aluminum alloy and steel can be varied to obtain the relation between currentcarrying capacity and mechanical strength best suited to each application. Core wire for AACSR is available with Class A, B or C galvanizing; "aluminized" aluminium coated (AZ): or aluminium clad (AW). Key Benefits : Used as bare overhead transmission cable and as primary and secondary distribution cable. AACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

AAC Conductors are made out of Hard drawn EC Grade (min 61% IACS) Aluminium wires stranded in successive layers in opposite direction to form the Aluminium stranded AAC Conductor up to 61 wires. Key Benefits : All aluminium bare conductors are used for aerial distribution lines having relatively short spans, aerial feeders and bus bars of substations.

AAAC conductor are made out from aluminum-magnesium-silicon alloy of high electrical conductivity (min 53% IACS) containing magnesium (0.6-0.9%) & silicon (0.5-0.9%) to give it better mechanical properties after treatment. AAAC conductors are made out of aluminum alloy 6201. AAAC conductor has a better corrosion resistance and better strength to weight ratio and improved electrical conductivity than ACSR conductor on equal diameter basis. Key Benefits : High tensile strength as compared to AAAC conductor.Higher conductivity as compared to ACSR conductor.Better corrosion resistance than ACSR conductor. Physical Contents of Alluminium Alloy : Density : 2.70 kgm/dm3 at 20°CCoefficient of Linear Expansion : 23 x 10-6 / °CResistivity : 0.0326 Ohms mm2/m at 20°CConstant Mass Temperature Coefficient (a) : 0.00360/ °CMaterial : Heat treated Al. Mg. Si. Alloy

Aerial Bunched Cables manufactured by the company are meant for distributing LT power in rural areas, hilly terrains, congested urban areas. These Aerial bunched cables are tested as per various quality standards. Key Benifits : Excellent insulation propertiesHigh level of safetyLower power lossesFlexibility for re-routing
