Transducers Dealers in Lucknow

• Type: Displacement Transducers
• Material: Stainless Steel
• Application: Concrete Or Rock
• Weight: 0-2kg
• Feature: Fine Finished
• Condition: New
• Warranty: 1yrs
• Brand Name: SISPL

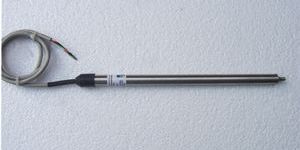

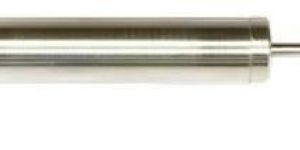

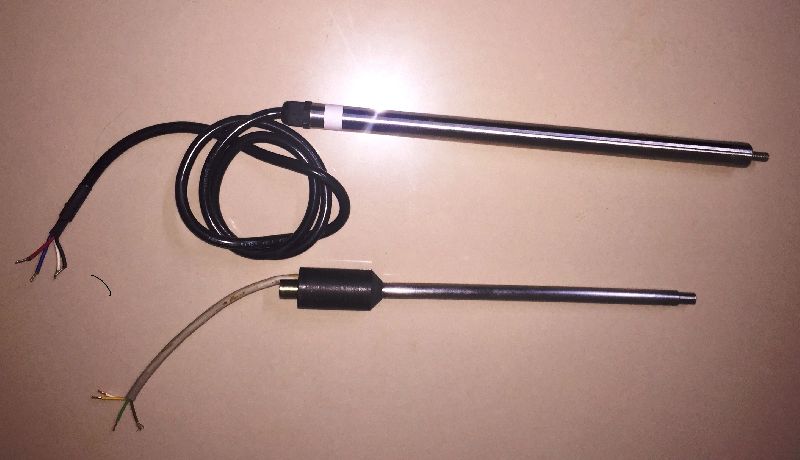

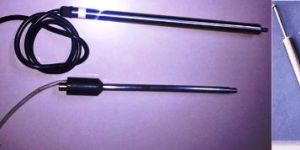

The Vibrating Wire Displacement Transducer Model SIS 8000 Series is used to measure linear displacements in borehole extensometers, Joint Meters or crack meters. It is ideally suited for applications involving transmission of electronic signals over long distances where other types of transducers based on resistance strain gages or potentiometers cannot be used. The linear displacement between the plunger and the body of the transducer is converted into a stable frequency signal by a vibrating wire transducer.

• Standard Ranges: 50mm, 100 mm , 150mm.
• Non-linearity %fs: 1%fs
• Material (outer body): Stainless steel
• Operating Temperature: -10 to 50°C
• Coil Resistance: 140 – 160 Ohm @ 25°C
• Thermistor: YSI 44005 or equivalent (3k Ohm @ 25°C)
• Surge Arrestor: Citel 90V Gas Discharge tube
• Cable: 1m , 4 core shielded.
• Dimension: 16 mm dia

• Material: Plastic
• Type: Single Lumen. Double Lumen
• Usage: Hospital
• Packaging Type: Packet
• Excitation: 2 to 10 V DC

Displacement transducers is ideal for use in single and mutipoint bore hole extensometers. Its unique slimline design is very convenient for multipoint bore hole extensometers as a number of sensors may be installed within a single hole. The sensor also finds application in soil extensometers and roof convergence measurement. It may even be used as a joint meter in some applications. Provision of gas discharge tube protects the sensor against surge and lightning. Displacement as joint and Displacement as Bore Hole extensometer.

We have a well equipped research & development unit where our team members are involved in the development of products as per the current industrial standards. Our efficient Lining Transducer ensures timely product delivery to the desired destinations within stipulated time frames.

These AC LVDTs are the most economically priced displacement transducers. Housed in stainless steel body, they are a combination of ruggedness and high performance. Their applications include measurement of displacement and linear position, deflection deformation in automated material testing machines, triaxial and consolidation testing machines for soil testing, spring testing machines and automation of textile machinery.
