Briquetting Press Dealers in Ludhiana

• Model No.: Everest 100,Supreme 90,Standard 70
• Power Requirements: 89/116 HP,86.5 HP, 47 HP

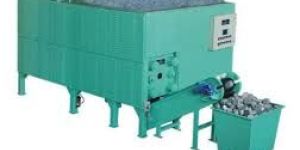

Briquette Machine is used to make briquette out of any agricultural and forest waste. First of all, briquetting means reducing the size of bulk density raw material into compact form, which makes it easy for transportation, burning and increase its calorific values as well. Briquetting Machine produces quality briquettes without any need of binder or chemical. It compact the raw material with the help of high pressure mechanical punch. However, during the contraction of the material, temperature rise adequately to make the raw material emancipate the numerous adhesives that will abetment in protecting the bits together in the compressed shape

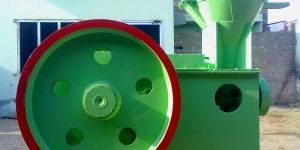

We are offering briquetting press. Briquettes are normally produced in machines with a briquettes diameter between 40mm to 100 mm in round. Briquetting press is piston type mechanical press with two fly wheels. One fly wheel is driven by v belts with motor. Filtered & cooled lubrication oil is supplied by oil pump through p. Pipes. The central lubrication system gives long life buses and crank, piston and other inner parts. Material is pushed in feeding chamber by vertical screw with own geared motor from feeding chamber material is compressed by ram through taper bore die. Briquettes are formed in the shape of logs and it is automatically pushed through cooling line to the storage point.
