Chandawala Auto Industries Focal Point, Ludhiana, Punjab

Specifications : Standard : DIN 74361 form H or as per customer specification Material : EN 8D/AISI 1045, EN 19/42Cr4Mo2 ISO property class : 8, 10 Thread : I.S.O. metric (fine & rough), UNF / UNC Surface treatment : Phosphate, Auto black, Dichromate, Geomet Common sizes : M18x1.5, M20x1.5, M22x1.5, M

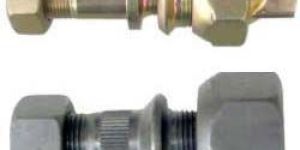

Specifications : Thread size : M12 to M26,  7/16” to 1" Length under the head : 25MM to 150MM,  1" to 6” Thread : I.S.O. metric (fine & rough), UNF / UNC Material : EN 8/AISI 1035, EN 8D/AISI 1045, EN 15/AISI 1541, EN 18 /AISI 5140/37Cr4, EN 19/AISI 4140 /42Cr4Mo2 I.S.O. material strength grade :  6. 8, 8. 8, 10.9, 12.9 SAE material strength grade :  5, 8 Surface treatment : phosphate, clear zinc electroplated, yellow zinc electroplated, dichromate, geomet Application : They are mounted to the automobile hubs that secure the wheels with Nuts Sizes : As per the application or customer requirement Thread : I.S.O. metric (fine & rough), UNF / UNC Material : EN 8/AISI 1035, EN 8D/AISI 1045, EN 15/AISI 1541, EN 18 /AISI 5140/37Cr4, EN 19/AISI 4140 /42Cr4Mo2 I.S.O. material strength grade :  6. 8, 8. 8, 10.9, 12.9 SAE material strength grade :  2, 5, 8 Surface treatment : phosphate, clear zinc electroplated, yellow zinc electroplated, dichromate

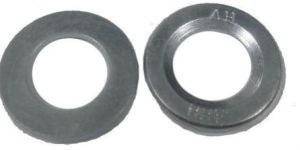

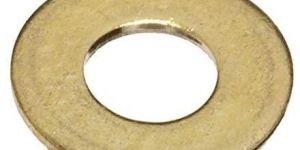

They are used to spread the load of a threaded fastener such as bolt, screw or nut. They come in various forms and sizes.Specifications : Standard : DIN 125A/ISO 7089, DIN 125B/ISO 7090, DIN 126/ISO 7091, DIN 433/ISO 7092, DIN 9021/ISO 7093, DIN 440R/ISO 7094, DIN 127, DIN 6319, DIN 6340, DIN 6916, DIN 7349, DIN 7989, DIN 6797, DIN 2093 Material : Mild Steel, AISI 1045, C45, EN 1AL, Spring Steel, EN 42J, S.S. 304, S.S. 316 Surface treatment : clear zinc electroplated, yellow zinc electroplated, autoblack, dacromet, geomet, black oxide, hot dip galvanized, zinc trivalent plated Other Information : Material : EN 8, EN 8D, AISI 1035-45, CK 35-45 Hardness : 300HV to 400HV Surface treatment : clear zinc electroplated, yellow zinc electroplated, autoblack, black oxide, hot dip galvanized, zinc trivalent plated

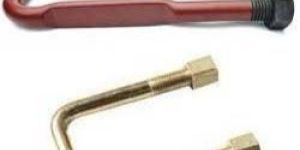

Specifications : Thread Size : M10 to M30, 3/8 to 1" Gap Between the legs : 50MM to 170MM, 2" to 7" Length Along The Side : 125MM to 650MM, 5" to 26" Thread : I.S.O. metric (fine & rough), UNF / UNC,  BSF / BSW Material : low carbon steel, AISI 1010, EN 8/AISI 1035, EN 8D/AISI 1045, EN 15/AISI 1541, EN 18 /AISI 5140/37Cr4, EN 19/AISI 4140 /42Cr4Mo2 I.S.O. Material Strength Grade :  4.6, 5.8, 6. 8, 8. 8, 10.9, 12.9  SAE material strength grade :  2, 5, 8 Surface treatment : black paint, red paint, blue paint, clear (blue) zinc electroplated, yellow zinc electroplated, phosphate Forms : round, half round, square(flat), round forged, semi round forged, square forged Application : Volvo Front, Landcruiser Front, Canter, Isuzu NKR, Isuzu TXD, Nissan CB31, Hilux Rear, Hiace Rear, Eicher Canter, Swaraj Mazda, TATA Ace Sizes : As per the application or as per customer requirement Thread : I.S.O. metric (fine & rough), UNF, UNC, BSF, BSW Material : AISI 1015, EN 8D, AISI 1045, EN 15, AISI 1541, EN 18, EN 19, AISI 4140 I.S.O. material strength grad : 5.8, 6.8, 8.8, 10.9, 12.9 SAE material strength grade : 2,5,8 Surface treatment : Paint (Red / Black /Grey), phosphate, white zinc electroplated, yellow zinc electroplated, black oxide, hot dip galvanized, dichromate

Brand Name : CAI

These nipples are reckoned for their precise dimensions, excellent tolerance & fine finishing. In addition to this, our quality controllers conduct a series of tests on these products to ensure their flawlessness. Owing to their salient features, these have gained huge demand in the market. Features: Rugged design Corrosion resistant Tensile

Material : Steel

Finishing : Coated

Packaging Type : Box

Material : Carbon steel

Shape : Circular

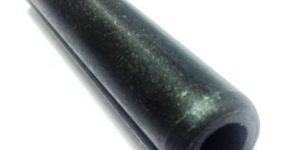

Specifications : Standard : ISO 13337, ISO 8752, ISO 8750, ISO 8748, ISO 8751 Material : Hardened spring steel Surface Treatment : Thermally blackened, zinc passivation Standard : ISO 13337, DIN 7346 Sizes : As per the attached PDF file Material : Spring steel, EN 42J, CK 70-80, SAE 1070-1080 Hardness : Heat treated to 420-520 HV Surface Treatment : Thermally blackened, zinc passivation, Phosphated

Specifications : Diameter : 16MM to 42MM Length : 100MM to 200MM Material : EN 8D/AISI 1045, EN 19/AISI 4140 /42Cr4Mo2, SAE 8620 Hardness :  58 to 62 HRC Surface treatment : black, ground & oiled

It secures each end of the leaf spring assembly by connecting leaf spring to the vehicle chassis in such a way that it allows the assembly to pivot.Specifications : Sizes : Application defined or as per customer spec. Material : Mild Steel, EN 8/AISI 1035, EN 8D/AISI 1045, Surface treatment : black oxide, powder coated, zinc electroplated

Standard: DIN 980V, DIN 6925, ISO 7042, Type of Locking: Elliptical offset (Oval lock), Top lock, Material: EN 8AISI 1035, EN 8DAISI 1045, Thread: I.S.O. metric (fine & rough), Surface treatment: auto black, clear yellow zinc electroplated

Propeller shaft is a two piece or three piece assembly that transmits engine power from gear box to differential gear in the vehicles.Material Specifications : U.J. Cross : 20MnCr5 Cross Holder, Half Yoke, Yoke Sleeve : EN 8D Front / Rear Teeth : EN 8D, EN 15, EN 18, EN 19

Size : M10 to M48

Shape : Hexagonal

Material : MS, EN 8

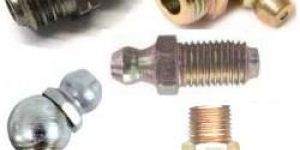

Chandawalla Auto Industries introduce ourselves as one of the reciognised Manufacturer and Supplier of Hydraulic Type Grease Nipples. These can be supplied with standard straight hydraulic head, or at 45 Degree, 90 Degree angles, as well as button heads. Our professionals are most skilled and qualified in this products. Chandawalla Auto Industries manufacture this array with the help of quality raw materials and up to dated technology. Our customer can avail this array at very cost effective rates. We stock a large variety of grease nipples to suit metric. These can be supplied with standard straight hydraulic head, or at 45 Degree, 90 Degree angles, as well as button heads. Battery plate adaptors are also available in this range.   Specifications:- Standard: SAE J-534 Sizes:As per the attached PDF file or as per customer requirement Material: SAE 12L13, 11SMnPb30+C, S.S. 303, S.S. 316 Hardness: Surface hardness of 83 HR15N Min. on a Rockwell scale Thread: tapered Surface treatment: clear zinc plated, yellow zinc plated, zinc trivalent plated..   Additional Information:- Minimum Order Quantity: 500 Piece

Specifications : Standard : DIN 931/ISO 4014, DIN 933/ISO 4017, DIN 960/ISO 8765, DIN 961/ISO 8676, ANSI B18.2.3.1M, BS 1768, DIN 6914/ISO 7412/ANSI B18.2.3.7M, DIN 6921 Thread size : M8 to M52,  5/16” to 2" Length under the head : 15MM to 500MM,  9/16" to 20” We are counted among agile Manufacturers, Exporters and Suppliers of Hex Head Bolts from Mumbai, Maharashtra. Hex Head Bolts are made from superior quality material in conformity with set industry norms. Our Hex Head Bolts are used for fastening objects. These bolts are available with us in different specifications to fulfill buyer’s requirements. We offer our Hex Head Bolts at competitive market rates to our customers. Specifications : Standard : DIN 931/ISO 4014, DIN 933/ISO 4017, DIN 960/ISO 8765, DIN 961/ISO 8676, ANSI B18.2.3.1M, BS 1768, DIN 6914/ISO 7412/ANSI B18.2.3.7M, DIN 6921 Thread size : M8 to M52,  5/16” to 2" Length under the head : 15MM to 500MM,  9/16" to 20” Thread : I.S.O. metric (fine & rough), UNF / UNC, BSF / BSW Material : low carbon steel, EN 8/AISI 1035, EN 8D/AISI 1045, EN 15/AISI 1541, EN 18 /AISI 5140/37Cr4, EN 19/AISI 4140 /42Cr4Mo2, SAE 10B21, SAE 15B25, SAE 15B41, S.S.304, S.S.316 I.S.O. material strength grade :  4.6, 5.8, 6. 8, 8. 8, 10.9, 12.9 SAE material strength grade :  2, 5, 8 Surface treatment : auto black, phosphate, clear (blue) zinc electroplated, yellow zinc electroplated, hot dip galvanized, dichromate, geomet I.S.O. metric (fine & rough), UNF / UNC, BSF / BSW Material : low carbon steel, EN 8/AISI 1035, EN 8D/AISI 1045, EN 15/AISI 1541, EN 18 /AISI 5140/37Cr4, EN 19/AISI 4140 /42Cr4Mo2, SAE 10B21, SAE 15B25, SAE 15B41, S.S.304, S.S.316 I.S.O. material strength grade :  4.6, 5.8, 6. 8, 8. 8, 10.9, 12.9 SAE material strength grade :  2, 5, 8 Surface treatment : auto black, phosphate, clear (blue) zinc electroplated, yellow zinc electroplated, hot dip galvanized, dichromate, geomet

Material : Aluminum, Cast Iron

Type : Shackle Spring Pins, Socket Terminals

Brand Name : CAI

Grade : ISO 8748, DIN 7344, BS 7057

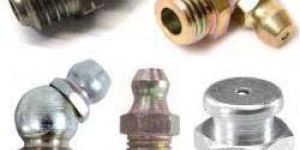

Grease nipples or zerk fittings are used for injecting lubricants into bearings and other applications using a grease gun.   Specifications: Standard : DIN 71412, IS 4009-2, DIN 3404, IS 4009-1 or as per customer spec Material : M.S., EN 1AL (free cutting steel), 11SMnPb30, S.S. 303, S.S. 316 Hardness : Minimum 500 HV for nipple head Thread : parallel, taper Surface treatment : clear (blue) zinc plated, yellow zinc plated, olive green zinc plated, zinc trivalent plated

Material : Steel

Surface Finishing : Electroplated

Shape : Round

Application : Industrial

Color : Black

Type : Nipples

Material : Metal, Stainless Steel

Diameter : 0-10mm, 10-20mm

Certification : ISO 9001:2008 Certified

Application : Automotive Industry

Grade : ANSI, DIN, IS

Color : Black, Golden, Silver

Feature : Accuracy Durable, Corrosion Resistance, Dimensional, Hardend & Temper

Technics : White Zinc Plated, Yellow Zinc Plated

Country of Origin : India,Maharashtra,India

Brand Name : Chandawalla

Grease Nipples for Auto Components, Constant Velocity Joints, Universal Joints, Propeller Shafts, Cardan Shafts, Shackle Pins, Fuel Injection Assembly. Specialists in Manufacturers of Grease Fittings for Automobiles, trucks, tractors, trailers & Excavators. Grease Nipples. Grease Nipples for Auto Components, Constant Velocity Joints, Universal Joints, Propeller Shafts, Cardan Shafts, Shackle Pins, Fuel Injection Assembly.

Specifications : Standard : DIN 6331, DIN 6923 Material : Mild Steel, EN 8/AISI 1035. EN 8D/AISI 1045 ISO property class : 5, 8 Thread : I.S.O. metric (fine & rough), UNF / UNC Surface Treatment : phosphate, auto black, black oxide, clear / yellow zinc electroplated
