Daljit Machine Tools Pvt. Ltd. Janta Nagar, ludhiana, Punjab

Machine is made with Graded casting which is properly seasoned for At least 6 to 8 Months. Highly accurate as Per IS Standards (IS: 2308: 1989). Quick Return Movement to save idle time. Rocker arm Mechanism Operation. All Gears are made of EN series Steel, Properly cut on Hobbing and Gear shaper Machines. Gears in the machine are properly Hardened and lapped. Machine and Gear Box is filled with C-oil.

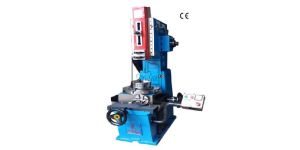

he best Slotting Machines in India are available at Daljit machines in many variant and sizes. This machine is useful for cutting out slots, splines, keyways for internal and external jobs, machining square holes, etc. Also slotting machines are useful in cutting metal sheets, grooves, keys and forming irregular shapes. It can be used for works as machining circular, concave, semi-circular and convex surfaces. The variants of slotting machine includes light duty vertical slotting machine, heavy duty vertical slotting machine and export quality heavy duty series have significant features like robustness, tough structure, uniformity and spontaneous functional ability in its construction and design adhering to industrial quality standards for accurate metal productions. In respect of a machining principle, slotting machine is marked by its vertical tool reciprocation and down stroke action hence most of the time slotting machine is also called as simple vertical shaper machine. The main difference between a slotter and a shaper is the direction of the cutting action. So they both operate in a similar manner. The machine’s exceptional durability to remove unnecessary material from a work piece to show desired shape and size makes it a much useful product in large construction projects. The parts of a slotting machine like bed, cross-slide, hand wheels, column, ram and table becomes a very economical machine tool when used for certain classes of work. Daljit Slotting machine comes in wide range which from 6” to 40” stroke vertical slotting machine. The Casting used in the production is of High Grade Casting which is seasoned for at least 6 to 8 Months. The machine offers a hassle free performance due to its make of rich quality raw materials. So make sure to buy from a reliable and reputed tool room machines supplier. Features This model can produce slotting strokes from 10 to 150mm.The longitudinal and cross movement for ranges about 200mm and 110 mm respectively.The Ram adjustment is 150mm and the column to Ram distance is 210mm similarly table to Ram distance is 310 mm.This equipment is made of rigid construction and it creates no vibration while machining.It is made of fine grained and seasoned casting that makes the instrument work for long term application. STANDARD ACCESSORIES AND ELECTRICALS 1 HP MOTOR, ON – OFF SWITCH , One railing set for electric motor, 1 pc 8 mm boring bar , Motor Pully Optional Accessories Rotary Table with 36 :1 Ration ( 250mm)8″/200 mm True ChuckWooden Box Packing

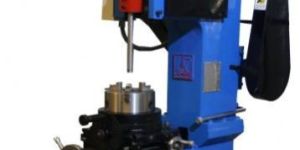

Features   DLS- 10 model, which has 10 to 250 mm capacity of slotting strokes. The longitudinal and cross movement remains 230mm on both directions therefore this instrument remains a suitable option for inserting requirement which should be equal on both directions. It is equipped with 3 speed adjustment. The Ram adjustment is 250mm .Rigid Construction hence smooth and Vibration free operation. Fine gained castings and dully Seasoned. All gears are instruments cut and Properly fitted.   Option Accessories   Rotary Table with 36 :1 Ration ( 250mm):- 8"/200 mm  True Chuck  :- Wooden Box Packing :-     Specifications

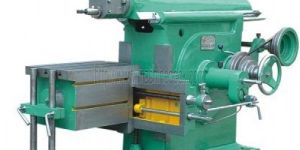

Shaper Machine 24" Stroke   Features Duly Seasoned Alloyed High-duty Castings   Option Accessories Motor, Starter , Milling Vice , Wooden Packing

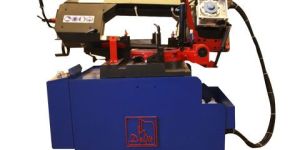

This is a Latest Design Machine Having Hydraulic Job Clamping. Hydraulic Down Feeding and Lifting of Frame afer Cut, very Robust Structure havingcast iron Bed, very safe and easy to operate with inbuilt miter Cut feature that makes it easy to cut any dregree on Pipe, Flat, Rod or Tubes

20 mm Pillar Drill Machine (Heavy) Features 20 mm Pillar Drill Machine (Heavy) Option Accessories Motor, Starter , V belt , Push Botton

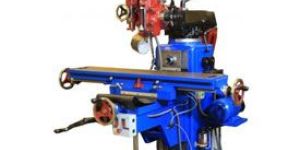

Milling machines are worked to create shapes and sizes and operated in all kinds of industries. The size, power and built quality of milling machines vary a lot, so choosing any one of them from the machine dock range is quite important to have that precise efficiency. The milling machine has got the cutter installed that makes it operate multi-purposely on milling and turning materials. Also it helps removing the material from the surface of the work piece. A milling process involves cutting tools like the end mills which have special cutting surfaces. The cutters made from highly resistant materials have extended cutting surfaces that produces less friction. Further there is universal horizontal milling machine that facilitates metal to achieve angular or helical machining processes. This machine includes attachments like cutters, rounding end mills, variable flute mills & etc. Then is the vertical milling machine usually required to do more professional metalwork and to receive broad choices of results on work pieces. The basic difference that distinguishes between milling machines is their spindle orientation as to their degree of motion. To say specifically, the machines where the spindle works in Y-Axis is the Vertical milling machine and the one where the spindle works in the X-Axis, it is the Horizontal milling machine. With milling power to work in no time, our milling machines take the productivity to the next level.

  Milling Machine 1. 5 No.   Specifications

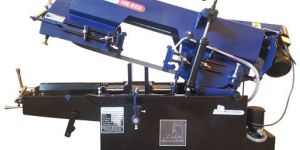

We have designed considering requirement of low cost bandsaw machines for steel traders, workshops and toolrooms. This machine has horizontal swing action for cutting. ECO 220 has heavily fabricated structure and precise parts which ensures break free cutting for longer time. Due to low vibrations the blade life on this machine is observed more than other similar machines available in the market. We provide our machine fully functional with complete electrical,V belt ,Motor and coolant pump

Features Bed is made from 25 Grade Cast lron of 400 BHN hardened, strictly inspected with Microlevel, Hardness Tester and Straight Edge.Boring of Head Stock is done on WMW boring machine fitted with induction hardened and ground Spindle made from alloy steel.Apron is totally enclosed oil bath system with lever type arrangement for automatic feeds.HEAD STOCK is totally enclosed oil bath system & gear made from EN-9 HardenedTail Stock with hardened and ground tail stock Spindle made from alloy steel having external and internal grinding.Instruction Manual as per indian Standard IS – 1878 (part -I) 1971. COLOUR OPTION AVALIBLE   Standard Accessories Main Motor, Starter , Change Gear Set ( Inch & mm ), Chuck Plate , Tool Post Ley ,Four Position Tool Post ,Center Adopter , Dead Center ( 2 Nos. )

As being fully dependent on our manufacturing state of the art unit and use of high quality raw materials acquired from certified market sellers we have been able to supply and export horizontal surface grinder machine for quite several years now. The grinding units as checked by efficient quality analyzers have been functioning effectively with user friendly operations that have raised no complaint ever. Available in different specifications and based on customer requirements, these horizontal surface grinding features boast of: • Having a base structure with good rigidity and heavy duty slides capable to handle big work materials• Having both guide ways in column & vertical slide for ground finish in high rigidity that also has z-axis accuracy• A centralized lubrication pump that assists magnet slide and all other parts to be lubricated• A spindle running on preloaded super precision anti friction imported bearings which is mounted on a rigidly constructed spindle having a longer shelf life• Feed movements measuring up to 0. 002mm that are fitted with micro feed• Electric control panels having rotary switch & soft touch push buttons• Other parts include relief value, pressure gauge; suction and return line filters, hydraulic pump that works on low pressure for better cooling of the machine• Having stock adjustment stoppers in them• Having leak proof fittings, hose/ pipes on all hydraulic connections• Automatically machine stopping when the work is completed

We are offering hydraulic 10" hacksaw machine. Features Economical Heavy duty 2 Hp Motor Starter Coolant Pump Hydraulic Hacksaw   Standard Accessories Economical Heavy duty 2 Hp Motor Starter Coolant Pump   Option Accessories Wooden Box Packin

Features Quite robust and Rigid Construction to Avoid Vibrations.Machine is made with Graded casting which is properly seasoned for At least 6 to 8 MonthsHighly accurate as Per IS Standards (IS: 2308: 1989)Quick Return Movement to save idle timeRocker arm Mechanism OperationAll Gears are made of EN series Steel, Properly cut on Hobbing and Gear shaper Machines.Gears in the machine are properly Hardened and lapped.Machine and Gear Box is filled with C-oil1 years Warranty against any Manufacturing Faults . STANDARD ACCESSORIES AND ELECTRICALS Main Motor And Starter .Oil lubrication pump (MANUAL)10 inch thru chuck with plateComplete dividing head with rotary tableone handle for stroke adjustmentVee-belts guardsOne railing set for electric motor.

Drilling Machines work to create deep holes easier in harder objects such as wood, fiberglass, ceramics, plastic, porcelain tile. These drilling machines bore into the work pieces to produce small precise parts of solid materials in regard to needed depth and diameter of holes. Furthermore, a rotary-percussion drill works to chip away hard materials like masonry (brick or stone) with its action. Machine drills are responsible for cutting materials and available in two most common types as bench and pillar drills. Pillar drill or bench drill are practical choices to get high accuracy in terms of holes that consumes less energy. The machines costs vary with its production level so buyers choose drilling machines that best fits their needs. Drilling holes is the most common task for woodworking and engineering workshops that allows woodworkers to perfectly drill angled holes into wood pieces. So for this, quality parameters are checked on accuracy, construction, performance, durability, power consumption for proper working of machines. There are different technical grades and specifications available with machine dock that guarantee consistent functionality, operational life, high tolerance capacity and supreme work-ability at affordable rates to make the process easier and efficient with speed.

Shop jaw Chucks available at Daljit Machines in 3 and 4 jaw chuck versions useful in metalworking production made from superior quality material. Self-aligning 3 jaw chuck is a general type that best suited to grasp hex bar stock whereas the main aim of 4 jaw independent chuck, a specialized metalworking accessory with its with four independent jaws can be centered to high precision and supplies versatility to keep hold of rectangular stock as well as other non-cylindrical shapes. The Chucks are made of special kinds of clamps in rotating nature which grip materials or tools together. 4 jaw chucks are different from 3 jaw chucks that holds square, round, hexadecimal shapes type work pieces in which the chunk wrench is used to adjust each chunk independently. Furthermore, reverse side of the diameter jaws are useful to seize hold of the superior work. Daljit Machines has mastered in offering brilliant quality of chucks to their clients.

Type : Jaw Chucks

Application : CNC Machine

Packaging Type : Box

Country of Origin : India

This machine is most suitable to meet the requirements of Sharpening Broaches in small or large industries. The Main Feature of this machine is that its low cost specifically for re sharpening as well as nicking operations of circular and flat broaches , back off operation on cutting teeth of Flat broaches . Its Rigid bed, well balanced and vibration free grinding spindle enable the machine to perform with high standards.

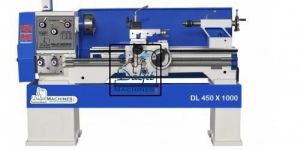

Daljit All Gear Lathe Machines are one of the Best and Largest Selling Lathe machines in INDIA. These are most affordable Lathe machines at most affordable prices. Lathe Machines Beds are made from 25 Grade Cast lron of 400 BHN hardened .Machines are manufactured as per Indian Standards IS-1878 (part-1 )1971. Features Main Motor, Starter , Change Gear Set ( Inch & mm ), Chuck Plate , Tool Post Ley ,Four Position Tool Post ,Center Adopter , Dead Center ( 2 Nos. )

This is our Economical Model For Metal cutting. Low Wastage, Optimum Blade Life,Low Power Consumption, safe And Easy To Operate. It Has A Robust And Compact Structure, Which Is Heavily Faricated
