Facing Machine Dealers in Ludhiana

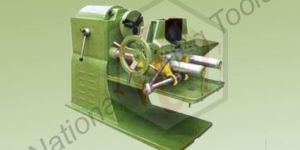

we are offering pipe end facing machine the pipe end facing machine is used for the function of chamfering and deburring the pipe before the galvanizing and threading operation. The pipe is chamfered from the outer, inner, and front face by three different tools. The pipe remains stationery and the facing head rotates. Slide travels towards facing head for chamfering manually. We are counted among the prominent pipe end facing machine manufacturers, suppliers, and exporters. We offer pipe end facing machine at reasonable prices. consists of bed head stock clamping vice saddle » specifications model  no.imc-em- 12" to 1.12"imc-bm-12" to 4"min. Dia of pipe to be chamfered12" n.b. Pipe12"max. Dia of pipe to be chamfered1.12"4"cutting tools required (hss 10% cobalt)38"38"number of spindle speedstwo nos.four nos.range of spindle speeds37 to 64 rpm68 to 180 rpmmain motor3 h.p. 1440 rpm3 h.p. 1440 rpmapprox. Wt. Of the machine750 kgs.1100 kgs.

Pipe End Facing Machine is used for the purpose of Chamfering and Deburring of the Pipe before Galvanizing and Threading Operation. Pipe is chamfered from the Outer, Inner and Front face by Three different tools. The Pipe remains Stationery and the Facing Head rotates. Slide Travels towards Facing Head for Chamfering manually. The Machine mainly consists of the following: - Bed  Head Stock  Clamping Vice  Saddle

Our Pipe End Facing Machine is extensively used for removing the bur of the ends of the pipes in order to make them smooth and aesthetically appealing. Our highly efficient Pipe End Facing Machine is widely acknowledged by the clients owing to its characteristics like sturdy construction, high speed, low power consumption, easy operation, etc. Our Pipe End Facing Machine can be easily used for different diameters of pipes.   Specifications : Capacity 12mm to 65mm, motor power 5HP. Capacity 25mm to 100mm, motor power 7.5HP. capacity 65mm to 152mm, motor power 10HP. capacity 100mm to 200mm, motor power 15HP. Additional Information : Price : 3000 USD min

Our organization assures distribution of wholesale as well as retail consignments of the goods as per the jointly decided period. We have massive warehouse with Individual stock keeping units (SKUs). We are capable of sorting the products in an efficient way and can easily entertain bulk requirements of the customers. Features : User-friendly Precision engineered QC verified High productivity

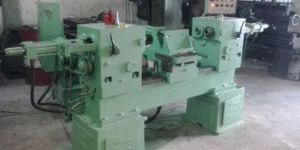

Centering facing machine with hydraulic clamping and electrical penal. Product setup fixer also included.

• Model No.: NCT-E-1.1/2"
• Min. Dia of Pipe to be Chamfered: 1/2” N.B. Pipe
• Max. Dia of Pipe to be Chamfered: 1.1/2”
• Cutting Tools Required (HSS 10% Cobalt): 3/8”
• Number of Spindle Speeds: Two Nos.
• Range of Spindle Speeds: 37 to 64 RPM
• Main Motor: 3 H.P., 1440 RPM
• Approx. Wt. of the Machine: 750 Kgs.

We are a distinguished Manufacturer, Exporter, and Supplier of Pipe End Facing Machine from Punjab (India). Our Pipe End Facing Machine mainly consists of base, head stock, saddle and clamping vice. Before galvanizing and threading, pipes are chamfered from inner, outer and front face, and deburred with the help of Pipe End Facing Machine. Pipe End Facing Machine helps pipes remain stationery while the facing head of the pipe rotates. For manual chamfering, slide of the pipe moves towards facing head.

pipe or tube producing mills requires to faceout the ends of the pipes to regular plannar surface. Our machines are serves the indian pipe industry exclusively with their need of facing out the ends of pipe.

• Size (mm): 12mm to 65mm, 25mm to 105mm, 50mm to 155mm, 100mm to 205mm, 100mm to 406mm.
• Size in Inches: 1/2" to 2.1/2" , 1" to 4" , 2.1/2" to 6" , 4" to 8", 4" to 16"

Pipe End Facing Machine is used to Chamfering and Deburring of the Pipes before Threading operation and Galvanizing. The Job is chamfered from the External, Internal and Front Face Three different tools. The Job remains still and the Facing Head rotates. The Slide manually move towards Facing Head for Chamfering. -

We hold the expertise in manufacturing, exporting, and supplying Facing Vertical Milling Machines. Used for diverse industrial applications, this variety of Milling Machines provides excellent work speed for better feed rate. Available in varied specifications, our Facing Vertical Milling Machine are very affordable. Used For MillingDrillingReaming Attributes Robust constructionRust proofEasy to useLonger life

The Pipe Threading Machines are designed to give maximum efficiency and reliable performance under the most severe conditions of service with minimum Conditions of severe with minimum maintenance . all the necessary requirements are combined in this model to from the basic fundamentals of correct threading. All the gears are made of case hardened steel with extra large face with and tooth thickness and cut on hobbing machine for noiseless operation even at high speed. Naturally they are built with high standard of workmanship, material and quality so closely associated with COMPANY TRADITION .   Head Stock : The Head Stock is of top quality casting providing support to the spindle bearing. The Spindle Swing taper roller bearing are of best steel with a ground finish to give accurate results. Gears of head stock are running oil bath with oil level window . The Bed :The bed is pillar type having two pillar made of best steel , nicely ground & hard chrome plated and also aligned accurately to the head stock alignment . The saddle :The saddle is fitted on two pillars very precisely , it run on pillars very smoothly and accurately to the head stock alignment. The Apron :The Apron gives movement to the saddle towards head trevers along with pillars through steel rack and pinion arrangements. Its all gear are made of best steel. Vice Jaws:The Vice jaws are fitted on the saddle with best steel hard chrome plated rods accurate . The jaws are made of best steel and are well hardened . The movements of jaws are controlled by a screw on the saddle .

We make you feel the difference of peerless automatic facing machine at one stop destination. We manufacture centering facing machine using optimum quality raw materials thereby guarantying our customers of our authenticity. High precision and long life of this centering machine make this machine highly demanded in the global market. We are regarded as one of the famous centering machine manufacturers and Suppliers in India. We ensure easy accessibility of centering & facing machines, and at th

We are a distinguished Manufacturer, Exporter, and Supplier of Pipe End Facing Machine from Punjab (India). Our Pipe End Facing Machine mainly consists of base, head stock, saddle and clamping vice. Before galvanizing and threading, pipes are chamfered from inner, outer and front face, and deburred with the help of Pipe End Facing Machine. Pipe End Facing Machine helps pipes remain stationery while the facing head of the pipe rotates. For manual chamfering, slide of the pipe moves towards facing head.

The Machine is used for the purpose of Chamfering and Deburring of the Pipe before Galvanizing and Threading Operation. Pipe is chamfered from the Outer, Inner and Front face by Three different tools. The Pipe remains Stationery and the Facing Head rotates. Slide Travels towards Facing Head for Chamfering manually. The Machine mainly consists of the following: -  Base Head Stock Saddle  Clamping Vice

The packaging of our products is done using high-grade packaging material. Moreover, we are assisted with advanced machines and packaging experts for safe packaging of the products. We have hired quality auditors who keep a strict check on the quality of the raw materials and also check the inputs against varied quality parameters before procuring them.

We are offering all types of Pipe End Facing Machine that are available from us at very nominal prices.
