wood turning lathes
rotary cylinders
Rotary Cylinder
production machines
production machine
Linear Tooling LATHE
The JV-45 Linear Tooling Is A Chucker And Cnc Lathe. Ideally Suited For Job Shops And Ancillaries To Produce Automobile And Electronic Components, Bearing Races And More In Medium And Large Batches. The Elements Like Ball Screws, Bearings, LM Guides, Spindle Motor, State Of The Art CNC System, Drives And Couplings Have Been Chosen From World Renowned Manufactureres. Specifications: - Customized Tooling. A2-5 Spindle Supported By Angular Contact Bearings For High Speed And Rigidity Continues Lubrication For Ball Screw And LM Guides User Friendly State Of Art CNC System Siemens808 Hydraulic Power Pack. Automatic Centeralized Lubrication System. Built In Lighting System. Face And ID Tool Holders. Machine Occupies Lesser Floor Area.
...more
lathe tracers
Lathe Tracer
hydraulic copy turning attachments

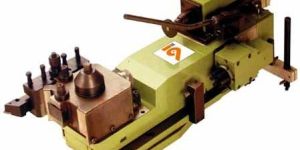

Hydraulic Copy Turning
A fastest growing company, Ishaan Automations strives hard for accumulating the strong support of clients, has shown its mettle in providing very useful range of Hydraulic Copy Turning which is immensely used in varied industries. Moreover we are specialized in manufacturing completely hazard free hydraulic copy turning attachment that is designed to serve to the various major industries throughout the world. Moreover the trust of our clients inspires us for using quality raw material which controls the downfall of quality and makes our products more superior than others. In addition, we are one of the hydraulic copy turning machine exporter based in India.
...more

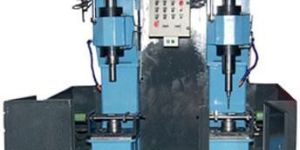

Centring Machine
Facing & C entering Machine We manufacture hydraulic facing and centering machines as per customer requirement.
...more

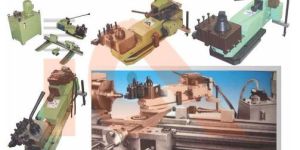

copy turning lathe
Copy Turning Lathe Servo Turn Hydraulic Tracers Have Been Used In One Form Or Another For Well Over Many Years. A Hydraulic Tracer Enables Someone To Follow A Template And Precisely Control The Movement Of Hydraulic Cylinders. This Creates An Exact 1:1 Duplication From The Template To The Travel Path Of The Cylinders. This Is Especially Useful When There Is A Requirement For A Large Quantity Of The Same Part. It Is A Simple Process, Which Avoids The Necessity Of Computers And Programs. This Simplicity Makes It Easy For Operators With All Skill Levels To Operate A Piece Of Machinery. The Hydraulic Tracer Is Suitable Normally For Rear Mounting On Center Lathe, Capstan Lathe & Turret. This Arrangement Leaves The Front Tool Post Of The Lathe For Normal Operations As Usual In Case Any Front Operation Is Required After Copying. The Tracer Can Also Be Mounted On The Front With Certain Adaptations. The Tracer Is Provided With Swivel Base To Fix It At A Suitable Angle Of Copying For Turning Boring & Facing Depending On The Profile To Be Copied. Recommended Angle Of Copying Is 60° For Turning & 45° For Boring & Facing Generally. But Other Angles Can Be Tried Out Depending On The Nature Of Copying And Profile. Hydraulic Copy Turning Attachment Are Available In Four Different Models And These Are Utilized In Several Industries. The Servo Turn Tracer That We Offer Is Ideal For Manually Operated Systems On Any Lathe, New Or Old. This Machine Can Be Easily Operated By Semi-Skilled Personnel And Can Be Successfully Mounted On The Front And Rear Of A Lathe. This Machine Helps With The Reducing The Inspection Time And Increases The Rate Of Production Equal To Or More Than 300% With An Accuracy Level Equal To +0.025mm On Good Lathes. The Copy Valve Servo Turn Lathe Tracers Are Tested Individually And On A Stringent Basis In Order To Facilitate A Hassle Free And Longer Service Life. Specifications: - Model Stroke Of Tracing Slide In Mm. Minimum/Maximum Centre Height From Top Of Cross Slide In Mm. Max. Dia Of Round Master In Mm. Max. Length Of Master In Mm. Hydraulic Working Pressure In Kg/Cm2. Pump Output In Lt/Min. Power Pack H. P. Theoretical Thrust In Kg. Recommended Tool Shank In Mm.
...more

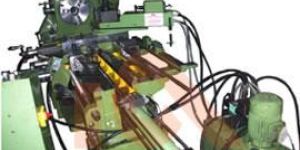

Auto Programmed Cycle Tracer System
Auto Programmed Cycle Tracer System Includes Single Axis Tracer With Hydraulic Control Valves. Dual Delivery Power Pack. Control Panel, Feed Cylinder To Move Saddle Longitudinally And Limit Switches. System Is Suitably Designed To Get Up To Six Cut Automatic Cycles Of Single Axis Tracer. System Is Very Much Suitable Where Limited Dependence On Operator Required. Operator Is Only Required To Load Job, Press Start Button And Unload The Job At The End Of Cycle. Specifications: - Model Max. Longitudinal Stroke In Mm. Stroke Of Tracing Slide In Mm. Max. No Of Cycles Power Pack H.P. Pump Output In Lts./Min. No. Of Power Packs.
...more
Auto Copy Lathe
we offer auto copy lathe to our clients as per their requirement. specifications: - 60â° slant cast iron bed. hardened & ground guide ways. hi precision spindle head heavy duty copying slide. lubrication system for slides. foot operated power tail stock. coolant system. splash guard. .
...more
auto lathe
auto turning machines
copy boring servo turn lathe tracers
copy lathe
hydraulic lathe tracers
lathe duplicators
power tail stocks
lathe tracers machines
Hydraulic Machines
Hydraulic Lathe Tracer
Automatic Copy Turning
