Nutech Engineers Chandigarh Road, Ludhiana, Punjab

VFD (AC Drive) PanelWe Design and manufacture a wide range of AC Variable frequency drive panels/DC Drive panels for different type of industrial machines for SPM machine Manufactures, Rice mills, Paper Mills, Sugar mills, Steel plant, Refineries, Power plants, etc.Energy saving with VFD (AC DRIVE)Many fixed-speed motor load applications that are supplied direct from AC line power can save energy when they are operated at variable-speed, by means of VFD. Such energy cost savings are especially pronounced in variable-torque centrifugal fan and pump applications, where the loads' torque and power vary with the square and cube, respectively, of the speed. This change gives a large power reduction compared to fixed-speed operation for a relatively small reduction in speed. For example, at 63% speed a motor load consumes only 25% of its full speed power. This is in accordance with affinity laws that define the relationship between various centrifugal load variables.In the United States, an estimated 60-65% of electrical energy is used to supply motors, 75% of which are variable torque fan, pump and compressor loads. Eighteen percent of the energy used in the 40 million motors in the U.S. could be saved by efficient energy improvement technologies such as VFDs.Only about 3% of the total installed base of AC motors is provided with AC drives. However, it is estimated that drive technology is adopted in as many as 30-40% of all newly installed motors.

Phase : Three Phase

Application : Generator,Submersible Pump,Motor

Power : 8,00 bar - 28,00 bar

Nutech is the leading manufacturer of PCC Panels (Power Control Centre) in India, which are used for diverse industrial applications and provide reliable and effective service. These panels are manufactured as per client’s specifications and requirements which very well meet with the industry demands.Power Control Centre is considered to be the heart of an electrical system in any industry. Therefore, it shall offer users long term reliability, safety, low maintenance & testing time.At Nutech we offers state of art PCC panels, manufactured with latest engineering practices considering all the safety factors. Our PCC are tested from CPRI Bhopal, for 50KA Fault Level and relevant Temperature rise.

Application : Auto Cut Auto Start

Body Material : Mild Steel, Galvanized Aluminium, Mild Steel sheet

Power : 800kW-500MW

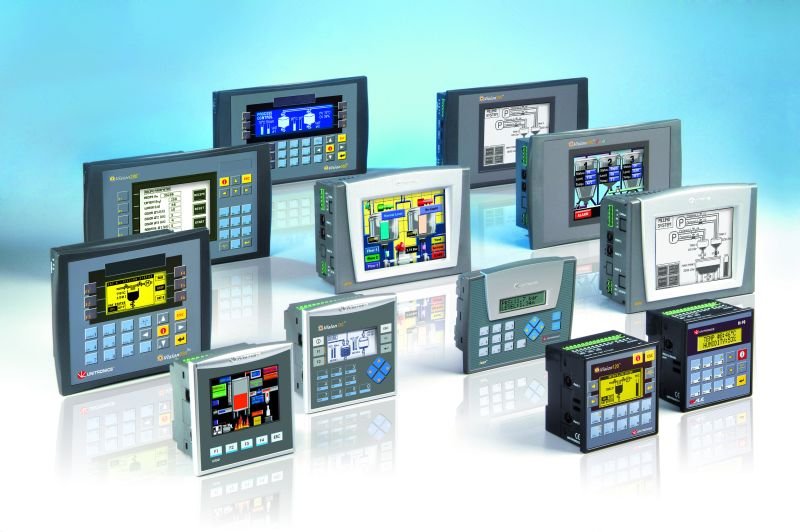

We Design and manufacture a wide range of PLC base automation panels are designed & manufactured for rice mills, sugar mills, steel plant, refineries, Process automation, SPM machine manufactures, Building Automation Power Management i.e. Automatic load sharing & synchronizing of transformers &  D.G./T.G sets for all types of industrial , Residential & commercial establishments etc.

Width : 110 mm

Power : 24 V

Warranty : 1 Year

ONLINE UPS In an online UPS, the batteries are always connected to the inverter, so that no power transfer switches are necessary. When power loss occurs, the rectifier simply drops out of the circuit and the batteries keep the power steady and unchanged. When power is restored, the rectifier resumes carrying most of the load and begins charging the batteries, though the charging current may be limited to prevent the high-power rectifier from overheating the batteries and boiling off the electrolyte. The main advantage of an on-line UPS is its ability to provide an "electrical firewall" between the incoming utility power and sensitive electronic equipment. The online UPS is ideal for environments where electrical isolation is necessary or for equipment that is very sensitive to power fluctuations. Although once previously reserved for very large installations of 10 kW or more, advances in technology have now permitted it to be available as a common consumer device, supplying 500 W or less. The initial cost of the online UPS may be higher, but its total cost of ownership is generally lower due to longer battery life. The online UPS may be necessary when the power environment is "noisy", when utility power sags, outages and other anomalies are frequent, when protection of sensitive IT equipment loads is required, or when operation from an extended-run backup generator is necessary. The basic technology of the online UPS is the same as in a standby or line-interactive UPS. However it typically costs much more, due to it having a much greater current AC-to-DC battery-charger/rectifier, and with the rectifier and inverter designed to run continuously with improved cooling systems. It is called a double-conversion UPS due to the rectifier directly driving the inverter, even when powered from normal AC current.

Application : Commercial,Residential

Phase : Single Phase,Three Phase

Capacity : 1 kb - 100 kb

Input Voltage : 230V

Output Voltage : 230V / 415V

Power : 6 kVA

We can provide number of vertical sections of motor control centers in different amps with mains and feeder compartments. We provide controllers with manual or automatic means of starting or stopping the motors, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque and protecting against overloads or faults. We can make motor controllers with different features and complexities depending on the task that the motor will be performing.Our MCC Panel are Cubical Construction made of CRCA, Sheet Steel. Sheet Steel thickness is generally 2.0/1.6mm thick but facilities for making MCC with higher thickness are also available.

Rated Frequency : 50/60 Hz

Type : Semi-Automatic,Automatic

Body Material : Mild Steel

Voltage : 380V - 420V

Details Feeder Pillars Manufactured by us are Designed for Outdoor applications. The most major application is for Outdoor Lighting & Power Distribution in Residential Colonies. Our feeder Pillars are designed to protect the Electrical Equipments fitted inside from Dust & Rain water. Feeder Pillars are provided with rain canopy. Generally our feeder pillars are fabricated with CRCA sheet steel of 2mm/3mm thickness. Feeder Pillars in Aluminum, Stainless Steels & FRP enclosure are also manufactured for specific requirements.

Application : Industry

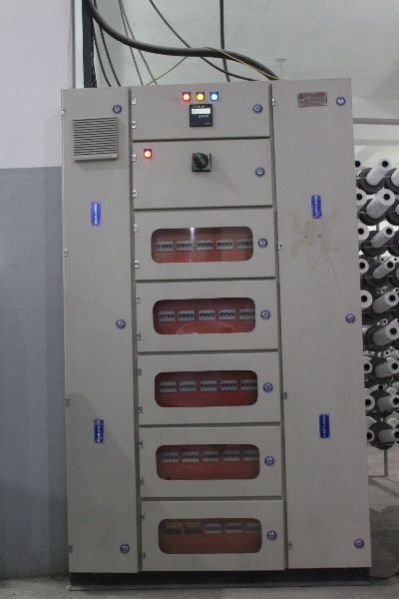

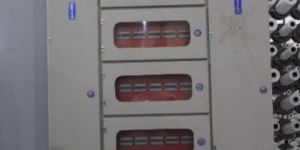

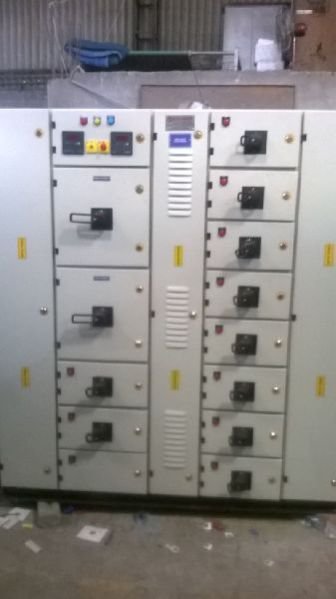

We offers a wide range  of Power distribution board (DB) that are precision designed for the Distribution of Power for different sections of Industry, Commercial & Residential Buildings etc. These Distribution Boards are provided with different protective switchgears which can disconnect the Electrical Power during various types of faults.

Phase : Three Phase

IP Rating : IP40

Material : Galvanized iron (gl)

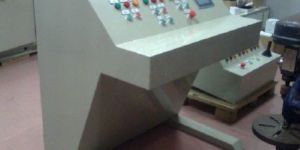

Details We bring to our client a wide range of Control Desk. Generally used in Industries for Remote Operation and Monitoring the status of various feeders of  the Electrical Panels i.e. PCC/MCC Panels. Control Desk are provided with the Mimic Diagram and Indicationas per the system. Control Desk are designed and manufactured in such a way that it can easily operate and monitor by the operator.

Phase : Three Phase

Voltage : 415 V

Application : Industrial

We offer highly efficient HT/LT Bus Duct and rising mains. This is offered with both indoor and outdoor construction with IP42/55 degree of protection. The type of bus duct is offered in aluminum and copper based and manufactured as per the International Standards. The device is - 8623-2/1993 for low voltage up to 1kv busbar trunk systems and IS- 8084-1992. The metal enclosed bus systems are based on design parameters and service conditions as per the application of bus ducts which follows:Non-segregated/segregated /isolated phase, cross over chamber, vertical /horizontal.Bus-duct calculation for Designing Carrying conductor ,Heating effects, Thermal effects ,electro dynamic Force, Voltage dropSkin & proximity effects in the terms of bus bar reactance, etc.Low volt product & medium voltage products having insulator support capacity should be 2.5kv & 11kv respectively with high tensile fastener for bus bar joints & copper flexible Up to 6300A LT Bus Duct indoor/ outdoor. 11KV Bus duct for up to 2000Amp. Compact Bus ducts/Rising Main

Application : Auto Cut Auto start

We are well known manufacturer of Automatic Mains Failure Panel which includes Protection and fault monitoring of DG Sets. AMF PANELS are designed using advance technology to make an user friendly and trouble free Generator operation. Basic Operating CycleWhen Mains supply is available, the AMF Panel will keep the load on mains, at the time of the mains supply failure, the AMF Panel senses the failure of supply and starts the Genset. Once the DG starts running & reaches the required voltage, the load is transferred to Genset supply. When mains resume, the load is transferred back to mains supply and Genset is switched of automatically.Advantages Our AMF Panel are simple and are user friendly that anyone can operate. Programming of the Panel is simple to understand by any technical person.

Application : Auto Cut Auto start

Frequency : 40-50 HZ

Power : 800kW-500MW

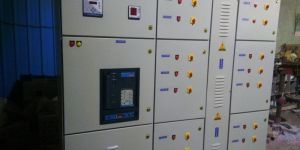

Most of the Commercial and Industrial installation have large electrical loads which are Inductive in nature, such as motors, large machines, air conditioners, drives etc. This results in a severely lagging power factor. This means loss and wastage of energy and heavy penalties by electricity boards. In case of fixed loads this can be taken care by manual switching of capacitors.However in case of rapidly varying and scattered loads it becomes difficult to maintain Low Power Factor by manually switching on/off the capacitors in proportion to variation of load within an installation. This drawback is overcome by using an APFC panel (Automatic Power Factor Correction Panel ) which not only maintains a high power factor but also eliminates the need for constant  manual  intervention.Advantages Economical with faster payback periods. Ability to maintain a constant high power factor. Eliminates low power factor penalties levied by Electricity Boards. Reduces the KVA demand charges. Improve efficiency of the system by reducing losses. Prevents leading power factor in the installation during low load conditions.

Voltage : 220 V

Voltage : 440V

electrical control panels, distribution panels , mcc panels, vfd panels , plc panels , pcc panels , main lt panels ,  outdoor feeder pillars.

We are offering MCC PANELS

Type : ALL TYPES OF ELECTRICAL CONTROL PANELS

Brand Name : NUTECH ENGINEERS

Color : SIEMENS GREY

Classification : IP54,44,56

Protection Level : 70KA

Certification : ISO & CPRI

Item : ELECTRICAL CONTROL PANELS
