Oil Cooled Distribution Transformer Dealers in Dhandari Kalan, Ludhiana

• Certification: ISI certified
• Automatic Grade: Automatic
• Applicable Standards: IS, IEC, ANSI, JIS, BS, DIN
• Testing Standards: Tested as per IS: 2026, BS - 171, IEC - 76 & IEC - 726
• Vector Group: Transformers will be connected as per vector group reference Dyn 11
• Warranty: 1 year

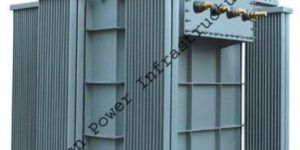

Distribution & Power Transformer: Upto 150 kVA Single Phase both 11 & 33 kV class Upto 40 MVA, 66 kV class Upto 20 MVA OLTC 33 kV class   Transformer Options: Cooling tubes, radiators and corrugated tanks Pole mounted or ground mounted Free breathing or hermetically sealed CSP and Non CSP Winding-copper/aluminum (foil/rectangular wire/round wire) Fittings and accessories, cable Terminations: As required   Terminal Arrangement: H. V - bare bushings or cable box L. V. - bare bushings cable box Disconnecting chambers can also be provided on both HV and LV cable boxes   Temperature Rise: Transformers are designed for a maximum temperature rise 40/50ºC of oil and winding Lower temperature rise can be offered on request   Standard Fittings: Rating and diagram plate Earthing terminals - 2 nos Lifting lugs Oil level indicator (plain) Drain-cum bottom filter valve with plug Oil filling hole with plug on conservator Oil conservator with drain plug Air release plug Silica gel air breather Bi-directional flat rollers HV terminals-outdoor bushings LV terminals-outdoor bushings Radiators Filter valve with plug Thermometer pocket Oil temperature indicator Externally operated off circuit tap changing switch Explosion vent Sampling value (for 2000 Kva & above transformers only)   Accessories on Request: LV and HV cable boxes Winding temperature indicator (WTI) Buchholz relay Magnetic oil level gauge Marshalling box Disconnecting chamber Oil temperature indicator with electrical contacts (OTI) Pressure relief valve

• Brand Name: Muskaan's
• Phase: 3
• Country of Origin: Ludhiana
• Model Number: .

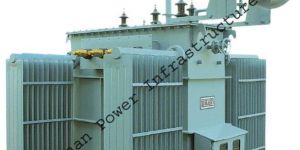

We have established our name in manufacturing Oil Filled Transformer. These High Voltage Transformers ensure smooth motor operation drawing 15-20% lesser current and maintaining 390400 volts along with the installation of servo controlled voltage stabilizer. Features: High quality Resonable pirce On time delivery Temperature Rise: Transformers are designed for a maximum temperature rise 4050ºC of oil and winding Lower temperature rise can be offered on request Standard Fittings: Rating and diagram plate Earthing terminals - 2 nos Lifting lugs Oil level indicator (plain) Drain-cum bottom filter valve with plug Oil filling hole with plug on conservator Oil conservator with drain plug Air release plug Silica gel air breather Bi-directional flat rollers HV terminals-outdoor bushings LV terminals-outdoor bushings Radiators Filter valve with plug Thermometer pocket Oil temperature indicator Externally operated off circuit tap changing switch Explosion vent Sampling value (for 2000 Kva & above transformers only) Accessories on Request: LV and HV cable boxes Winding temperature indicator (WTI) Buchholz relay Magnetic oil level gauge Marshalling box Disconnecting chamber Oil temperature indicator with electrical contacts (OTI) Pressure relief valve Specifications: Usage Power Coil Number Autotransformer

• Phase: Single Phase
• Minimum Order Quantity: 1 Unit

• Cooling Type: Oil Cooled
• Phase: Three Phase

  Muskaan Power Infrastructure Ltd. is one of the renowned organisations in the business for manufacturing, exporting and supplying a wide range of Corrugated Type Transformer. Get more info about transformers, visit our website.Get Best Price and Full Specification of Corrugated Type Transformer Manufacturers

• Power Rating: 2MVA
• Voltage Ratio: 11kV/433V
• Cooling Type: Oil Cooled
• Winding Material: Mild Steel
• Brand Name: GTB
• Frequency: 50-60Hz
• Phase: Three Phase

Oil Immersed Power Transformer, Plating Anodizing Rectifiers
