Shearing Machine Dealers in Ludhiana

• Type: Hydraulic Shearing Machine
• Certification: CE Certified, ISO 9001:2008
• Weight: 100-1000kg, 1000-2000kg, 2000-4000kg, 4000-6000kg, 6000-8000kg
• Color: Black, Brown, Grey, White
• Voltage: 220V, 440V
• Condition: New
• Rated Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Automatic Grade: Automatic, Manual, Semi Automatic
• Driven Type: Hydraulic
• Warranty: 1year
• Brand Name: Habricus

• Brand Name: UMTC Lathes
• Condition: Good
• Place of Origin: Ludhiana
• Machine Type: Shaper Machine
• After-sales Service Provided: Available
• Electric Motor: 1.5 H.P.

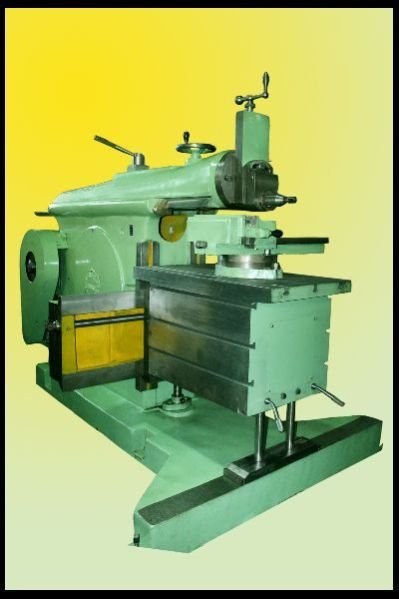

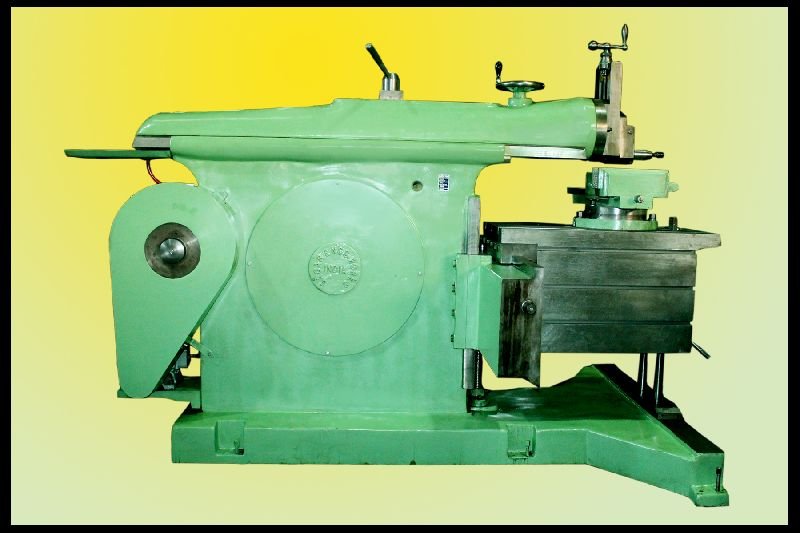

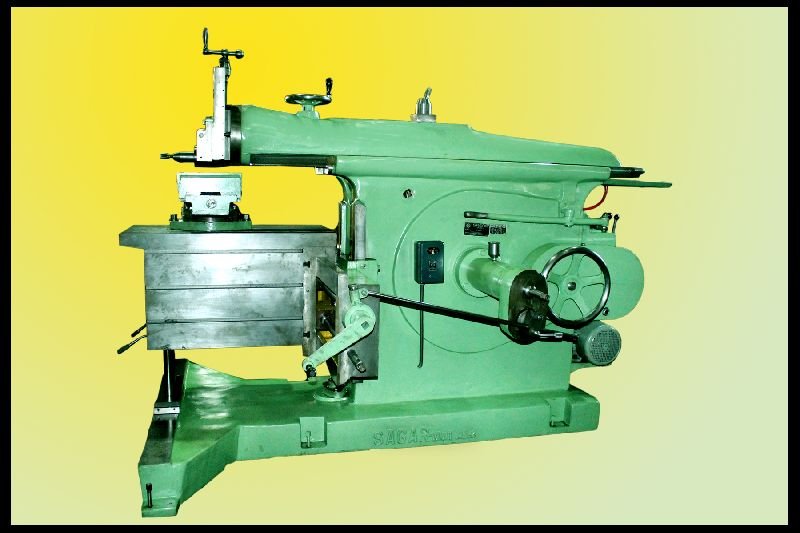

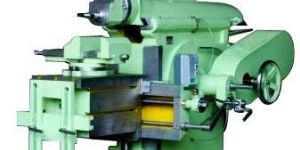

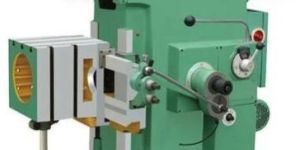

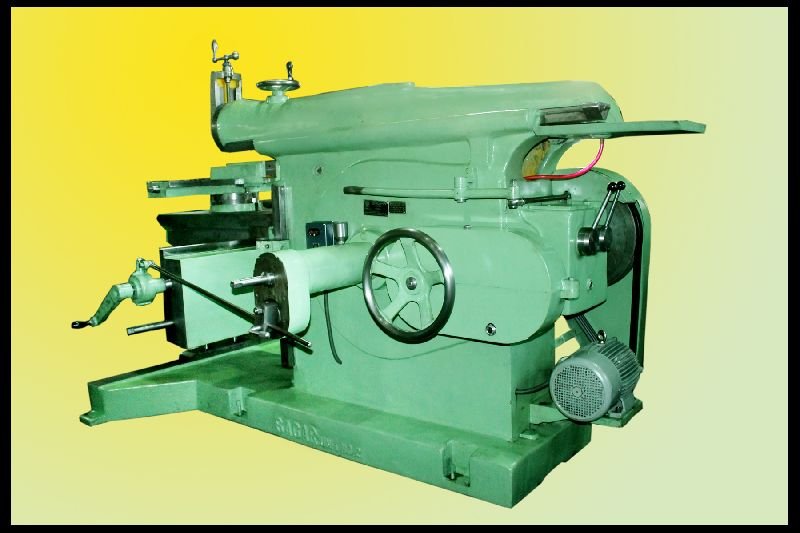

Clients can avail high performance Shaper Machine from us. Shaper Machine, available with us, is highly appreciated for demanding very low maintenance. Corrosion resistant Shaper Machine, that we provide, is in extensive demand, owing to its broad industrial applications. Clients can avail Shaper Machine from us at the leading market prices. Technical Specifications InchesmmInchesmmInchesmmInchesmm Capacity 12" 18" 24" 30" Length Of Ram Stroke 12 305 18 457 24 610 30 762 Length Of Ram 26 660 40½ 1029 50 1270 55 1699 Length Of Width Of Ram Bearing 26x7 660x178 28½x9 724x229 33x11½ 838x292 39x12 46/8 975x323 Max & Minimum Distance From Table To Ram 10x1 257x25 15x1 406x25 18x3 457x89 19x3 483x76 Table Working Surface Of Table 12x8 305x228 18x11½ 457x292 24x14 610x356 30x15 711x406 Max Table Travel Horizontal 16½ 419 18 457 24 610 30 750 Max Table Travel Vertical 9 229 13 350 15 381 16 406 Angular Movement Of Table On Either Sides 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR Tool Head Max. Vertical Travel Of Tool Slide 5 140 6 152 6 152 8 200 Maximum Swivel Of Tool Head 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR 60ºL 60ºR Length Of Main Slide Base 23"   29"   36"   41"   Length Of Width Of Base 37x18 940x457 50x17¼ 1270x433 64x23 1600x585 72x26 1800x650 Speed & Feeds Cone Pulley Belt 3 Dia Of Clutch Pulley 9¼ 235 12" 3 305 12" 4 305 14"   Range Of Ram Speeds             4 355 Stroke Per Minute 3   4   4   8,16,32,48   Dia Of Motor Pulley 2½ 30,60,90 60 2¾ 16,32,64,96 70 2¾ 12,24,48,72, 70 2¾76 Range Of Table Feed Per Stroke Of Ram 0.01 0.23 0.01 0.23 0.01 0.23 0.01 0.23 Range Of Tool Head Feed                 Drive & Electrical Equipments (Hand Feed) Electric Motor 1.5H.P. 1.5H.P. 1.5H.P. 1.5H.P. Drive Motor 1440RPM 1440RPM 1440RPM 1440RPM Main Switch Starter ( Push Button Type ) 3.5AMP 3.5AMP 5AMP 5AMP Specification Of Vice Overall Dimensions 5" 8" 12" 13¼ Length 48 1219 62 1580 78 1981 86 2150 Width 30 762 37 940 43 1092 48 1219 Height 54 1371 55 1400 63 1600 62 1550 Note : In accordance with our continues improvements we reserve the right to change the design and specifications without any notice.

• Color: Blue, Red
• Brand Name: Yuken power pack
• Brand Name: Siemens motor

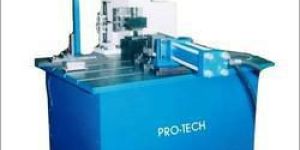

Plc controlled pipe cutting machine

• Country of Origin: India
• Type: Angle Notching Machine
• Certification: CE Certified
• Application: Metal Cutting
• Color: Blue
• Condition: New
• Power: 1-3kw
• Driven Type: Hydraulic
• Warranty: 1year
• Weight: 400-500kg
• Voltage: 220V
• Max Shear Width: upto 500 mm
• Sheet Thickness: upto 2 mm
• Cutting Material: Copper
• Automation Grade: Automatic

• Type: Gear Shaping Machines, Shaper Machine
• Certification: CE Certified, ISO 9001:2008
• Color: Green
• Voltage: 220V, 380V, 440V
• Condition: New
• Power: 6-9kw
• Product: SM-12
• Product: SM-18
• Product: SM-24
• Product: SM-26
• Product: SM-30
• Product: SM-32
• Product: SM-36
• Product: SM-42

• capacity: 50mm to 200mm.

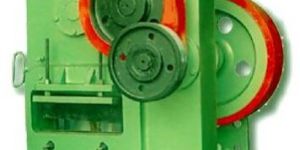

Our Billet Shearing machines ensure perfect cuts both for square ness and for cleanness of the shearing surface. “NKH” technology allows a precise adjustment way alloyed & mild steels, aluminum, brass etc. The beauty of our shearing machines are to incorporate maximum possible facilities to their users without incurring exorbitant investment. The frames of our machines are rigged & construction and high quality materials are used for their manufacturing. Due to our excellent workmanship and finish of our machines bears pleasant outlook. Features: These machines are manufactured to cut various sizes of Blooms and Slabs. The capacity of these machines varies from 50mm to 200mm. Six number of gears are provided to facilitate operations with small power. The body is made from M.S. (plates). Cutting of Stainless Steel Billet 50mm to 200mm Plate thickness ½” to 2”, width 8”

heavy duty hydraulic shearing machine

• Weight: 100-1000kg
• Voltage: 220V
• Rated Power: 1-3kw
• Automatic Grade: Automatic
• Warrenty: 1 Year
• Shapper Vice: Electric Motor Starter V Belts

• Type: Sheet Shearing Machines
• Certification: ISO 9001:2008
• Color: Grey
• Condition: New
• Automatic Grade: Automatic
• Driven Type: Elecric
• Warranty: 1year
• Country of Origin: India
• Brand Name: Basant

The company offers Sheet Shearing and Bending Machine in the market. Sheet Shearing and Bending Machine, we offer is equipped with suitable blades and other components to carry out effectual production. We offer Sheet Shearing and Bending Machine, which is competent in giving straight and figurative cutting and bending solutions. Features : Smooth functioning High efficiency Easy to handle

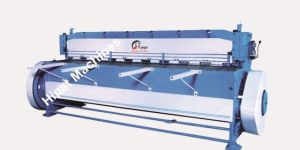

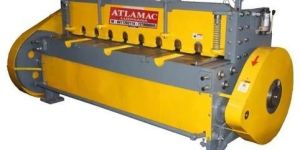

We offer mechanical under crank shearing machine.

• Automation Grade: Manual
• Length Of Bed: 710 mm
• Layout: Horizontal
• Max Shear Thickness: 22 SWG
• Width of Bed: 280 mm

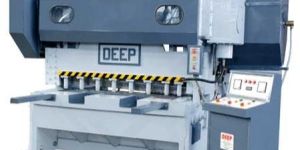

• Type: Shearing Machines
• Certification: ISO 9001:2008
• Weight: 1000-2000kg, 2000-4000kg, 4000-6000kg
• Color: Black, Brown, Grey
• Voltage: 440V
• Condition: New
• Rated Power: 3-6kw
• Automatic Grade: Automatic, Manual, Semi Automatic
• Driven Type: Elecric
• Warranty: 1year
• Country of Origin: India

• Phase: 3 Phase
• Material: Iron
• Brand Name: DEEP
• Voltage: 440 V
• Automation Grade: Semi-Automatic,Automatic
• Max Shear Thickness: 6 - 20 mm
• Max Shear Width: 500-5000 mm
• Power Source: Hydraulic,Electric
• Strokes Per Min: >12
• Surface Finishing: Powder Coated

• Voltage: 220 V
• Usage/Application: Fabric Industry
• Cutting Material: Stainless Steel
• Model Name/Number: SME473C
• Phase: Single Phase
• Fabric: Cotton,Denim,Jute
• Operation Mode: Automatic
• Frequency: 50/60 Hz
• Working width: 200 mm, 2200 mm, 2500 mm
• Max Shear Thickness(mm): 2 to 3 mm
• Warranty: 1 Year
• Max Shear Width: 0-500 mm

• Model Number: MEW - UC - 03
• Phase: Three Phase
• Motor: 5 to 30 HP
• Gauge Adjustment: 20 - 500 to 20 - 600
• Size of Blades Blade Segments: 1250x65x18 to 3040x100x28

We offer Shearing Machine.

We offer Mechanical Over Crank Shearing Machine. The over crank design offers larger capacity machines.

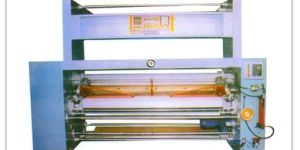

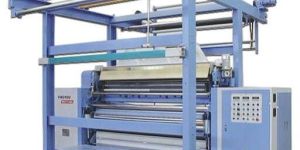

High caliber original German Shearing blades in use Fabric drive via inverter motor Mutual detector attached Automatic blade-receding at fabric heads Pneumatic blade-receding device Fluff vacuum device Static eliminating device Bottom-set retreating device Photic-measurer adjustment device   Application Brushed woven fabrics Brushed knitted fabrics Texturized woolen cloth Pile push Flannel overcoat Blanket Finishing on pile surfaces

apacity in Tons 10 Tons 20 Tons 30 Tons 50 Tons 75 Tons 100 Tons 150 Tons 200 Tons Bed Size 304 x 406 355 x 508 457 x 609 508 x 711 533 x 762 609 x 889 711 x 1168 812 x 1219 Height Bed to Ram 215 241 266 305 330 355 406 457 Punch Hole Size 28 32 35 38 44 50 57 63 Strokes per min. 70 70 65 55 55 45 40 30 Ram Adjustment 26 26 26 26 26 38 38 38 Shut Height 1524 1650 1880 2032 2160 2388 2540 2794 Stroke 57 63 76 88 109 114 127 152 Hole in Bed 102 114 127 152 178 20 228 254 Power Required 2 HP 2 HP 3 HP 5 HP 5 HP 7.5 HP 10 HP 15 HP R.P.M. 1440 1440 1440 1440 1440 1440 1440 1440 Pully Size 6" 6" 6" 6" 6" 7" 7" 8

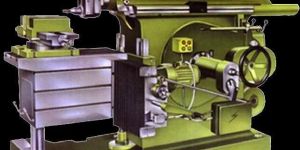

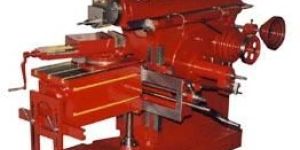

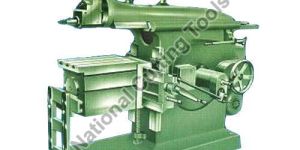

We provide high performing Shaping Machines that are procured from leading manufacturing units who guarantee their quality and high operation. Fabricated using wear resistant spares and premium quality materials the Shaping Machines offered by us exhibit anti corrosive and anti abrasive properties. Attributes : Fabricated using wear resistant spares Anti corrosive and anti abrasive in nature High performance Long working life Precise operations Widely Used In Places Like : Ordinance Factories Educational Training Institutes Polytechnic Colleges Sugar Factories Optional Accessories : Electric Motor Starter V-Belts

• Cutting Speed of Ram Per Miniute: 12 24 48 72
• Ram Adjustment: No
• Stroke: 24"
• Video Link: N/A
• Particulars: 24"
• H.P Required: 2 HP

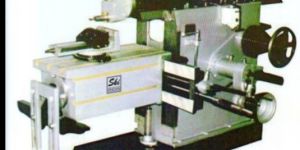

Shaper Machine 24" Stroke   Features Duly Seasoned Alloyed High-duty Castings   Option Accessories Motor, Starter , Milling Vice , Wooden Packing

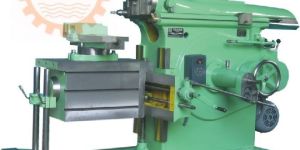

We provide high performing Shaping Machines that are procured from leading manufacturing units who guarantee their quality and high operation. Fabricated using wear resistant spares and premium quality materials the Shaping Machines offered by us exhibit anti corrosive and anti abrasive properties. Attributes : Fabricated using wear resistant sparesAnti corrosive and anti abrasive in natureHigh performanceLong working lifePrecise operations Widely Used In Places Like : Ordinance FactoriesEducational Training InstitutesPolytechnic CollegesSugar Factories Optional Accessories : Electric MotorStarterV-Belts

The shearing machine is used to shear out the lengths of plate or different sizes of plate.

• Length: 600mm

Available in Undercrank & Overcank Models with Blade Length ranging from 600mm to 3000mm and capacity from 1.6mm to 10mm. Steel Fabricated body of the machines provide extra rigidity and longer life. The Shearing blades are 4-edged and made of High Chromium-High Carbon Steel material. Mechanical, Automatic Spring Loaded adjustable Brake is provided in the machine for efficient performance. Foot operated switch can be provided with the machine on demand

• Brand Name: KABIR
• Application: ITI TRAINING TOOL
• Material: STEEL
• Customization: NIL
• Shape: HORIZONTAL
• Weight: 1000
• Mould Size: 200
• Basic Load Rating: 10
• Minimum Order Quantity: 01 Piece

• Thickness: 1270x2,1525x2,2030x2,2540x2,3125x2 etc.
• Knife edge: 12,18

The machinery is constructed with a rigid steel frame with an interlocked design, created to avoid weak sections. In order to ensure proper clean cut and clearance, ram is guided throughout the length with ground guide ways. The hold down system of under crank shearing machine is loaded with springs and holds sheets to avoid slippery and bowing result in a clean square cut. The finger guard is fitted in front of hold down for the safety of the operator. The four edge, single and segmentally high carbon, chromium steel blades are suitable for cutting and longer use. The bearing parts and guide surfaces of the machine are lubricated by the centralized hand operated lubrication system. Mechanical Back Gauge gives readings of the distance between back gauge and shear through a scale in order to avoid errors and maintenance of encountered electronic equipment. The Accessories list of Mechanical Under Crank Shearing Machine includes Electrical System consisting of motor & Control Panel of Starter, Gear and wheel guard, V-Belts, Hand operated back gauge, Manual Lubrication System, T-slot front gauge, Front scale gauge, instruction Manual, Hydraulic hold-down system, Automatic lubrication system, Ball roller or Ball Transfer, Foundation bolts, and Extension squaring arm.

We are offering over crank shearing machine all over the world. The over crank shearing machine, offered by us, is made as per the international quality standards and thus it is ensured of withstanding high pressure conditions. Our over crank shearing machine is available at the market leading prices. parts of over crank shearing machine framebladesfinger guardhold down systemmechanical block gauge

We are very eminent dealer in the field of supply of mechanical shearing machine - under crank machine.
