Slotting Machines Dealers in Ludhiana

• Model  No.: PDSM-1
• Speed: Single
• Mechanical: Slide Feed
• RPM: 165
• Slot Capacity: 5″ to 12″
• Production Per Hour: 35 to 40 Pcs.
• 2 Motor: 2 H.P. 380 Volt. 960 RPM

Industrial Machinery Corporation are Scaffolding Pipe Slotting Machine Manufacturer , Exporters and supplier. These Pipe Slotting Machineare made from very high quality raw material which ensures hassle free work performance at its user end. These Pipe Slotting machine are widely finds its applications in various industrial sectors.

• Type: Head Slotting Machine
• Color: Grey
• Condition: New
• Dimension: 275
• Net weight: 850 Kg
• Length: 175

The Column consists of two parts which are adequately ribbed & securely held together to form a rigid unit. The deep throat enables a wide variety of parts to be machined. The Electric motor drives the clutch pulley and the gears fitted in the column. From there the power is transmitted to the ram by the means of link mechanism. The ram-movement is started by engaging clutch. The link mechanism allows for an accelerated ram-movement in return stroke Ram speed changes are effected by sliding gears controlled by shaft through gear box.

• Type: Slotting Machines
• Certification: CE Certified, ISO 9001:2008
• Weight: 100-1000kg, 1000-2000kg, 2000-4000kg, 4000-6000kg
• Color: Black, Brown, Grey, White
• Voltage: 110V, 220V, 380V, 440V
• Condition: New
• Rated Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Automatic Grade: Automatic
• Driven Type: Electric
• Brand Name: Habricus
• Raw Material: Steel

• quantity: 1
• Throat Depth: 14"

Machine is made with Graded casting which is properly seasoned for At least 6 to 8 Months. Highly accurate as Per IS Standards (IS: 2308: 1989). Quick Return Movement to save idle time. Rocker arm Mechanism Operation. All Gears are made of EN series Steel, Properly cut on Hobbing and Gear shaper Machines. Gears in the machine are properly Hardened and lapped. Machine and Gear Box is filled with C-oil.

• Type: Slotting Machines
• Certification: ISO 9001:2008
• Weight: 100-1000kg
• Color: Black, Brown, Grey, White
• Voltage: 110V, 220V, 380V
• Condition: New, Used
• Rated Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw, 9-12kw
• Automatic Grade: Automatic, Fully Automatic
• Driven Type: Electric, Hydraulic
• Warrenty: 1year, 2years

• Rated Power: 9-12kw
• Automatic Grade: Manual
• Voltage: 220V
• Feature: Rocker Arm Machanism Operated, Quite robust and rigid construction to avoid vibrations, Gears in gear box properly hardened and Lapped

We are a prominent Manufacturer and Exporter of Slotting Machine that is designed to be used for slotting operations. Our range of Slotting Machines is known for its robust construction and longer working life among the clients. We offer Slotting Machine in different specifications to meet the demands of the clients. Features Rugged constructionPrecision designLow maintenance costDrum clutch for stopping ram at any poising Equipped With One shot lubricationSensor switchesIndexing unitDust & Chip protection for slidesTool boxTest chart and high endurance certificateInstruction and maintenance manual Technical Specifications MODEL SLA-150  SLA-250  SLA-300 SLA-450  Length of stroke Max.  175  250  325 475 Working Stroke   150  225   300  450 Ram adjustment   125  200  250   325   Length of Ram Bearing    500  550  625 875 Throat Adjustment    300 350 500 675 Max. Accommodate Diameter when Machine At center  500  750 850 1500 Height between Table & Head    300   375 450 700 Longitudinal Feed Manual   200 325 450 625 Longitudinal Feed Auto 175 300 425 575 Cross Feed Manual 225 250  400 550 Cross Feed Auto 200 225 375  500 Dimension of Table   275  375  600 900 No. & Range of Speeds   2 (30-50) 3 (30-60-90) 3 (25-40-65) 6 (10-15-35-50-70) Motor (960 RPM) 1.5 HP 2 HP 3 HP 5 HP Net Weight    850 Kg. 1200 Kg. 1750 Kg. 4000Kg. Gross Weight   975 Kg. 1400 Kg. 1925 Kg.  4500Kg.

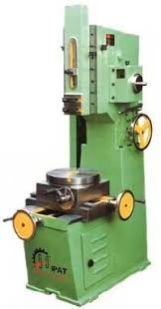

We are renowned as one amidst the prime Precision Slotting Machine Manufacturers in India. The Slotting Machine, offered by us, is widely demanded in the market due to the unmatched quality and unsurpassable performance. The use of optimum quality raw materials in the manufacturing of the Heavy Duty Slotting Machines ensures high durability, tensile strength and resistivity to adverse conditions. Additionally, the array also includes Vertical Slotting Machines to meet the specific requirements of the applications.

• Material: Mild Steel
• Voltage: 240 V
• Power Source: Electric
• Phase: Single Phase
• Frequency: 50 Hz
• Size: 280 x 335 mm

The offered machine is manufactured with the aid of quality approved components and contemporary technology under the supervision of our qualified professionals.

Standard EquipmentsElectric Motors Complete with Panel Board & Pendant Control for all operations. One Steel Telescopic Cover, One Boring Bar, Working Spindle Support Guide for Vibration Control, Co-ordinate reading arrangement with Scales & Verniers for X. Y.Z.-Axis and Handles. Facing head, 2No. Lubricating Pumps, 5 No. limit Switches & Automatic Rapid Travel, fitted with the Machine. Revolving Centre with 6″True Chuck Three Nos. Dial Indicators duly fitted in dust proof housings with attachment & Electric Coolant Pump.Extra Equipments Milling Attachment.Taper Boring Attachment.Threading Attachment.2Axis D.R.O.

• Type: Water Slot,Manual
• Color: as per requirement
• Brand Name: Shalimar Foundry Works
• Features: Long service life , Minimum maintenance , Sturdy construction

• Weight: 850 - 4000 kg
• Material: Mild Steel
• Motor: 1.5 hp
• Dimension: 1700x850x1200 mm

• Type: Tool Room Slotter,Punch Slotter,Production Slotter

We supply high-quality slotting machines Ludhiana fabricated with superior quality raw materials. These machines render high durability and are manufacture following the specifications are given by the clients. Manufactured by the team of skilled professionals, we supply, export and trade heavy duty slotting machines in different shapes and sizes. For more ease to our clients, we make sure that the machine is made with the high-quality material, sturdy and easy to install.

With 3 Slotting Heads & One Corner Cutting Head. Two Guides Are Provided To Faciliate Easy Feeding And Correct Dimension.

• Feature: Optimum performance, Easy to install, Low maintenance
