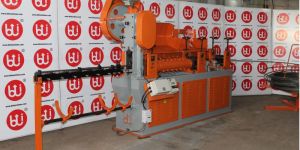

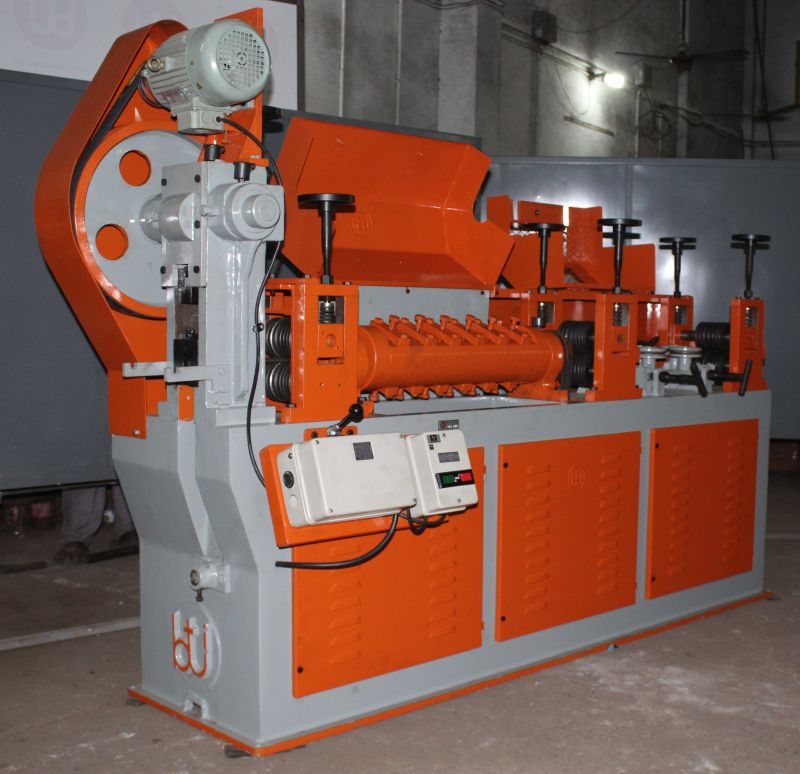

Straightening Machine Dealers in Ludhiana

• Brand Name: BTI
• Material: High Grade
• Finishing: Powder Coated
• Driven Type: Mechanical
• Color: Grey
• Condition: New
• Rated Power: 15 HP
• Pressure: Medium Pressure
• Operating Type: Automatic
• Certification: CE Certified
• Voltage: 415v/50Hz
• Packaging Type: Wooden
• Working Capacity: 100-200kg/h
• Specialities: Long Life,High Performance,Easy To Operate
• Type: Wire Straightening Machines
• Diameter: 5mm To 13mm
• Thickness: 5mm To 13mm
• Weight: 900-1200kgs
• Phase: 3
• Warranty: 1 Year
• After-Sales Service Provided: Life Time
• Country of Origin: India
• Gauge: NA
• Wire Type: MS, SS, EN8, TMT
• Corrosion Resistance: Yes
• Machine Structure: Horizontal
• Straightening Speed: 1700rpm
• Reverse Rotation: Yes
• Is It Variable Speed: No
• Roll Centre: NA
• Rotating Speed: 1700
• No Of Roll: Two Set
• Power of Motor H.P: 10 +2 total 12 HP

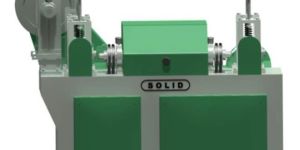

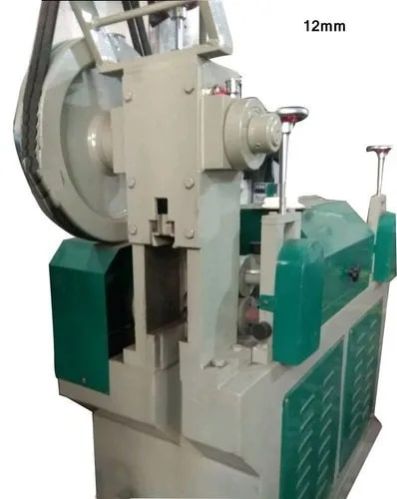

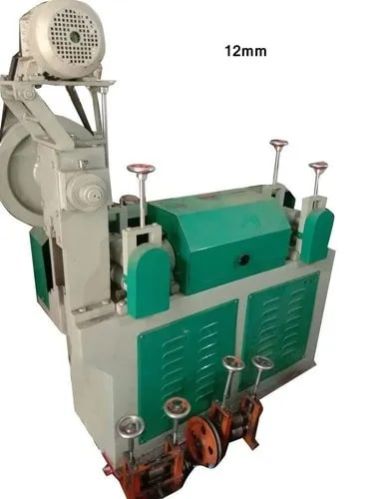

We are offering Wire Straightening Machine

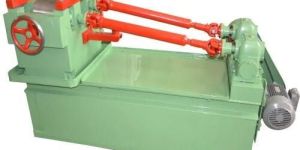

• Type: Round Bar Straightening Machine
• Condition: New
• Automatic Grade: Semi Automatic
• Driven Type: Electric

Heavy duty and super quality Round Bar Straightening Machine available in all size capacity from 03 mm to 100 mm as per customer requirements       Our machines are known for Low Maintenance, Heavy duty, Robust Construction and build quality.

Manufacturer & Exporter of Wire Straightening & Cutting Machine. Our product range also comprises of Biomass Fuel Briquetting Plant, Paper Corrugating Machine and Corrugated Cardboard & Box Making Unit. We take pride in introducing ourselves as one of the leading manufacturers and exporters of a wide range of Wire Straightening and Cutting Machines designed by highly trained engineers. The Wire Straightening and Cutting Machine operates by drawing the wire from the coil through the fast rotating spinner, passes through a cutting off tool into the scaling bar where it strikes at the adjusted length and this stroke makes the cutting mechanism complete. The straightening function is performed by 5 straightening blocks which are adjustable and contains a simple to use straightening bush lets the user to make replacement to his own work.

We are famous for manufacturing good quality wire straightening and cutting machine. Our robustly built machines are not only long lasting but are also help in enhancing productivity besides being energy efficient.

We offer the complete line of Wire Straightening Machine & Wire Cutting Machines that are used to cut various types of wires. Our Wire Straightening System can be easily availed at the most nominal prices. Used in varied industries, the Wire Straightening System manufactured by us is widely recommended by our customers all over the country.

• Diameter: 0.5-1 mm
• Gauge: 18 SWG
• Brand Name: GR

• Condition: New
• Packaging Size: Standard

• Voltage: 220v-380v
• Brand Name: Manish
• Material: Mild Steel
• Phase: Single Phase
• Motor Power(HP): 2 HP
• Frequency: 50 Hz

• Brand Name: NIMT
• Automatic Grade: Semi Automatic
• Application: Straightening of drawn bars
• Material: Mild Steel
• Design: Standard

• Automatic Grade: Automatic
• Max Force or Load: 30-60 ton
• Control Type: CNC

• Weight: 690 Kg. Approx.
• Motor: Single / Three Phase
• Dimessions: 1300 x 600 x 1250
• Rim Size: 12

RS 06+ Universal Rim Straightener (For All Vechicles)

Thickness of Wire 5mm to 13mm length of wire:25mm to 3000mm Feeding Capacity per minute: 60 feet Power of Motor:15 HP 1440 RPM & 3 HP 1440 RPM 5.Approx Weight: 1200 KG Floor Space Required: 82x22

• Brand Name: Samrat
• Material: Steel
• Max Inlet Wire Diameter: 0-0.5 mm, 0.5-1 mm, 1-1.5 mm

• Finishing: Paint Coated
• Voltage: 420 V
• Automation Grade: Fully Automatic
• Features: Rust Proof
• Frequency: 50 Hz

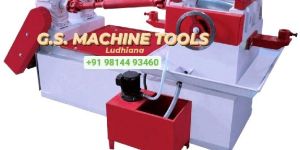

We are offering round bar straightening machine. is used for make bar straight and polished for industrial used. we make heavy duty straightening machine in sizes 1" to 4" sizes with complete gears boxes.

• Country of Origin: India
• Type: Wire Straightening Machines
• Certification: ISO 9001:2008
• Condition: New
• Brand: IMC

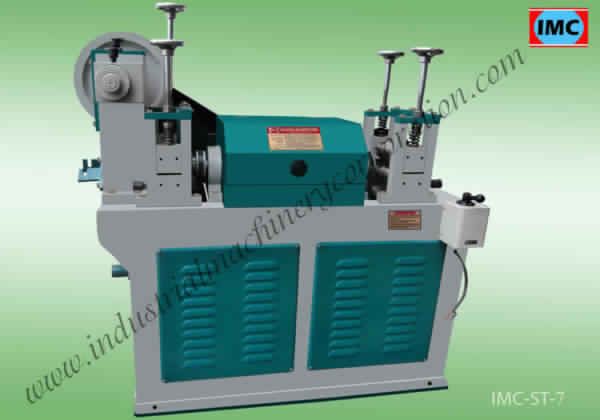

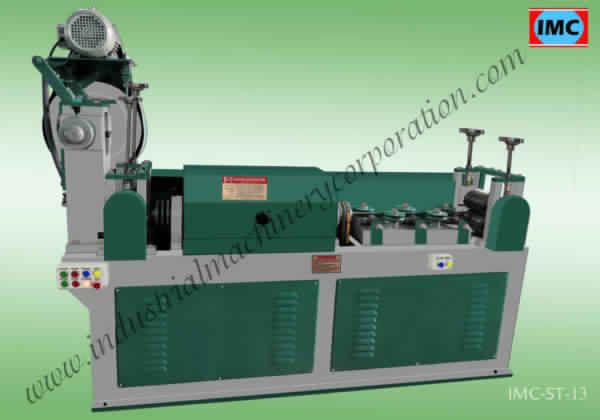

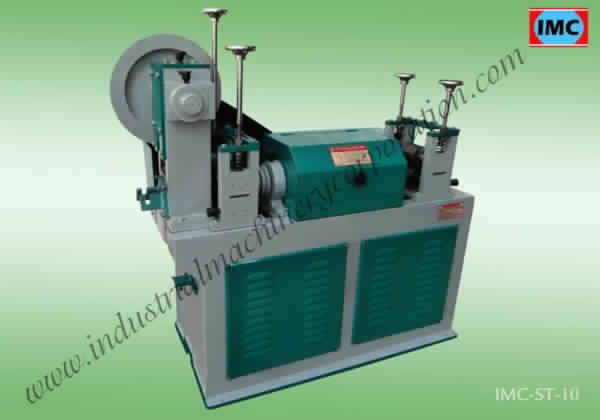

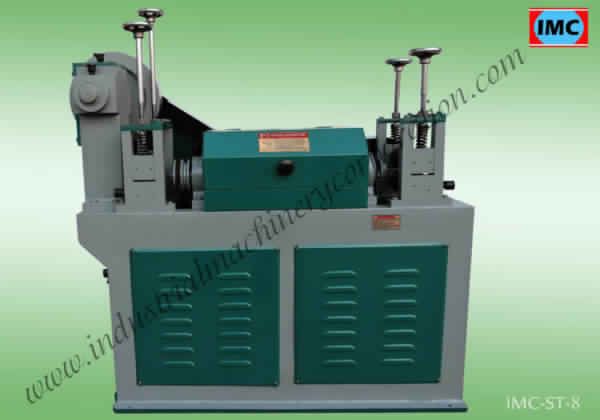

Specifications : IMC-ST-7 IMC-ST-8 IMC-ST-10 IMC-ST-12 IMC-ST-13 In Thickness of wire 2 to 7mm 3 to 8mm 4 to 10mm 4 to 12mm 3 to 13mm In Length of wire to be cut automatically As per Requirement As per Requirement As per Requirement As per Requirement As per Requirement Feeding capacity per min. 70' feet 70' feet 70' feet 60' feet 60' feet Power of motor H.P. 3 H.P. 5 H.P. 5 H.P. 10 H.P. 10 H.P. Required R.P.M. 1440 1440 1440 1440 1440 Approx. Weight in Kg. 410 460 550 1000 1200 Floor space required 42"x18" 48"x20" 52"x20" 60"x22" 82"x22"   Specifications : IMC-ST-14 IMC-ST-15 IMC-ST-16 IMC-ST-20 IMC-ST-25 In Thickness of wire 5 to 14mm 6 to 15mm 8 to 16mm 10 to 20mm 15 to 25mm In Length of wire to be cut automatically As per Requirement As per Requirement As per Requirement As per Requirement As per Requirement Feeding capacity per min. 60' feet 60' feet 60' feet 60' feet 40' feet Power of motor H.P. 10 H.P. 15 H.P. 15 H.P. 25 H.P. 30 H.P. Required R.P.M. 1440 1440 1440 1440 1440 Approx. Weight in Kg. 1300 1500 2500 3000 3500 Floor space required 91"x22" 105"x24" 125"x24" 150"x27" 180"x36"

• Surface Finishing: Polished
• Pattern: Plain
• Material: Metal
• Color: Silver
• Durability: Long Life
• Resistivity: Rust Resistant

Located in, Punjab, India, the company has made its mark as an eminent Manufacturer, Exporter & Supplier of Freewheel Opener & Rim Straightened. Freewheel Opener & Rim Straightened is made from the quality-approved material under the visionary guidance of industry experts. Over the years, we have gained immense maturity of handling bulk orders for Freewheel Opener & Rim Straightened. Besides, buyers can approach us for acquiring Freewheel Opener & Rim Straightened in different specifications, at feasible prices.
