SUPER THREADING INDIA PVT.LTD. Focal Point, Ludhiana, Punjab

We are the main supplier of this product.

We are Manufacturers the chaser suit for Lanco, landies, Landmatic, Landex, kandai & Gents, heap Die Head, Wagner, Redilmatic Die head and Also Manufacturer as per customer's requirement as per drawns or sample. Principle Advantages of Tangetial Chasers : Thses are lomg life permanent throat, ability to work, close to a shoulder throughout the life of the chasers and easily altered cutting angle to suit different materials. Tangential to suit different materials. Tangential chasers have a self guiding action, execpt when ground across the entire width of the die or when used with lead screw feed. Regrinding : When dull these chasers are reground only in the cutting edge and never on the throat. The edge is completely renewed at each regrinding so the same results can be obtained from reground. Diameter Threading : One set of chasers can be used to thread different diameter of the same pitch, provided th helix angle of the thread being cut and that of the chasers-holder do not vary more than half a degree above or below for standard thread forms. For accurate work the variation in the lead angle should not be overlooked. Left Hand Threading : The same Chasers can be used for left-hand and Right-hand threads. For left-hand threads the chasers are ground on the end oppsite to that for right hand thread. Left hand chaser holders are required for left hand work and the chaser must be inserted in numerical order, but anticlockwise when facing the diehead .The Machine must be reversed for the lefthand work. Marking on chaser : Each Phoenix Tools tengential chasers is marked. The diameter is not usually marked because the same chaser may be used for the threading different diameter. Type to suit Various materials : This is determined by the cutting edge, known as the Rake Angle, which varies according to the nature of the material to be threaded, its machinability, the thread to be cut and the method of feeding the work into the diehead. The following are given as a guide, but Rake angles should be finally determined by the experiments. Throats : Phoenix Tools Tangential chasers are supplied with one of five standard throats that are 1) 45 (no throat), 2) 30 throat, 3) Standard short throat 20, 4) Long throat15, 5) Extra Long Throat 12,

RAW MATERIAL : Phoenix Tool Bits are made from finest grades of imported steel. These steel are further tested in our well equipped laboratory for grain size, chemical composition other variables and defects before further processing. This includes a whole battery of tests, from spectroscopic examination for chemical composition to microscopic tests for carbide distribution . It is made sure that raw materials used meet with our requirements. PRECISE HEAT TREATMENT : Heat Treatment is what transforms a soft, pliable piece of steel into hard, tough and wear resistant Tool Bit . Hence other things remaining same it is the Heat Treatment that makes a Tool-Bit very much different from other Tool-Bit.This is the factor where there is no chance for compromise on quality. We have therefore opted for furnace manufactured under German licence to ensure precise Automatic temperature control and of course very close process control. Even then each batch is carefully tested for microstructure and each tool for hardness in well equipped laboratory and quality control department . After well controlled further processing what we have is Phoenix tool-bit to give you the best in every desired quality. DESIRABLE PROPERTIES OF GOOD TOOL BITS : HOT HARDNESS : A tool fails or performs poor at high speed of cutting if it has low hot hardness because high speed involves high temperature at the cutting edge which tends to soften the edge. WEAR RESISTANCE : A tool may have same hardness or even lower but can stand the wear during cutting better just as valconised rubber compared to wood. TOUGHNESS : This is most desirous property for any type of tool as capacity of tool to withstand vibrations. and shock loads depends on its toughness. This may also be called "Lack of Brittleness... This allows tool to slightly "bend" rather than "break" under shock or heavy load. PHOENIX TOOL BIT INCORPORATES ALL THE ABOVE IN APPROPRIATE DEGREES.

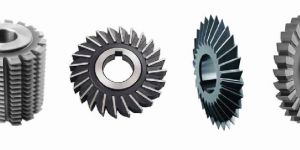

We are manufacturing High Steel Milling Cutter i.e. Side & Face Cutters, Slotting Cutter, Cylindrical Cutters, Helical Cylindrical Cutters, Single Angle Cutter, Convex/ Concave Cutters, Shell End Mills Cutters, (Straight and Taper Shank) Slot Drill, Wood Ruff Cutter, etc. We also manufacture Tools as per customer requirement or as per the drawing. We are manufacturing Thread Roll from D-2 material in Two Piece set and Three Pcs set in course and fine pitch, in diameter 25 mm to 225 mm, width 15 mm to 150 mm any in Bore.

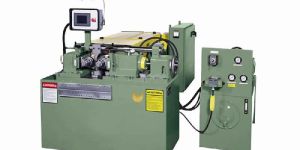

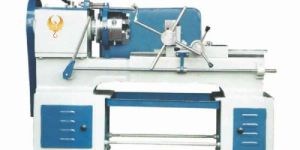

Phoenix Tools has been a intergral part of the indian threading tool industry of a decade. Established in 1987 to Manufacturer Portable Threading Machine, Hydraulic Hydraulic Thread Rolling Machines & thread rolls, lanco type die head, tangential chasers, tap, milling, cutters, tool bits, pipe and pipe sockets. Phoenix Tools has thus truly for itself the name of Phoenix Tools. All our products are Manufacturerd with the utmost precision from high quality steel imported from Japan and west Europe. Our product range includes die head, head treated die head, bolt and Portable Threading Machines, end facing machines, chaser Grinder Machine. Phoenix Tools has always endeavored to acquire a close insight into the requirement of its customers. Our quality assrance cell and R & D wing are always at their foot to serve swiftly while making product development a continuous process. Phoenix Tools never hesitates to do that extra mile to make sure that its products line upto their promises. Growing from strength the Phoenix Toolsimage has reached the zenith of status backed by dynamic and dedicated team of skilled employees and expert engineers, Phoenix Tools is using the advanced international techniques working on its motto of "Quality by choice not by chance"

Marking on dies : Each die is marked. There is no gauge number for this type of die because only the throat is reground face remains intact on these straight-cut type of dies. Throats : Phoenix Tools dies are supplied for these die heads with four standard throat angles 15°, 20°, 33° and 45° and their Z cations are. The longer the throat the better the distribution of chips. This means easier cutting, better finish on the and longer die life. On Acme, Worm, Modified Square and similar thread forms, a tow thread throat is approximately 15° a one -thread throat approximately 33°. As the cutting is all done by the throat and first full tooth it is important that the throat is right for the work. FITTING the Die into the Diehead : Geometric die heads have the die slots numbered 1,2,3, or 4 and the dies are marked in similar sequence. It is important that each die is inserted in the slot with the same number. For die heads which have slots which are not numbered, the dies should be fitted into the die head in numerical order, in a clockwise direction looking at the front of the die head but it does not matter which slot of the die head is taken to start. This applies whether the dies are for right hand or left hand threading. Adjusting Dies to Size : If a sample screw is available adjust the dies to this part . If not, use as a setting gauge a piece of bar stock turned to the minor (root) diameter of the thread to be cut. Care should be taken not to force the chasers into the setting gauge.
