Switchgear Panels Dealers in Ludhiana

• Brand Name: Celec
• Model Number: E-25
• Place of Origin: Ludhiana, Punjab

25 kvar – 440v ac 50 hz – power factor correctioncontroller unit – e-25 (industrial three phase) – india specifications order code e-25 applicable max load 25 – 40 kw power rating 25 kvar rated voltage 440v ac 50 hz phase type tpn 1 ct balanced full load current 34 amp. No. Of channels 5 channel kvar 2, 3, 5, 5, 10 accuracy 2 kvar size 20â€Â³ x 20â€Â³ ( 8â€Â³ depth ) gross weight (approx.) 35 kg

• Material: Metal
• Color: White
• Surface Treatment: Powder Coating
• Connection Type: 4 Way, 6way, 8way
• Application: Industries, Power House
• Feature: Dust Proof, Excellent Reliabiale, Fire Resistant, High Mechanical Strength, Light Weight, Perfect Shape, Shock Proof

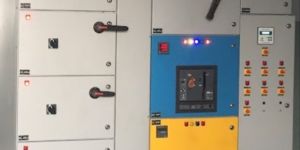

• Type: Mcc Panel
• Frequency: 50Hz, 60Hz
• Phase: Single Phase, Tripple Phase
• Country of Origin: India

• Voltage: 110V
• Application: Industrial
• Material: Mild Steel
• Power: 9-12kw
• Power Source: Battery, Solar
• Phase: Double Phase
• Autoamatic Grade: Fully Automatic
• Warrenty: 1 Year

Transformer & associated equipments connected in the network is normally a complex and delicate systems. The protection of system & people working around it, is reliable opertaion to meet the expectations of users is extremely important. Here comes the role of Transformer Control & Relay Panels. Complete designing CONCEPT to COMMISSIONING is undertaken, keeping in view the simplicity & ease of operation, high reliability & timely performance. In the early stages of Project, the requirments are known only in general sense. NUCON undertakes such development & designing, supply & commissionings to meet voltage ranges upto 132 KV class. We also undertake to supply Control & Relay Panels for line Feeders, Transformers, Bus Couplers Transfer Breakers of varius system voltages. NUCON has supplied large number of Control & Relay Panels to clients spread over number of countries in varius sector. The equipment has been supplied both for green fields & refurbished projects.  Protection & Control Design We begin the protection & Control Design with the preparation / development of single line diagram (SLD), indicating the Bus arrangments Major equipment to be used General information regarding metering /SCADA relay interconnections & needed communications. Customer Protection & Control Philosophy NUCON further develops the SLD baseed on performance analysis / risk factory and IEC guidlines. The final package / design offered brings out clear and accurate customer's requirments into a visible shape.

APFC Panels You must connect elcbs, earth connections, fuse switchgear, all other protective methods must be implemented, wherever required. Features: 1. User friendly 2. Smooth start/stop function 3. Load fluctuation protection APFC Parameters: 1. Current-sensing based APFC 2. Power factor sensing based 3. KVAR sensing based APFC Structural Design: 1. Cabinet of sheet metal duly powder coated 2. Capacitor bank bus bar 3. Ammeter selector switch 4. Capacitor bank CTs 5. Power contactor 6. Ammeter for bank current 7. Automatic control relay 8. Push button & auto/manual selector set for manual mode working 9. Cooling fan

• Voltage: 240V
• Power Source: Electric
• Phase: Single
• Material: Copper
• Power: 1/1.5 HP
• Country of Origin: Made in India
• Usage/Application: Motor Control
• Brand: Nova
• Surface Treatment: Power Coating
• Starting Capacitor: 150 - 200 uF, 230 V
• Running Capacitor: 36 + 50 uF, 440 V
• Model No.: HCCB

• Rated Frequency: 50/60 Hz
• Type: Semi-Automatic,Automatic
• Body Material: Mild Steel
• Voltage: 380V - 420V
• Condition: New
• Finish: Epoxy powder coated

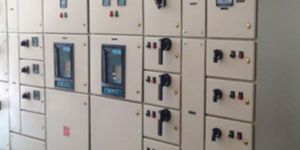

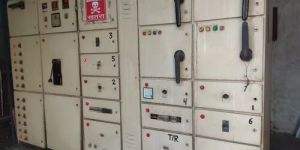

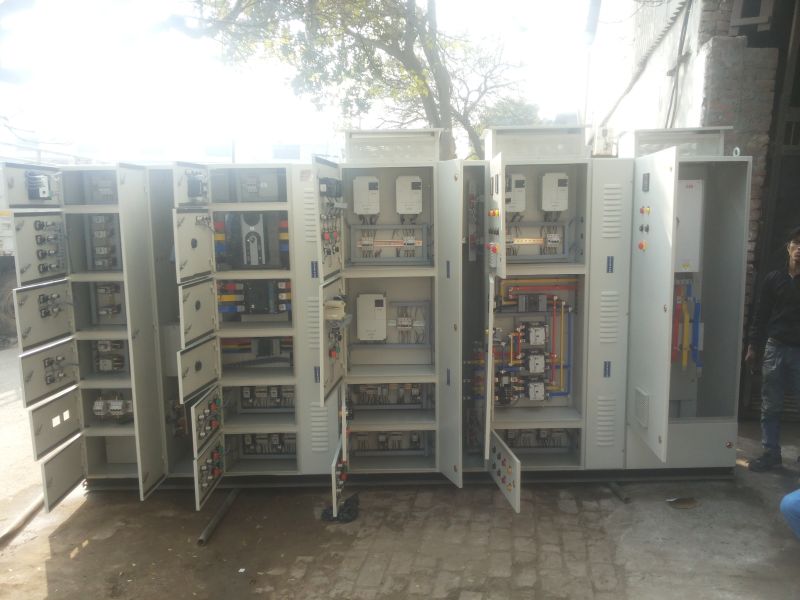

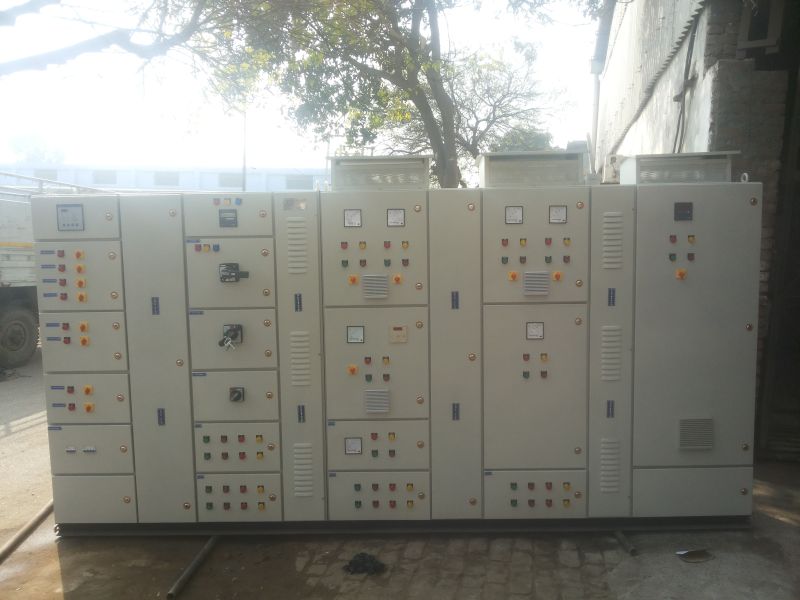

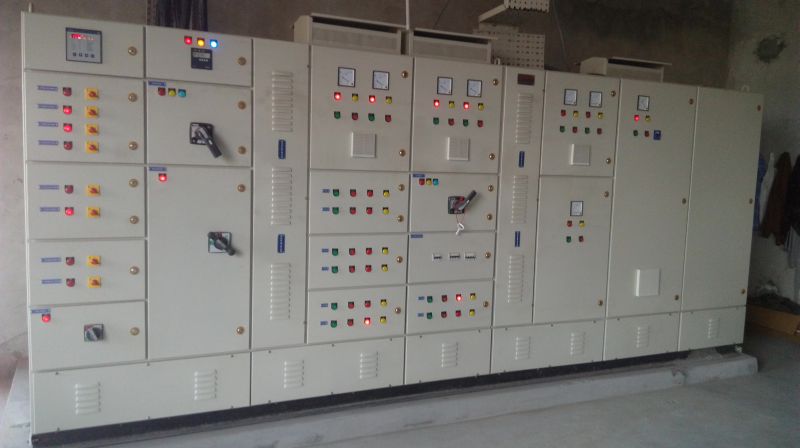

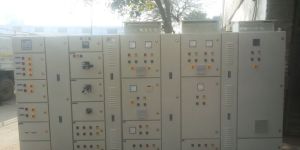

We can provide number of vertical sections of motor control centers in different amps with mains and feeder compartments. We provide controllers with manual or automatic means of starting or stopping the motors, selecting forward or reverse rotation, selecting and regulating the speed, regulating or limiting the torque and protecting against overloads or faults. We can make motor controllers with different features and complexities depending on the task that the motor will be performing.Our MCC Panel are Cubical Construction made of CRCA, Sheet Steel. Sheet Steel thickness is generally 2.0/1.6mm thick but facilities for making MCC with higher thickness are also available.

• Phase: 3 - Phase
• Application: Industry
• Voltage: 440 V
• Type: Automatic
• Frequency: 50 Hz
• Rated Reactive Power: 100 kVA

• Applications: Automatic Power factor correction equipment, turned capacitor banks, dynamic PFC
• System: 415V 3 Phase, 3 or 4 wire, 50Hz
• Rated Power: Upto 1200 KVAR
• Rated Voltage Capacitor: 230/525v
• Rated Insulation: 1000v
• Rated Service Voltage: 690v
• Ambient Temperature: 45 Deg C
• Short Time Current: 50KA for 1Sec, 105KA peak
• Degree of Protection: IP52
• Form of Sepration: Upto 2B/3B
• Type Tested for: Short Time Current withstand Temperature Rise Degree of Protection
• Bus Bar: Aluminium or Copper
• Feeder Configuration: Semi Drowout or fix type
• Cooling: Natural / Forced
• De-tuning: Conventional or 5.67%-7% or 14%
• Switching: Contactor / Thysistor
• PF Control: Both manual and Automation through APFC relay upto 20 stage

Automatic Power Factor Panel, VFD & PLC CONTROL PANEL

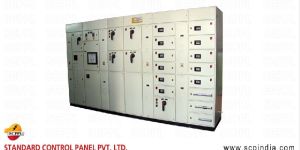

auto load sharing panel, Control Panel, Distribution Panels And Board

Mcc Panel, Power Control Panel, Automatic Power Factor Control Panel

Apfc Panels

MCC Panels, dc thyristor drive, PCC Panel, Electric Control Panel, D G Set

Mcc Panel, Amf Panel, PCC Panel, Lt Panels, Ht Panels, dg panel

Automatic Power Factor Correction Panel, Electric Control Panels
