Wire Straightening Machines Dealers in Ludhiana

• Brand Name: BTI
• Material: High Grade
• Finishing: Polished
• Driven Type: Mechanical
• Color: Grey
• Condition: New
• Rated Power: 15 HP
• Pressure: Medium Pressure
• Operating Type: Automatic
• Usage: Wire Straightening Cutting
• Certification: CE Certified
• Voltage: 415v/50Hz
• Width: NA
• Packaging Type: Wooden
• Overall Length: NA
• Size (mm): 14-15mm
• Working Capacity: 100-200kg/h
• Specialities: Rust Proof,Long Life,High Performance,Easy To Operate
• Dimension (LxWxH): NA
• Type: Wire Straightening Machines
• Diameter: 6mm To 14mm
• Thickness: 7mm To 15mm
• Weight: 1200-1400kgs
• Composition: NA
• Phase: 3
• Warranty: 1 Year
• After-Sales Service Provided: Life Time
• Country of Origin: India
• Gauge: NA
• Wire Type: MS, SS, EN8, TMT
• Corrosion Resistance: Yes
• Machine Structure: Horizontal
• Straightening Speed: 1500rpm
• Reverse Rotation: Yes
• Is It Variable Speed: No
• Roll Centre: NA
• Rotating Speed: 1500
• No Of Roll: Three Set

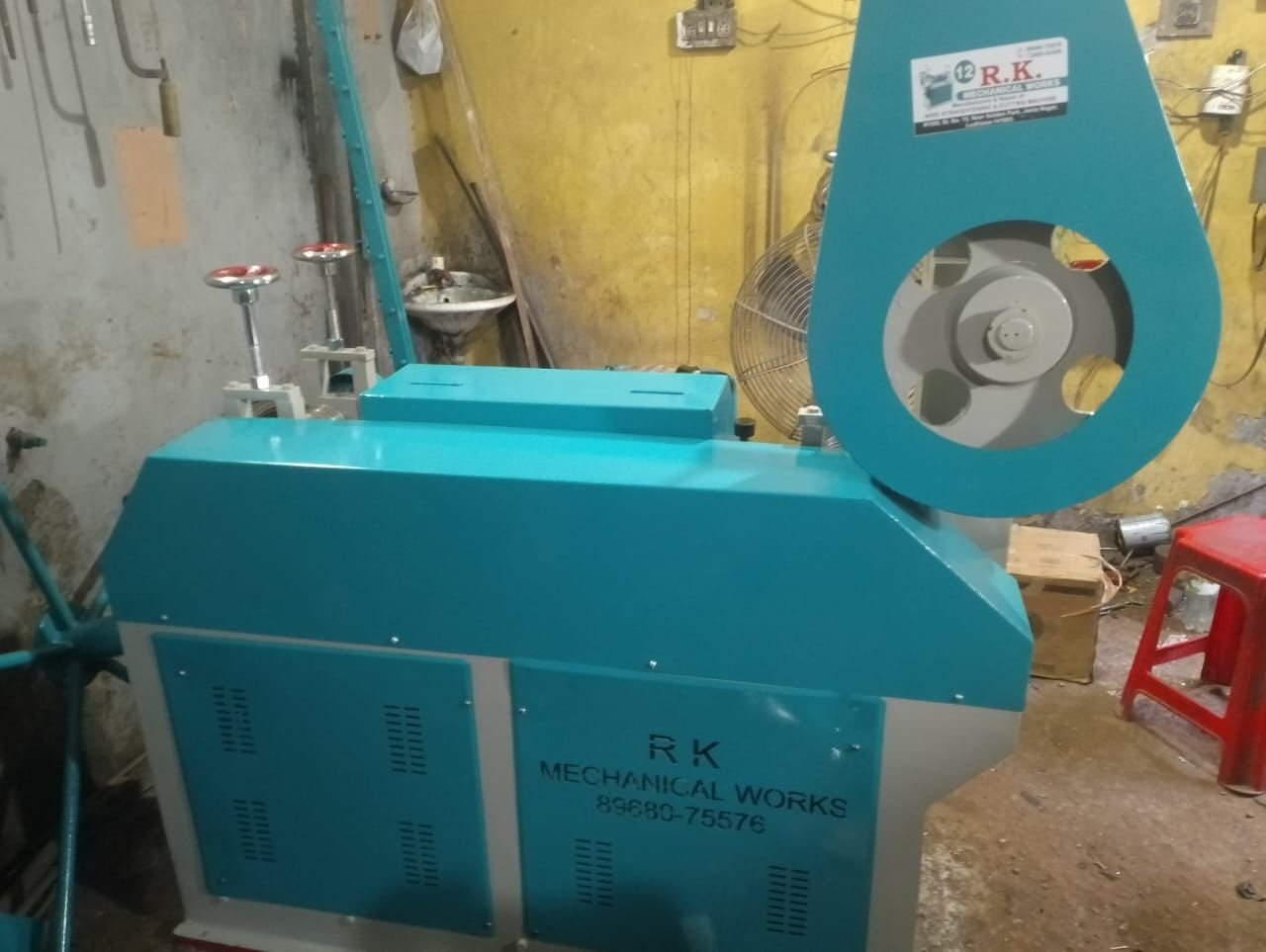

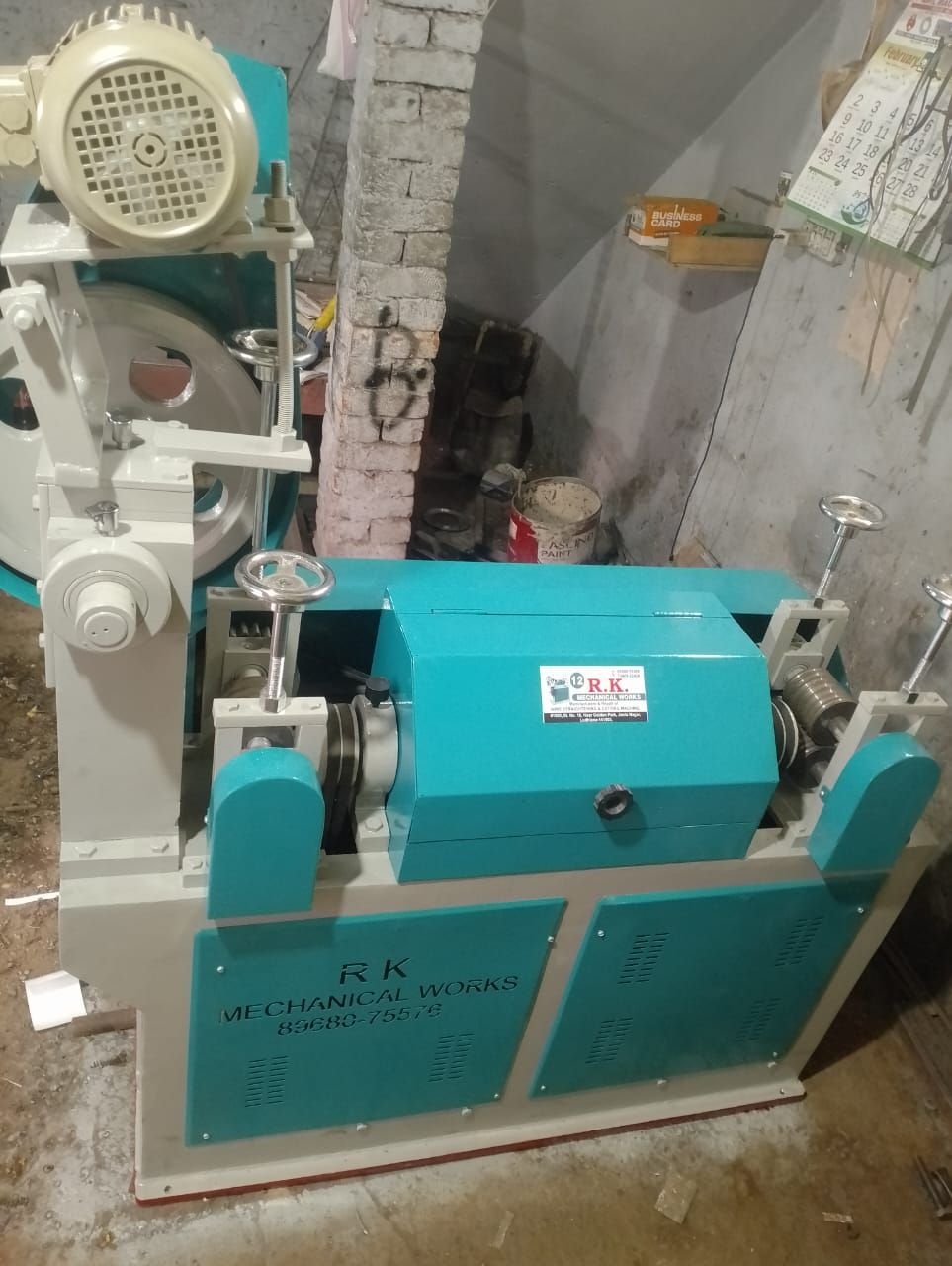

We are offering Wire Straightening Machine

We offer the complete line of Wire Straightening Machine & Wire Cutting Machines that are used to cut various types of wires. Our Wire Straightening System can be easily availed at the most nominal prices. Used in varied industries, the Wire Straightening System manufactured by us is widely recommended by our customers all over the country.

We are famous for manufacturing good quality wire straightening and cutting machine. Our robustly built machines are not only long lasting but are also help in enhancing productivity besides being energy efficient.

Thickness of Wire 5mm to 13mm length of wire:25mm to 3000mm Feeding Capacity per minute: 60 feet Power of Motor:15 HP 1440 RPM & 3 HP 1440 RPM 5.Approx Weight: 1200 KG Floor Space Required: 82x22

• Diameter: 0.5-1 mm
• Gauge: 18 SWG
• Brand Name: GR

• Brand Name: Samrat
• Material: Steel
• Max Inlet Wire Diameter: 0-0.5 mm, 0.5-1 mm, 1-1.5 mm

• Finishing: Paint Coated
• Voltage: 420 V
• Automation Grade: Fully Automatic
• Features: Rust Proof
• Frequency: 50 Hz

Manufacturer & Exporter of Wire Straightening & Cutting Machine. Our product range also comprises of Biomass Fuel Briquetting Plant, Paper Corrugating Machine and Corrugated Cardboard & Box Making Unit. We take pride in introducing ourselves as one of the leading manufacturers and exporters of a wide range of Wire Straightening and Cutting Machines designed by highly trained engineers. The Wire Straightening and Cutting Machine operates by drawing the wire from the coil through the fast rotating spinner, passes through a cutting off tool into the scaling bar where it strikes at the adjusted length and this stroke makes the cutting mechanism complete. The straightening function is performed by 5 straightening blocks which are adjustable and contains a simple to use straightening bush lets the user to make replacement to his own work.

Our robustly constructed wire straightening and Cutting Machine No. 13 is one the best performing Wire straightening machine in ludhiana and is in big demand in the market. Our products are best known for enhancing the productivity and improving quality.

• Country of Origin: India
• Type: Wire Straightening Machines
• Certification: ISO 9001:2008
• Condition: New
• Brand: IMC

Specifications : IMC-ST-7 IMC-ST-8 IMC-ST-10 IMC-ST-12 IMC-ST-13 In Thickness of wire 2 to 7mm 3 to 8mm 4 to 10mm 4 to 12mm 3 to 13mm In Length of wire to be cut automatically As per Requirement As per Requirement As per Requirement As per Requirement As per Requirement Feeding capacity per min. 70' feet 70' feet 70' feet 60' feet 60' feet Power of motor H.P. 3 H.P. 5 H.P. 5 H.P. 10 H.P. 10 H.P. Required R.P.M. 1440 1440 1440 1440 1440 Approx. Weight in Kg. 410 460 550 1000 1200 Floor space required 42"x18" 48"x20" 52"x20" 60"x22" 82"x22"   Specifications : IMC-ST-14 IMC-ST-15 IMC-ST-16 IMC-ST-20 IMC-ST-25 In Thickness of wire 5 to 14mm 6 to 15mm 8 to 16mm 10 to 20mm 15 to 25mm In Length of wire to be cut automatically As per Requirement As per Requirement As per Requirement As per Requirement As per Requirement Feeding capacity per min. 60' feet 60' feet 60' feet 60' feet 40' feet Power of motor H.P. 10 H.P. 15 H.P. 15 H.P. 25 H.P. 30 H.P. Required R.P.M. 1440 1440 1440 1440 1440 Approx. Weight in Kg. 1300 1500 2500 3000 3500 Floor space required 91"x22" 105"x24" 125"x24" 150"x27" 180"x36"
