Power Transformers Dealers in Mehsana, Mahesana

Manufacturing Standards The transformers are built in accordance with IS 11171 and IEC 726 standards. Core The core is built of cold rolled oriented grain steel with low specific losses, insulated on both sides by a thin inorganic coating (Carlyte). The sheets composing the core are cut at 45 degrees C. Uniform pressing, stiffness and solidity of the columns assure a low noise level. High Voltage Windings The high voltage windings are made of electrolytic COPPER SUPER ENAMELLED F/H CLASS conductors (wire or foil strip depending upon power and voltage requirements). It is possible to produce Aluminium windings. The windings are Casted under vacuum in class F/H epoxy resin depending on requirement. The accuracy of execution of these processes allows the obtainment of windings free from partial discharges. Low Voltage Windings The low voltage windings are made of strip or foil (copper or aluminium conductor depending upon power and voltage requirements). Class F/H insulating material is used. Rating and diagram plate Earthing terminal Skid under base or truck with bidirectional wheels Primary Terminal Secondary terminal lifting lugs Enclosure with IP 21, 23 or other protection class Temperature monitoring unit with display

• Voltages: 11,22,33,66 and 132 KV and as per client`s requirement

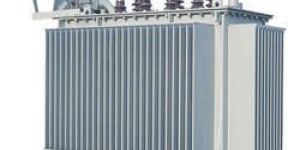

We manufacture Power transformers up to 30 MVA and 132 KV class. best available machineries and testing equipments helps us in manufacturing the best products.  Manufacturing as per IS and IEC standards  Use of best quality raw materials for better performance  ONAN/ONAF/AN/ONWF configurations  Designed for low loss and flaw less performance  Voltages : 11,22,33,66 and 132 KV and as per client`s requirement  Best suiting for Solar applications,Earthing transformers Computer aided designing with using latest softwares help us in designing accurately to standards and specific requirements.

Distribution Transformers, unitized substation, 66 kv substation in india

Our Power Transformer is on high everywhere in the market for its supreme quality. These power transformers are used to change the voltage level for power transmission and distribution. Power Supply Transformer aims to control the voltage efficiently. We are reckoned among the flourishing High Power Transformer Exporters in India because of the timely deliverance of our products at the most reasonable prices. In addition to this, these transformers have the power to withstand adverse conditions and render trouble free services.

Electrical Transformers

Oil Cooled Distribution Transformer, Transformers

corrugated wall transformer, Furnace Transformers, Isolation Transformers

Compact Substation Transformer, Industrial Transformers, Furnace Transformers
