Agricultural Thresher Dealers in Mahesana

• Type: Portable
• Brand Name: Shree Ganesh
• Threshing Capacity: 1400 - 1600Kg/hr
• Warranty: 1 Year
• Material: Mild Steel,CI,Carbon Steel,Etc
• Use: Agriculture

• Type: Groundnut Thresher
• Application: Agricultural
• Certification: Registered
• Weight: 1000-2000kg
• Color: Red
• Condition: New
• Automatic Grade: Semi Automatic
• Power Source: Tractor Operated
• Warranty: 1year

Groundnut plot thresher is specifically designed for threshing operation in smaller areas with medium duty tractors ranging from 18 HP to 35 HP. It is more economical in terms of machine cost and operational cost. Groundnut plot thresher are designed for threshing Groundnut, Gram, Pulses such as Tuver etc. Better Cleaning and threshing performance with very less fuel consumption.

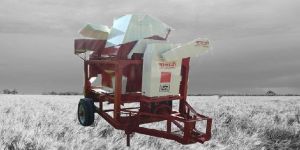

In Balaji Single Shaft Thresher, threshing rotor and blowers are mounted on same shafts. Required Input RPM to the threshing shaft is given by belt and pulley drive from the input power unit eg. Tractor/motor or engine. . There are two blowers mounted one is for suction and throwing chopped waste and second is for fine cleaning of the output grain. Body of very heavy gauge welded steel plates with the following features. Drum: Rasp bars made from hardened EN-8 material for longer life CONCAVE: Made from polish square steel bars for better threshing without damaging seeds. Aspiration: Precisely adjustable air flow with high performance fan. Undercarriage:Two large 6.00 X 16 tyres on a single axle made from 40 mm square bar ensures easy movement on road and field. Also jacks are provided in the front to adjust towing height for tractor towing. Drive : Normally Single Shaft Thresher are supplied with tractor driven attachment. OPTION Feeding: single shaft thresher can be supplied with two different feeding mechanisms as under. Simple Feeding Mechanism. Auto Feeding mechanism. In Simple feeding mechanism one has to put grains to be threshed in feeding hopper and have to push the same till threshing rotor sucks the same. And In auto feeding mechanism no pushing is required. Harvested crop will be automatically sucked by rotating auto feeding hopper. SPECIAL FEATURES Back Side Blower : This feature helps to throw waste /residuals away from thresher operating area on the back side. This helps protecting tractor / Engine radiators from blocking due to straw going in because wind direction change while working. Table : Special design of table without any legs provides straight working platform irrespective of land level which is normally not even in fields. Also gives flexibility of moving thresher from one place to another without folding the table and reopening the same. Adjustable Towing Hook: Towing hook height can be easily adjusted by just opening & closing 4 nos. of bolts . This gives flexibility for towing vehicle hook height for different make of tractors. Extra Heavy Spiral Bevel Gear Box : Extra heavy gear box, complete machines with  single cast iron body gives years of reliable life. Fine Cleaning Blower : This helps in achieving almost 100 % clean grains as an output by blowing small impurities which has passed through grain screen due to their small size. Wide Sieves: Extra wide screen provides enough space so that grain and chopped straws can be spreads properly and hence grains can pass sieves quickly for further cleaning and collection. Equal and fast spreading also prevents grains thrown away with the blowing effect.

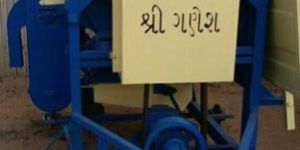

Multi Crop Thresher /SideShaft Thresher: Multi Crop Thresher also known as side shaft thresher has thrshing rotor and blower. This Machine is state of the art design to handle different variery/size/shape of grains and pulses. This machine can thresh almost all the crops like castor, soyabean, maize, wheat, millet, cluster bean, mustard, pegion pea, mung beans, peas, sunflower, fenugreek, cumin seed, Isabgul(phylium), Rajgara, coriander seed(dhaniya) etc… Construction :In this machine threshing rotor and blowers are mounted on different shafts. Required Input RPM to the threshing shaft is given by belt and pulley drive from the input power unit eg. Tractor/motor or engine. From the back end of the threshing shaft belt and pulley drive is given and a required RPM is transferred to a shaft mounted on one of the side of thresher. And from there with belt and pulley drive rotation is provided to a blower shaft at the back end of thresher. There are two blowers mounted one is for suction and throwing chopped waste and second is for fine cleaning of the output grain. OperationAs the crop to e fed in the feeding hopper , threshing rotor applies gentle threshing/shelling and press the material to the concave sieve made from square polish bars resulting separation of grains and covers. From there onwards grains fall on reciprocating sieve chamber and passes through the screen. Wastage ( chopped straws) can not pass through the holes due to there bigger size and ejected through powerful blowers and falls away from the operating area. Small dust particles which passes through screens along with grains in the reciprocating sieve chamber finally blown by refining fan mounted on main shaft having air discharge to the final output of grains. Options:Drive : Normally machines are supplied with tractor driven attachment but upon request it can be mounted on diesel engine or electrical motor drive. Feeding: Machines can be supplied with two different feeding mechanisms as under. Simple Feeding Mechanism. Auto Feeding mechanism. In Simple feeding mechanism one has to put grains to be threshed in feeding hopper and have to push the same till threshing rotor sucks the same. And In auto feeding mechanism no pushing is required. Harvested crop will be automatically sucked by rotating auto feeding hopper. SPECIAL FEATURES:Back Side Blower : This feature helps to throw waste /residuals away from thresher operating area on the back side. This helps protecting tractor / Engine radiators from blocking due to straw going in because wind direction change while working. Table : Special design of table without any legs provides straight working platform irrespective of land level which is normally not even in fields. Also gives flexibility of moving thresher from one place to another without folding the table and reopening the same. Adjustable Towing Hook: Towing hook height can be easily adjusted by just opening & closing 4 nos. of bolts . This gives flexibility for towing vehicle hook height for different make of tractors. Extra Heavy Spiral Bevel Gear Box : Extra heavy gear box, complete machines with all CNC facilities and single cast iron body gives years of reliable life. Fine Cleaning Blower : This helps in achieving almost 100 % clean grains as an output by blowing small impurities which has passed through grain screen due to their small size. Wide Sieves: Extra wide screen provides enough space so that grain and chopped straws can be spreads properly and hence grains can pass sieves quickly for further cleaning and collection. Equal and fast spreading also prevents grains thrown away with the blowing effect.

Auto Feeder- 3 Feet Multi Crop Thresher   In addition to provide wide drum size of 3 feet company had start manufacturing & Supplying of 3 Feet Multi Crop Thresher Auto Feeder which is beat to rear and side basket thresher model in to the market. Farmers are more hesitate to do physical other unwanted operation in basket model thresher so that conclusion to remove farmer's hesitation with basket model costly thresher lancer made this variant. Our 3 Feet Multi Crop Thresher Auto Feeder features two heavy fly wheels which are fitted in front and middle portion of the thresher. This in addition to a short shaft does not shed more than the required load on the tractor which improves fuel efficiency considerably. The 32 inches wide foldable sieve makes it easy to change the mesh in short time thus leading to better average for all crop types. An adjustable hook has been provided which can be pulled up and down according to the requirement. Our offered 3 Feet Multi Crop Thresher Auto Feeder is built using world class material and has powder coating to protect the body against corrosion. Further, the fabricated chassis provides the required sturdiness to the structure.   Two heavy fly wheels are fitted in the front and middle portion of the thresher and a short Shaft ensures minimal load on the tractor and hence saves fuel. 30" wide sieve ensures better average for any crop. The sieve being foldable makes possible to change the mesh in 15 minutes. Machines are equipped with the good quality V-belt, ensuring longevity of the same. All models have the facility to throw the residue from the rear side. Hook has been specially designed to push it up or down, as per the requirement. Extra winnowing basket is provided for additional chafing and cleaning. Fabricated chassis- great rigidity of structure. Powder coated : excellent resistance to corrosion.

• Function: Multi Crop
• Power required (in hp): > 15 hp
• Threshing Capacity (in kg/hr): 3000 - 5000 kg/hr

• Brand Name: Tiger
• Capacity: 1500 to 4000 (Kg/Hour)
• Model Name/Number: Th25
• Dimension Mm: 4318 X 1524 X 1926
• Weight: 1250 Kg
• Threshing Cylinder Type: Spike
• Drum Size: 889x762mm
• Tyre Size: 6.00 X 16 mm
• Tractor Power: 35 HP

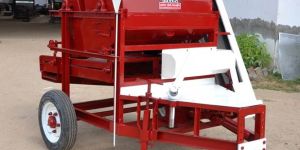

Natraj Threshar is one of the leading Manufacturers and Suppliers of Mini Thresher. The Mini Castor Thresher designed by us is of ideal capacity suitable for medium threshing of maize, sunflower, soyabean, wheat, barley and castor. Operated with tractor PTO drive, this Mini Thresher is a trailing type with three point linkage (cat iii). Further, the Mini Thresher has simple operations, requires less manual labor and has less fuel consumption. Clients can avail rigidly constructed, efficient and smoothly working Mini Castor Thresher from us in the required specifications at the most competitive prices.

• Power required: 35 hp
• Capacity: High
• Brand Name: Martiaen
• Usage/Application: Tractor
• Material: Mild Steel
• Function: Multi-Crop
• Working: Regular
• Minimum Order Quantity: 1 Piece
