BLISS ANAND PVT LTD Manesar, Haryana

Bliss Anand Sight Flow Indicators provide an effective way to view the condition of liquids or solids flowing through pipelines at most any flow, pressure, or temperature, a major advantage over electronic devices where it is difficult to distinguish if there is a flow problems or malfunction in the device. Bliss Anand Sight Flow Indicators assure a direct and positive indication of flow rate, flow direction and condition of the medium being transported plus enable a means of inspecting pipelines for dirt, scale and foreign matter.

Bliss Anand brings you two models of Radar Transmitters - The BlissFlex 2200 and the BlissWave 5200 BlissFlex 2200 Series       The BlissFlex 2200 Guided Wave Transmitter is used for measuring distance, level, volume and mass. It is reliable and frequently used for common applications.     Specification     Accuracy +/- 0.12". Measurement range up to 130 feet. Output 4-20 mA HART / FF / Profibus PA.. Explosion-proof and intrinsically safe. Enclosure rating to NEMA 4X. SIL2. CRN approval. Meets high pressure high temperature requirements. BlissWave 5200 Series       Our BlissWave 5200 Series is a radar meter for liquid applications. The design incorporates a unique locking system and antenna extensions to allow compatibility with various mounting positions and applications.     Specification     High accuracy and repeatability. Measurement range up to 98 feet. Output 4-20 mA HART / FF / Profibus PA. Explosion-proof and intrinsically safe. Enclosure rating to NEMA 4X. CRN approval. Meets high pressure high temperature requirements.

The Model BAMR3/4 liquid level transmitter satisfies the demand for an analog communication interface for magnetic level gauge (MLG) applications. The Model BAMR3/4 transmitter provides a 4-20mA output for most MLG manufacturers and allows for mounting external to the chamber without interrupting the process. Features  High accuracy and Repeatability  4 to 20 mA analog output with HART® No drift due to changes in:          - Dielectric        - Vapor Composition        - Temperature        - Pressure      Factory calibrated (No recalibration or maintenance     required)     AMS aware     Explosion-proof and/or Intrinsically Safe     Applications        Inventory Control        Process Vessel        Bypass Chamber

Bliss Anand Magnetic Level Gauges are highly accurate, low-maintenance alternatives to sight glasses and other outdated level indicators. They provide redundant, non-invasive level indication while eliminating leak points and fugitive emissions. Their robust design is ideal for high temperatures, high pressures and corrosive services. Bliss Anand gauges are easy to install and require no extra piping in most applications.

Bliss Anand Magnetic Level Gauges are highly accurate, low-maintenance alternatives to sight glasses and other outdated level indicators. They provide redundant, non-invasive level indication while eliminating leak points and fugitive emissions. Their robust design is ideal for high temperatures, high pressures and corrosive services. Bliss Anand gauges are easy to install and require no extra piping in most applications.

Bliss Anand Magnetic Level Gauges are highly accurate, low-maintenance alternatives to sight glasses and other outdated level indicators. They provide redundant, non-invasive level indication while eliminating leak points and fugitive emissions. Their robust design is ideal for high temperatures, high pressures and corrosive services. Bliss Anand gauges are easy to install and require no extra piping in most applications.

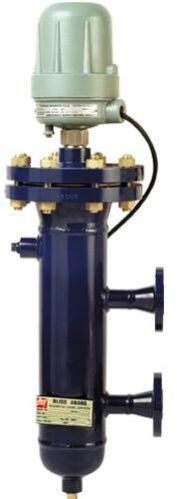

Bliss Anand Type 2 & 3 switch mechanism are fitted with magnetically operated snap-action contact switches. The Bliss Anand switches operating mechanisms are constructed entirely in AISI304 stainless steel and fitted with a terminal board of resin suitable for high temperature applications. These two switches mechanism differ in the type of snap-action switches fitted and cover a wide range of applications and operating conditions.     Specification     Special coating and linings. Special testing inspection and certification. SPECIAL MATERIALS such as low temperature steel, AISI 316 L stainless steel, inconal, monel and PVC for chambers. AISI 316 L, inconal, hastelloy, monel, teflon etc. for internal parts. SPECIFIC CONNECTIONS. SPECIAL MODELS for very high pressure. EXTERNAL CHAMBER for series 7700 models.

Gas Fired Indirect Water Bath Heaters designed in full compliance to API 12K specifications. Natural Draft Burners, directly mounted on Fire Tube. Forced Draft Burners also provided as per requirement. Precise temperature control of Water Bath. Equipment adequately designed to allow sufficient retention period.Removable Single or Twin Fire Tube Design. Removable Heating Coil for ease of maintenance. Burners System complete with Pilot, Main Burner, Gas Train, Spark Igniter with Transformer provided. Flame Arrestors at Burners Air Intake and Stack Top provided.  Large Heating capacity upto 5 Million K.Cal/Hr.

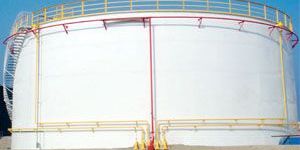

Design, engineering, procurement and fabrication of above ground steel storage tanks with complete in-house design facility for floating, cone & dome roof tanks as per API 650. Supply includes tank protection systems like fire protection, rim seal fire protection, and cathodic protection systems.Procurement & supply of tank accessories like flame arrestors, side entry mixers, radar gauges, level instruments, heating coils & other instruments as per engineering requirement. Technical support & assistance provided by trained personnel during erection & commissioning.

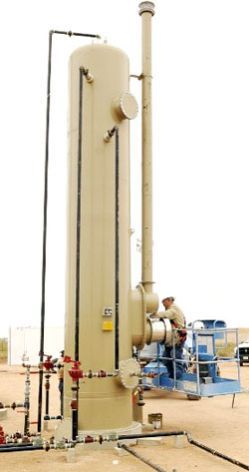

Bliss Anand Heater Treaters are designed to carry out the process of oil-gas separation, free water removal, heating, settling and washing of crude oil all within a single compact unit.The heater treater is skid mounted and complete with valves, instruments and accessories to ensure safe and reliable unattended operation.   Specification       Gas separation section designed to “thin film” entering emulsion for quick gas break out.        Immersed downcomer piping from gas separation section to emulsion spreader serves as an effective heat exchanger to preheat incoming emulsion and cool the clean oil.       Deep Freewater Knockout sections below the firebox provides isolation and draw off free water, thereby avoiding unnecessary heating of water and conserving fuel.       Controls & Instrumentation provided to accurately measure the Gas, Oil & Water Flow rates, regulate the Pressure and Monitor the levels of Oil, Water in the Separator.       Quick adjustable outside water siphon provides easy interface control over a wide range of water and oil specific gravities.        Adequate surge volume in the clean oil section relieves heading overload in gas separation section eliminating the possibility of liquid carry-over with the gas.       High capacity firebox furnishes abundant heat and quick response to thermostatically controlled demand.

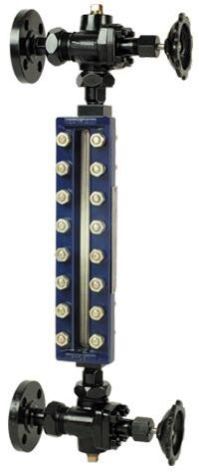

Bliss Anand Level Gauge standard construction includes a solid one-piece chamber machined from carbon steel with covers, toughened glass and chrome molybdenum bolds and nuts. All metal parts are rust proofed. Recessed gasket seat prevent movement and insure leak-free service. Sturdy Construction For clear liquids. High Pressure 4000 PSIG @ 100 Deg.F. Clear line of seperation visible from a distance. Variety of materials and Configuration. Visible length from 200 mm to 3000 mm.

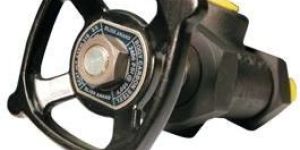

Recommended for use with Bliss Anand Liquid Level Gauge Series and is compatible with all armored flat glass Liquid Level Gauges.  Stainless stell ball check located upstream of the seat instantly shuts off flow in case of gauge glass break.Union gauge connection enables gauge removal without removing the gauge valves.Standard unit consist of ASTM A105 forged carbon steel body,316/416SST stem, grafoil packing, 316 SST ball check, steel handle and ½” FNPT vent & drain.

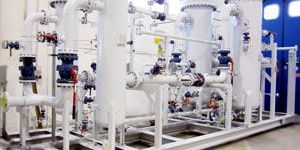

Ensures supply of Dry and Dust Free Gas.Generally it comprises of a 1 × 100% Knockout Drum & 2 × 100% Filter Separators together with Indirect Water Bath Heater (as per service requirement) complete with Interconnecting Piping, Valves, Instrumentations, Electrical and PLC based Control Panels for unattended & smooth operation.Separation and Removal of Liquid from the Gas Stream.Compact, well-engineered skid mounted layout to facilitate easy access to all Valves, Instruments & Filter Elements.Condensate Tanks & Vent Stack also provided. Stainless Steel piping used downstream of Filter Separation System to ensure contaminant free pure gas.

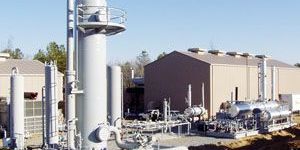

For removal of liquid / solid particles down to 1 micron with 99. 9% efficiency.Horizontal / Vertical design. High performance, proven make, coalescing type glass fiber elements used in primary section.Secondary section provided with efficient impingement separators or mist eliminators to remove coalesced liquid. Compact, well engineered skid mounted layout to facilitate easy access to all Valves, Instruments & Filter Elements.In horizontal filter separator down comers from primary and secondary sections pass liquid to sump to prevent re-entry. Large liquid collection volumes. Equipment provided with quick opening closures for quick access to filter elements. Provision for automated liquid level monitoring & liquid removal.

ASME NB Certified: Air, Steam & Water European CE Approved Sizes 1″ X 2″ to20″ X 24″. Actual orifice areas from 0.150 to 176.7 square inches.Pressures from 15 to 6000 psig. Temperature range from -450° F to +1500° F. Steel body and bonnet with stainless steel trim. Optional balanced bellows design isolates working parts and top-works from fouling or corrosive service, and nullifies the effects of back pressure on valve performance. The "D" to "T" orifices meet API Standard 526 covering orifice areas and center-toface dimensions. Super capacity types range from "W" (63.62 sq. in.) to "Z" (176.7sq. in.) and have a maximum set pressure limit of 300 psig. Optional materials of construction include complete 316 stainless steel, Monel®,and Hastelloy® C.Also available with materials in compliance with NACE standards.Higher temperature models use chrome moly body and bonnet. Optional O-ring elastomer seat available for maximum tightness.

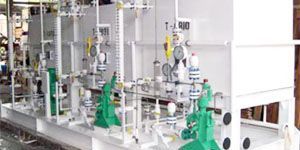

The Chemical Injection Systems are mainly used to inject a precise and accurate amount of chemical into a system with the required back pressure, continuously or at intersvals.These systems are built to customer requirement and in accordance with international design codesstandards.Pump selection, material of construction compatibility with chemical. Use of proven system component, 3D modelling to check case of operation and maintenance etc. are some of the key design features of our system.
