Albertsons International Private Limited Balmatta, Mangalore, Karnataka

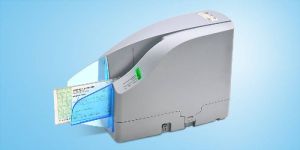

Model CX30 Modes Scan & Return mode Pass through mode Resolution 300 dpi (1276 Pixel Linear array) MICR In-line MICR Recognition UV Scan Available Speed 50cm per second Scanning method Concurrent Two-Sided Duplex Light source Tricolour LED Scanning Type Grayscale, Colour, UV. Image resolution 300 x 300 dpi – 8 bit grayscale300 x 300 dpi – 24 bit colour Supported compression JPEG, BMP, TIFF. Printer Single line inkjet printer for endorsement Standard Interface USB 2.0 with USB-mini Type B Input Voltage 100 to 240 VAC, 50/60 Hz Power Consumption 24 watts Operating Temperature 15° – 32° C Operating Humidity 35 – 85% non-condensing Dimensions (L x W x H) (238.3 x 99.6 x 189.7) mm Unit Weight 1.8 Kg Supported Operating Systems Windows XP, Windows Vista(32/64 bit), Windows 7(32/64 bit), Windows 8(32/64 bit), Windows 10(32/64 bit) Certifications Safety : UL, cUL, CEFCC : Class AEMC : IEC CEEfficiency : CEC V 115V PSRoHS Compliant

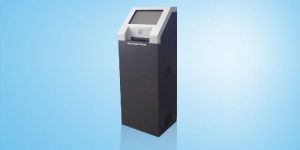

Albertsons Passbook Updation Kiosks are state of the art solutions for passbook updation and other banking facilities round the clock. Key Features: Touch enabled simple & easy to use interface with graphics to guide the user. Inbuilt barcode scanner. Manual page turn. Printing commences exactly on the following line of the previous printed line on the selected page. Voice prompt & multi-lingual text on touch panel

Detection of Denomination, Face, Orientation, Version, Multi-currency Fitness sorting for ATM (Tape, Soil, Folds, Cut, Hole, Half, dirty, old & new, Double, Chain, Counterfeit) Modes – Authentication, Value counting, Sorting, Count, Add, Batch Counting Speed –4006007008001000 notes per minute Sorting Speed – 4006007008001000 notes per minute Hopper capacity – 500 notes

Detection of Denomination, Face, Orientation, Version, Multi-currency Fitness sorting for ATM (Tape, Soil, Folds, Cut, Hole, Half, dirty, old & new, Double, Chain, Counterfeit) Stacker capacity – Accept Pocket 200 notes Reject Pocket 200 notes with Batching Facility. Note Thickness – .06mm to .12mm

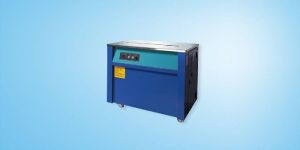

Easy Maintenance, User friendly, Heavy duty and Rugged, High performance heater for fast stable heating and secure joining result Strapping is quickly accomplished in just 2 seconds, Machine stops automatically after 60 seconds if not in use, Excellent quality of Timer PCB , solenoid and Electronic components.

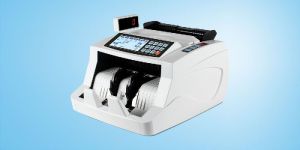

Model Cashclean-100LV Operational Features Modes – Authentication cum value counting, Count, Add, Batch, Denomination sort. Counting speed– 1150 notes per minute Hopper capacity-300 notes Stacker Capacity-200 notes Note thickness– 0.075 mm to 0.15 mm Counting method – Roller friction Type Control – Microcontroller based System Setting information– Stored in Internal Memory Sensors- MT, MG, UV, IR and 3D User Interface– Membrane Keypad and Display Display-Dual Colour Alpha-Numeric Large LCD Display Turret display-3×6 Digits LED Display Error indicator – Beeps, Display background colour changes from normal to Red and displays the reason of suspect CAT5– Turret Display & Software Up-gradation. Software Upgradable – Yes Recent Up-gradation – Pattern detection in security thread Physical Parameters Dimension (mm) – 300x263x206 Gross Weight -6.5 Kg Design– Open Architecture – Easily accessible, Jam free operation Cooling System – Fan- Exhaust Type- For dust suction and cooling the sensor Power supply specifications Power supply – 220V AC ± Power consumption – ≤70 W Power socket-5 AMPS 3 PIN with earthing Environmental parameters Operating Temperature-50°F (10°C) to 113°F (45°C) Relative humidity -20% to 80%

Area of detection– 12 inch, Simultaneous detection– Single note or Packet note, Ultraviolet (UV) type – Long wave (UV – A), Wave length– Low energy, 366 nm, Radiation-Well within safety level, UV tube – scan ultraviolet characteristics, Daylight (DL) tube– detect watermark, Lens – detect micro printing.

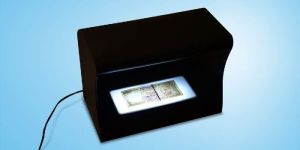

Area of detection– 12 inch, Simultaneous detection– Single note or Packet note, Ultraviolet (UV) type – Long wave (UV – A), Wave length– Low energy, 366 nm, Radiation-Well within safety level, UV tube – scan ultraviolet characteristics.

Detection of Denomination, Face, Orientation, Version, Multi-currency, Fitness sorting for ATM (Tape, Soil, Folds, Cut, Hole, Half, dirty, old & new, Double, Chain, Counterfeit).

Area of detection– 12 inch, Simultaneous detection– Single note or Packet note, Ultraviolet (UV) type – Long wave (UV – A), Wave length– Low energy, 366 nm, Daylight (DL) tube– detect watermark, Lens – detect micro printing.

Area of detection– 12 inch,Simultaneous detection– Single note or Packet note,Ultraviolet (UV) type – Long wave (UV – A), Wave length– Low energy, 366 nm. Operational Features:Radiation-Well within safety level,UV tube – scan ultraviolet characteristics, Daylight (DL) tube– detect watermark, Lens – detect micro printing.

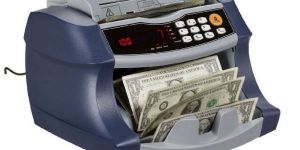

Counting speed– 1000 notes per minute, Hopper capacity-300 notes, Stacker Capacity-200 notes, Note thickness– 0.075 mm to 1.5 mm, Counting method – Roller friction Type, Control – Microcontroller based System, Setting information– Stored in Internal Memory, User Interface– Membrane Keypad and Display, Error indicator– Buzzer with Error Message & colour change, RS232 Connector– Turret Display & for Up-gradation of software.

TS240 Detailed Information Model TS240 Modes Batch Capture Mode Single Item Hand Drop Mode Resolution 300 dpi (850 Pixel Linear array) MICR In-line MICR Recognition UV Scan Available Speed 72.5 cm per second Scanning method Concurrent Two-Sided Duplex Light source Tricolour LED Scanning Type Grayscale.

Modes – Authentication cum value counting, Count, Add, Batch, Denomination sort, Counting speed– 1150 notes per minute, Hopper capacity-300 notes, Stacker Capacity-200 notes, Note thickness– 0.075 mm to 0.15 mm, Counting method – Roller friction Type, Control – Microcontroller based System, Setting information– Stored in Internal Memory, Sensors- MT, MG, UV, IR and 3D, User Interface– Membrane Keypad and Display.

Easy Maintenance, User friendly, Heavy duty and Rugged, High performance heater for fast stable heating and secure joining result, Strapping is quickly accomplished in just 2 seconds, Machine stops automatically after 60 seconds if not in use, Excellent quality of Timer PCB , solenoid and Electronic components, Castor wheels for portability with easy locking, Power Source –230 +- 10 V 5060Hz, Single Phase, Power Consumption –0.4 KW.
