Serwel Electronics Pvt. Ltd Isnapur, Medak, Andhra Pradesh

with a vision to provide Power Solutions. Serwel is committed to excellence in the areas of Designing, Manufacturing and Development of all types of power products viz. a viz Power, Distribution & Isolation Transformers, Servo Stabilizers, Power Saving and Power Conditioning Equipments, APFC & LT Panels, UPS, Inverters and Earth Pit Monitoring Systems etc. Technical Specifications System Connections : Star Input Voltage : 415V 3 Phase Output Voltage : 0 – 470V 3 Phase (Continuously Variable) Power Factor : 0.75 Lead to 0.75 Lag Di-electric Strength : 2.5KV for 60 sec Insulation Resistance : Better than 100Mega Ohms Construction Standards : As per IS 5142 Type of Execution : Closed Type Operating Temperature : 00 C to 450 C

Technical Specifications System Connections : Star Input Voltage : 415V 3 Phase Output Voltage : 0 – 470V 3 Phase (Continuously Variable) Power Factor : 0.75 Lead to 0.75 Lag Di-electric Strength : 2.5KV for 60 sec Insulation Resistance : Better than 100Mega Ohms Construction Standards : As per IS 5142 Type of Execution : Closed Type Operating Temperature : 00 C to 450 C Type of cooling : Natural air Oil cooled Type of control : Motorised with Increase & Decrease switches

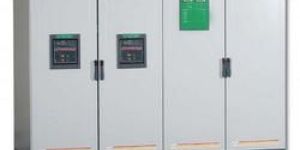

Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage. Features ; Individual Phase control By pass provision Suitable for individual phase applications Quick response time 10 milli sec (half a cycle) Very high efficiency above 98% Excellent regulation as high as +- 0.5% “Micro controller” controlled system

With Very High Speed of Correction provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage.

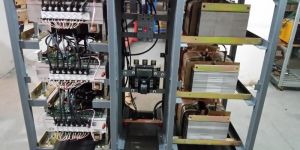

With Very High Speed of Correction provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage. IGBT PWM AC to AC Switching control Individual Phase control Quick response time

Power distribution unit is fitted with multiple outputs designed to distribute electrical power. In a data centre, all the distributed power loads are connected through a non linear power source, due to which HARMONICS generation is unavoidable.These generated Harmonics are flow back and directly effects the mains power source, which a UPS. The effect of harmonics derates the capacity of UPS. Hence 100% utilization of UPS capacity becomes wasted. The effect of harmonics also creates much heat in the transformers of UPS. To eliminate these direct effects on UPS, KFactor Transformers are designed based on the harmonics present the load. The special design of K-Factor Transformer helps us to depend on much to eliminate or withstanding from the effects of Harmonics.

Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage. Technical Specifications Input Voltage Range : 300 – 460V 340 – 480V 360 – 460V AC 3 Ph Output Voltage (3 Ph) : 415V AC System : Unbalanced 4 wire: R Y B N Connections : Star Operating Frequency : 47 to 53 Hz Output Voltage Adjustable : 380 to 415V AC in 3 Ph

Our clients are most concerned about power issues such as power failure, power sag, power surge, under voltage or over voltage, frequency variation, harmonic distortion and line noise. Servomax emphasizes the areas of redundant power supply, voltage regulation, equipment protection and adjustment. Their power range, applications and the equipment they protect are listed below:

Power Factor Controllers are designed to operate, Automatically with Micro Processor Based Automatic Controller Use a specially designed electronic control circuit that improves power factor to meet requirements of load switching pattern Improvement of power factor up to optimum levels is guaranteed Product range: 20 KVAr to 1000 KVAr. We provide solutions for improving plant power factor by installing our APFC panel Heavy duty capacitors with detuned filters will be provided where high level non linear harmonies present upto 30%

Provides perfectly stable output even under severe conditions of unbalanced voltage conditions. Ideal to protect the electrical and electronic equipments from high and low voltage. Technical Specifications Input Voltage Range : 300 – 460V 340 – 480V 360 – 460V AC 3 Ph Output Voltage (3 Ph) : 415V AC System : Unbalanced 4 wire: R Y B N Connections : Star Operating Frequency : 47 to 53 Hz Output Voltage Adjustable : 380 to 415V AC in 3 Ph Output Voltage Regulation : + 1% (No Load) Output Voltage Regulation : + 1% (Full Load) Overload Capacity : 120%
